180° 3-way adjustable hinge

180° 3-way adjustable hinge

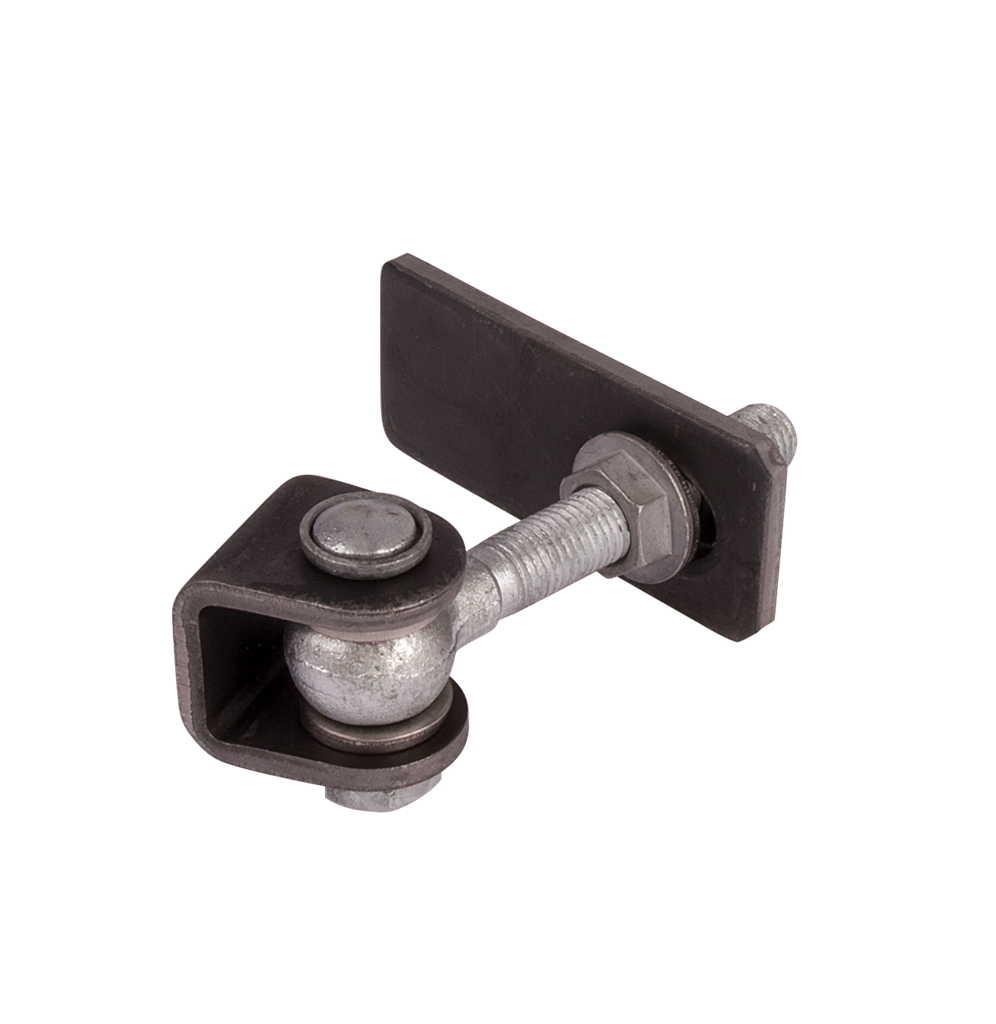

180° 3-way adjustable hinge - GBMU-B-M18-150-50

Item No. P00012662 - GBMU-B-M18-150-50

Specifications
Drawings
Downloads

Specifications

Specifications

180° opening and closing angle
Eyebolt, bolt & nut, hot-dip galvanised
U-shaped ear plate and groove plate in black steel or zinc plated to weld on
Available in 4 sizes: M12, M16 - M18 - M20 - M22
Packed per 50 pieces or per pair

Drawings

Downloads

Product

Download *.JPG
Download CMYK *.TIF
Download RGB *.TIF
Perfion__Image1Image

2D/3D drawings

Download *.TIF
Download *.JPG
Download *.JPG
