180° Bolt-on 4D adjustable hinge - BOLTONHD-4D-QF-M16-110-02-ALUM

Item No. P00015372 - BOLTONHD-4D-QF-M16-1

180° Bolt-on 4D adjustable hinge (2 pieces) - M16 - Bolt-on U-shaped earplate with Quick-Fix fixing & Bolt-on GRIP with Quick-Fix fixing - Uncolored

Specifications

Perfion__Bullets	Eliminates the need to stock left and right swinging gates 180° opening Vandal-proof eyebolt & crossbolt 1" adjustable in depth U clamp and GRIP in aluminum Hot-dip galvanized eyebolt and crossbolt 9/16" adjustable in height Max width of the gate: 6-1/2 ft Easy to fix with Quick-Fix
Specifications	Eliminates the need to stock left and right swinging gates 180° opening Vandal-proof eyebolt & crossbolt 1" adjustable in depth U clamp and GRIP in aluminum Hot-dip galvanized eyebolt and crossbolt 9/16" adjustable in height Max width of the gate: 6-1/2 ft Easy to fix with Quick-Fix
Available in following RAL-colors
Features

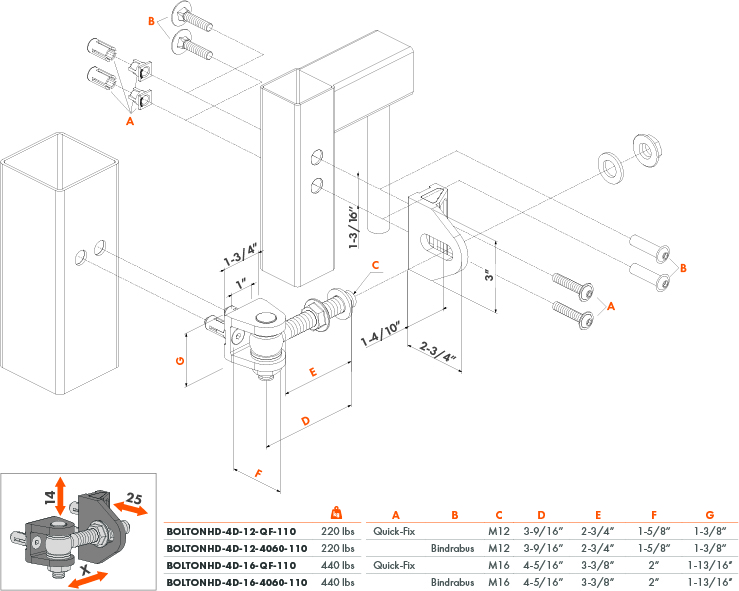

Drawings

Installation movies

Downloads
