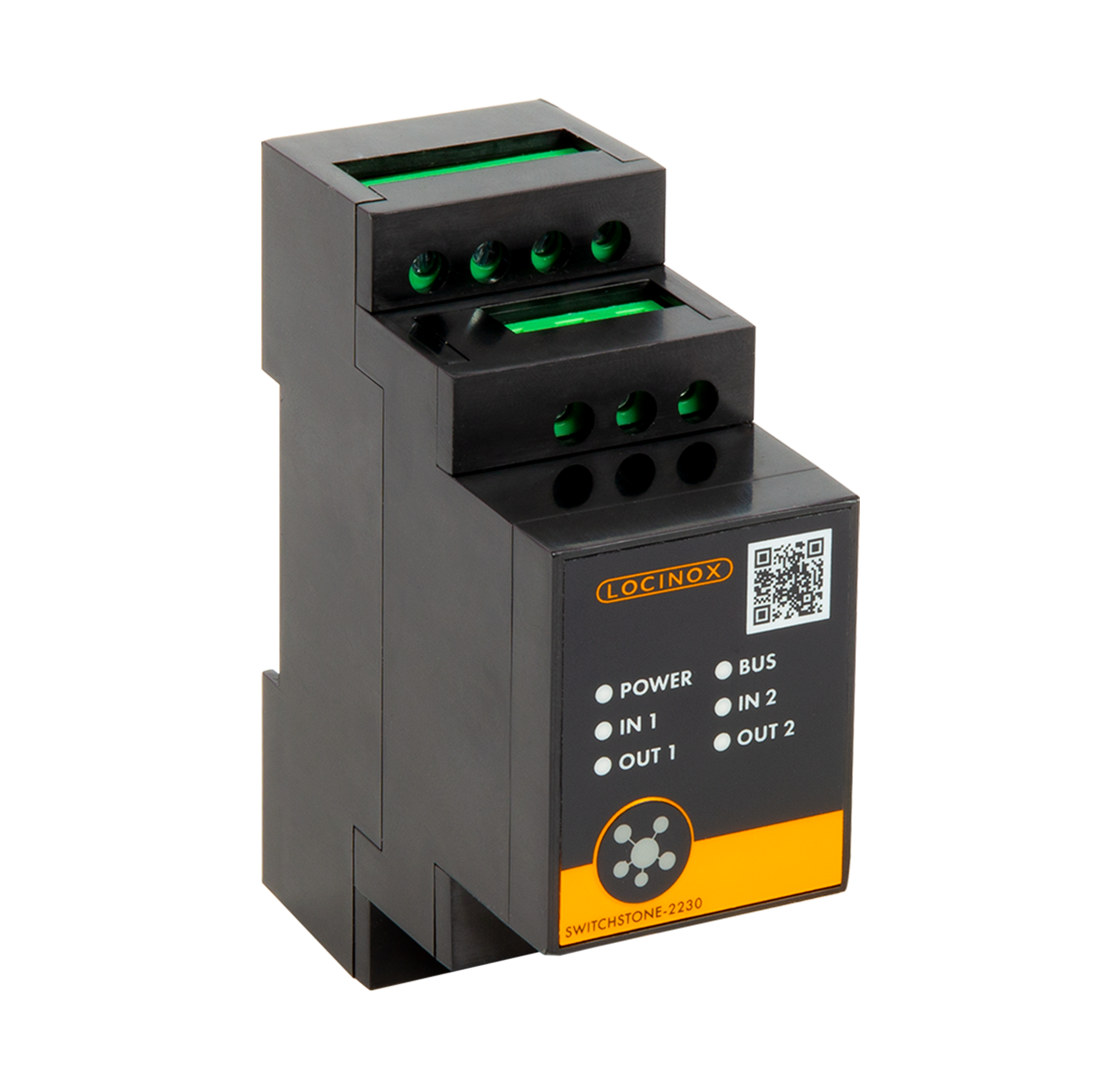

2-channel relay module

Item No. D00000133 - SWITCHSTONE-STD

The SwitchStone-STD relay module has been developed to work in combination with devices such as the SlimStone-X keypad. The SwitchStone-STD ensures maximum security thanks to 2 external relays, both with a Common, Fail Open and Fail Close contact. These relays are capable of switching voltages up to 250V AC/26V DC, allowing them to be used in a wide range of applications, including switching lighting. Free exit functionality can be easily implemented using the 2 inputs on the module.

Product specs

No products found.

Specifications

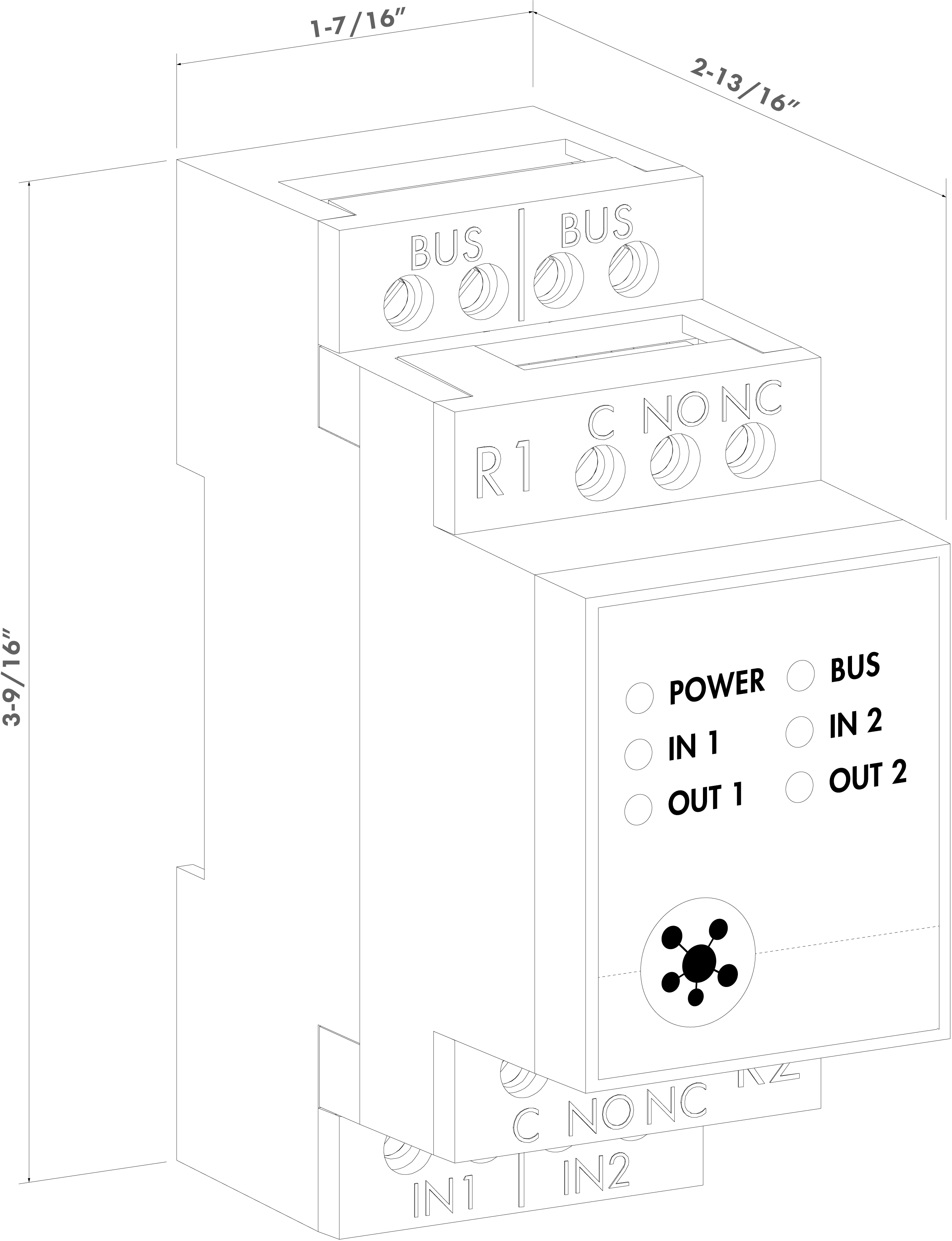

Drawings
Downloads

Specifications

Includes 2x 250V AC/26V DC relays, each with COM, Fail Open and Fail Close contact
Long range secure 2-wire communication with the SlimStone-X, up to 985' distance
Auto back up functionality
DIN-rail mountable
Tested from -22°F to 185°F
Relay switching duration adjustable between pulse and timer mode (500 ms - 99 s)
To be used exclusively with the Powerstone 60W power supply
Current: maximum 0.07 A
Consumption: maximum 1.7 W
