2-channel relay module

2-channel relay module

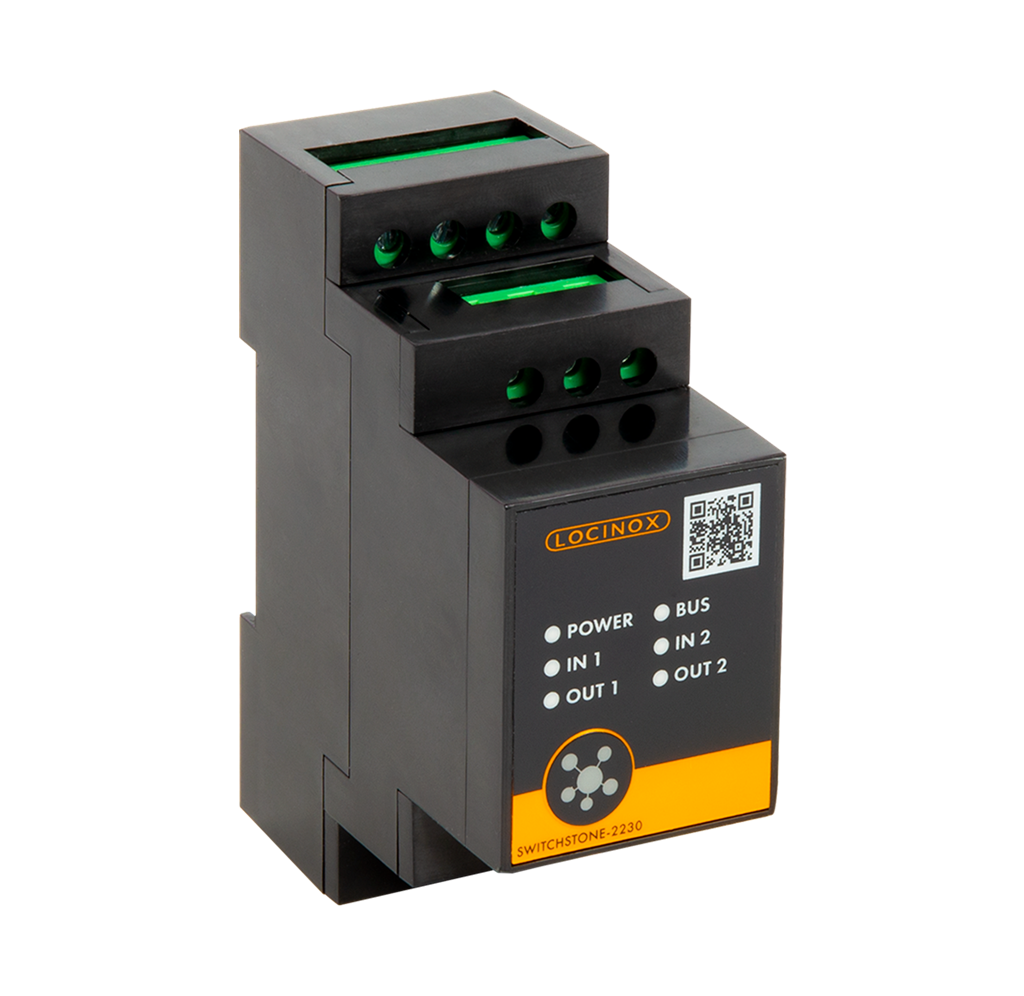

2-channel relay module - SWITCHSTONE-STD-X-230

Item No. P00009532 - SWITCHSTONE-STD-X-23

Specifications
Drawings
Downloads

Specifications

Specifications

Includes 2x 250V AC/26V DC relays, each with COM, Fail Open and Fail Close contact
Long range secure 2-wire communication with the SlimStone-X, up to 985' distance
Auto back up functionality
DIN-rail mountable
Tested from -22°F to 185°F
Relay switching duration adjustable between pulse and timer mode (500 ms - 99 s)
To be used exclusively with the Powerstone 60W power supply
Current: maximum 0.07 A
Consumption: maximum 1.7 W

Drawings

Downloads

Product

Download *.JPG
Download CMYK *.TIF
Download RGB *.TIF
Perfion__Image1Image

2D/3D drawings

Download *.TIF
Download *.JPG
Download *.JPG
