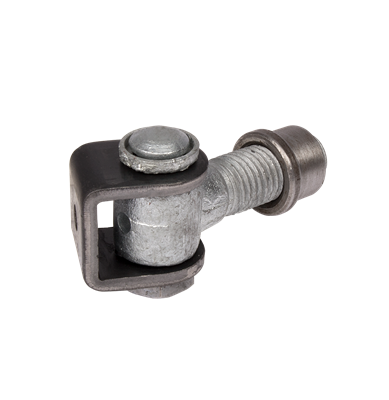

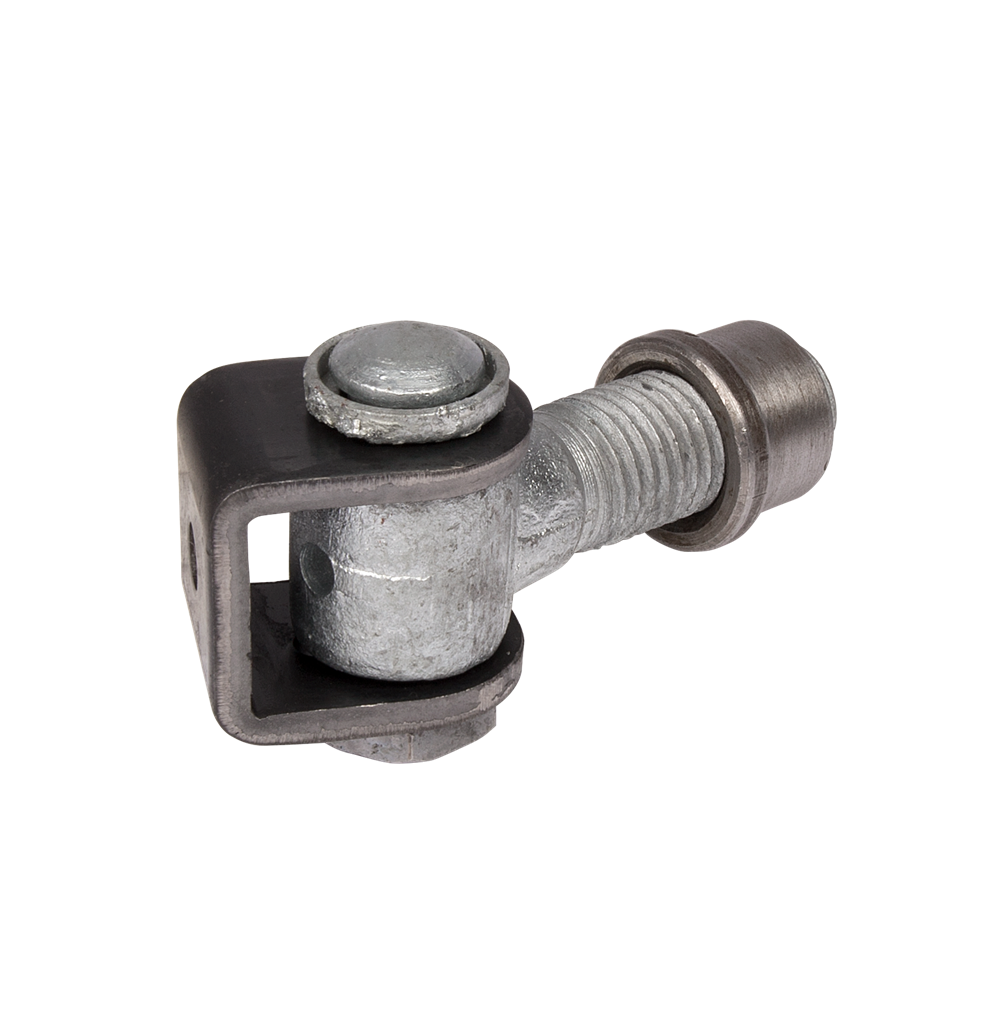

90° adjustable hinge

90° adjustable hinge

90° adjustable hinge - G90Z-Z-M20-150-50

Item No. P00012623 - G90Z-Z-M20-150-50

Specifications
Drawings
Downloads

Specifications

Specifications

90° opening
Nut in black steel for welding
Earplate in black steel or cold zinc plated
Eyebolt: M16 (5/8") or M20 (13/16") hot dip galvanized
Hinge Bolt: M14 (9/16") hot-dip galvanized
Packed per 50 pieces or per pair
