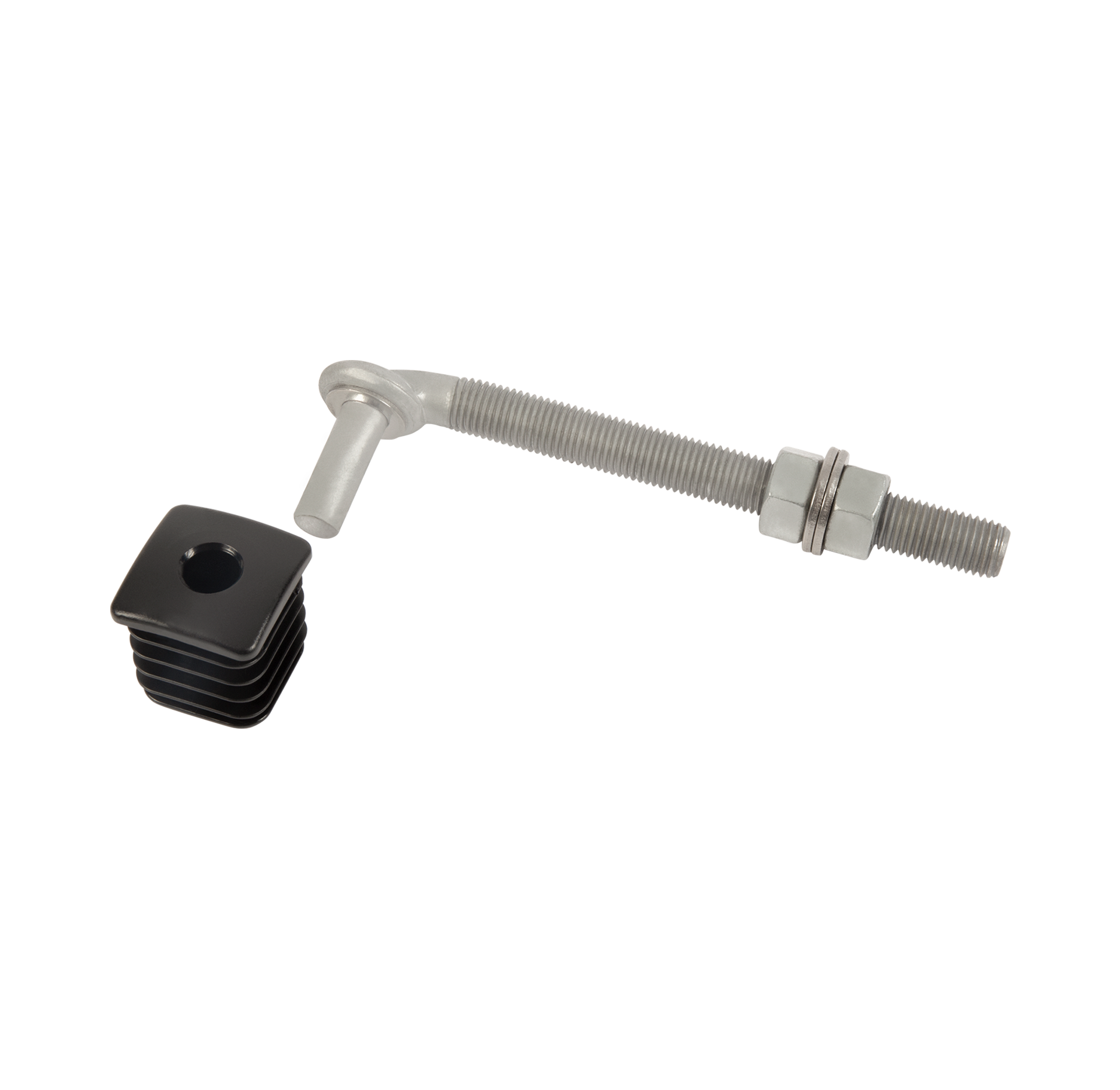

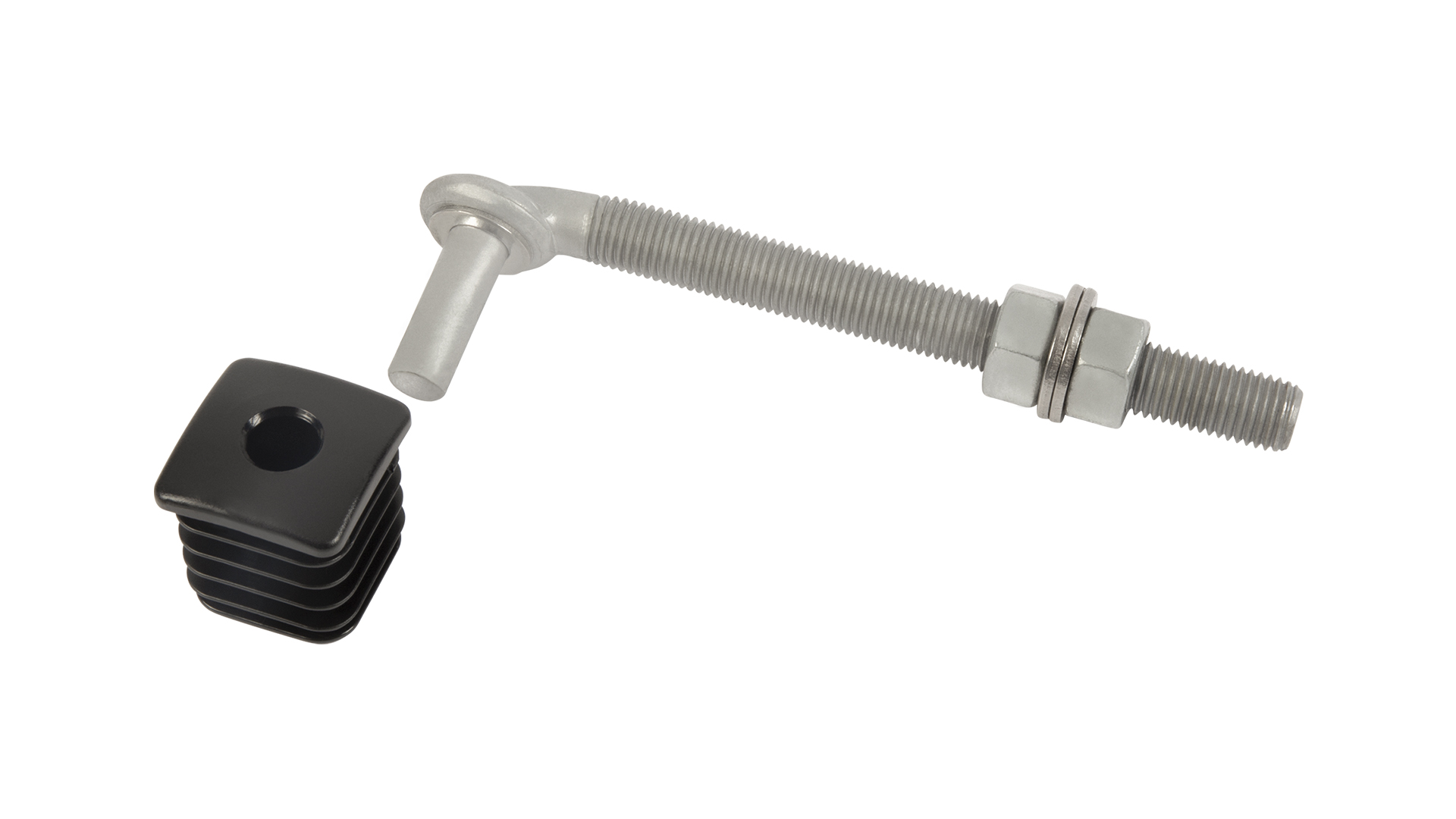

J-Bolt Stainless steel with polyamide plugs

Item No. D00000067 - GBM16

Hot-dip galvanized J-Bolt hinge set. The set consist of 2 threaded M16 galvanized hinge bolts with polyamide hinge plugs. The reinforced plugs fit into the top and bottom of the gate upright for an economical quality solution for your walk gate projects.

2 product(s) found

J-Bolt Stainless steel with polyamide plugs - GBM16-40-180

Item No. P00011596

J-Bolt Stainless steel with polyamide plugs - GBM16-40-160

Item No. P00011597

Specifications
Drawings
Downloads

Specifications

Perfion__Bullets	Installation: plug slides into gate upright top and bottom Length of the threaded J-bolt: 6-1/4" or 7" Hinge axle M16 in hot-dip galvanized steel With plastic hinge plug square 9/16"
Specifications	Installation: plug slides into gate upright top and bottom Length of the threaded J-bolt: 6-1/4" or 7" Hinge axle M16 in hot-dip galvanized steel With plastic hinge plug square 9/16"

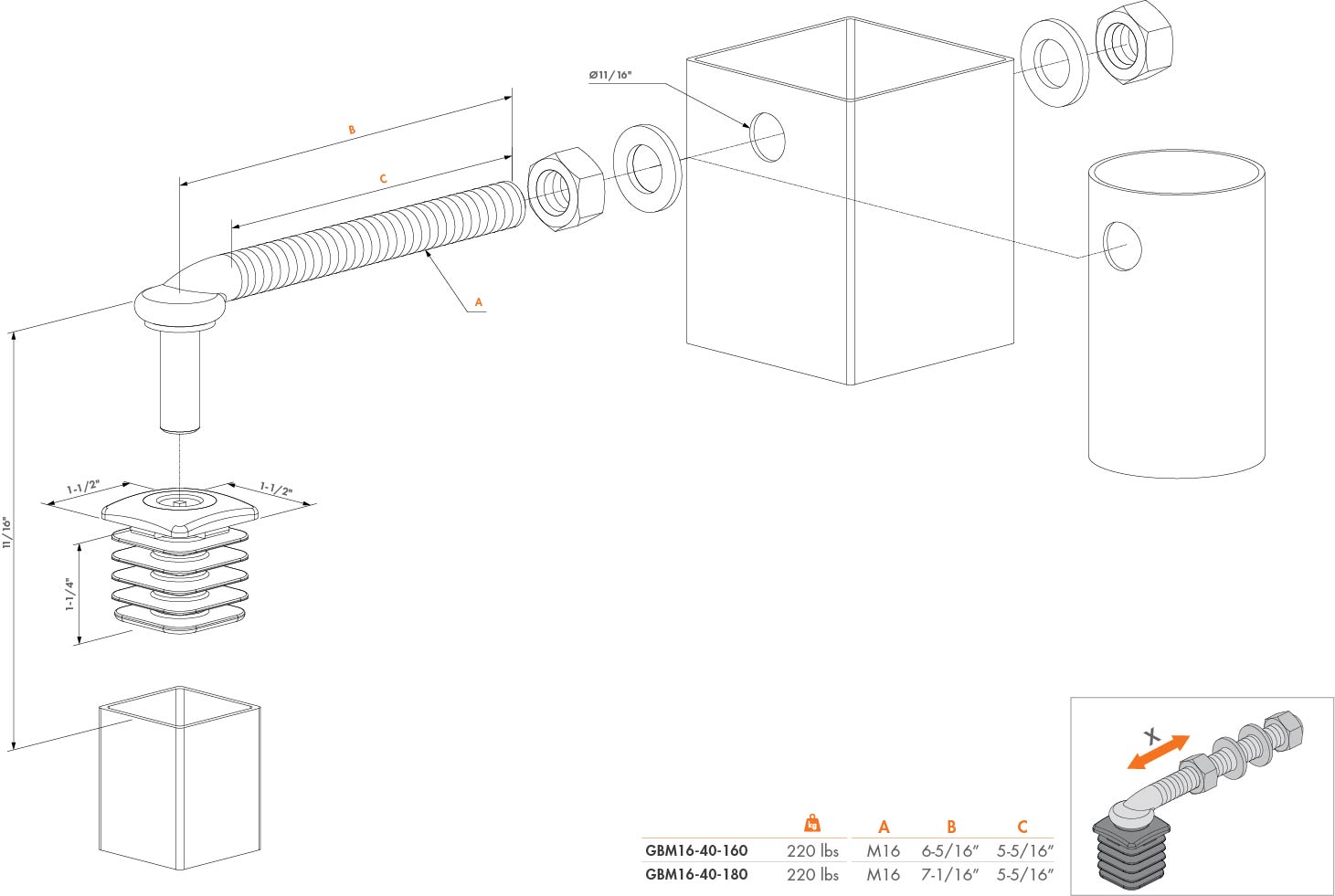

Drawings

Downloads
