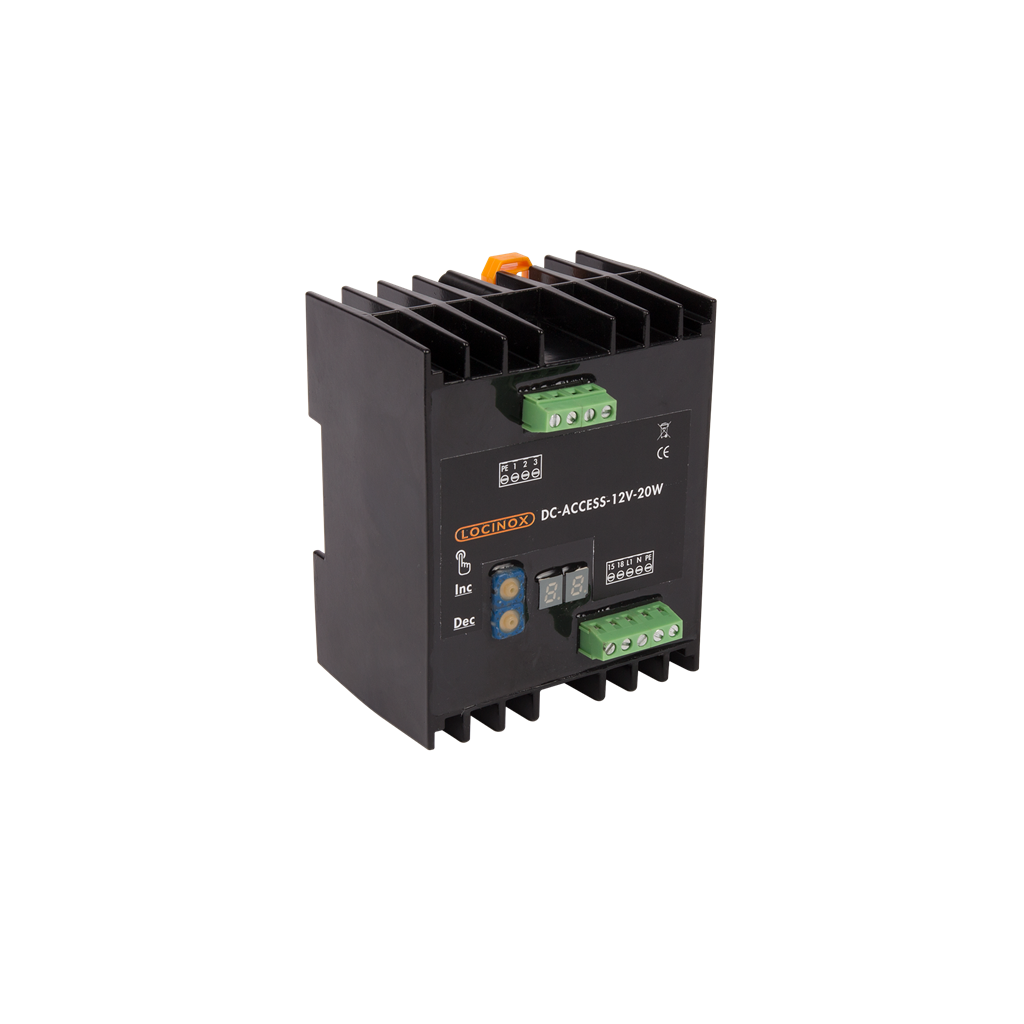

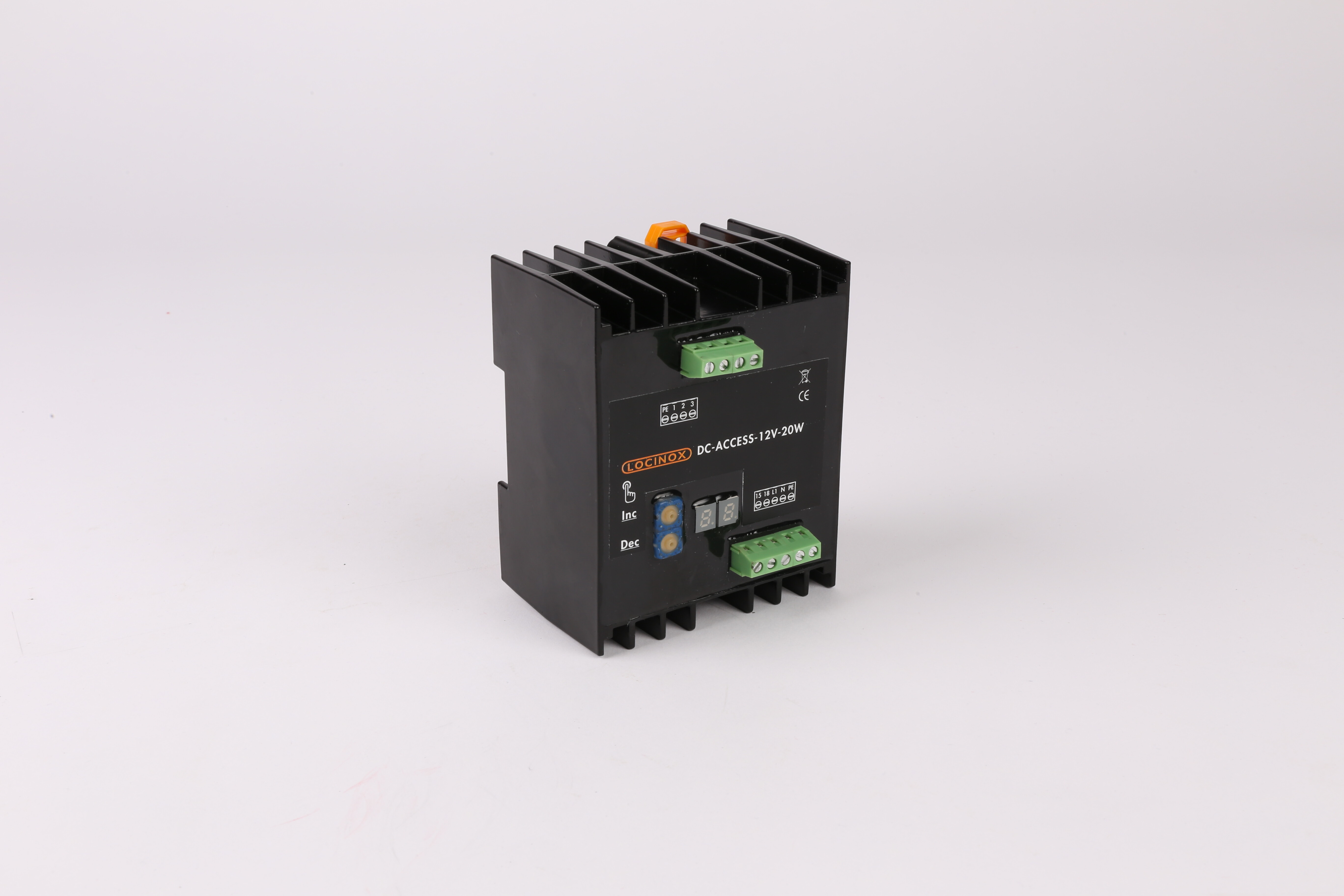

All-in one 12V DC Access Module with integrated timer
All-in one 12V DC Access Module with integrated timer

All-in one 12V DC Access Module with integrated timer - DC-ACCESS-12V-20W

Item No. P00008821 - DC-ACCESS-12V-20W
All-in-one, Plug&Play Access Module (230V AC). Including power supply and integrated timer with easy to read display and easy to operate: time range (1 to 99s) of switched state controlled by push buttons. A 12V DC Fail Open or Fail Close device can be easily connected to the module.
Product specs
This product cannot be ordered at the moment.
Specifications
Specifications
  • Mounting on DIN-rail or directly
  • Time range (1 to 99s) of switched state controlled by push buttons
  • Set time clearly visible on display
  • Robust control module: encapsulated for superior humidity resistance
  • Input voltage: 220V AC / Maximum Output power: 20W
  • Connection between module and power supply by means of Plug&Play connector
  • Designed with heat-dissipation fins at the back
  • Powder coated aluminum housing
