Compact, 2-way 90° hinge
Compact, 2-way 90° hinge

Compact, 2-way 90° hinge

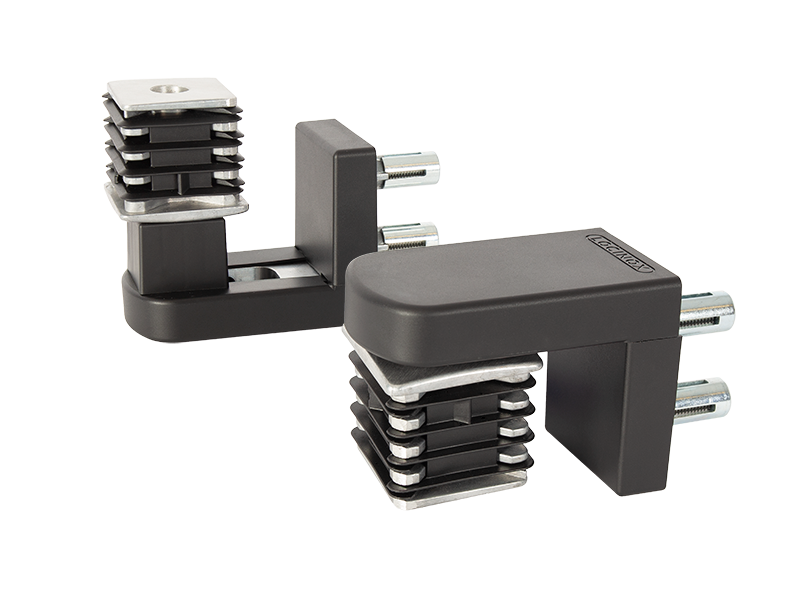

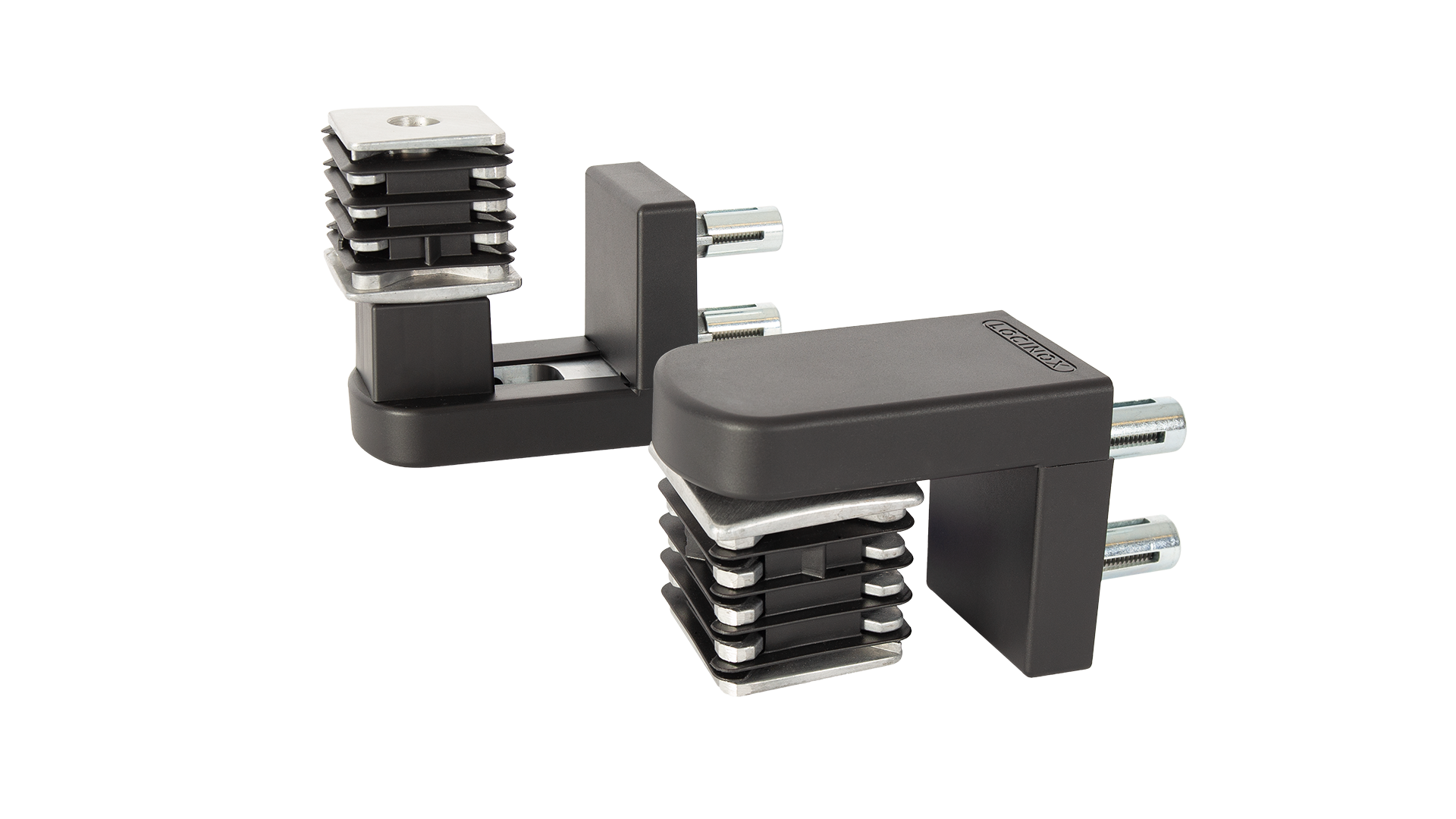

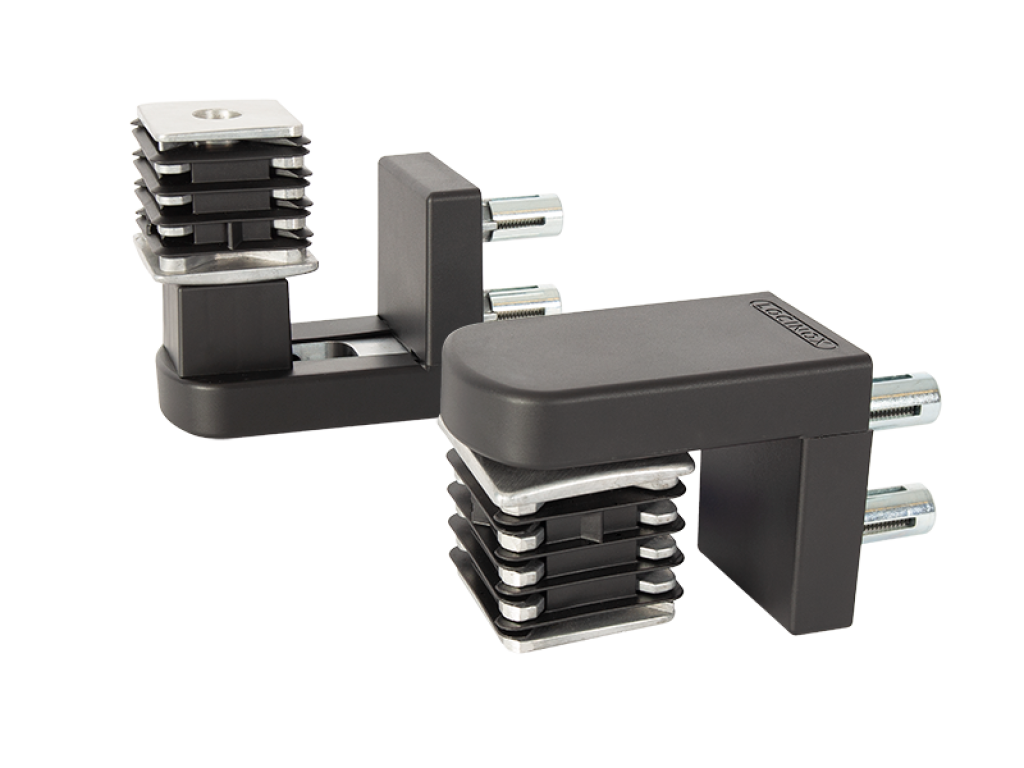

Item No. D00000080 - NOSEHINGE-I
Adjustable and compact 90° hinge. The inner parts are made out durable extruded aluminum and guarantee thus a long life span. Easy installation guaranteed thanks to our patented Quick-Fix bolts. Given its sleek and aesthetic design, Nosehinge is a perfect fit for residential gates. For 2" gate frames only.
Product specs
This product cannot be ordered at the moment.
1 product(s) found
Sort by:
Compact, 2-way 90° hinge
Compact, 2-way 90° hinge - NOSEHINGE-I-50
Item No. P00006966
Compact, 2-way 90° hinge
Specifications
Perfion__Bullets
  • For left and right handed gates
  • Made out of extruded aluminium parts with plastic covers
  • Easy to fix with Quick-Fix
  • 5/8" width adjustable and 1" depth adjustable
  • Includes two hinges, one for bottom and one for top
  • Includes DURA-5050 gate plug for 2" gate frames
  • Max width of the gate: 98-7/16"
  • Max weight of the gate: 265 lbs
Specifications
  • For left and right handed gates
  • Made out of extruded aluminium parts with plastic covers
  • Easy to fix with Quick-Fix
  • 5/8" width adjustable and 1" depth adjustable
  • Includes two hinges, one for bottom and one for top
  • Includes DURA-5050 gate plug for 2" gate frames
  • Max width of the gate: 98-7/16"
  • Max weight of the gate: 265 lbs

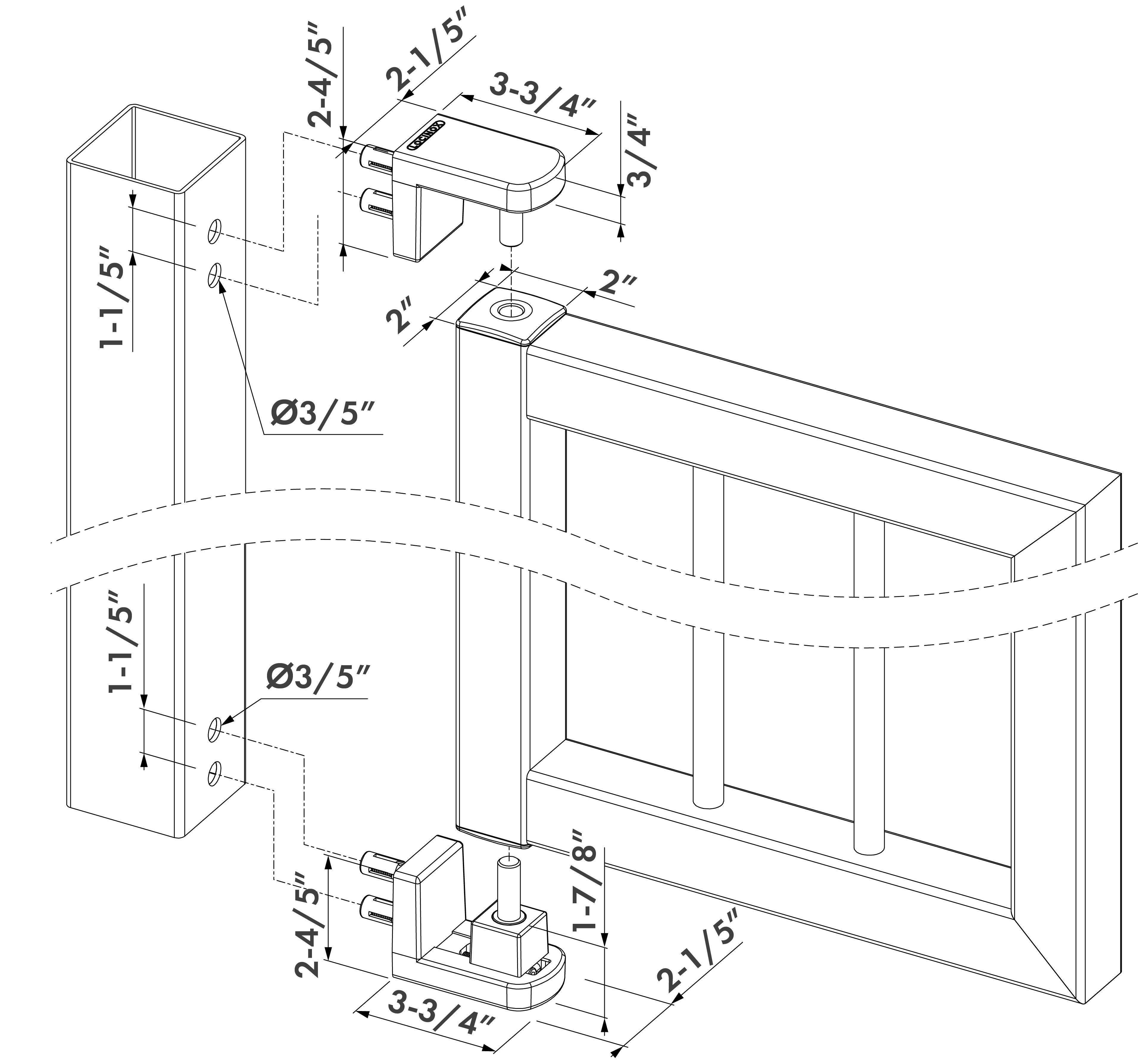

Drawings
