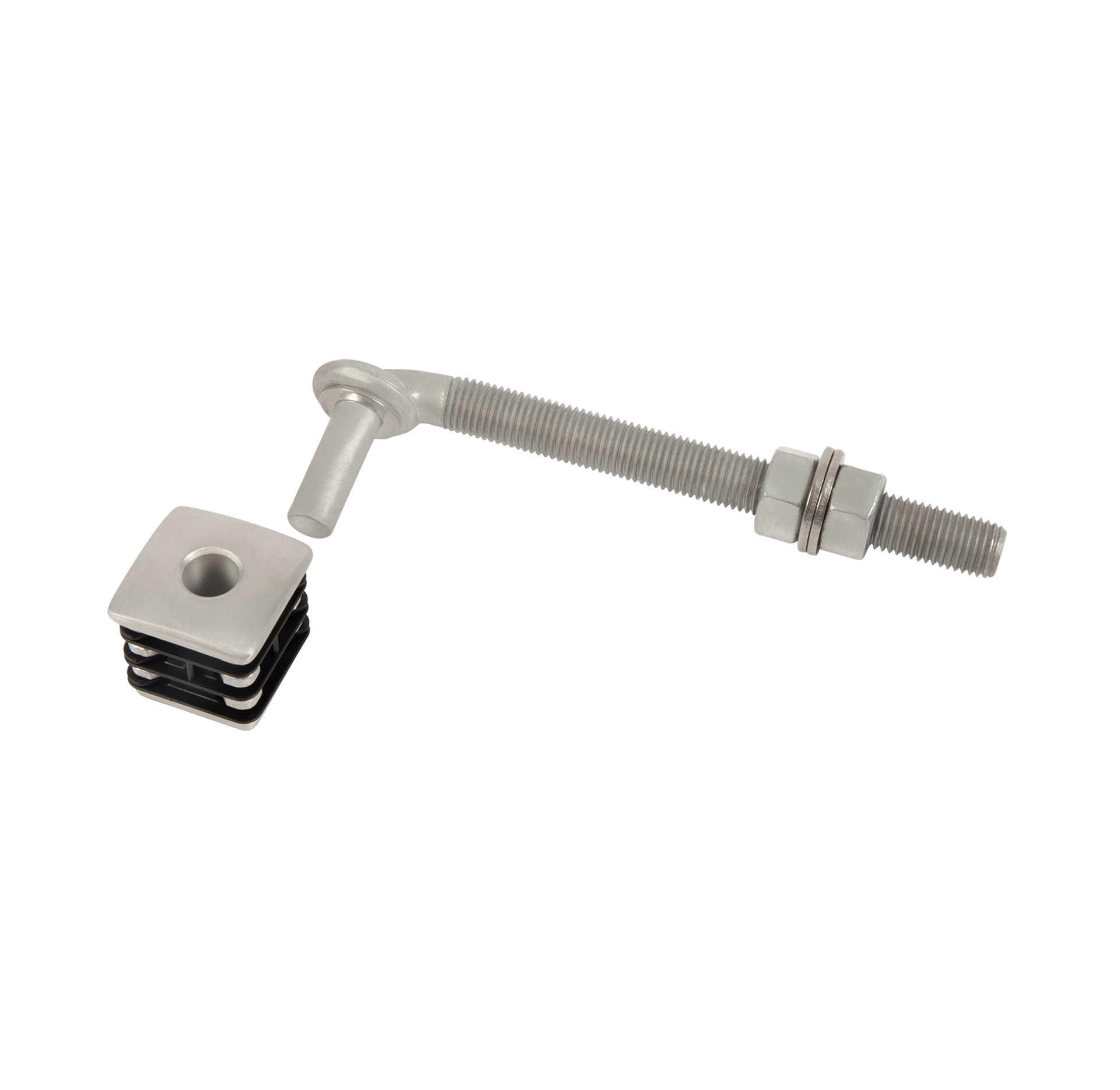

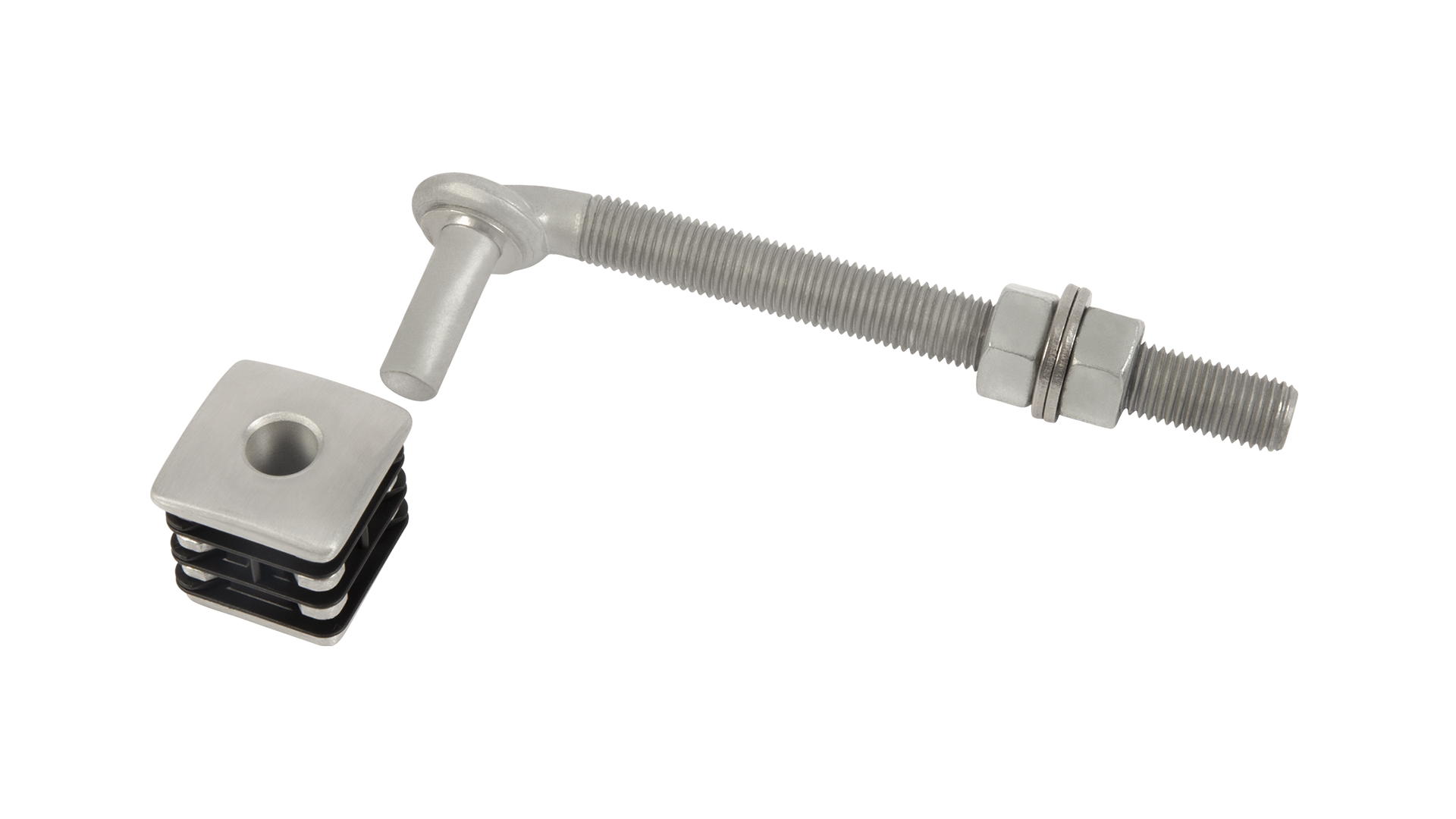

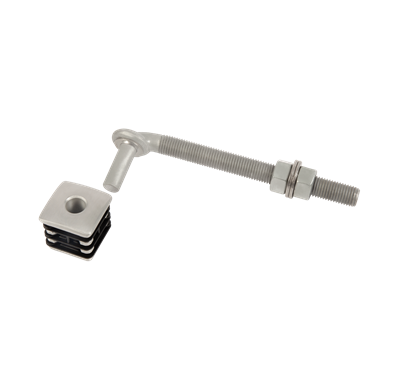

J-Bolt Stainless steel with aluminum plugs

Item No. D00000068 - GBM16-DP

Hot-dip galvanized steel garden gate hinge set with reinforced aluminum plugs for extra stability. The economical quality solution for all your garden/walk gate projects.

4 product(s) found

J-Bolt Stainless steel with aluminum plugs - GBM16-DP40-180

Item No. P00011600

J-Bolt Stainless steel with aluminum plugs - GBM16-DP40-160

Item No. P00011601

J-Bolt Stainless steel with aluminum plugs - GBM16-DP50-180

Item No. P00011602

J-Bolt Stainless steel with aluminum plugs - GBM16-DP50-160

Item No. P00011603

Specifications

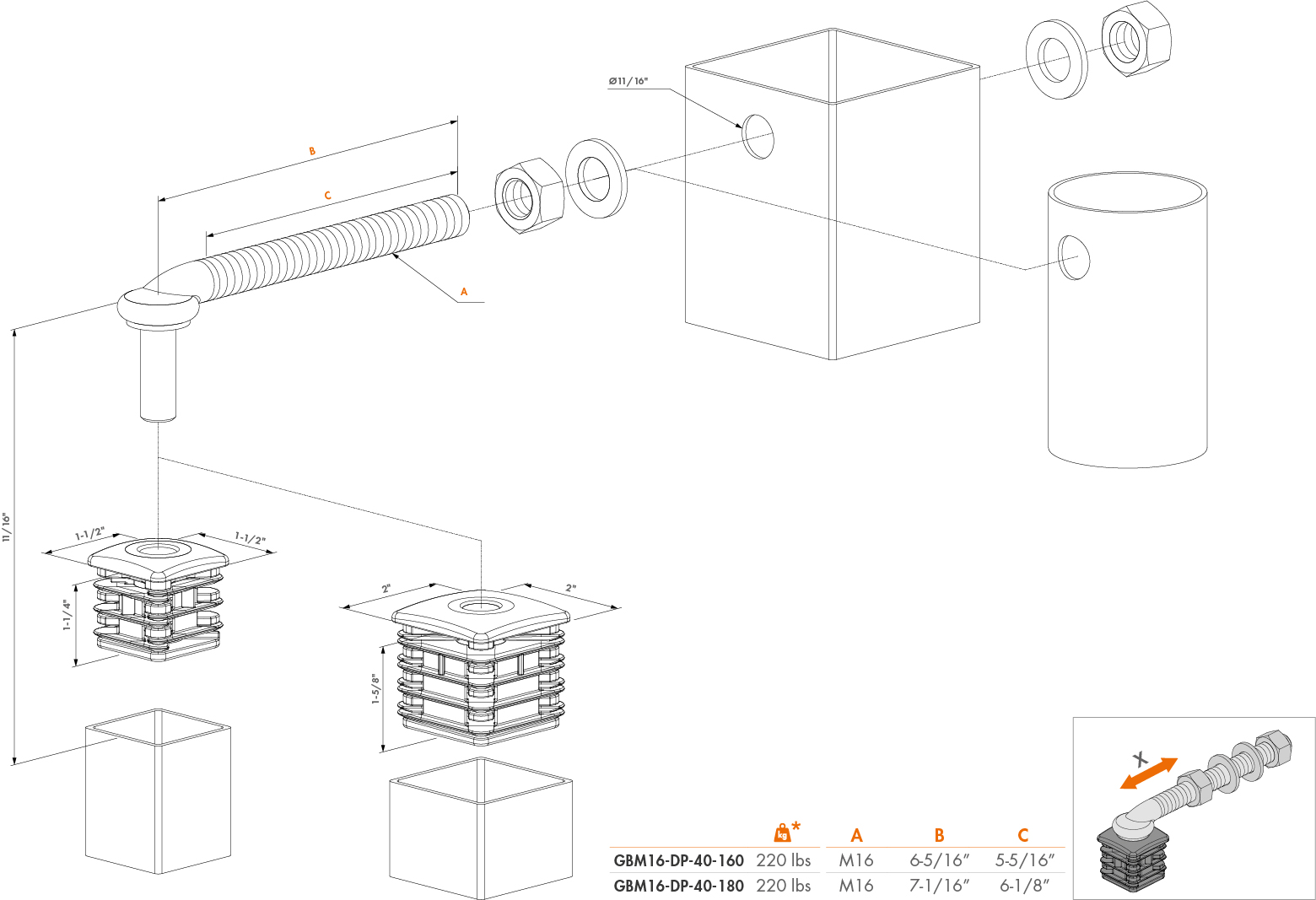

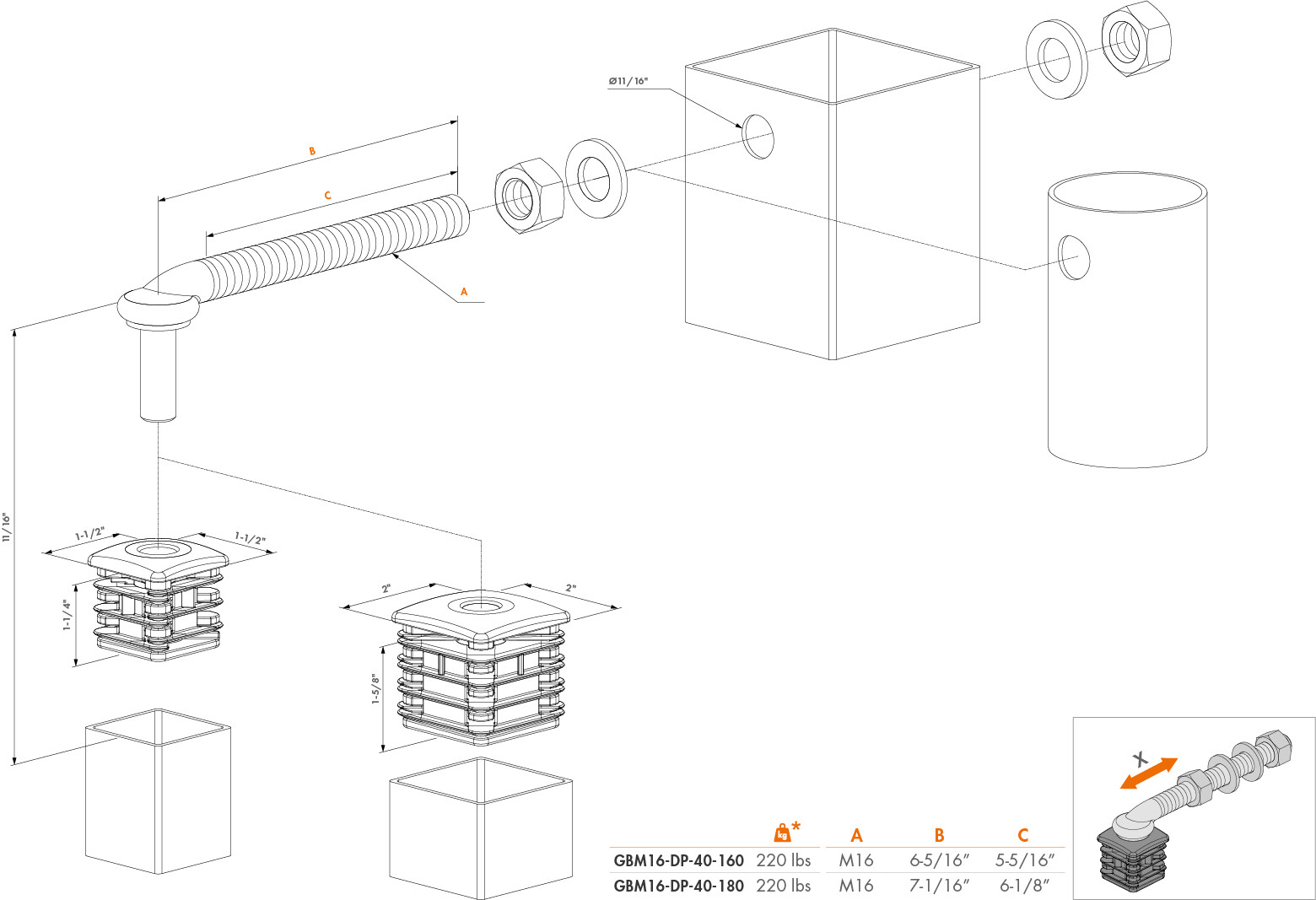

Drawings
Downloads

Specifications

Perfion__Bullets	Installation: plug slides into gate upright top and bottom Length of the threaded J-bolt: 6-1/4" or 7" Hinge set with aluminum reinforced hinge post plugs Hinge axle M16 in hot-dip galvanized steel Plug available for profile 1-1/2" or 2" square
Specifications	Installation: plug slides into gate upright top and bottom Length of the threaded J-bolt: 6-1/4" or 7" Hinge set with aluminum reinforced hinge post plugs Hinge axle M16 in hot-dip galvanized steel Plug available for profile 1-1/2" or 2" square

Drawings
