Drilling jig (Special Order Only)

Item No. D00000097 - 3970LS

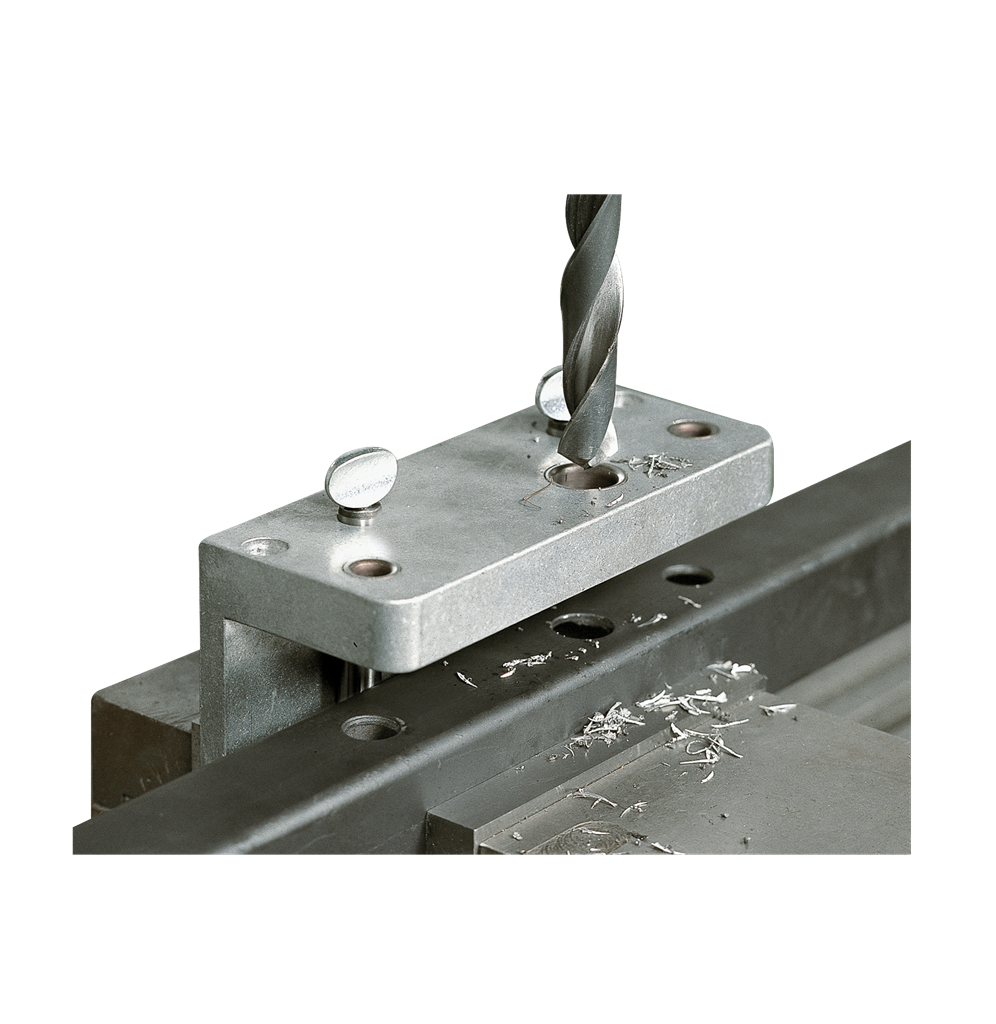

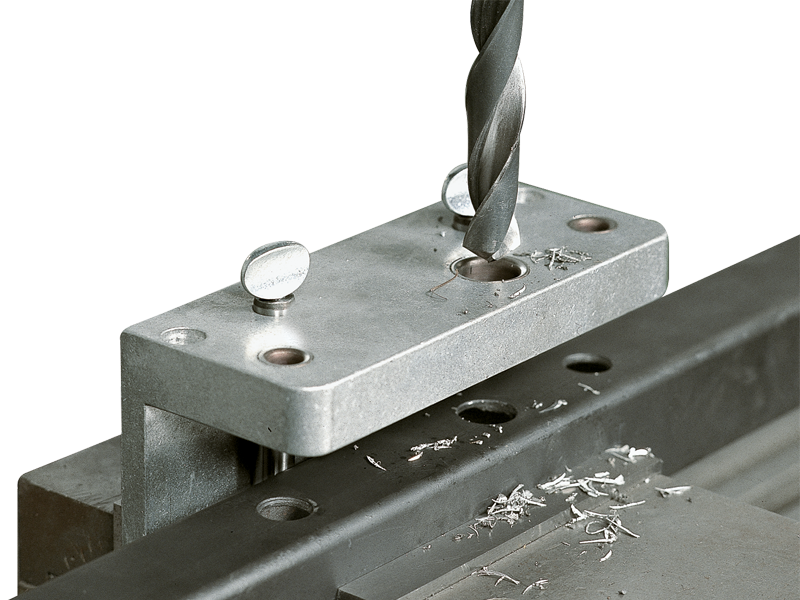

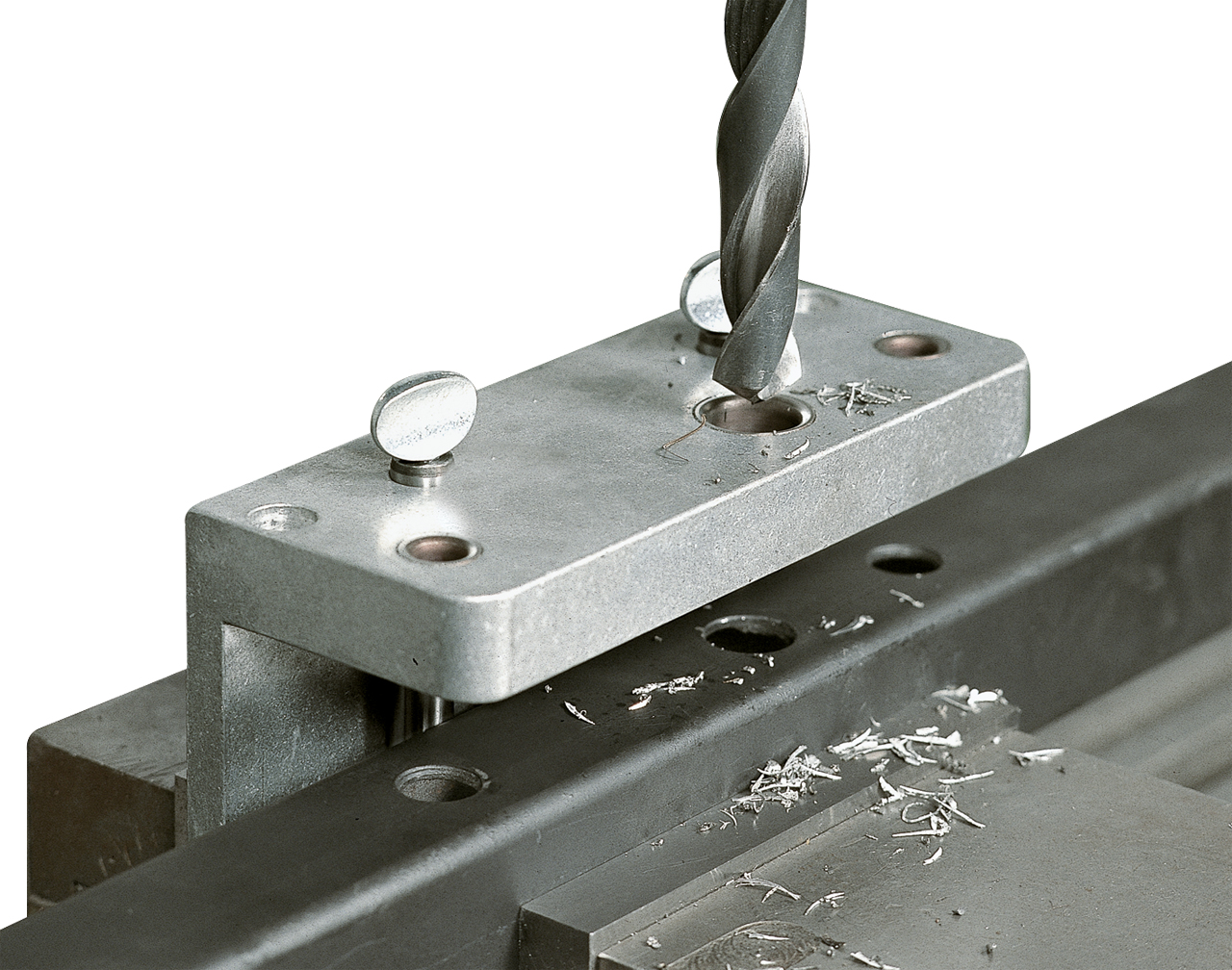

Drilling jig to prepare the gate- and strike-post for sliding gate locks and according keeps. The jig can be adjusted for profiles 1-1/2" - 2" - 2-3/8" or 2-3/8" - 3-1/8" according to jig version. The jig guarantees a perfect center alignment of the lock/keep on your posts.

2 product(s) found

Drilling jig (Special Order Only) - 3970LS-4060

Item No. P00007020

Drilling jig (Special Order Only) - 3970LS-6080

Item No. P00007022

Specifications

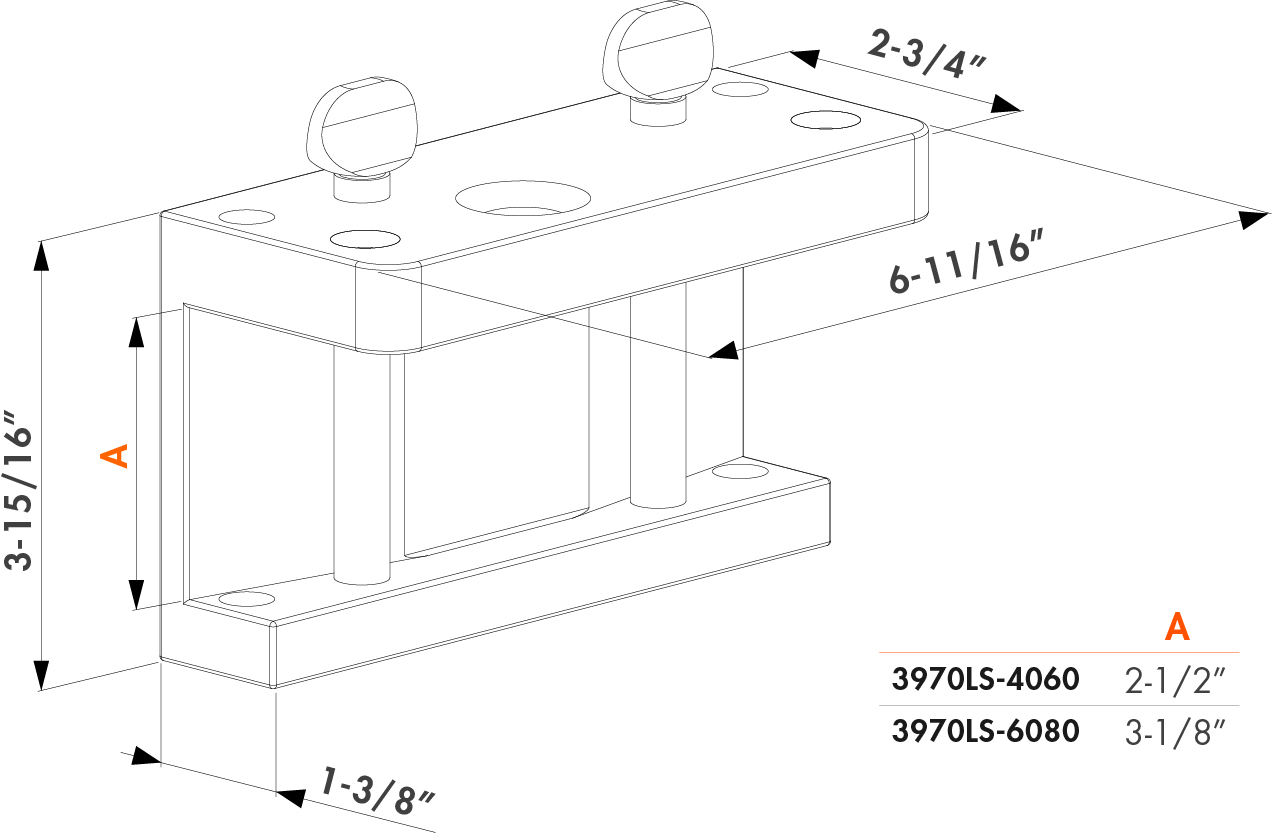

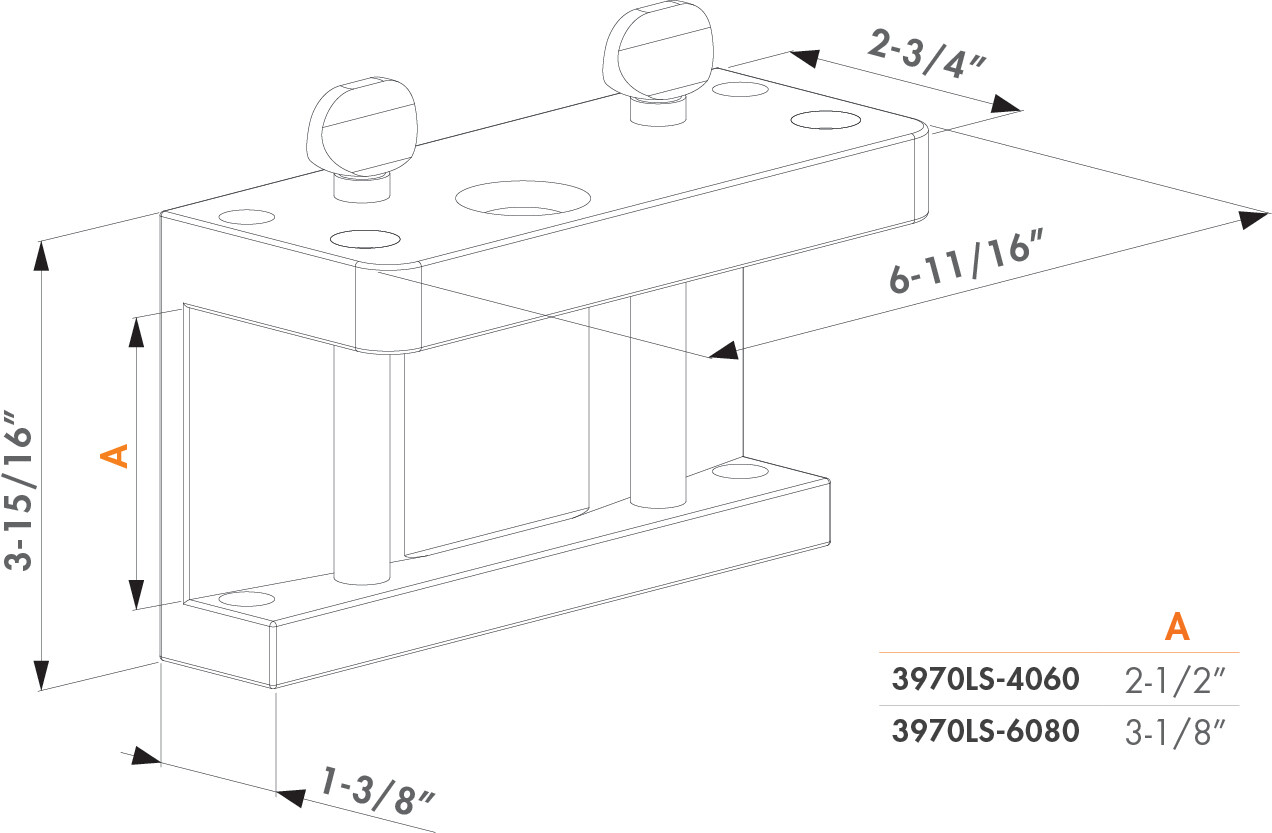

Drawings
Downloads

Specifications

Perfion__Bullets	Drilling jig for: LS- & LL-locks and SSKZ/SSKO keeps Available in two versions: for profiles: 1-1/2" - 2" - 2-3/8" or 2-3/8" - 3-1/8"
Specifications	Drilling jig for: LS- & LL-locks and SSKZ/SSKO keeps Available in two versions: for profiles: 1-1/2" - 2" - 2-3/8" or 2-3/8" - 3-1/8"
