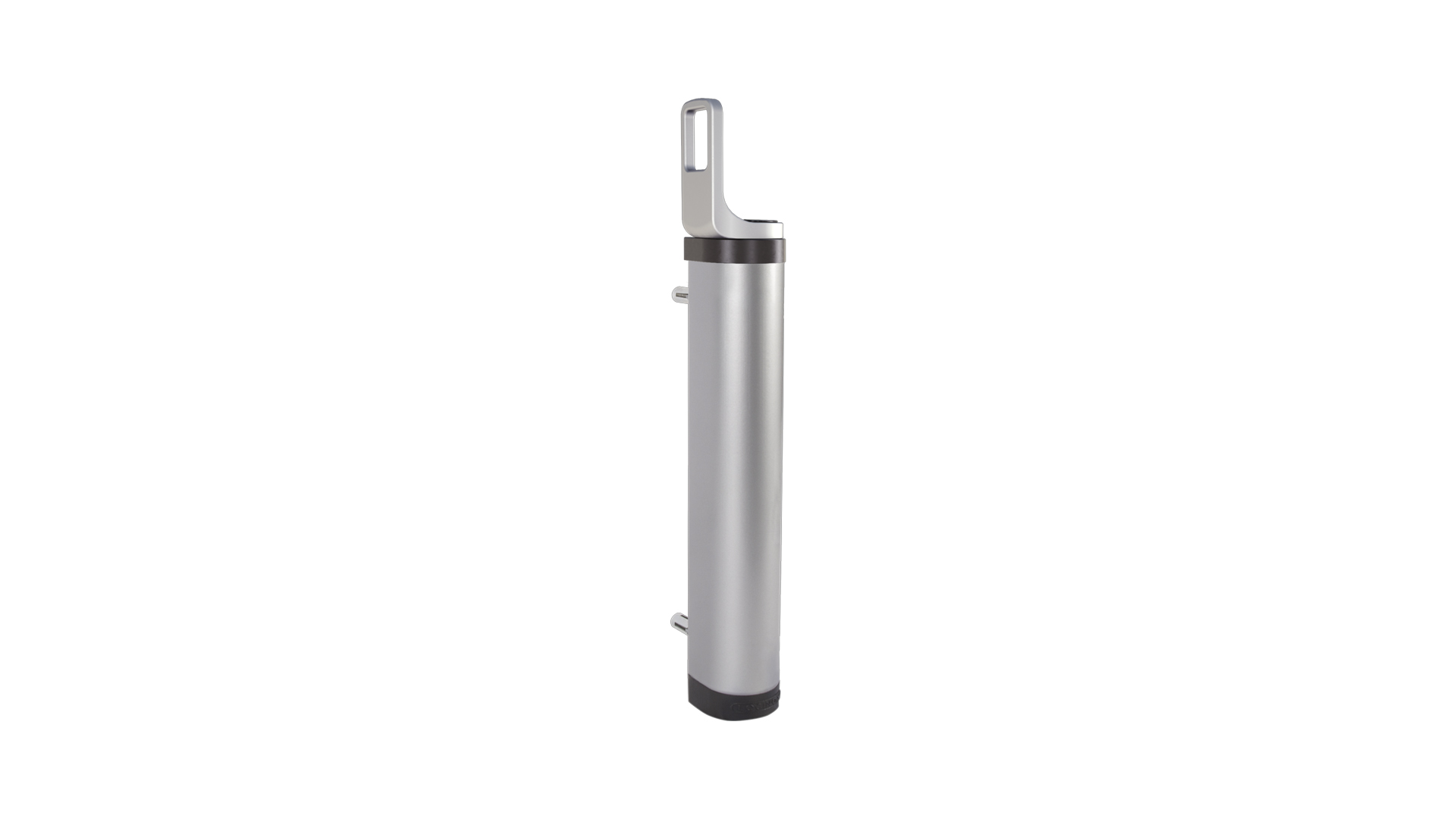

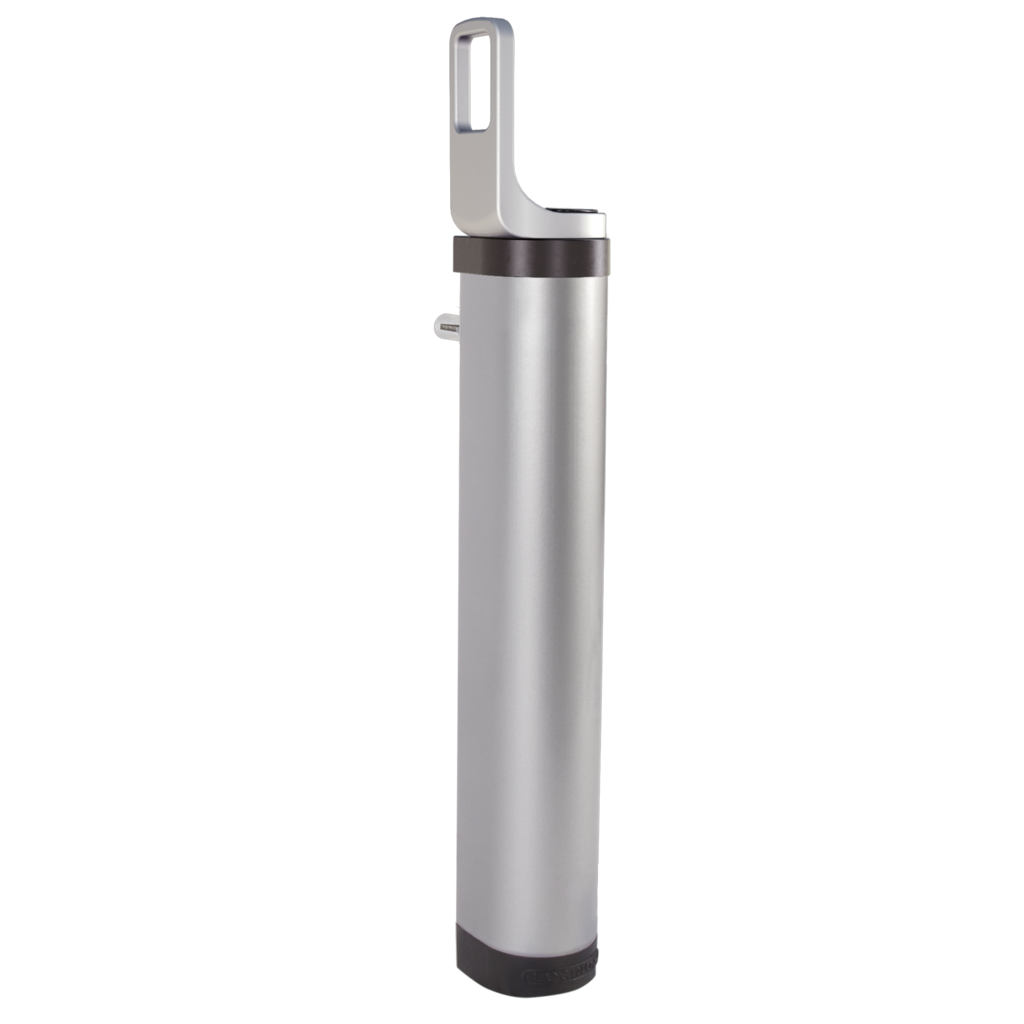

Elegant 180° gate closer with direct connection to the hinge

Elegant 180° gate closer with direct connection to the hinge - RHINO

Item No. P00009905 - RHINO

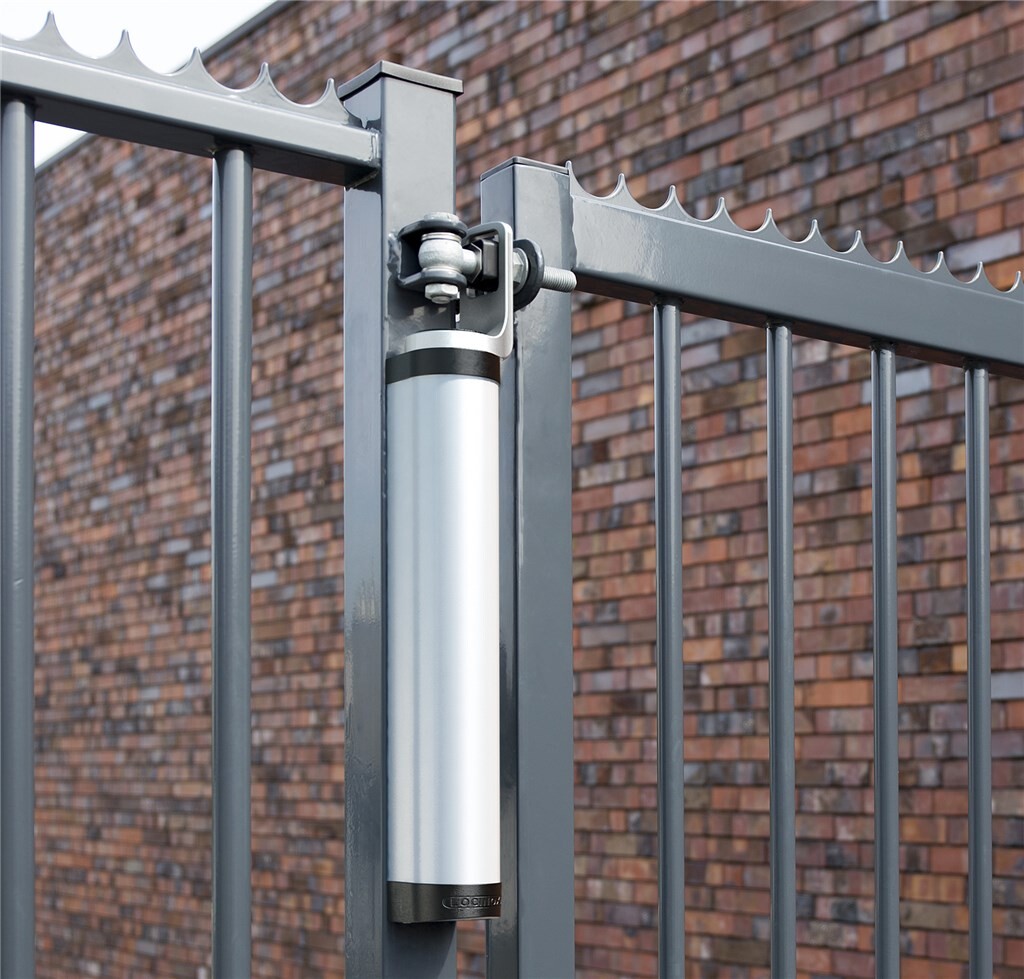

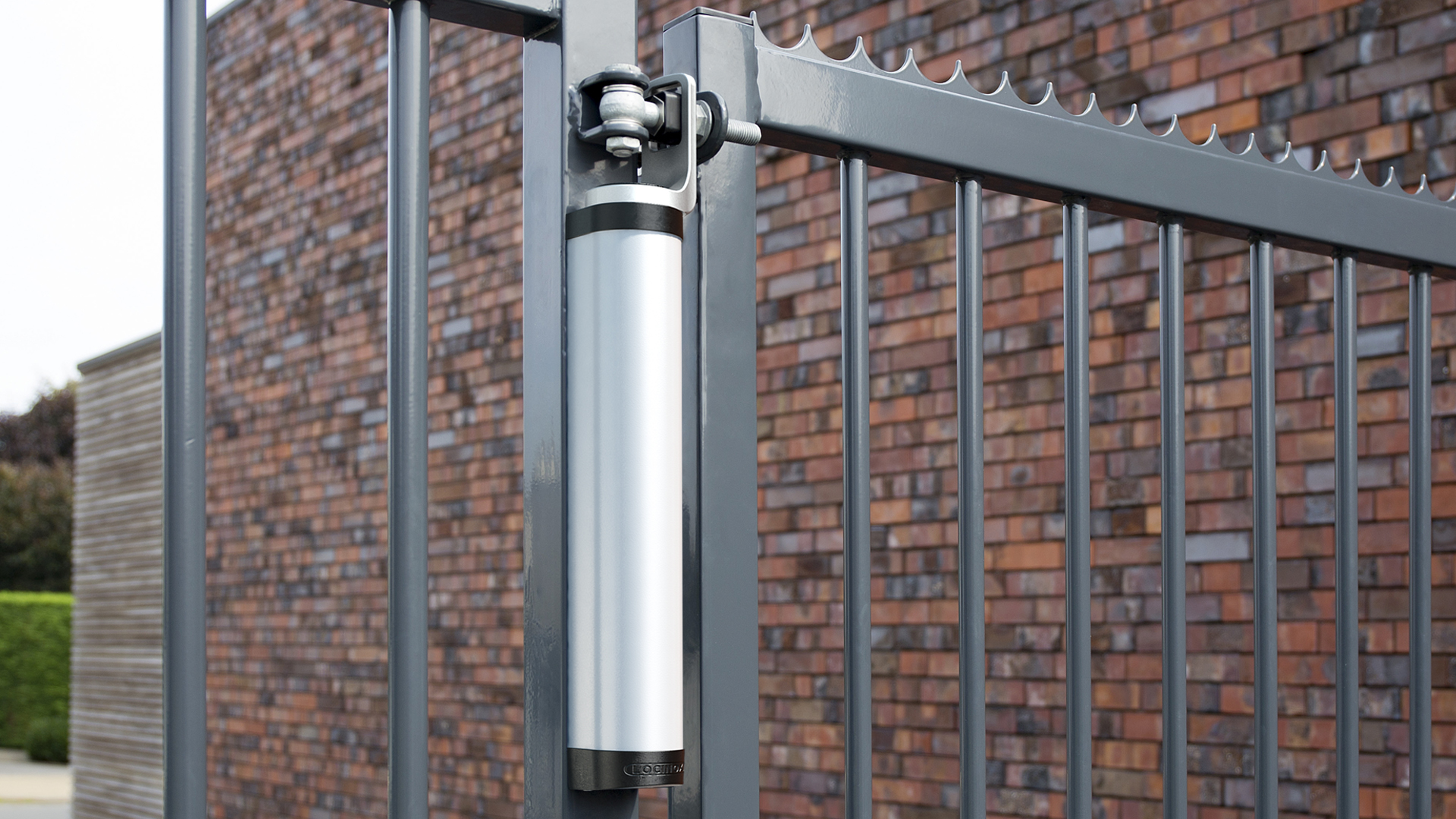

Transform your 180° hinge into a self-closing solution thanks to our Rhino hydraulic gate closer. The direct connection to the Locinox hinge guarantees the discreet look and efficient transmission of the energy required to close the gate perfectly. The anodized aluminum housing ensures a durable and smooth operation in any weather. The Rhinodrill jig guarantees an extremely efficient installation.

Product specs

Variants

9005	SILV
Elegant 180° gate closer with direct connection to the hinge in RAL 9005	Elegant 180° gate closer with direct connection to the hinge in Silver

Continue shopping

Specifications

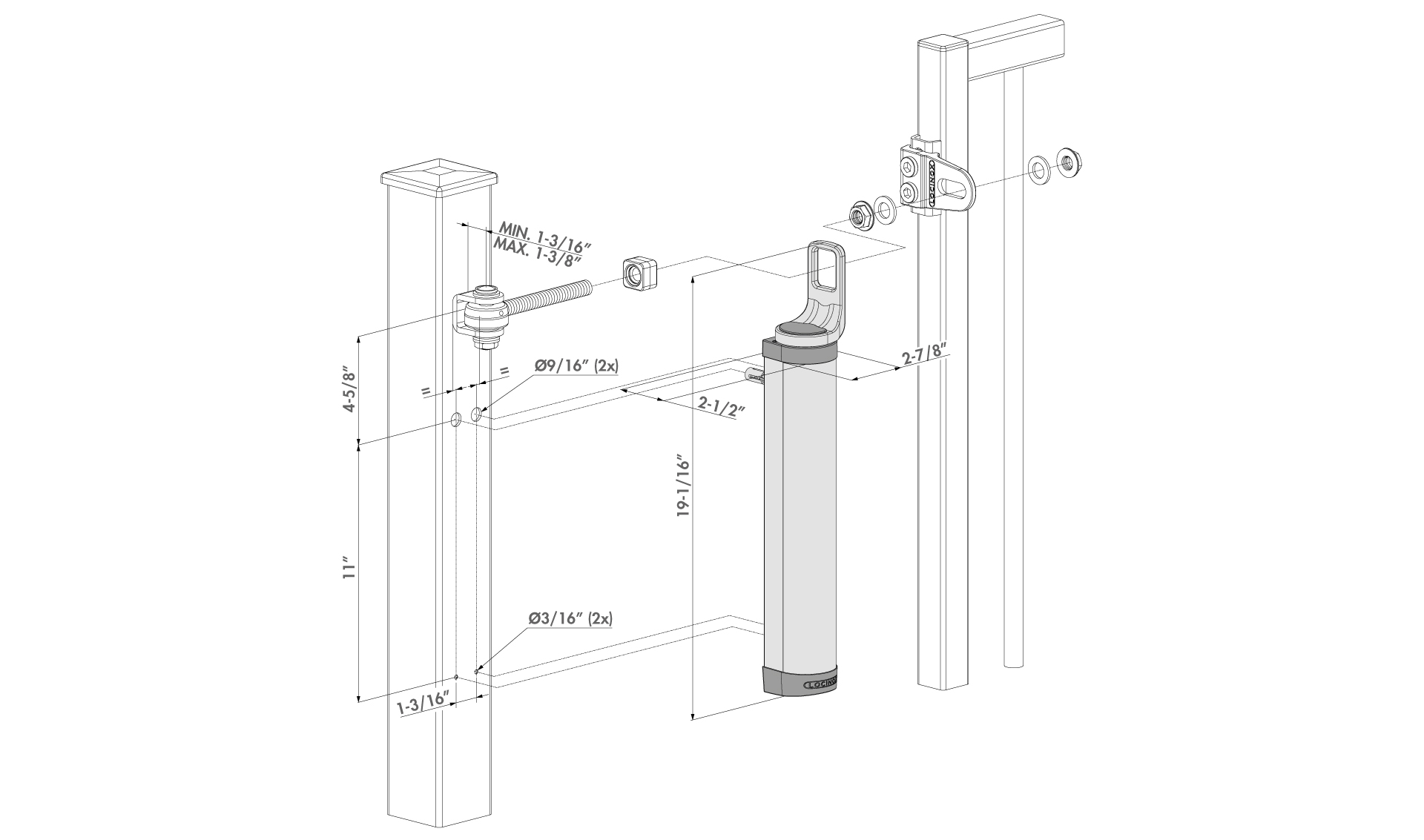

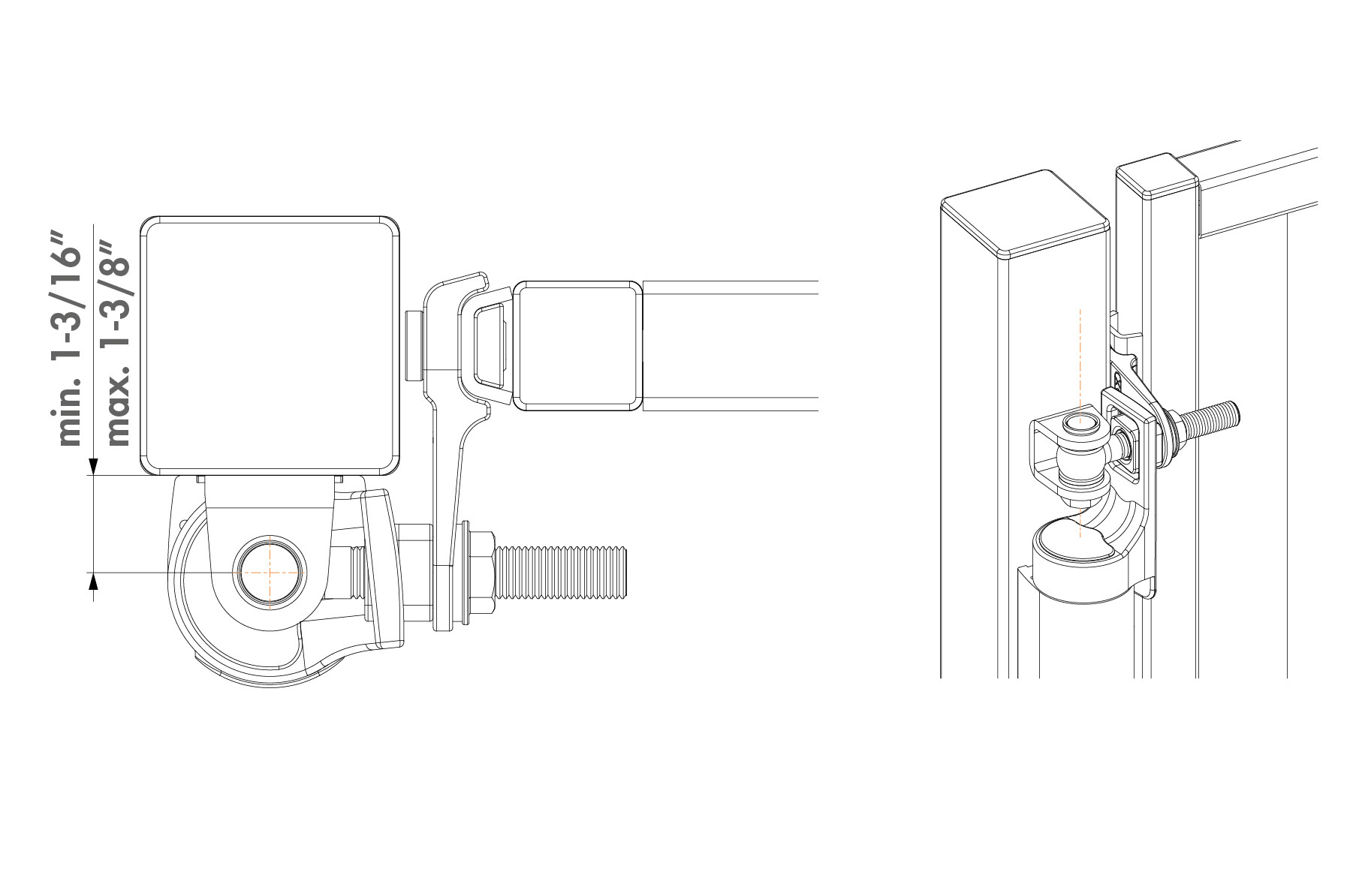

Drawings
Installation movies
Downloads

Specifications

Perfion__Bullets	Consistent closing speed thanks to patented hydraulic damping For left and right handed gates Fits 180° hinges M16 & M20 (GBMU, GBMU4D) & M16 (BOLTON4D) Compact design with high quality components Integrated pretension for extremely smooth installation 180° self-closing double bearing hinge with adjustable closing speed and final snap Weatherproof, scratch resistant and corrosion free anodized aluminum housing ADA compliant (< 5 lbs; max 20 Nm) from gate widths of 3ft. or more Bearing eyebolt is recommended (1034ROLL-M16)
Specifications	Consistent closing speed thanks to patented hydraulic damping For left and right handed gates Fits 180° hinges M16 & M20 (GBMU, GBMU4D) & M16 (BOLTON4D) Compact design with high quality components Integrated pretension for extremely smooth installation 180° self-closing double bearing hinge with adjustable closing speed and final snap Weatherproof, scratch resistant and corrosion free anodized aluminum housing ADA compliant (< 5 lbs; max 20 Nm) from gate widths of 3ft. or more Bearing eyebolt is recommended (1034ROLL-M16)
Available in following RAL-colors
Features
