ADA-compliant motorized hinge & gate closer in one for pedestrian gates

ADA-compliant motorized hinge & gate closer in one for pedestrian gates

Item No. D00000206 - MAGNUS

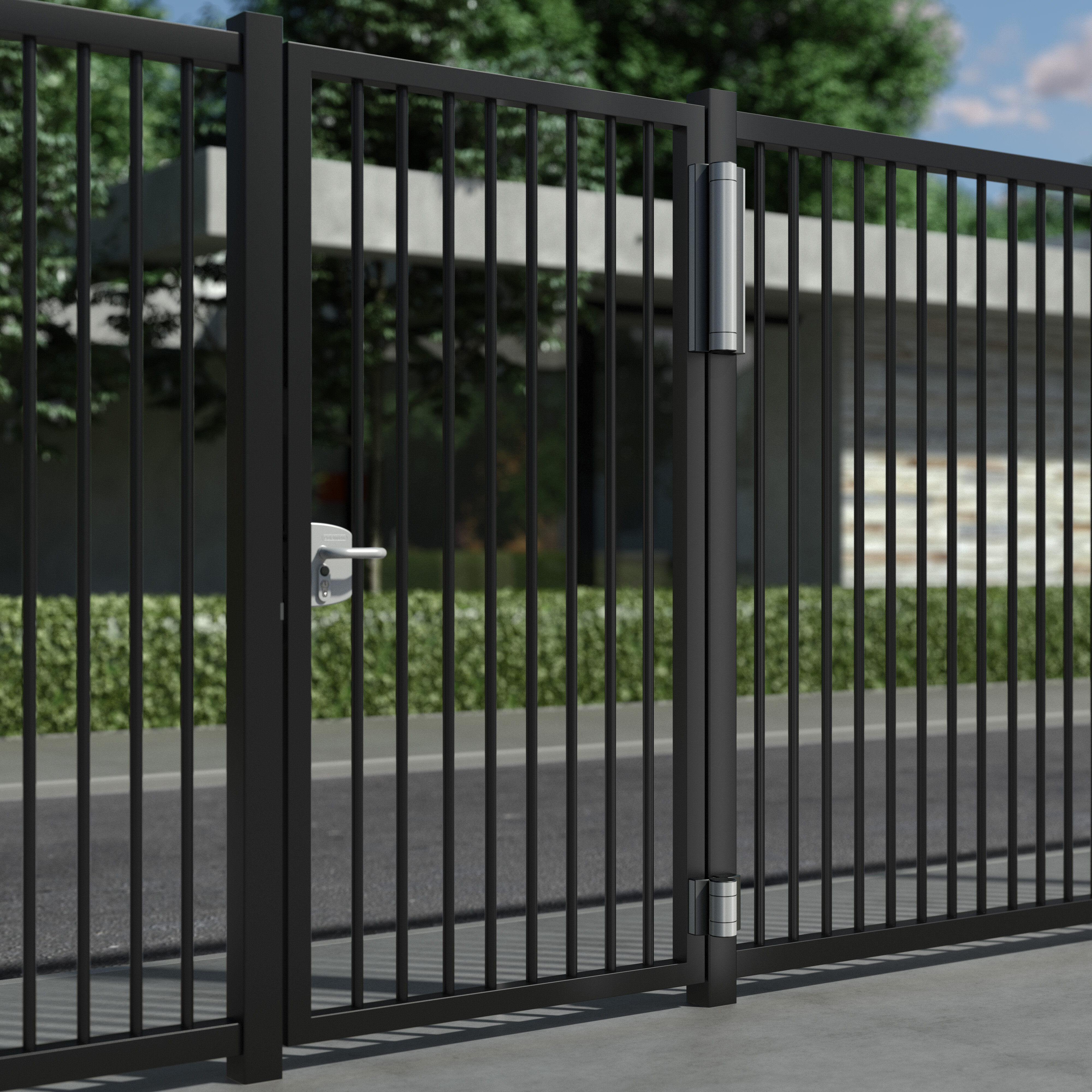

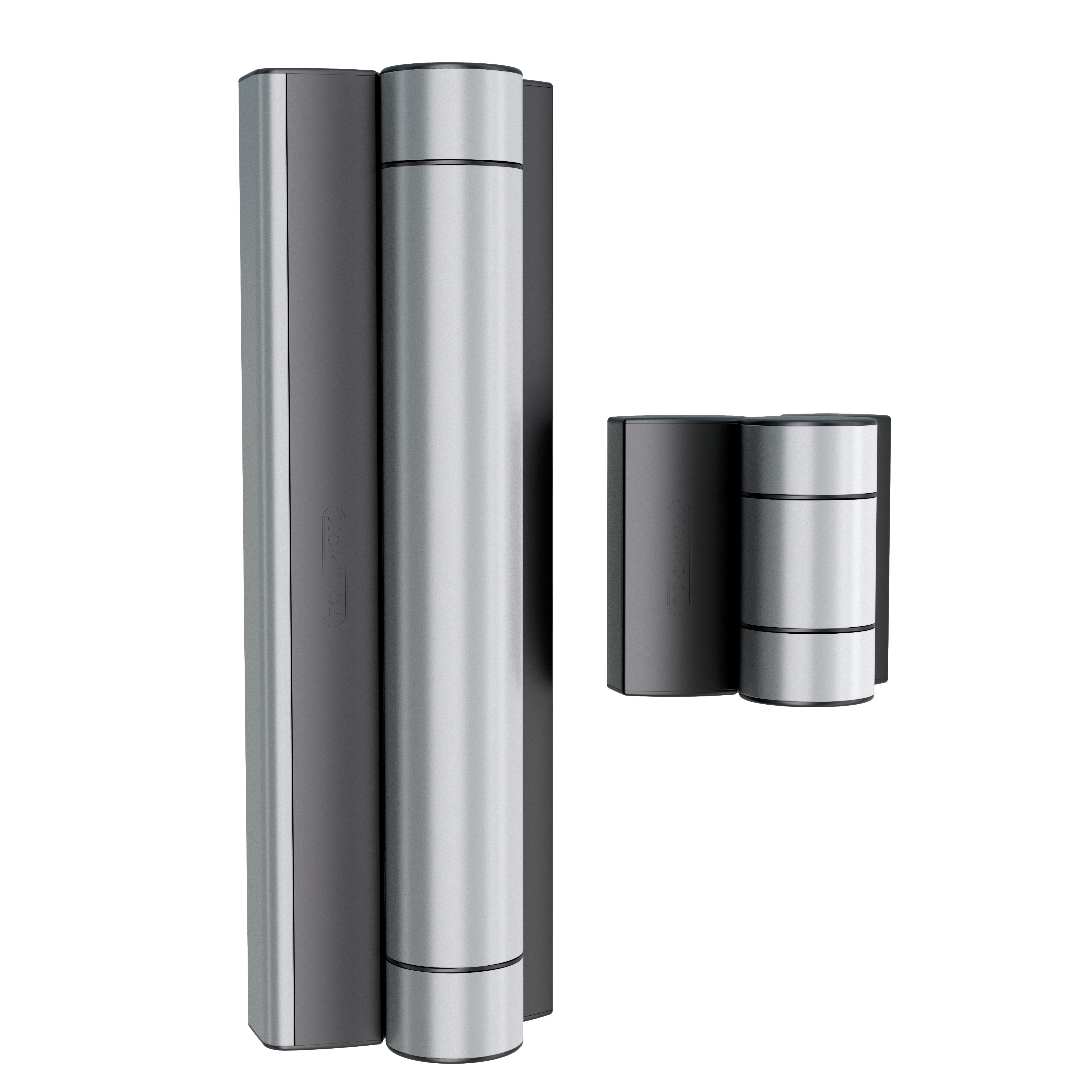

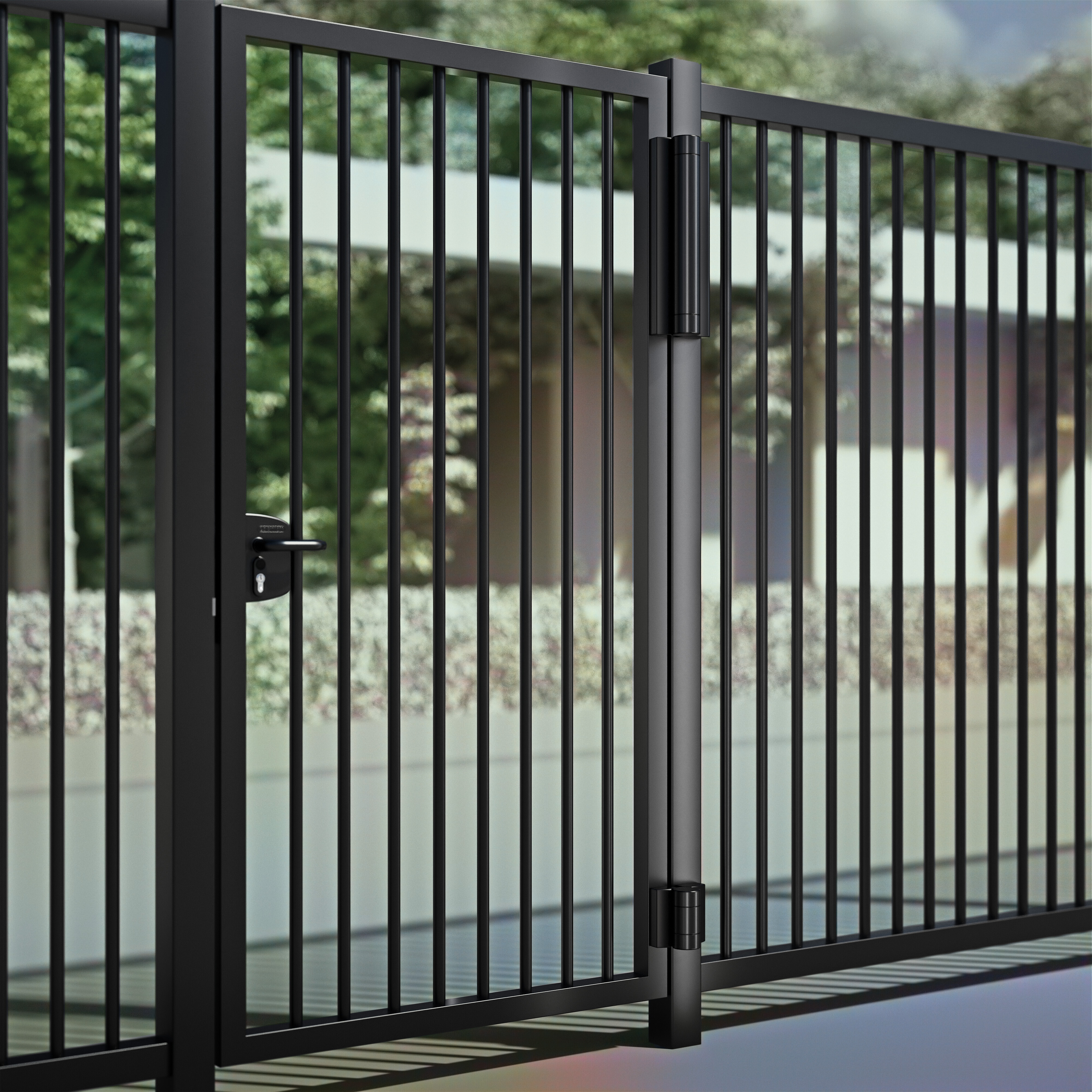

MAGNUS is an ADA-compliant motorized hinge and gate closer in one, designed for the automation of pedestrian gates. The brushless and reversible motor is insensitive to unpredictable pedestrian behaviour, and operates in low-energy mode. The settings and access control can be configured via an intuitive app. Includes lower hinge and compact connection box.

Product specs

1 product(s) found

ADA-compliant motorized hinge & gate closer in one for pedestrian gates - MAGNUS

Item No. P00042163

Specifications
Installation movies
Downloads

Specifications

Specifications	Motorized gate closer with integrated electronics 100 Nm torque Fits on post profiles from 2 3/8" and gate profiles from 1 9/16" For pedestrian gates up to 5 ft wide and 440 lbs Steel gear box Anodized aluminium cover Fast and easy fixation with Quick-Fix bolts Conforms to UL/cUL 325 standard for automatic operators, tested by ETL Input main power supply: 110V AC to 240V AC Motor voltage: 24V DC External connection box with 3 inputs and 3 outputs (Max. 48W, 24V DC) Automated obstacle detection with reverse function Brushless motor: long lifespan and intensive usage Reversible motor with backdrivability for easy manual use - to be combined with a lock 6-1/2ft cable between motor and connection module Compact and vandal-proof design Configuration via app Tested up to 500 000 cycles EN 16005 Compliant
Available in following RAL-colors
Features
