Chain link bracket for Mammoth gate closer - CLB-MAMMOTH

Item No. P00004465 - CLB-MAMMOTH

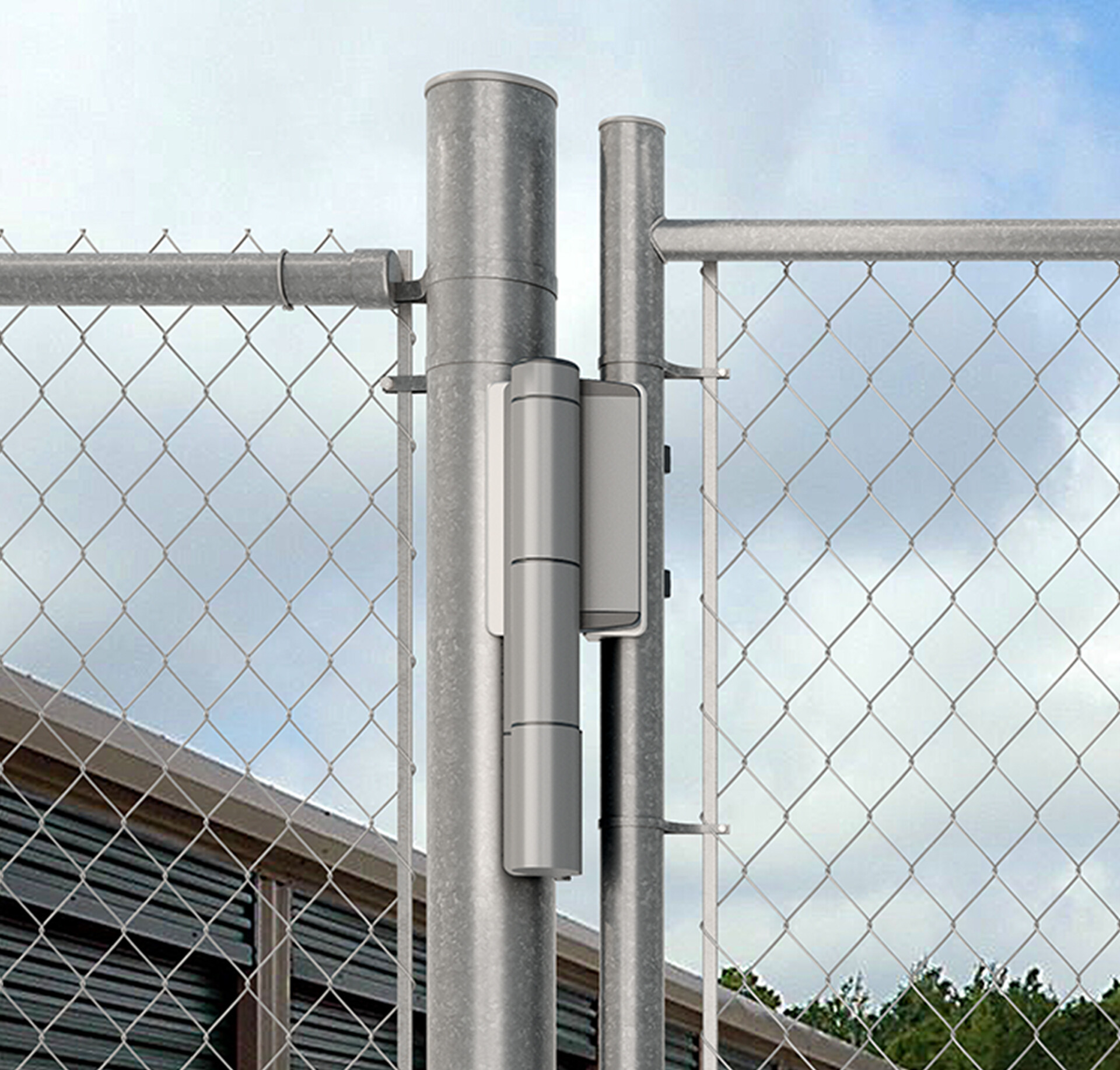

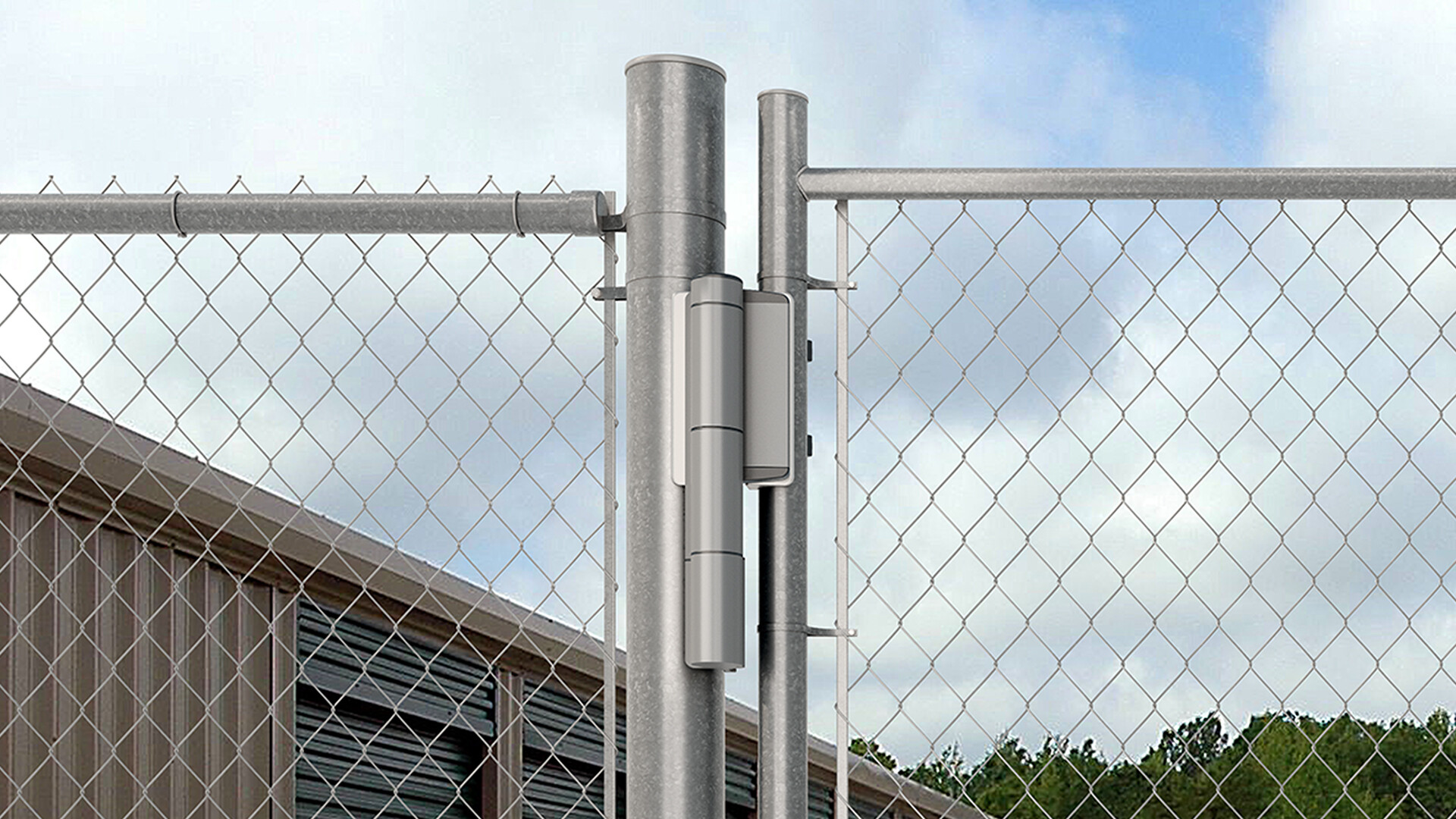

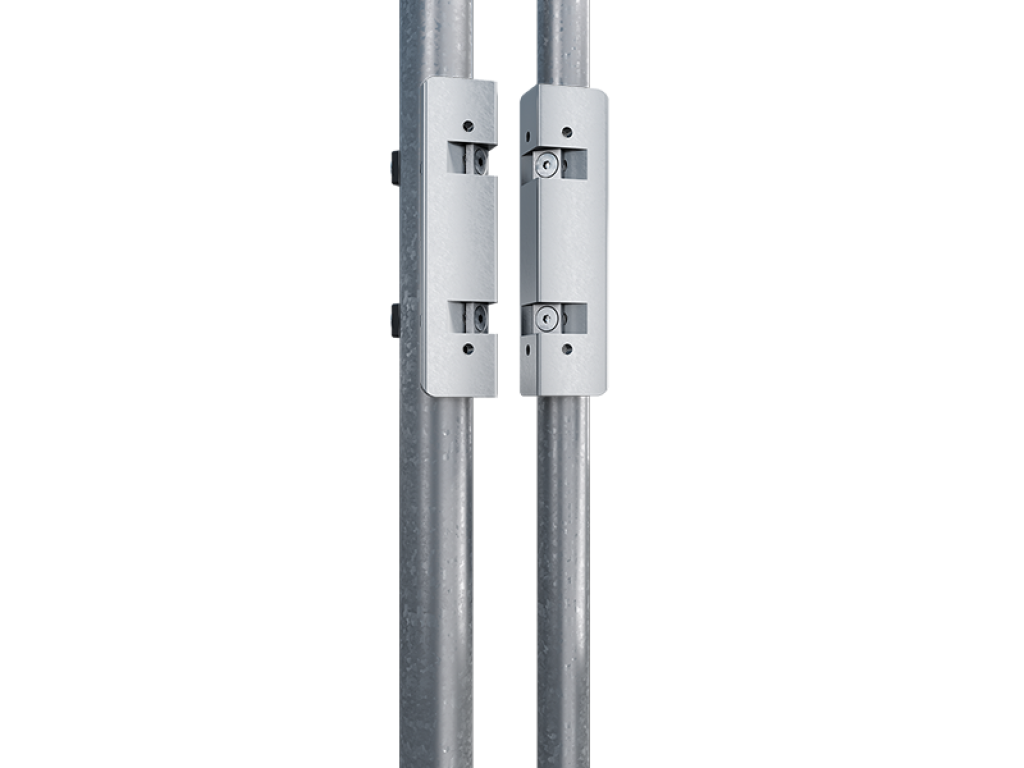

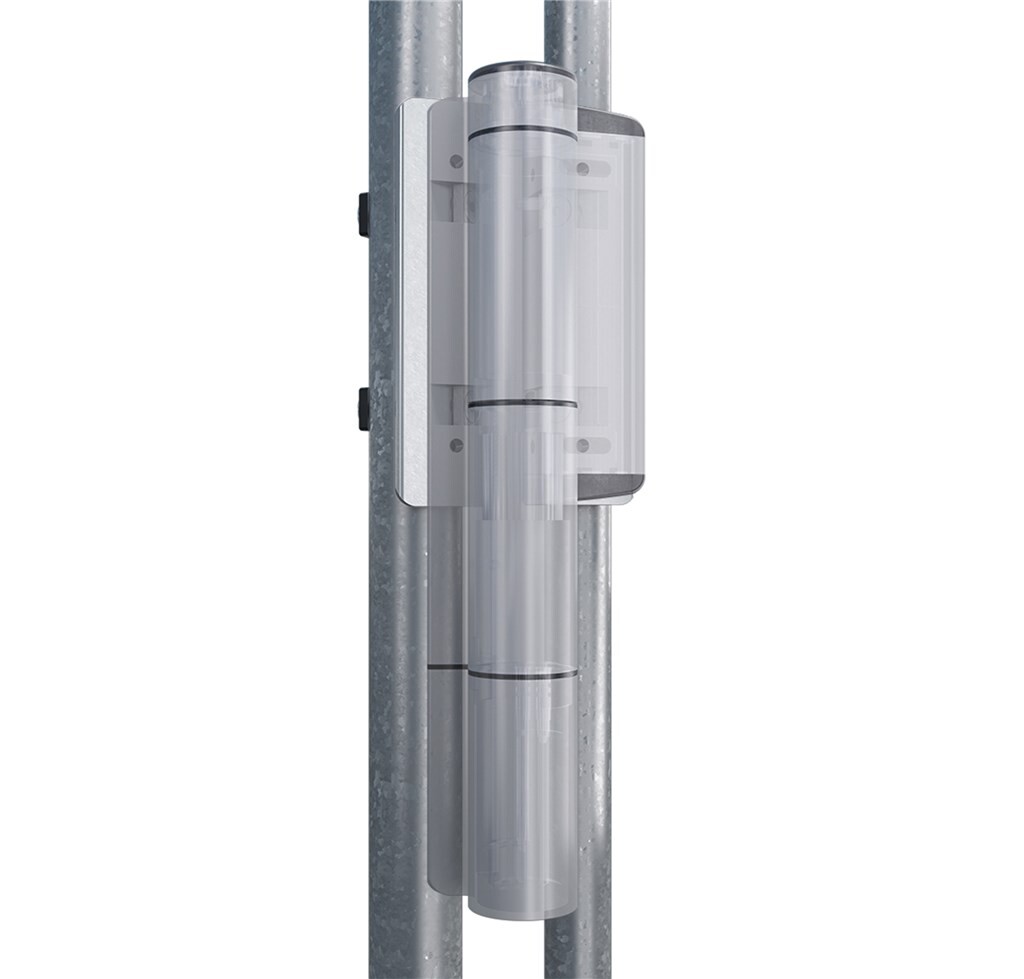

High quality aluminum bracket for installation of Mammoth gate closer on round chain link fences. The brackets are installed between gate closer and post. A perfect, firm and easy installation is guaranteed thanks to the drilling jig. The brackets for the Dino hinge are included.
Product specs
This product cannot be ordered at the moment.
Specifications
Specifications

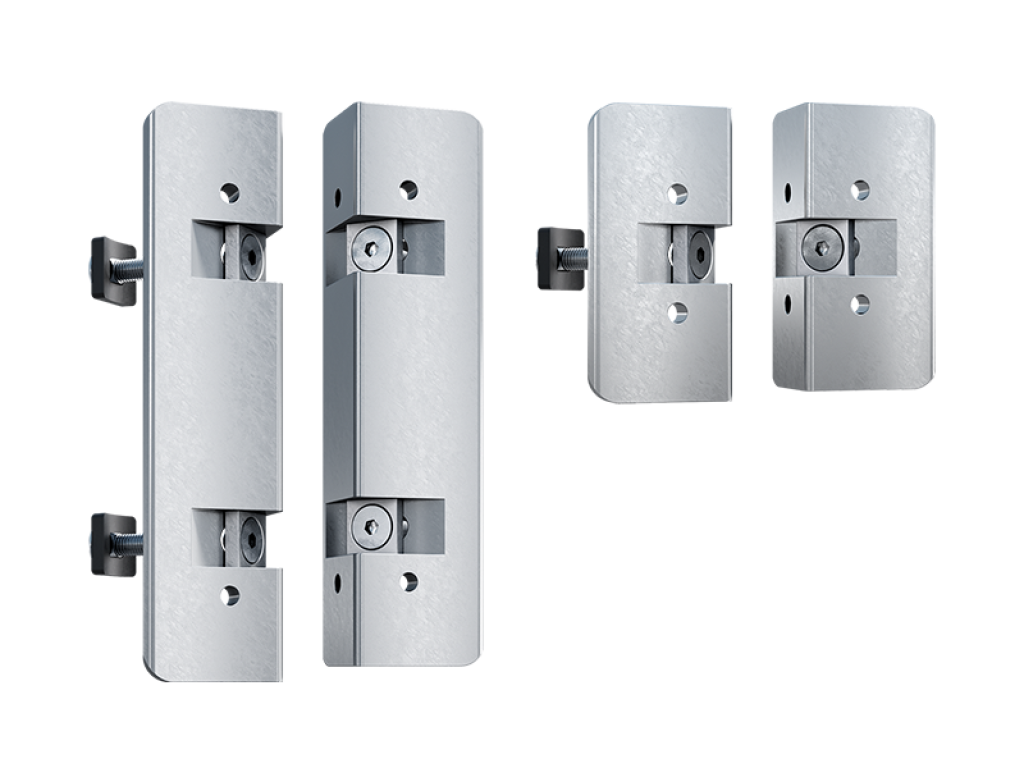

  • Aluminum anodized assembly brackets for Mammoth on chain link fences
  • Diameter post: 1-7/8" to 4"
  • Diameter gate profile: 1-3/8" to 1-7/8"
  • All fixations included
  • Drilling jig included for easy installation
  • Gap from 1-3/16” to 2-1/16”

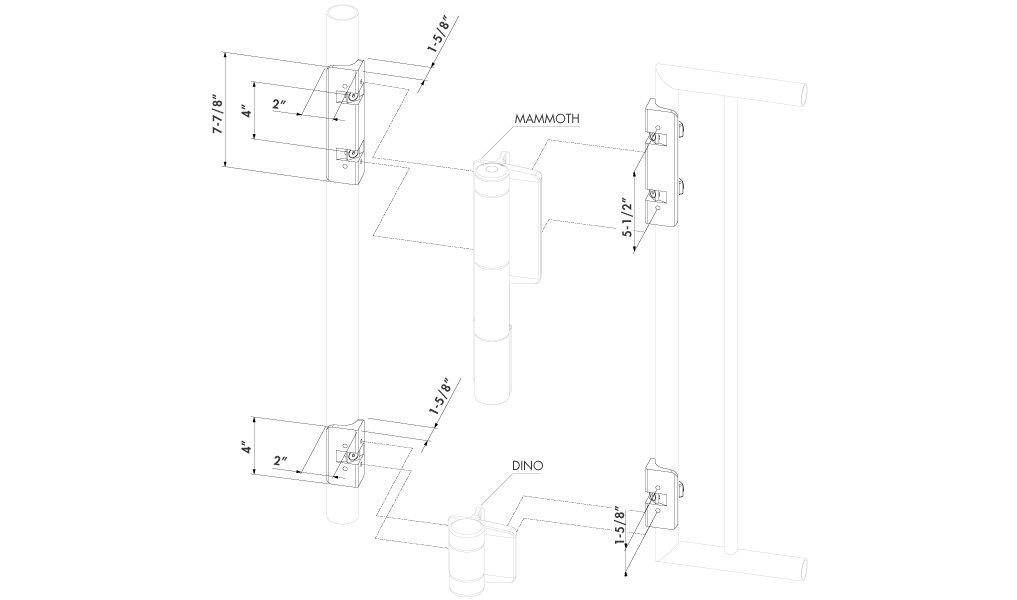

Drawings
