Installation and Drilling jig for Tiger gate closer - TIGERDRILL

Item No. P00006558 - TIGERDRILL

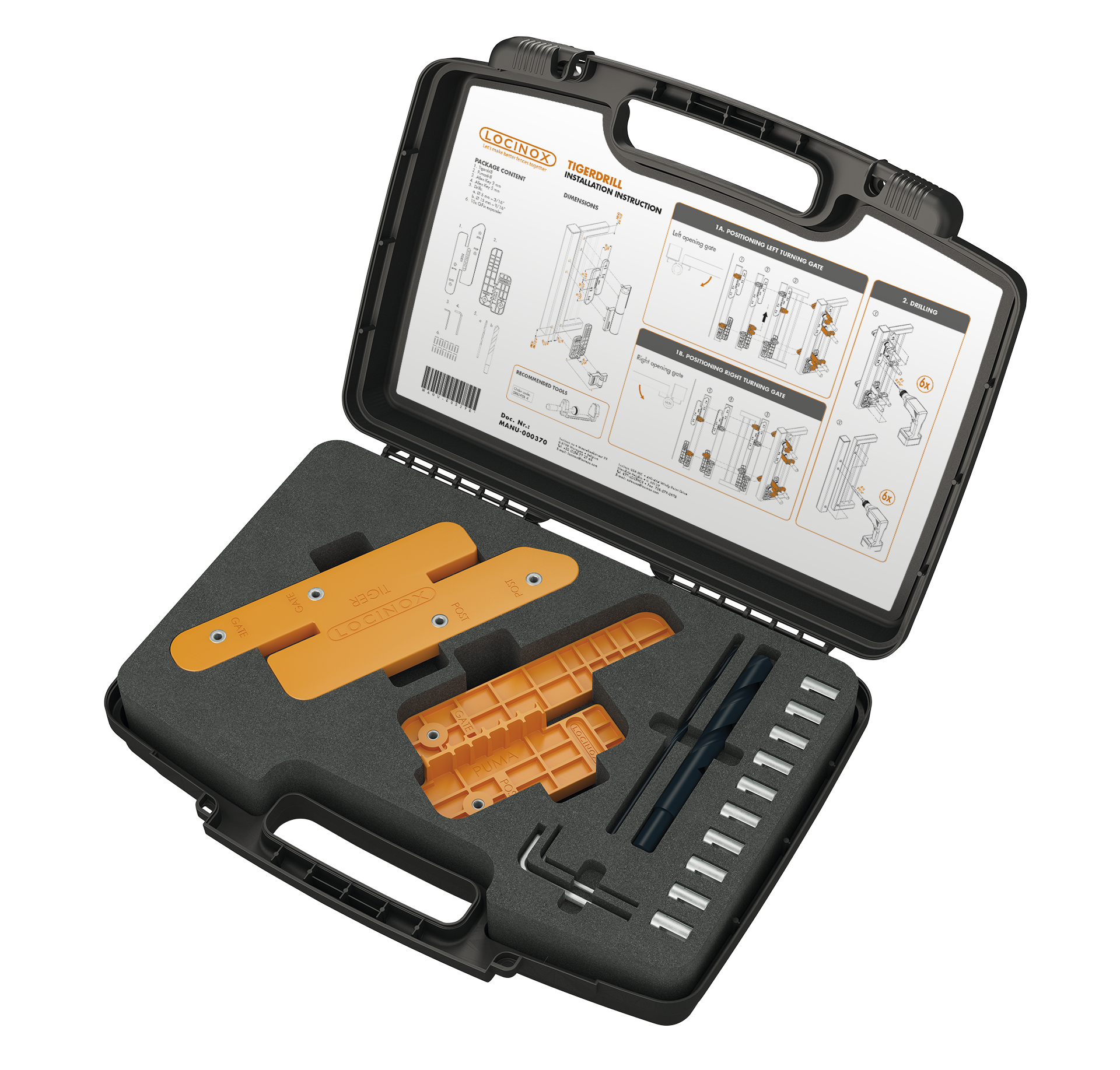

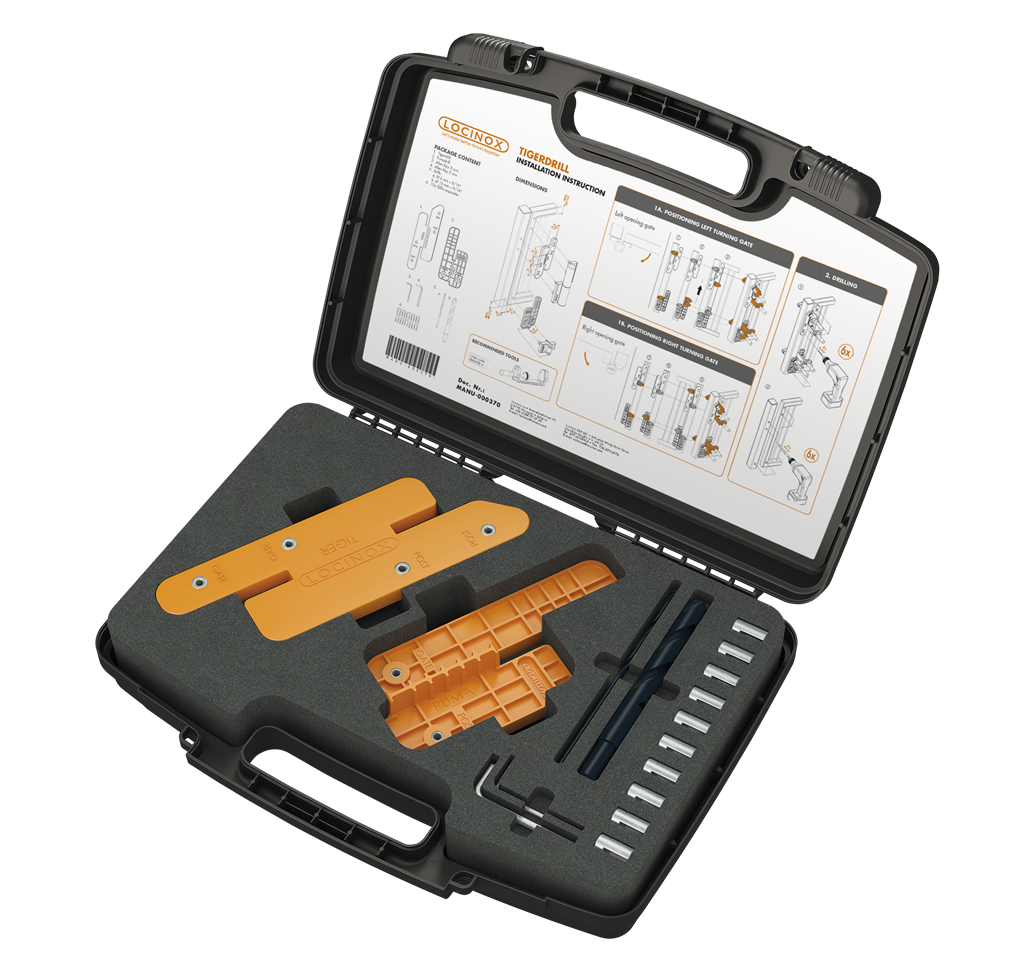

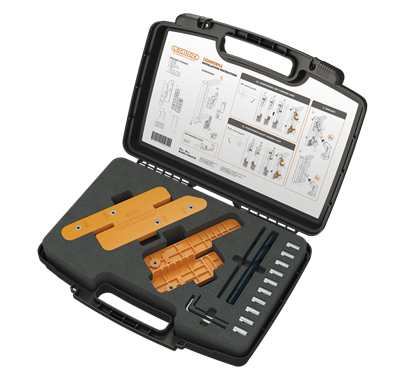

Tool case with installation and drilling jig to perfectly align and install the Tiger gate closer and its Puma hinge. This tool guarantees perfect alignment and a fast and easy installation. No measuring needed, just fix the tool on the post, drill the holes, install the Tiger and Puma, and close the gate.

Product specs

Specifications
Drawings
Downloads

Specifications

Specifications	Includes 2 drill bits Ø13/64″ and Ø5/8″ Spare set with 10 Quick-Fix expanders Solid plastic box with compartments for convenient storage Includes accessories for assembly and adjustment of Tiger Recommended to be combined with Drillvise-IV
Features

Drawings

Downloads
