Hot-dip galvanized dropbolt
Hot-dip galvanized dropbolt

Hot-dip galvanized dropbolt

Item No. D00000091 - VSF

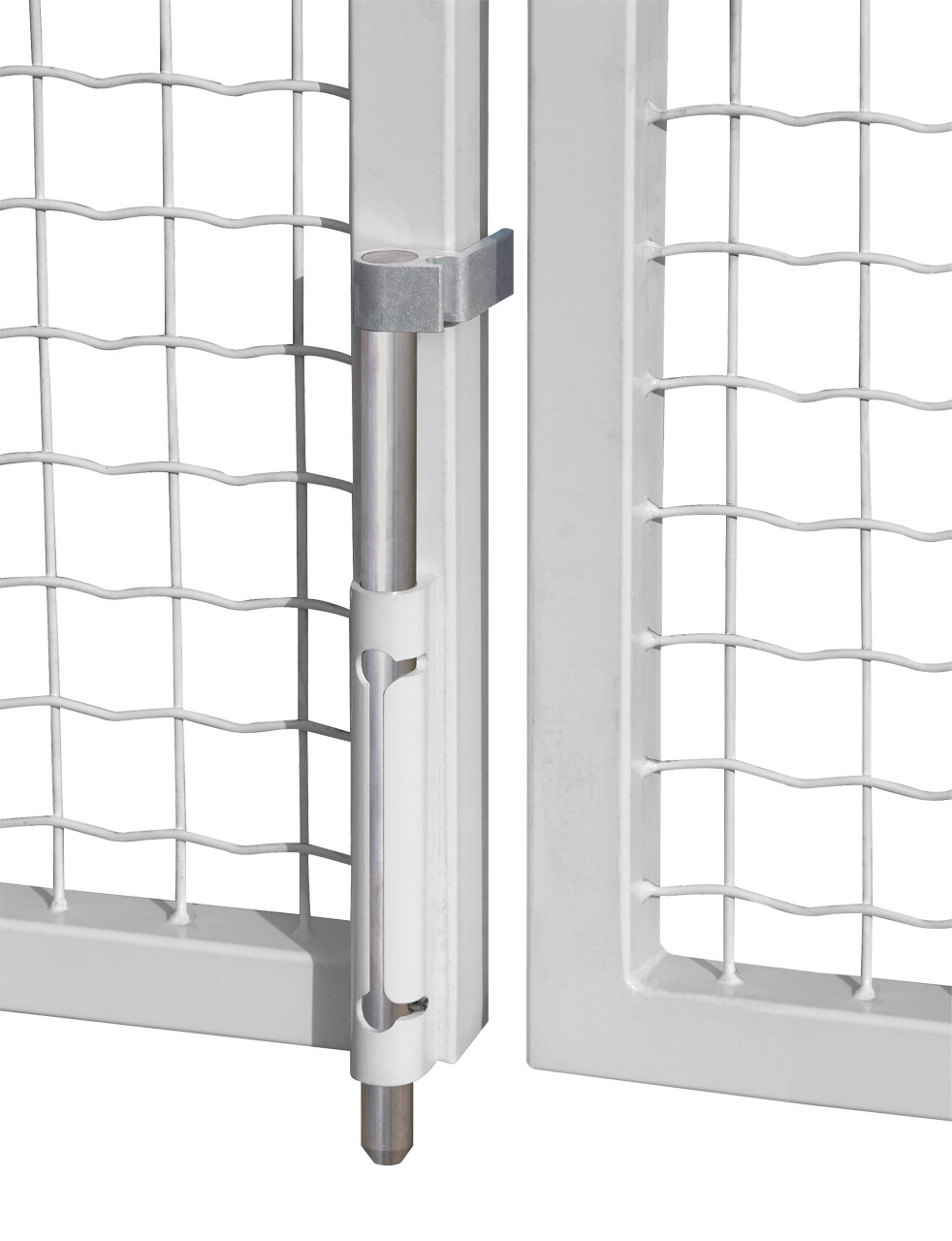

Standard dropbolts with hot-dip galvanized bolt and the innovative Quick-Fix fixation. The dropbolt is auto-locked between the double wings.
Product specs
This product cannot be ordered at the moment.
2 product(s) found
Sort by:
No image for this product
Hot-dip galvanized dropbolt - VSF-K-QF1BL
Item No. P00008445
Hot-dip galvanized dropbolt - Quick-Fix - Various colors
Hot-dip galvanized dropbolt
Hot-dip galvanized dropbolt - VSF-K-QF1BL-ALUM
Item No. P00008481
Hot-dip galvanized dropbolt - Quick-Fix - Uncolored
Specifications
Specifications
  • Hot-dip galvanised pin
  • Aluminium head block and housing
  • For gate profiles 1-1/2" or more
  • Height adjustability of the drop bolt: 4"
  • Throw: 5-1/2"
  • Self-locking between the leaves
  • Fast and easy fixation with Quick-Fix bolts
  • Easy to retrofit
Available in following RAL-colors
Features

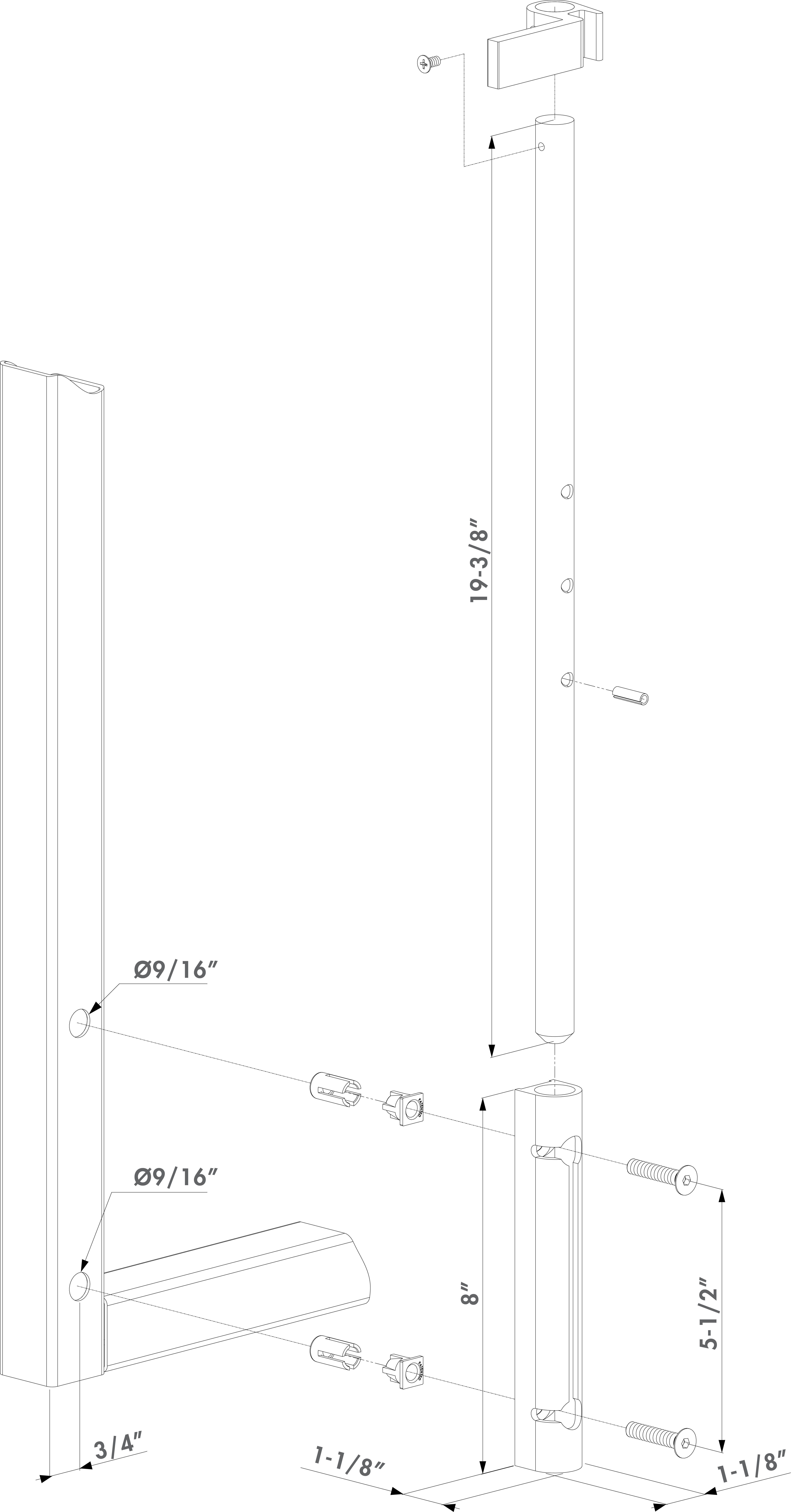

Drawings
