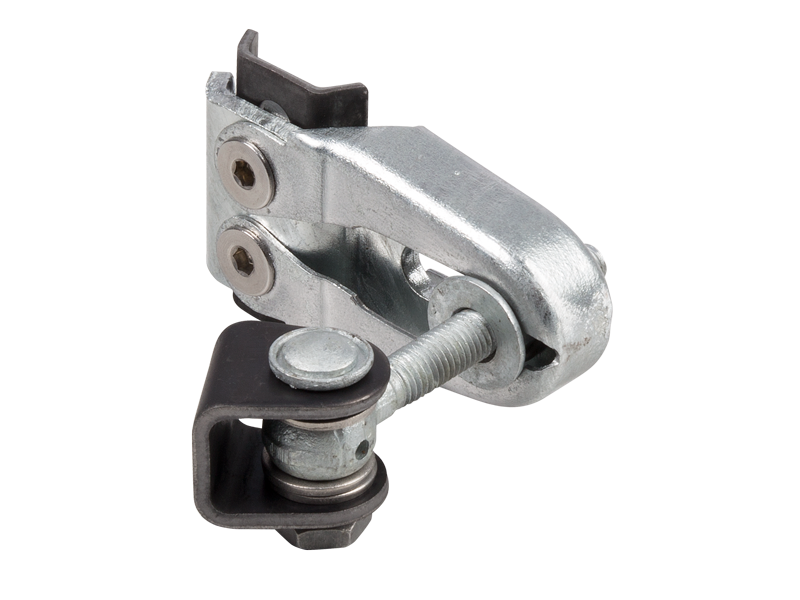

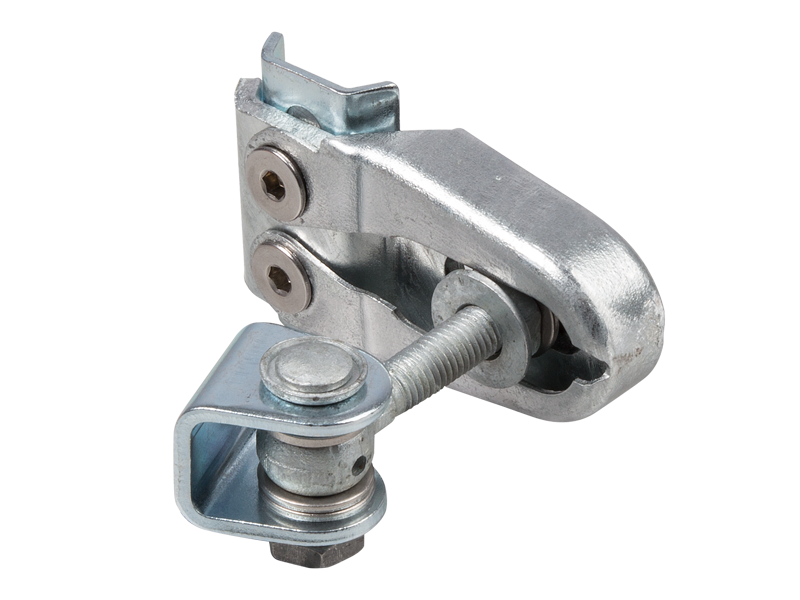

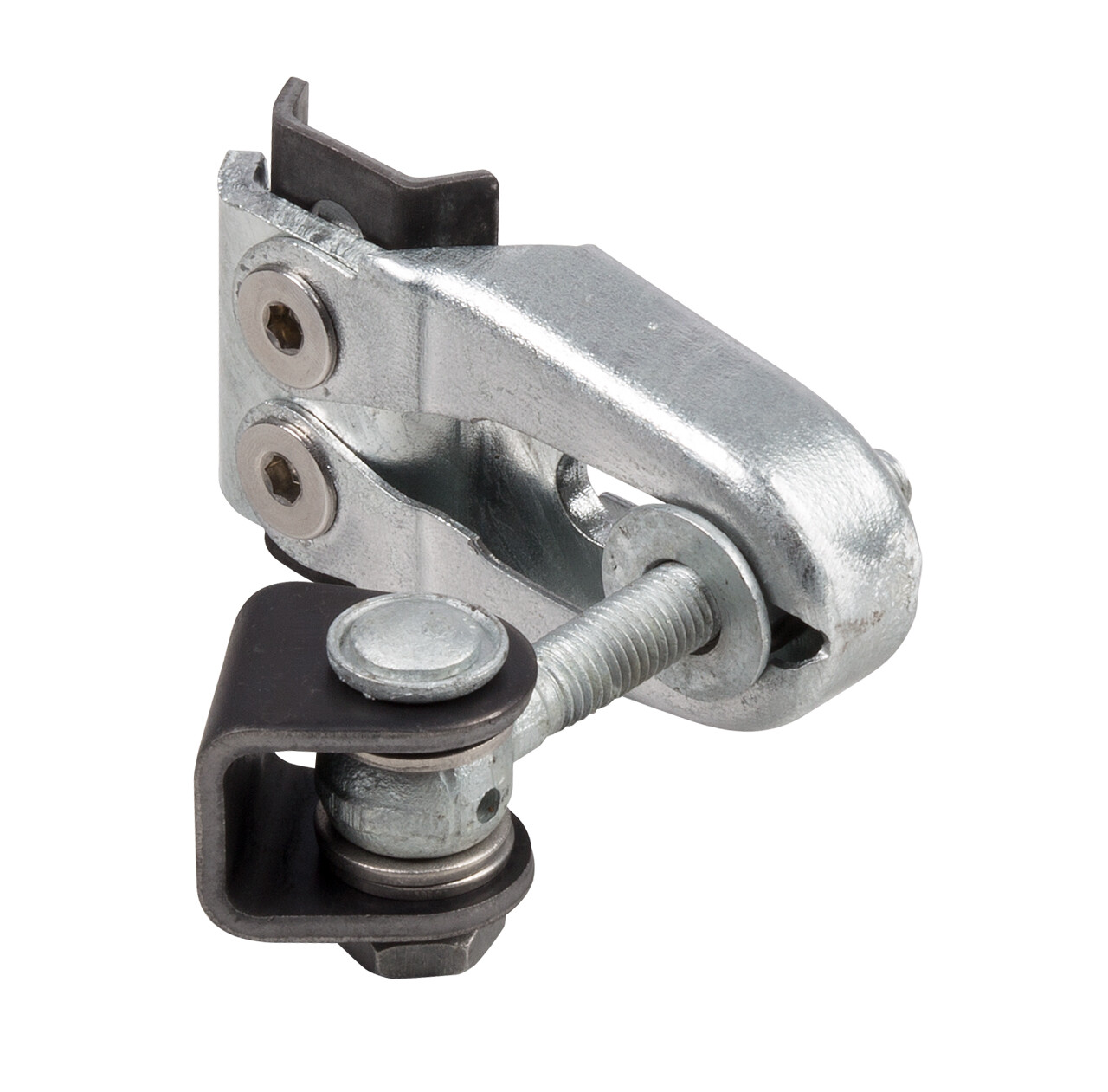

4-way adjustable vandal-proof 180° hinge
4-way adjustable vandal-proof 180° hinge

4-way adjustable vandal-proof 180° hinge

Item No. D00000078 - GBMU4DSHIELD
Vandal-proof hot dip galvanized 180° hinge. This secured version of the GBMU4D16 hinge provides extra security since the eyebolt or cross bolt can not be tampered with. With the 4-way adjustability you no longer have to keep left or right turning gates in stock. Height, depth, left and right alignment and turning direction are individually adjustable.
Product specs
This product cannot be ordered at the moment.
Show all… Collapse
No products found.
Specifications
Specifications
  • 180° opening and closing angle
  • Eyebolt M16 and bolt & nut: hot-dip galvanised
  • Grip: hot dip galvanized
  • Eliminates the need to stock left and right swinging gates
  • 7/8" adjustability in height
  • Only the grip is available in different RAL-colors
  • Vandal-proof Grip-shield included
  • Packed per 50 pieces
Available in following RAL-colors

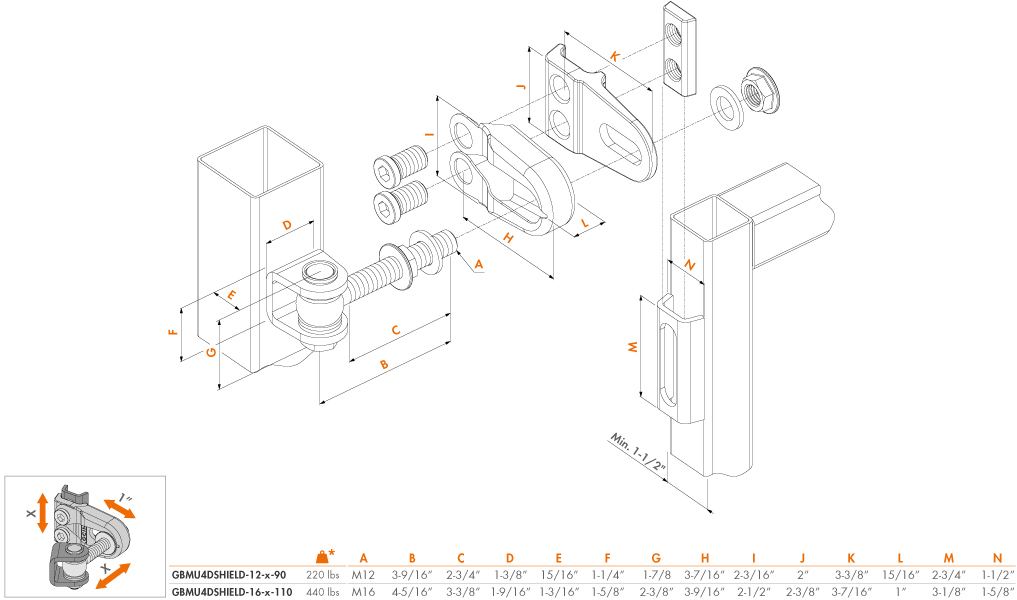

Drawings
