180° hinge set for ascending slopes - EXCENTRO

Item No. P00008959 - EXCENTRO

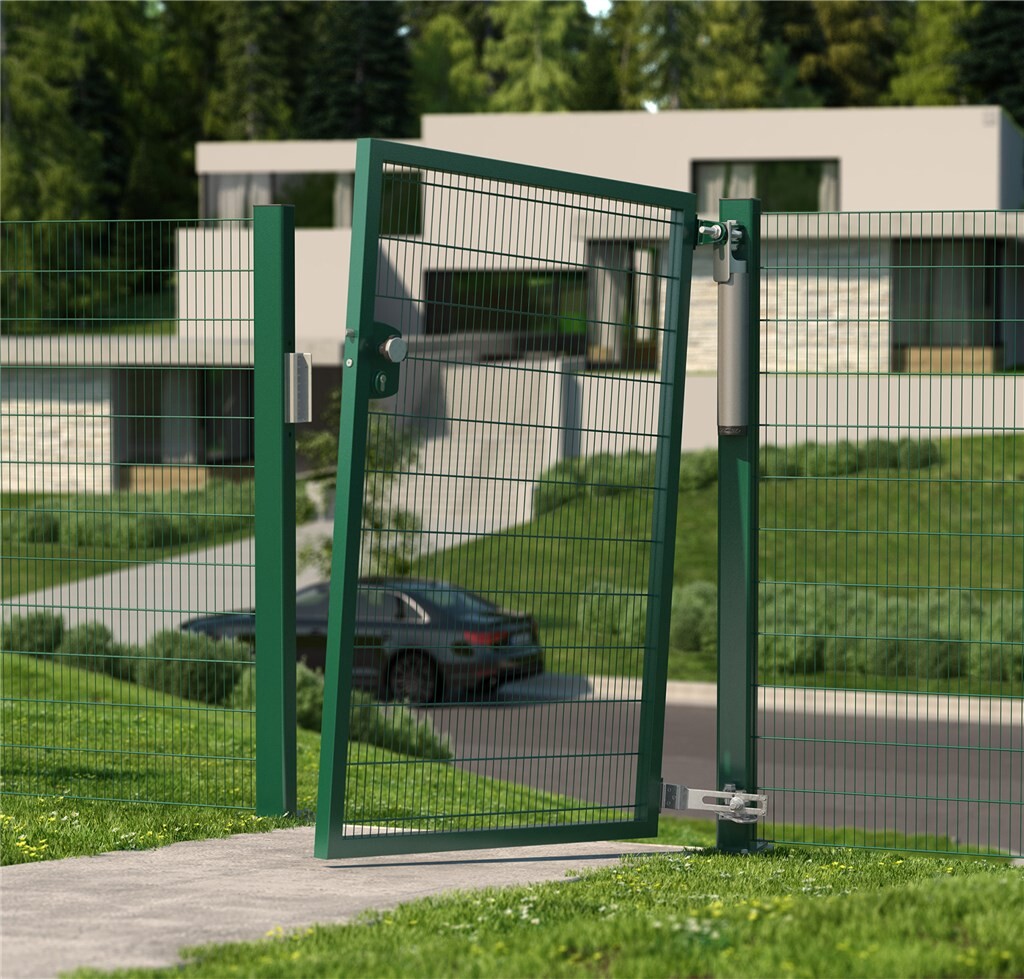

This hinge is the perfect solution for sloped driveways. The hinge opens in an upward movement inwards, allowing a perfect entry and exit on even the steepest slopes (from 2% up to 35%). Modular for gates with a Locinox GBMU4D-M16 preparation.

Product specs

Specifications
Drawings
Installation movies
Downloads

Specifications

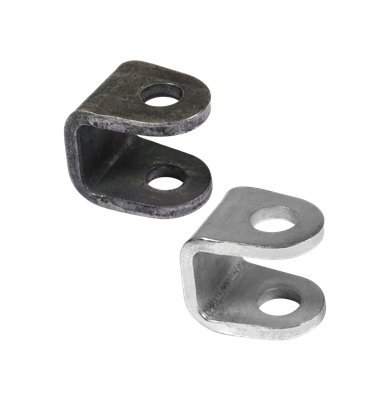

Perfion__Bullets	180° opening and closing angle Maximum weight: 165 lbs For left and right handed gates Hot-dip galvanized hinge with stainless steel components Adjustable for slopes from 2 up to 35% (depending on distance between hinges) Compatible with KLAUW gate claw and 1001U U-shaped ear plate
Specifications	180° opening and closing angle Maximum weight: 165 lbs For left and right handed gates Hot-dip galvanized hinge with stainless steel components Adjustable for slopes from 2 up to 35% (depending on distance between hinges) Compatible with KLAUW gate claw and 1001U U-shaped ear plate

Drawings

Installation movies

ame width="560" height="315" src="https://www.youtube.com/embed/ZRjaSc1Q4H4" frameborder="0" allow="accelerometer; autoplay; encrypted-media; gyroscope; picture-in-picture" allowfullscreen>

Downloads

Item No. P00007651

Anti climb device to be mounted on top of the Serval spring hinge

Item No. P00002394

180° hinge set for ascending slopes - EXCENTRO

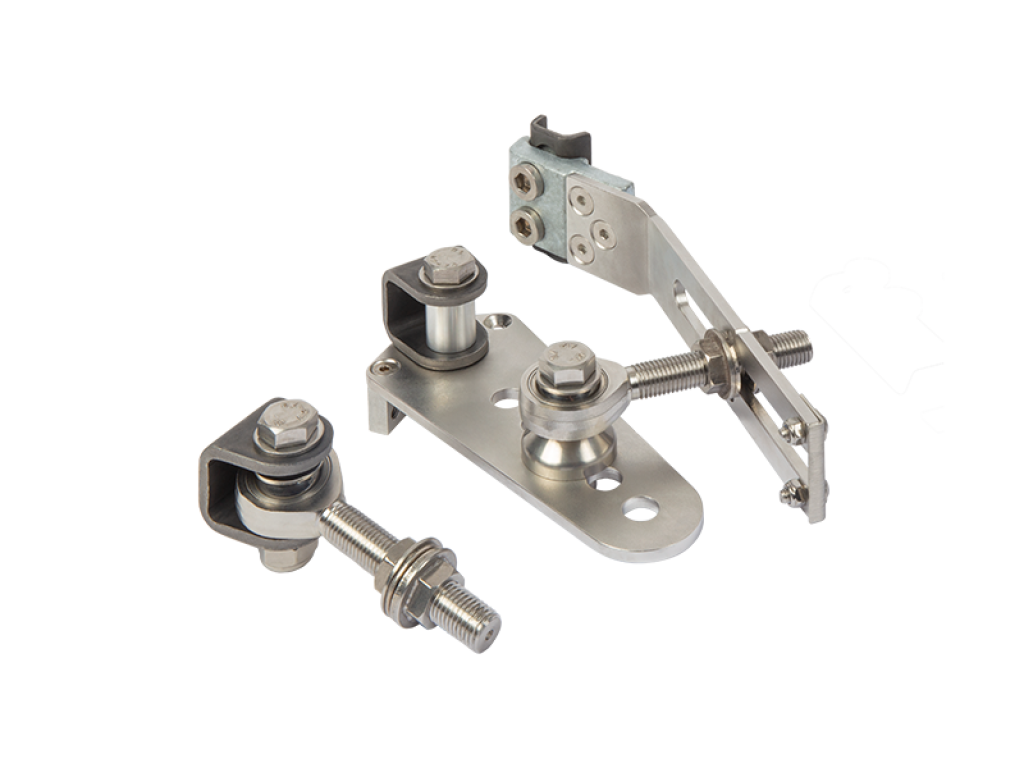

Product

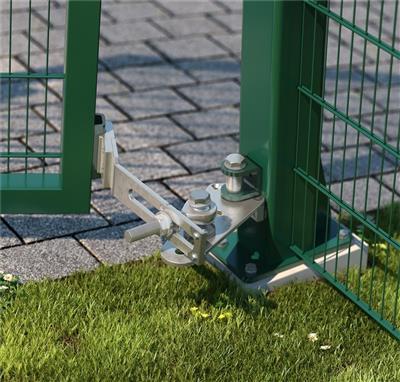

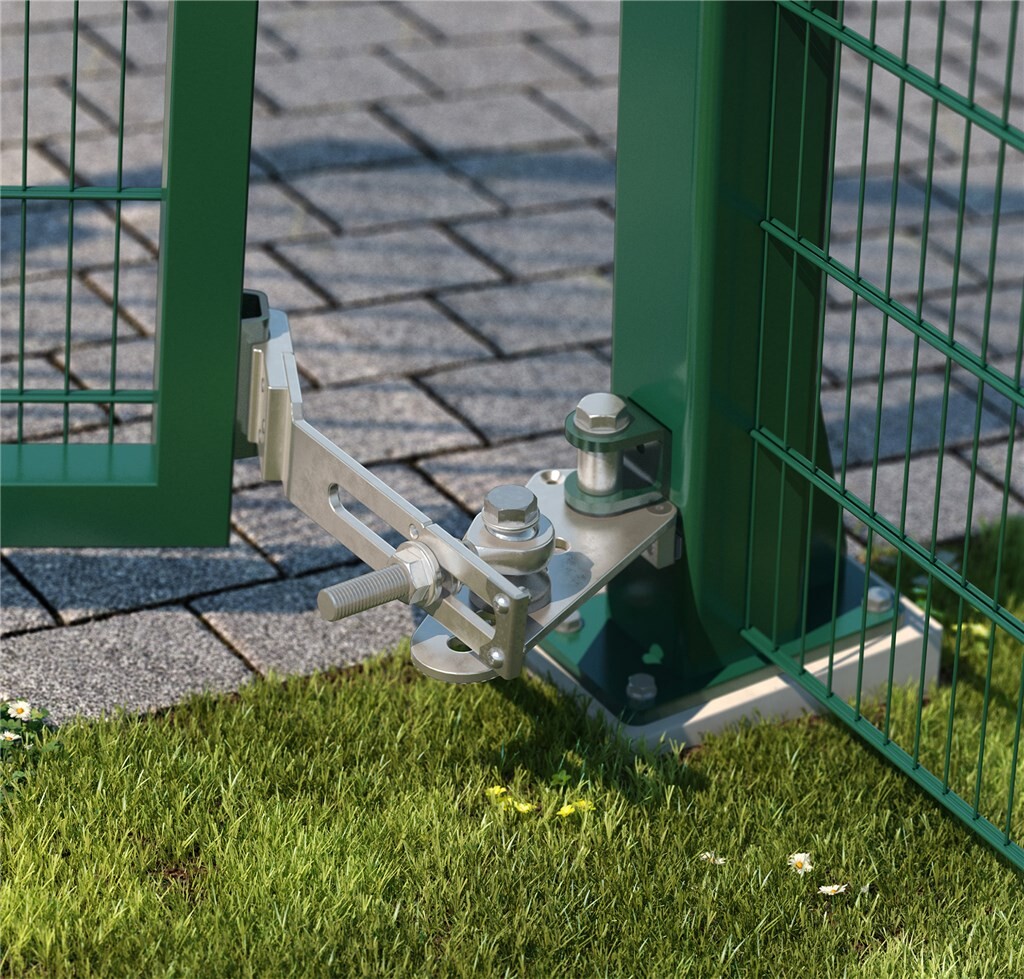

On gate

On gate

2D/3D drawings

Installation instructions

Hinges specifications
