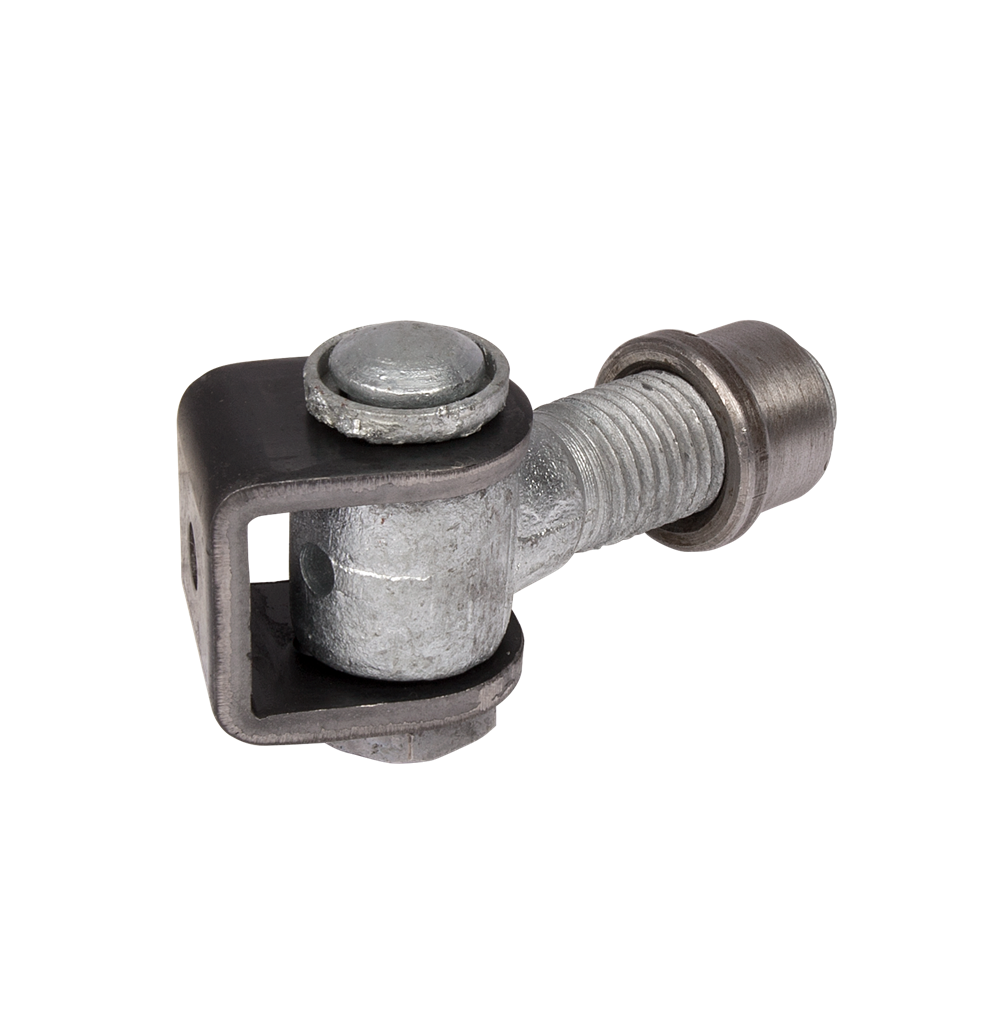

90° adjustable hinge

90° adjustable hinge

90° adjustable hinge

Item No. D00000075 - G90Z

Hot-dip galvanized 90° hinge. The perfect solution for all your small industrial gates.

No products found.

Specifications
Drawings
Downloads

Specifications

Specifications

90° opening
Nut in black steel for welding
Earplate in black steel or cold zinc plated
Eyebolt: M16 (5/8") or M20 (13/16") hot dip galvanized
Hinge Bolt: M14 (9/16") hot-dip galvanized
Packed per 50 pieces or per pair

Drawings

Downloads

Product

Download *.JPG
Download CMYK *.TIF
Download RGB *.TIF
Perfion__Image1Image

2D/3D drawings

Download *.TIF
Download *.JPG
Download *.JPG

Hinges specifications
