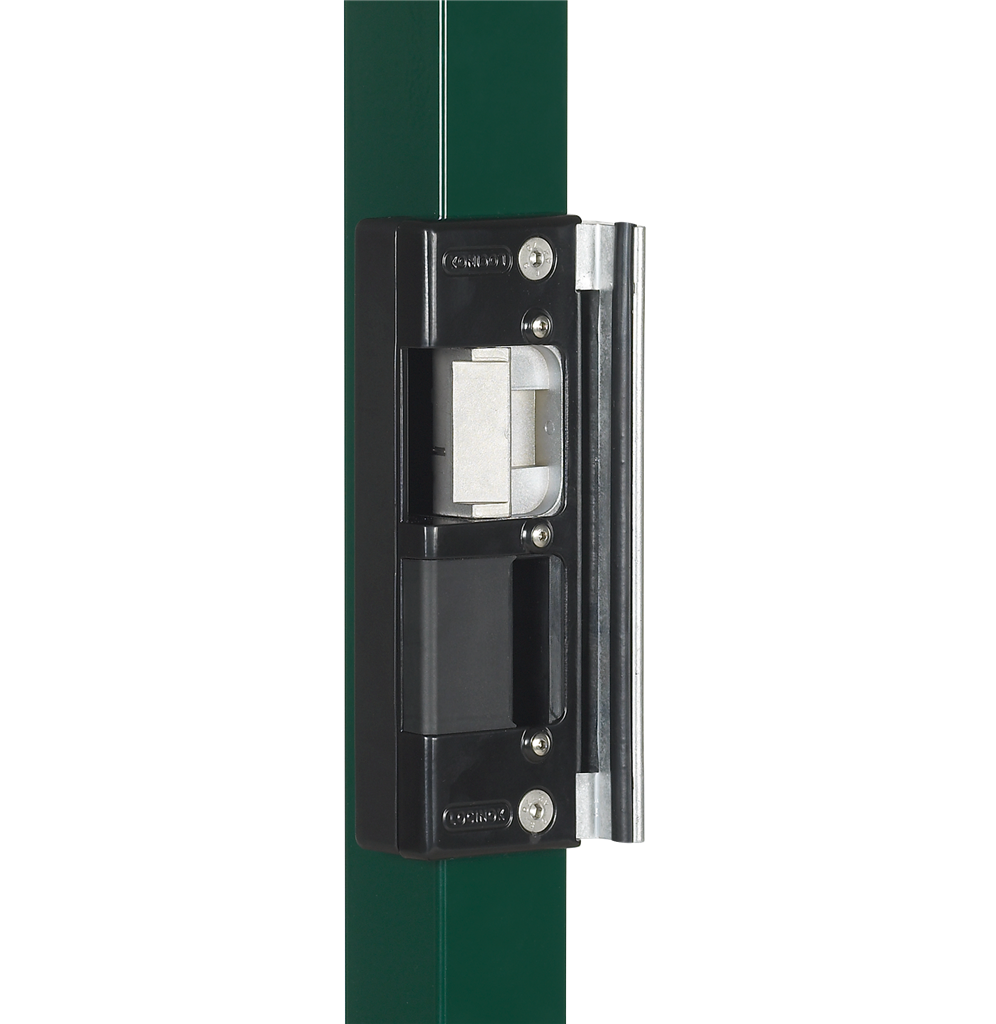

Electric strike for mortise locks

Item No. D00000054 - SEH

Electric strike for swing gates using our Hybrid Mortise locks. The strike is equipped with a double blocking system which supports 1000 lbs pulling force. This keep is extremely strong and the ideal solution for your access control installations. The electric strike is available in a Fail Secure or Fail Safe model. Latch gap: 1”. SEH is available in two versions: E (Emissa - Fail Close) and R (Ruptura - Fail Open).

Product specs

2 product(s) found

Electric strike for mortise locks - SEH-E

Item No. P00008664

Electric strike for mortise locks - SEH-R

Item No. P00008811

Specifications

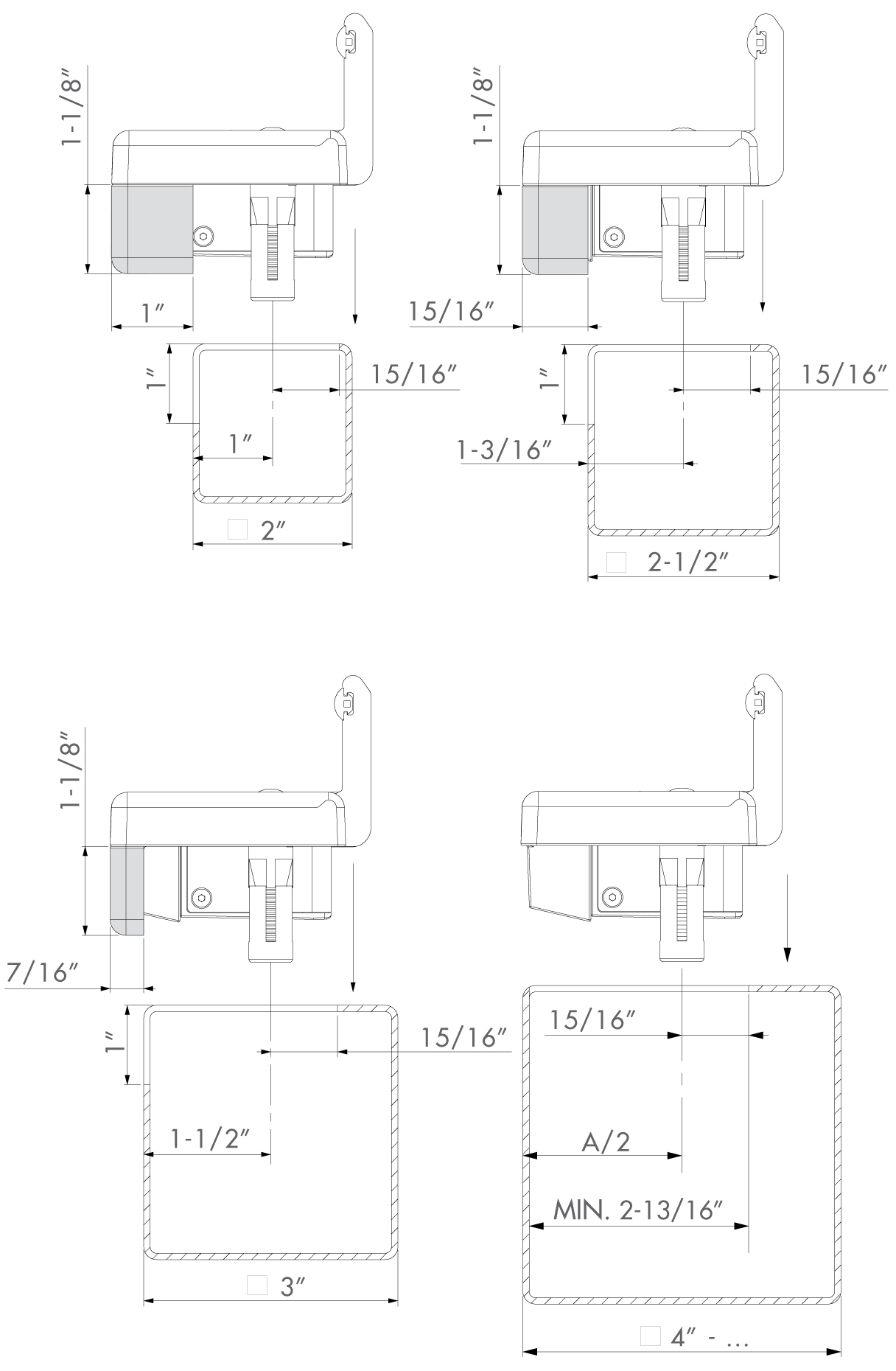

Drawings
Downloads

Specifications

Specifications	Type SEH.E: Emissa - Fail Close Type SEH.R: Ruptura - Fail Open Easy left or right hand changing For profiles 2" and larger Voltage: 12V AC/DC Current Emissa: 1A Current Ruptura: 1.5A Water resistant & weatherproof Pressure resistance on self-latching bolt: 1000 lbs
Available in following RAL-colors
Features
