Mortise lock for ornamental gates, fits welding lock box - H-METAL-WB

Item No. P00008044 - H-METAL-WB

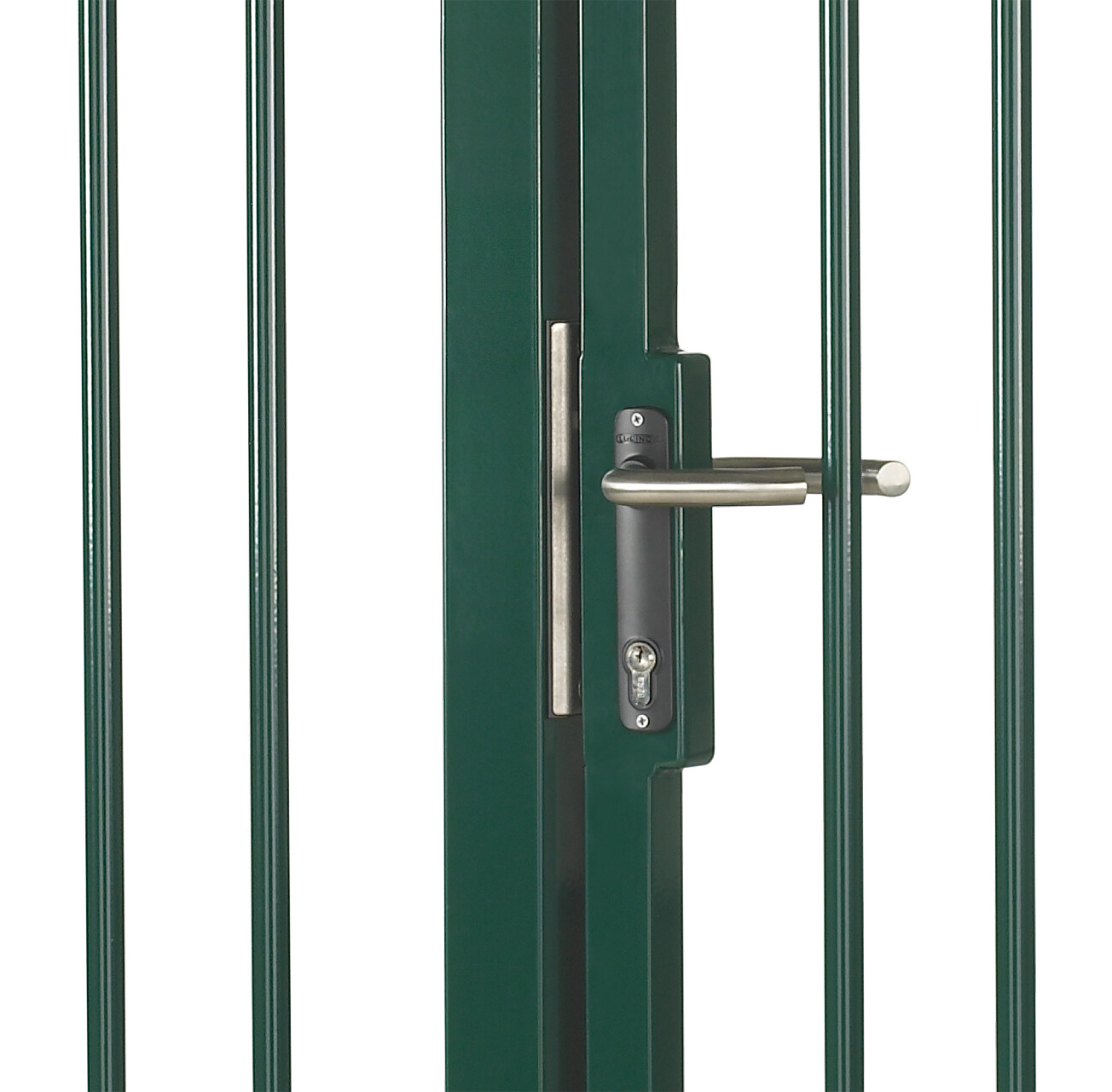

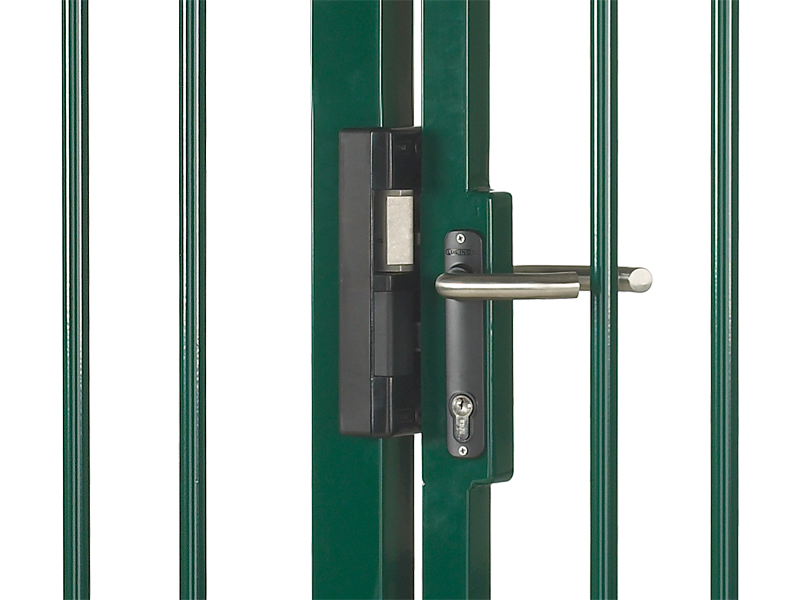

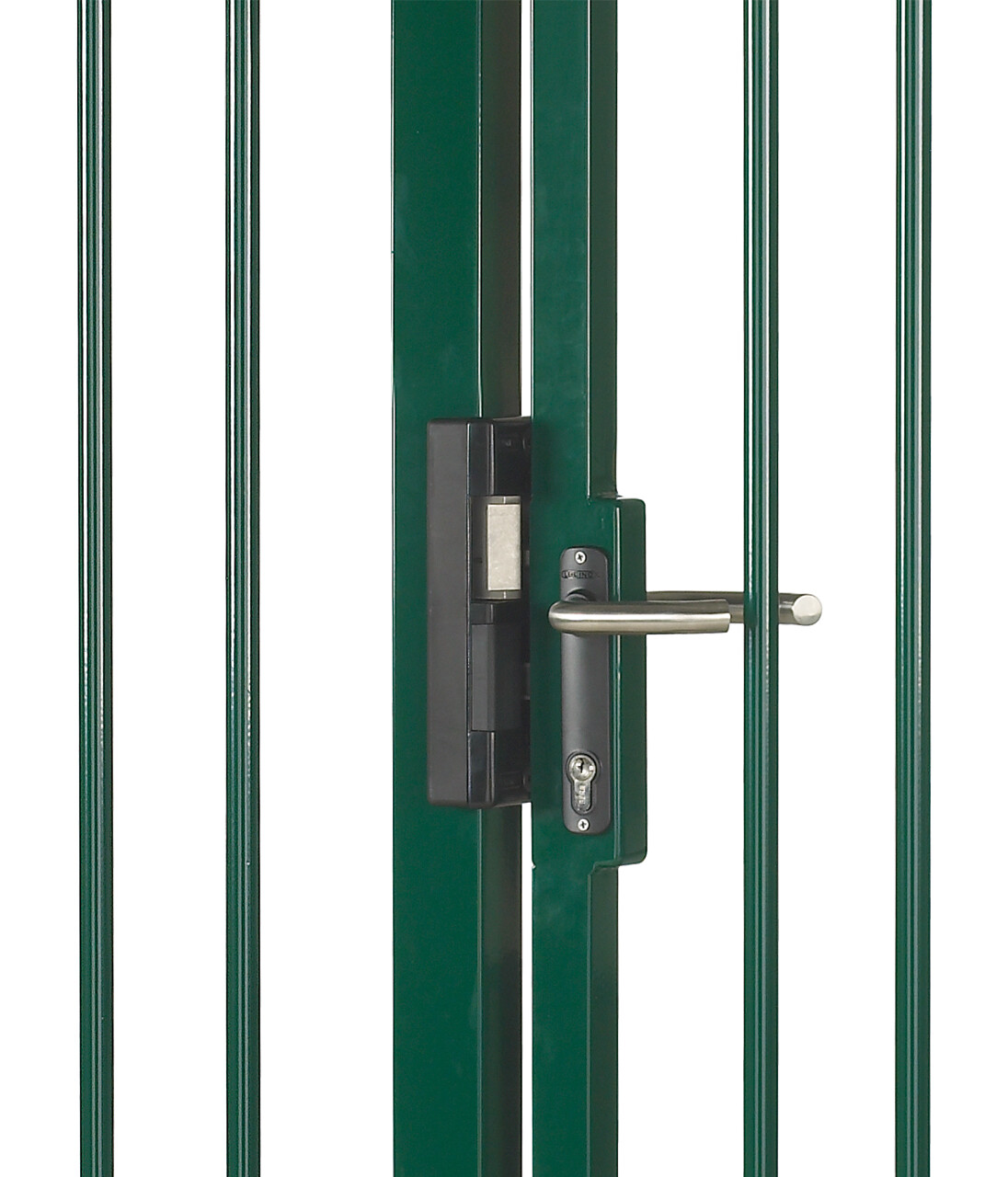

Mortise lock with 100% stainless steel mechanism. This model can be installed on steel or aluminum gates and fits perfectly into our custom welding box. The massive stainless steel hook and adjustable latch bolt makes this a one of a kind lock. The combination of the hook (dead bolt) with the SHKM or SHKW keep provides a secure anchoring of your gate while preventing the gate from being pried open as the dead bolt's "hook" locks into the keep's anchoring plate. The latch gap required is keep dependent, but the SHKM Hybrid keep requires a 7/8" latch gap.

Product specs

Specifications

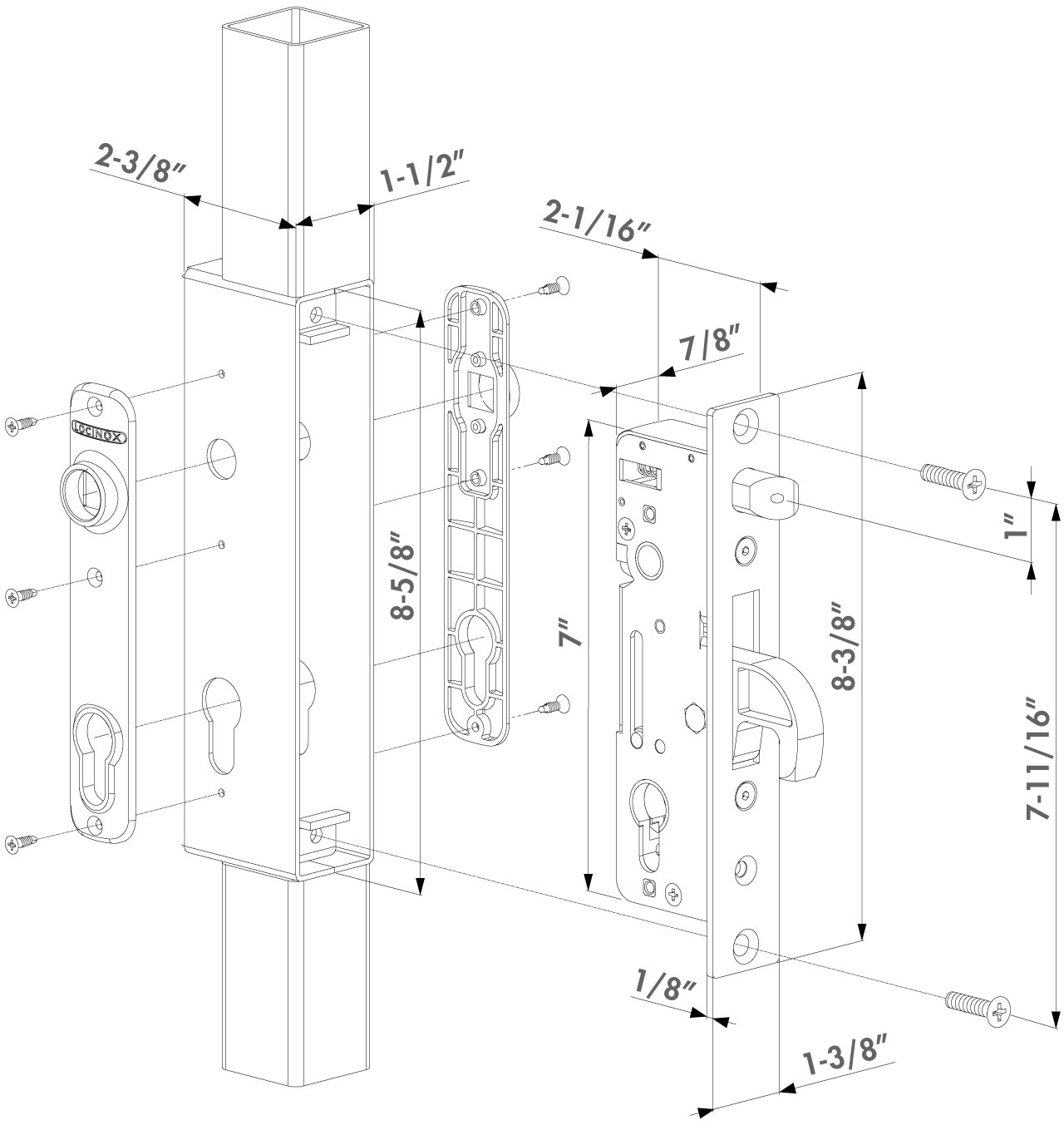

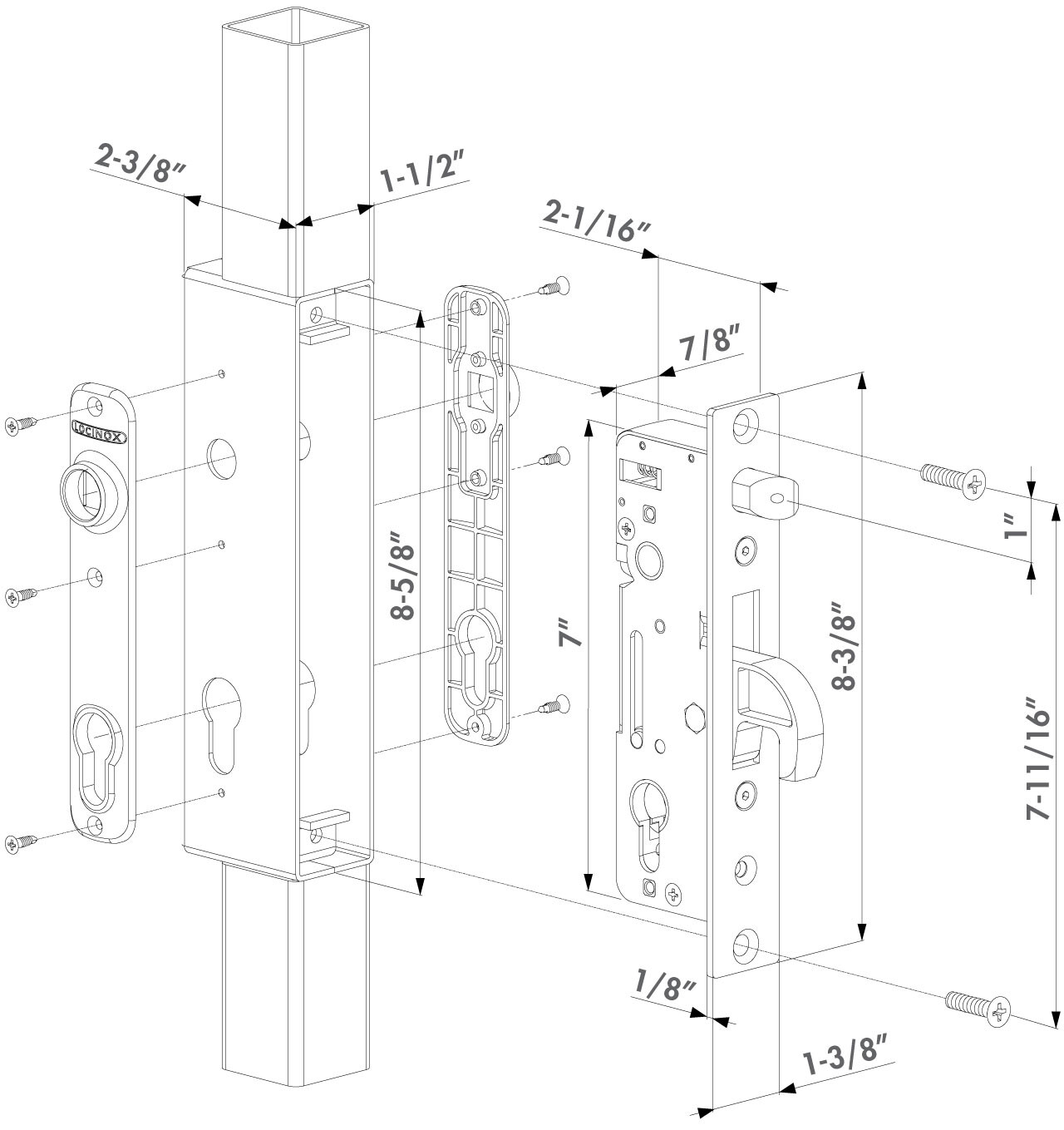

Drawings
Downloads

Specifications

Perfion__Bullets	Easy left or right changing of the self-latching daybolt Key-operated self-latching bolt Adjustment of the latch bolt up to 3/4" continuous without removing the lock Stainless steel mechanism, hook, front plate and latch bolt Handles to be ordered separately Throw of the hook: 1-1/4" The center distance between the cylinder and the handle: 3-5/8" Hook in combination with the keep provides secure anchoring With coverplate for lock mechanism protection against dirt penetration inside the posts Available with 2-1/8", 2-3/8", and 3-1/8" cylinder Cover shield for handle & cylinder holes to be ordered separately Insert lock with a backset of 1-3/8"
Specifications	Easy left or right changing of the self-latching daybolt Key-operated self-latching bolt Adjustment of the latch bolt up to 3/4" continuous without removing the lock Stainless steel mechanism, hook, front plate and latch bolt Handles to be ordered separately Throw of the hook: 1-1/4" The center distance between the cylinder and the handle: 3-5/8" Hook in combination with the keep provides secure anchoring With coverplate for lock mechanism protection against dirt penetration inside the posts Available with 2-1/8", 2-3/8", and 3-1/8" cylinder Cover shield for handle & cylinder holes to be ordered separately Insert lock with a backset of 1-3/8"
Features
