Lower bearing and flange assembly for turnstiles

Lower bearing and flange assembly for turnstiles

Item No. D00000158 - TT-PIVOT

Stainless steel bearing in a 11/16" thick aluminum baseplate. With bearings for a guaranteed smooth operation. Available with ball bearing or tapered roller bearing.

Product specs

1 product(s) found

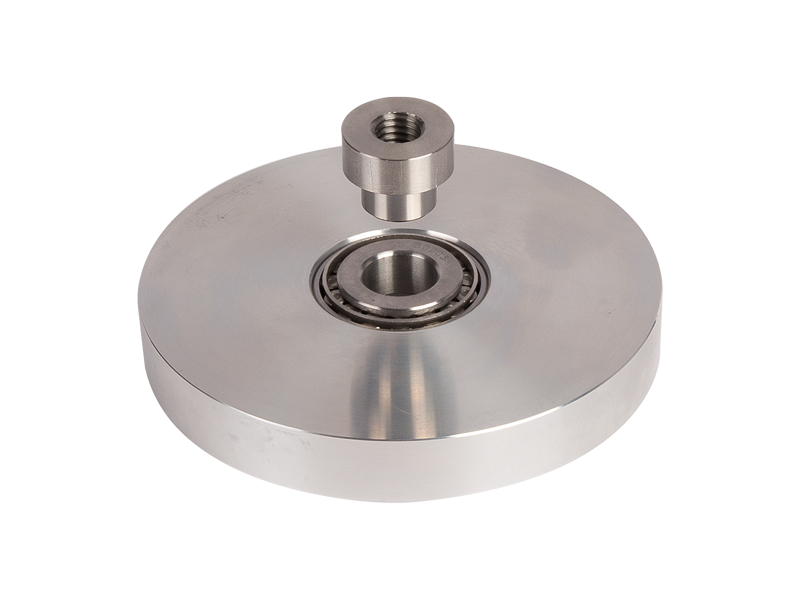

Lower bearing and flange assembly for turnstiles - TT-PIVOT-CC

Item No. P00007737

Specifications
Downloads

Specifications

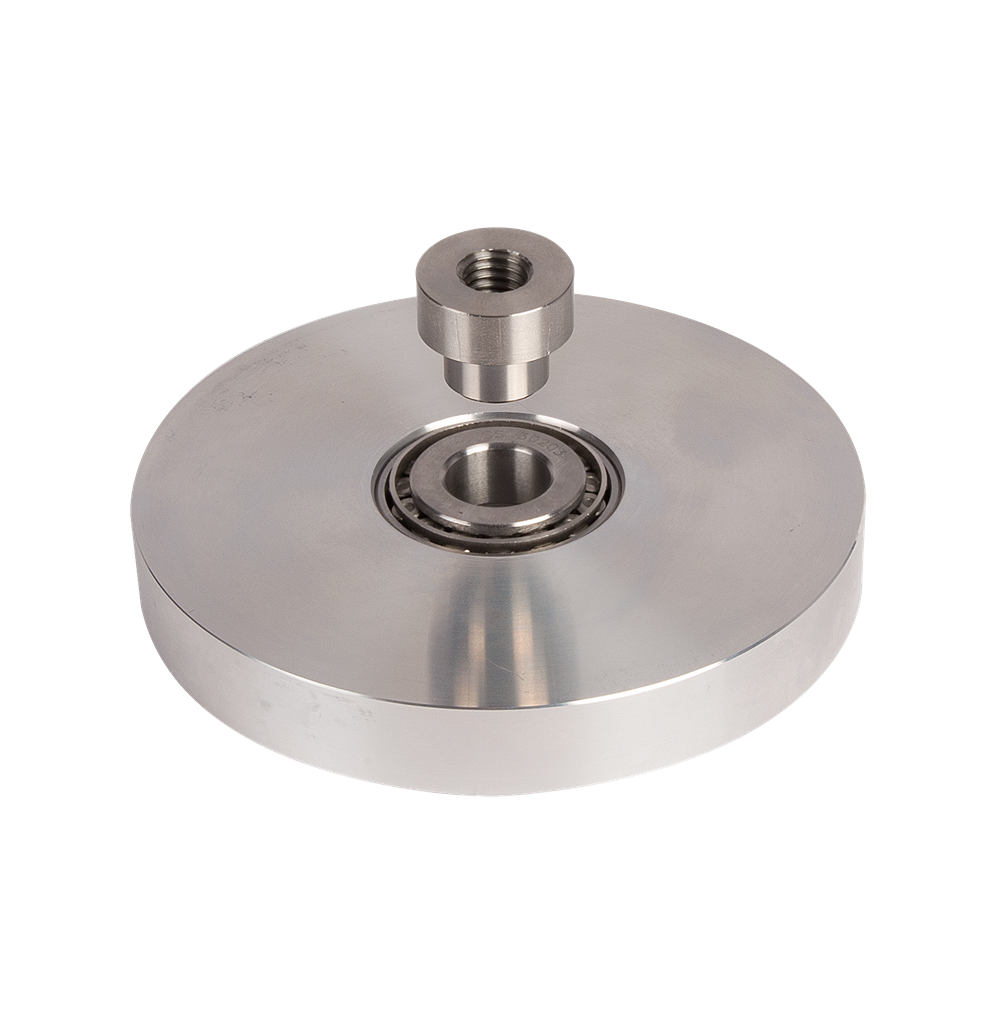

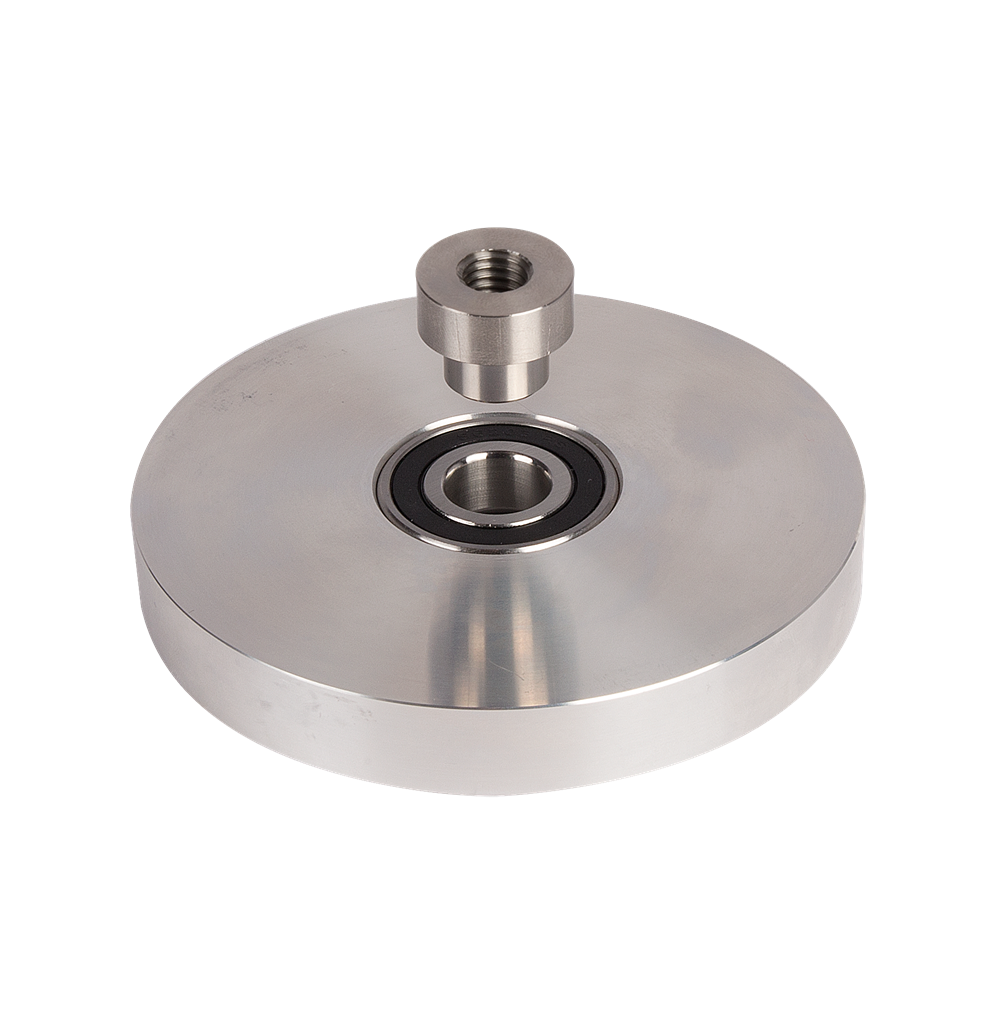

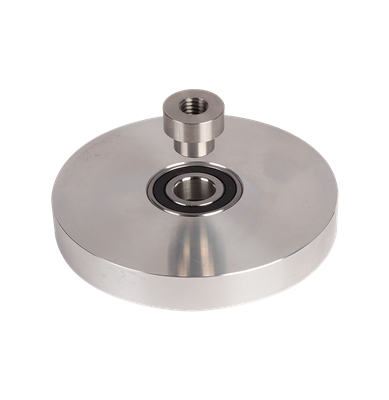

Perfion__Bullets	Aluminum baseplate to be adjusted to the turnstile diameter TT-PIVOT-BB: double sealed, stainless steel ball bearing (440 lbs axial load) TT-PIVOT-CC: tapered roller bearing, protected by baseplate (1650 lbs axial load) Stainless steel Ø1" axis with centered M12 threaded hole
Specifications	Aluminum baseplate to be adjusted to the turnstile diameter TT-PIVOT-BB: double sealed, stainless steel ball bearing (440 lbs axial load) TT-PIVOT-CC: tapered roller bearing, protected by baseplate (1650 lbs axial load) Stainless steel Ø1" axis with centered M12 threaded hole
