Insert lock with 1-9/16" backset for profiles of 2-3/8" or more

Insert lock with 1-9/16" backset for profiles of 2-3/8" or more - SIXTYLOCK

Item No. P00008053 - SIXTYLOCK

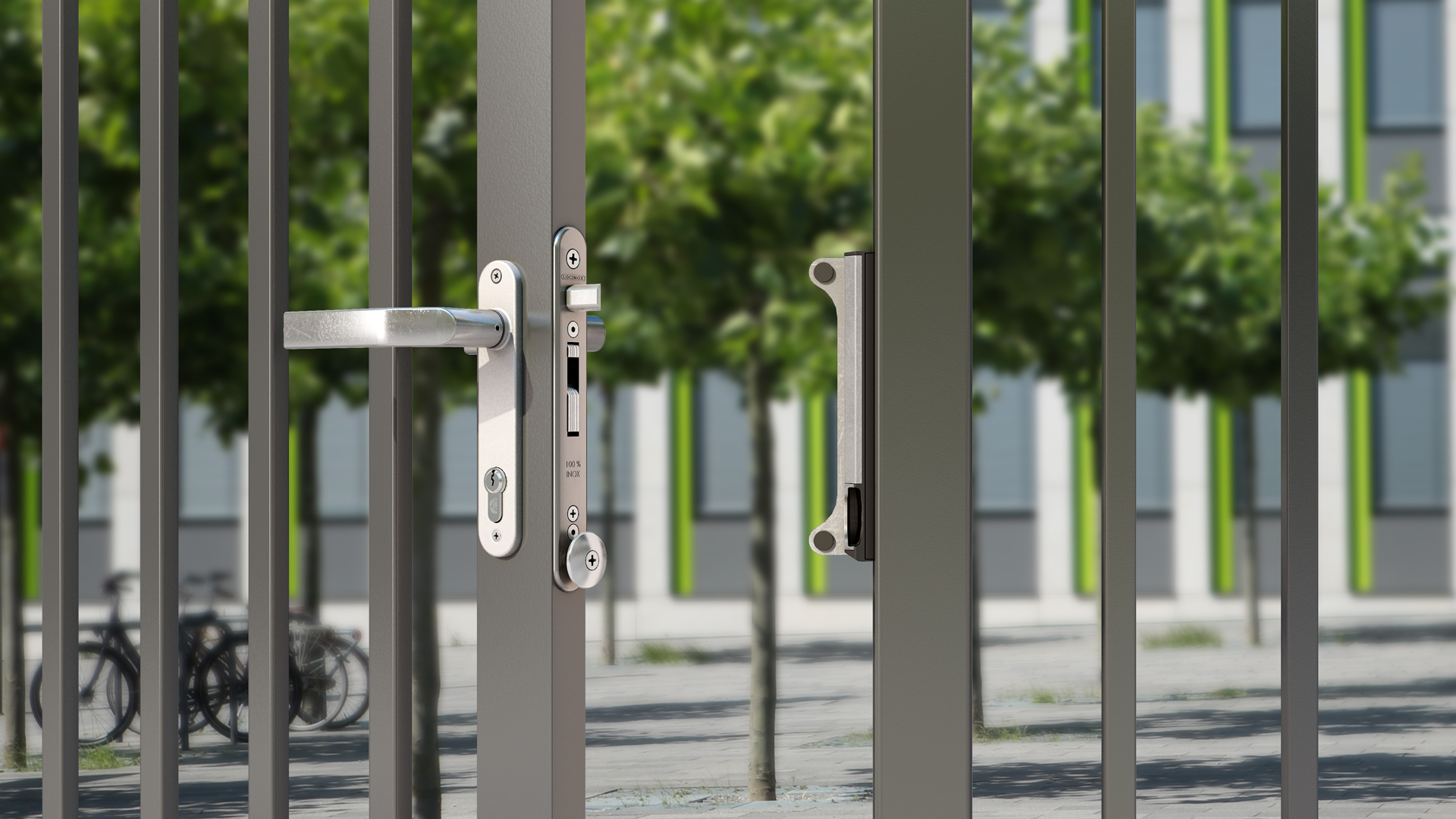

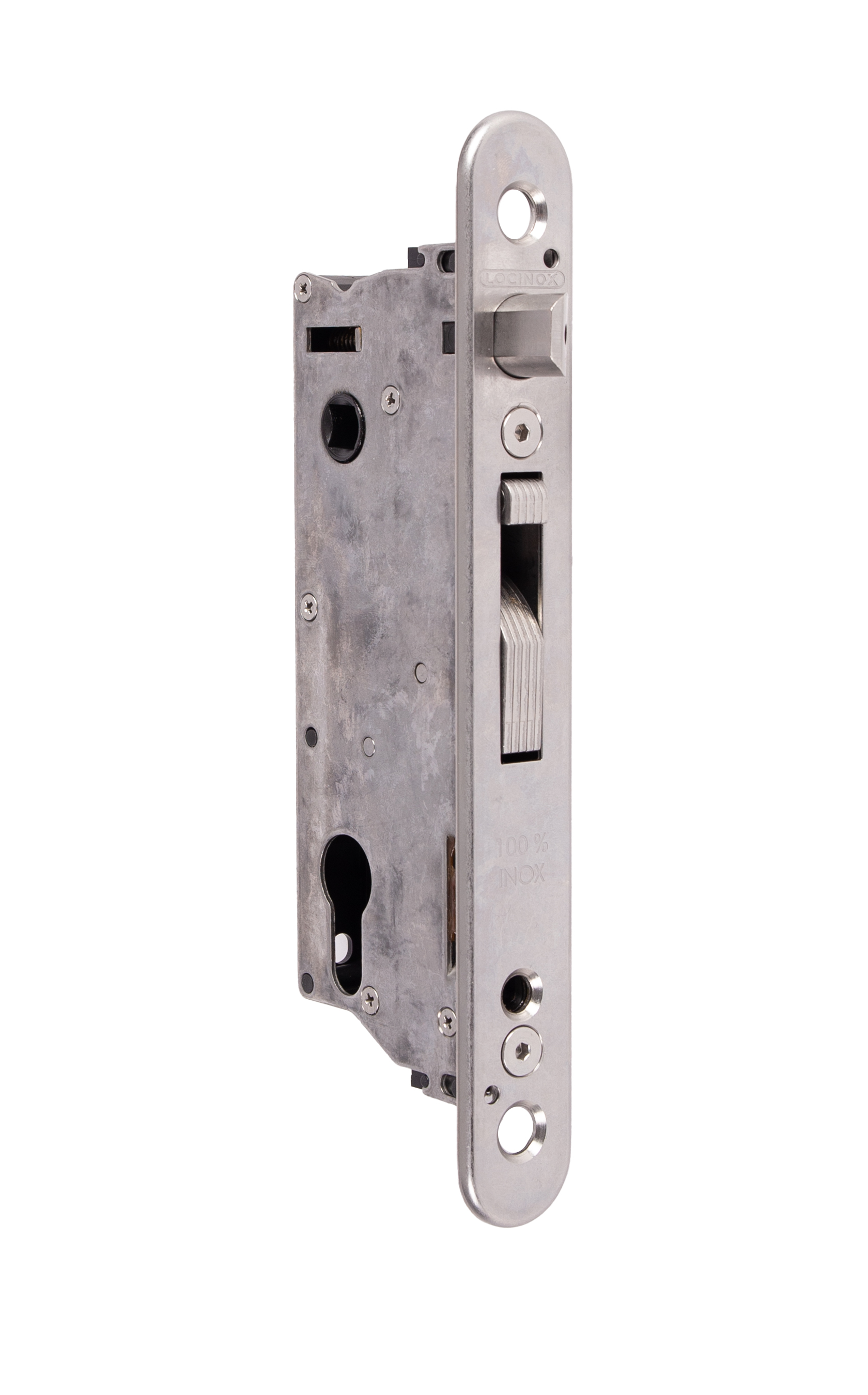

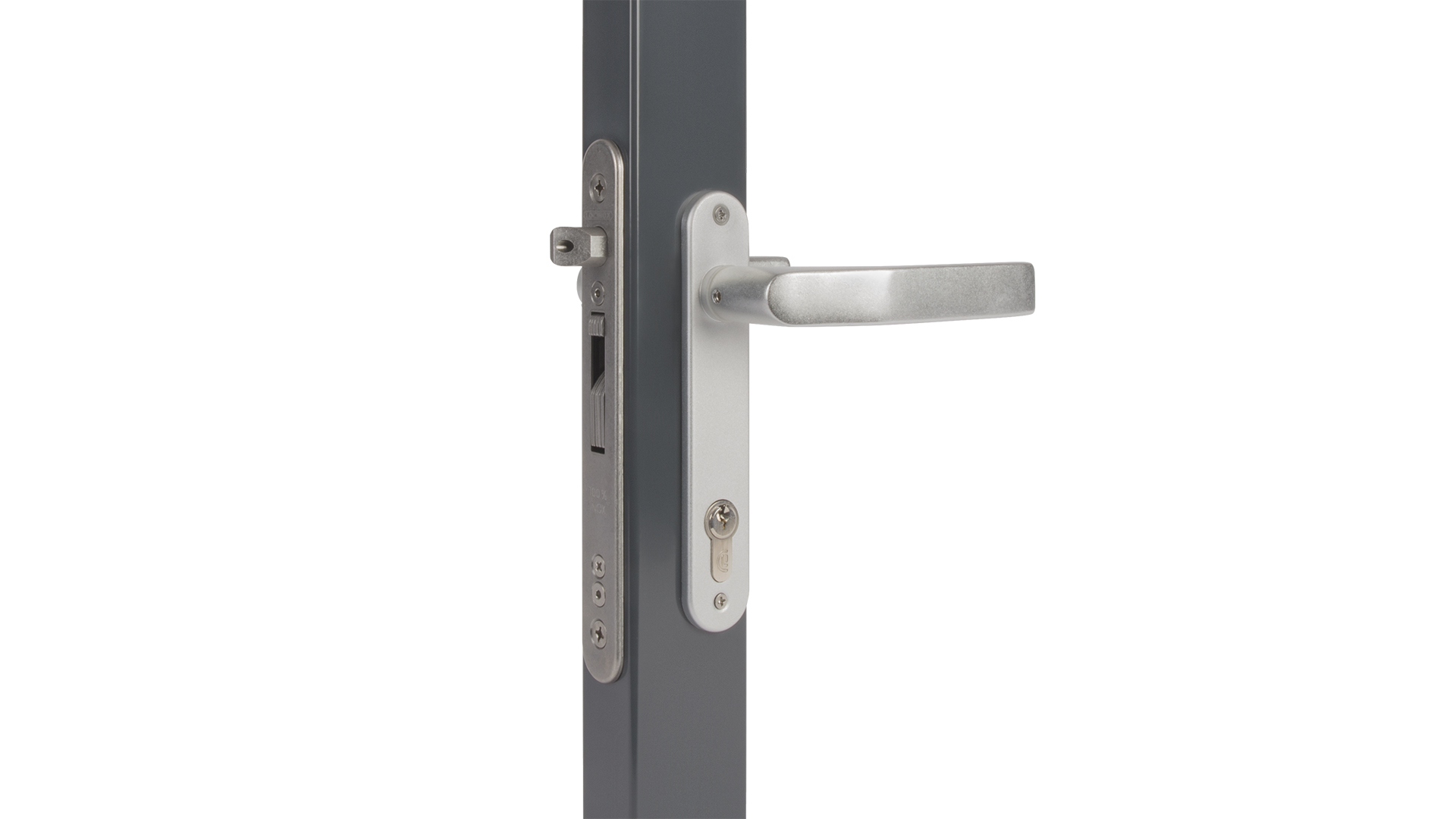

Prime insert lock with 100% stainless steel mechanism. The stainless steel, adjustable self-latching bolt and hook combined with the right keep guarantee a strong and solid closed gate where the gate wings can not be pulled apart or forced open. The lock can be installed on metal, aluminum and PVC gates. Thanks to the patented "Click-It" system the lock is mounted in seconds.

Product specs

Specifications
Installation movies
Downloads

Specifications

Perfion__Bullets	Easy left or right changing of the self-latching daybolt Key-operated self-latching bolt Stainless steel mechanism, hook, front plate and latch bolt The center distance between the cylinder and the handle: 3-5/8" Available with 2-1/8", 2-3/8", and 3-1/8" cylinder Continuous adjustment of the daybolt up to 3/8" without dismounting the lock Throw of the hook: 13/16" Optional: cover shield for handle & cylinder holes in aluminum, polyamide or stainless steel Handles to be ordered separately Stainless steel lock mechanism with cover plate against dirt penetration Backset 1-9/16", for mounting in profiles of 2-3/8" of depth or more UNIWING-compatible
Specifications	Easy left or right changing of the self-latching daybolt Key-operated self-latching bolt Stainless steel mechanism, hook, front plate and latch bolt The center distance between the cylinder and the handle: 3-5/8" Available with 2-1/8", 2-3/8", and 3-1/8" cylinder Continuous adjustment of the daybolt up to 3/8" without dismounting the lock Throw of the hook: 13/16" Optional: cover shield for handle & cylinder holes in aluminum, polyamide or stainless steel Handles to be ordered separately Stainless steel lock mechanism with cover plate against dirt penetration Backset 1-9/16", for mounting in profiles of 2-3/8" of depth or more UNIWING-compatible
Features
