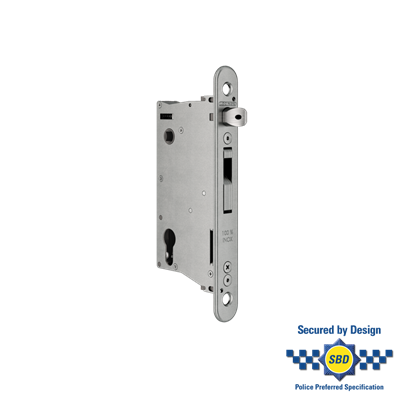

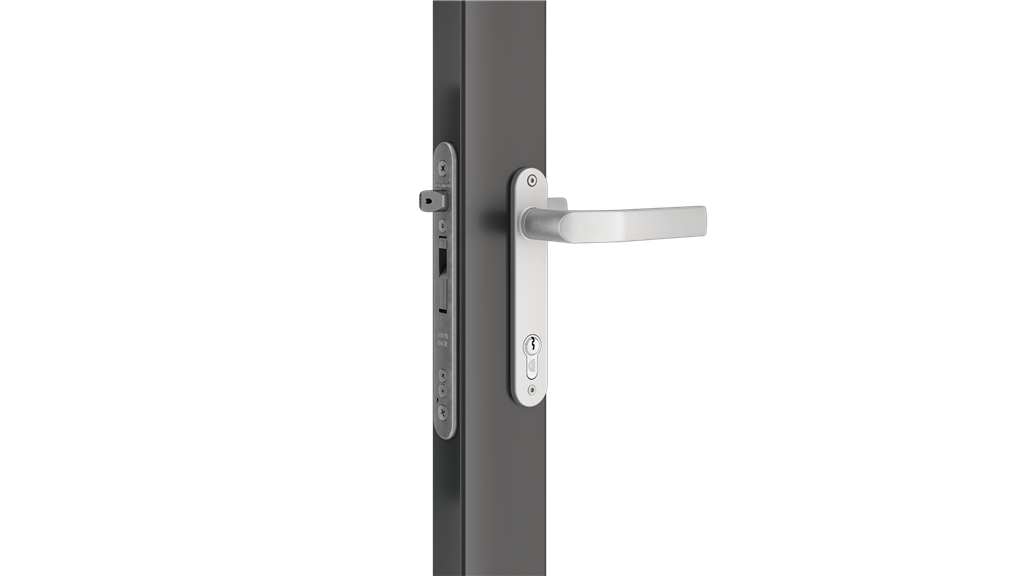

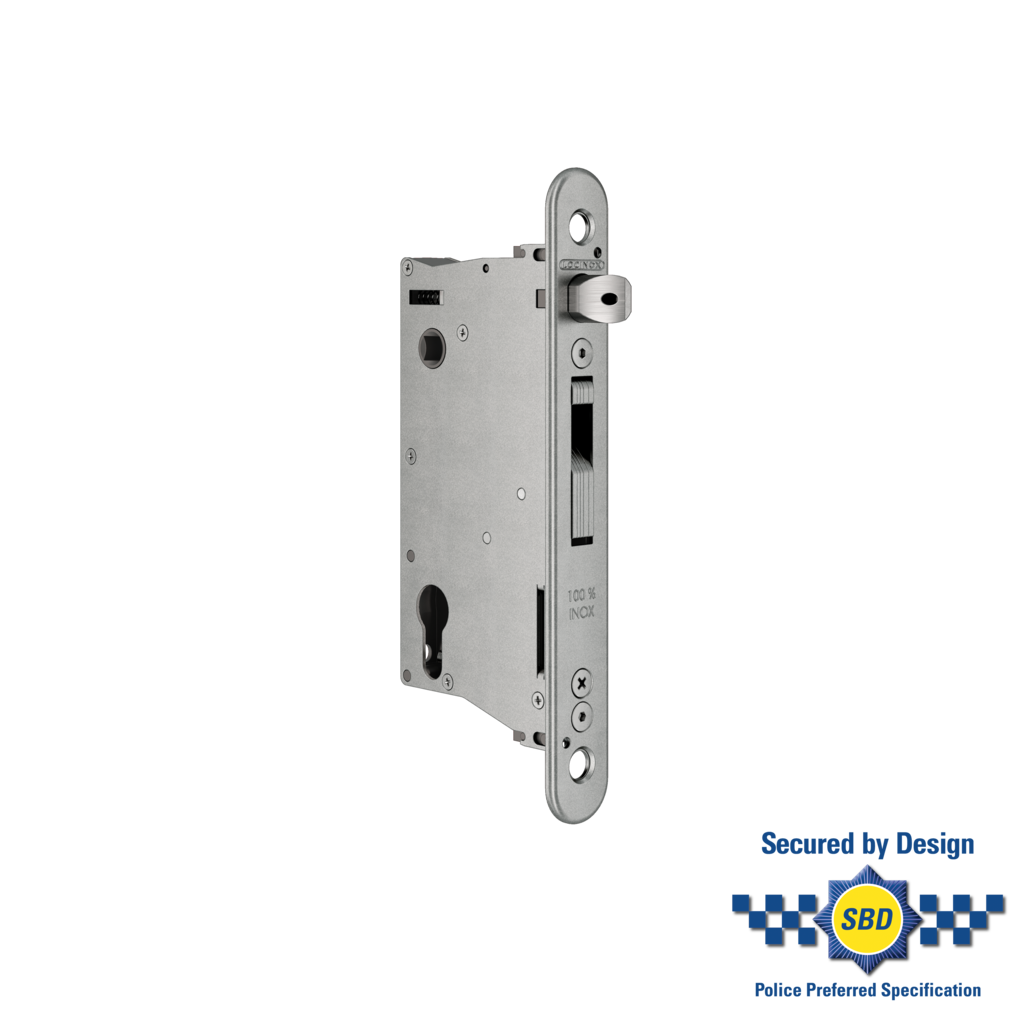

Insert lock with 2-3/8" backset for profiles of 3-1/8" or more
Insert lock with 2-3/8" backset for profiles of 3-1/8" or more
Insert lock with 2-3/8" backset for profiles of 3-1/8" or more
Insert lock with 2-3/8" backset for profiles of 3-1/8" or more

Insert lock with 2-3/8" backset for profiles of 3-1/8" or more - EIGHTYLOCK-W

Item No. P00007973 - EIGHTYLOCK-W
Product specs
This product cannot be ordered at the moment.
Specifications
Perfion__Bullets
  • Easy left or right changing of the self-latching daybolt
  • Key-operated self-latching bolt
  • Stainless steel mechanism, hook, front plate and latch bolt
  • The center distance between the cylinder and the handle: 3-5/8"
  • Available with 2-1/8", 2-3/8", and 3-1/8" cylinder
  • Continuous adjustment of the daybolt up to 3/8" without dismounting the lock
  • Throw of the hook: 13/16"
  • Handles to be ordered separately
  • Stainless steel lock mechanism with cover plate against dirt penetration
  • Backset 2-3/8", for mounting in profiles of 3-1/8" of depth or more
  • Perfect for wooden gates
  • UNIWING-compatible
Specifications
  • Easy left or right changing of the self-latching daybolt
  • Key-operated self-latching bolt
  • Stainless steel mechanism, hook, front plate and latch bolt
  • The center distance between the cylinder and the handle: 3-5/8"
  • Available with 2-1/8", 2-3/8", and 3-1/8" cylinder
  • Continuous adjustment of the daybolt up to 3/8" without dismounting the lock
  • Throw of the hook: 13/16"
  • Handles to be ordered separately
  • Stainless steel lock mechanism with cover plate against dirt penetration
  • Backset 2-3/8", for mounting in profiles of 3-1/8" of depth or more
  • Perfect for wooden gates
  • UNIWING-compatible
