Invisible, built-in hydraulic gate closer

Invisible, built-in hydraulic gate closer - INTERIO

Item No. P00007631 - INTERIO

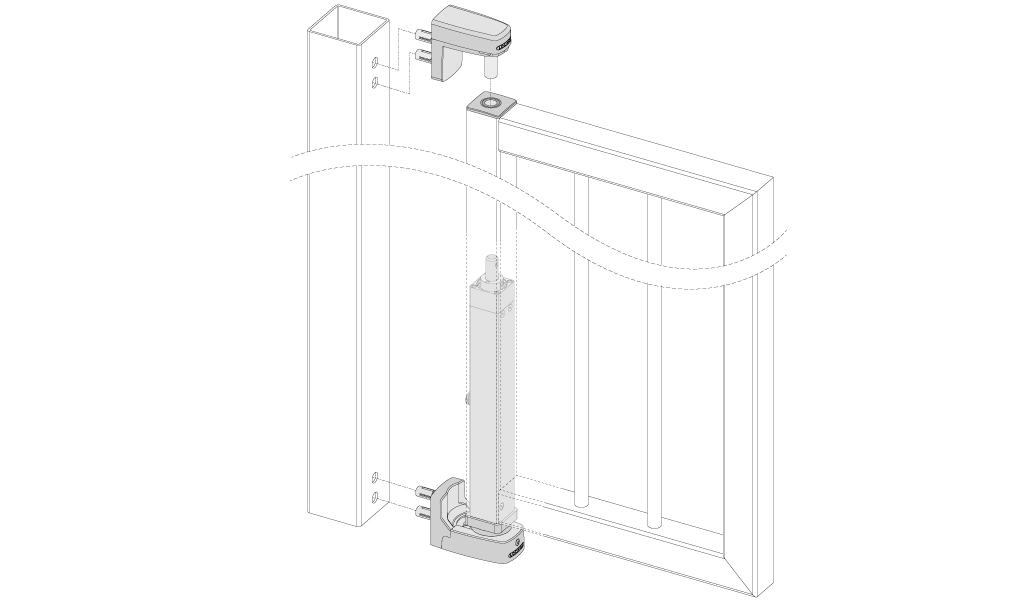

The invisible Interio gate closer, with matching hinge set, is completely built into the gate frame. This highly aesthetic solution opens and closes the gate comfortably. The integrated pretension ensures an efficient and flawless installation where speed and final snap can be adjusted accurately to fit any need.

Product specs

Specifications
Drawings
Installation movies
Downloads

Specifications

Perfion__Bullets	Vandal and tamper proof For left and right handed gates Powder coated aluminum housing Built-in, self-closing hinge up to 125° with adjustable closing speed and final snap Closing speed unaffected by humidity and temperature changes Fast and easy attachment with Quick-Fix bolts Optional sets available for ground and wall installation Recommended with Gatestop ADA compliant (< 5 lbs; max 20 Nm) from gate widths of 3ft. or more For square gate frames frames of: 2” (for frame thickness of 0.125 inch or less), 2-1/4”, and 2-1/2” (for frame thickness of 0.125 inch or more) ADA compliant (< 5 lbs; max 20 Nm) from gate widths of 3ft. or more
Specifications	Vandal and tamper proof For left and right handed gates Powder coated aluminum housing Built-in, self-closing hinge up to 125° with adjustable closing speed and final snap Closing speed unaffected by humidity and temperature changes Fast and easy attachment with Quick-Fix bolts Optional sets available for ground and wall installation Recommended with Gatestop ADA compliant (< 5 lbs; max 20 Nm) from gate widths of 3ft. or more For square gate frames frames of: 2” (for frame thickness of 0.125 inch or less), 2-1/4”, and 2-1/2” (for frame thickness of 0.125 inch or more) ADA compliant (< 5 lbs; max 20 Nm) from gate widths of 3ft. or more
Available in following RAL-colors
Features
