Lower bearing and flange assembly for turnstiles

Lower bearing and flange assembly for turnstiles

Item No. D00000158 - TT-PIVOT

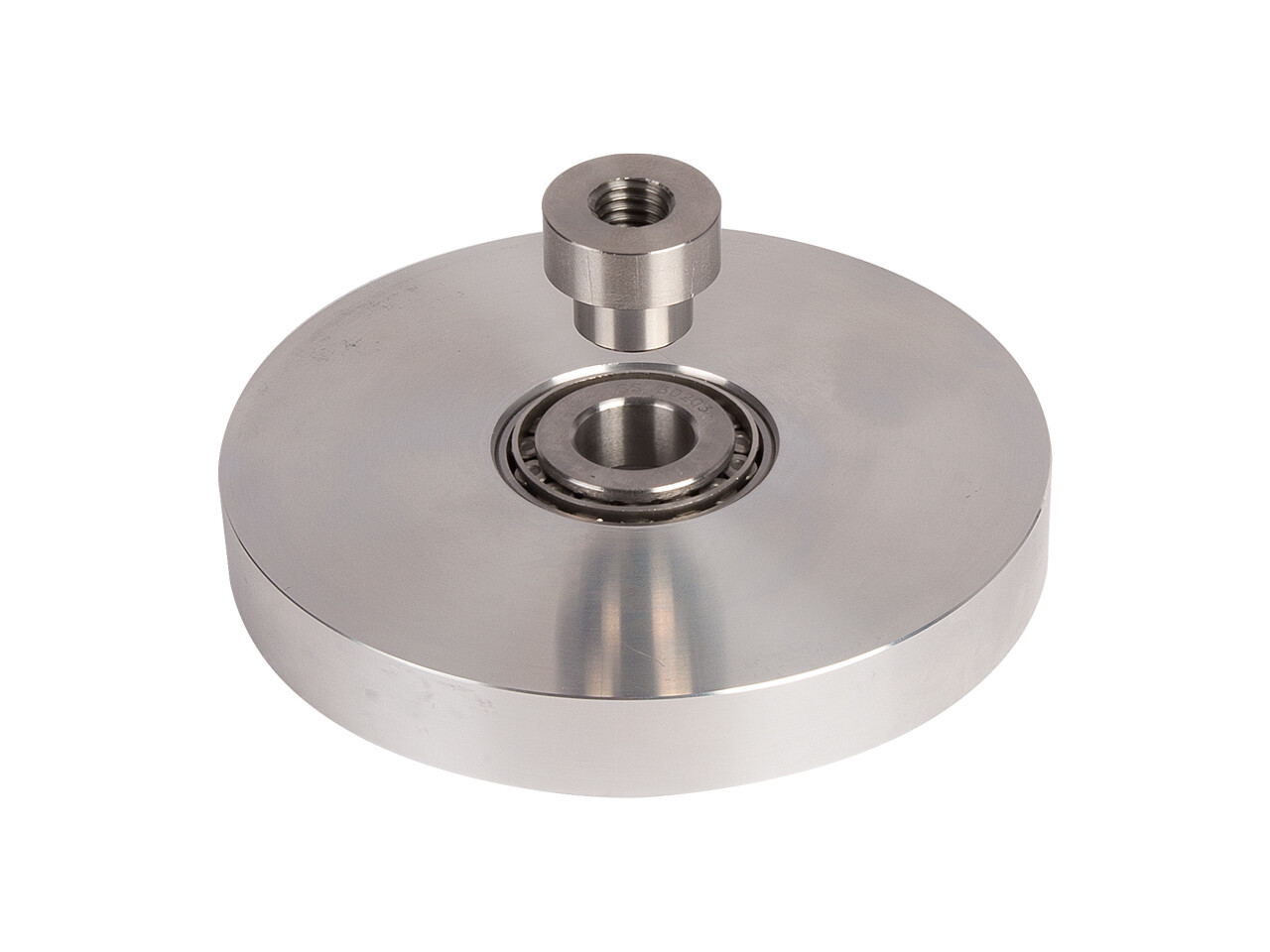

Stainless steel bearing in a 11/16" thick aluminum baseplate. With bearings for a guaranteed smooth operation. Available with ball bearing or tapered roller bearing.

Product specs

1 product(s) found

Lower bearing and flange assembly for turnstiles - TT-PIVOT-BB

Item No. P00007736

Specifications
Downloads

Specifications

Aluminum baseplate to be adjusted to the turnstile diameter
TT-PIVOT-BB: double sealed, stainless steel ball bearing (440 lbs axial load)
TT-PIVOT-CC: tapered roller bearing, protected by baseplate (1650 lbs axial load)
Stainless steel Ø1" axis with centered M12 threaded hole

Downloads

Item No. D00000045

Hydraulic damper for TURNITEC for 3-arm turnstile (120°)

Item No. P00008659

Claw nut and bolts for 4D hinges

Item No. P00004475

Adjustable rollerbolt

Item No. D00000093

Lower bearing and flange assembly for turnstiles

Do you want to add the selected products to the shopping cart?

Product

Product

Installation instructions
