Spring hinge for garden gates

Item No. D00000069 - SWING40

Adjustable spring hinges for garden and walk gates. The set can be fitted inside 1-1/2", 16 Ga tubing. The SWING can easily be adjusted in strength from outside by means of an Allen key.

Product specs

No products found.

Specifications
Drawings
Installation movies
Downloads

Specifications

Specifications	One for the top, one for the bottom Installation: slides into top and bottom of gate frame Only for gate frames 1-1/2" sq, 16 & 14 gauge Reversible: left or right hand Adjustable spring tension using 1/8" allen wrench Maximum gate width: 51" Maximum weight: 165 lbs Maximum profile thickness: 5/64"
Features

Drawings

Installation movies

Downloads

Spring hinge for garden gates

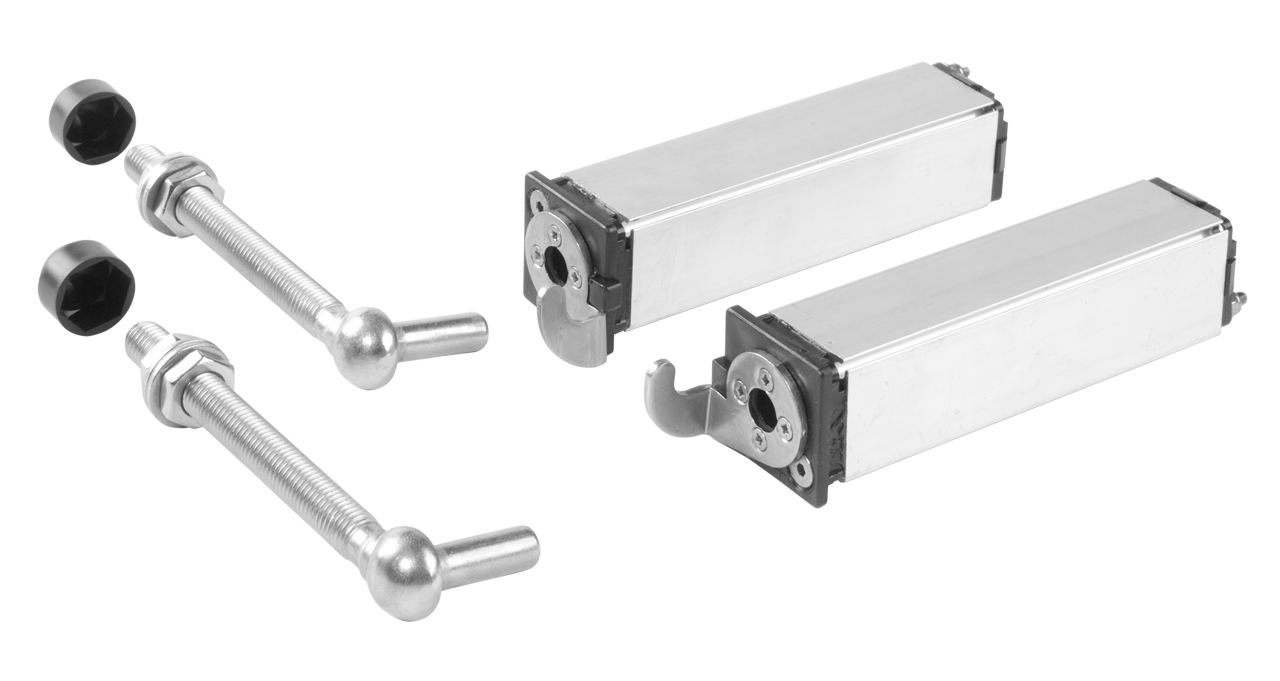

Product

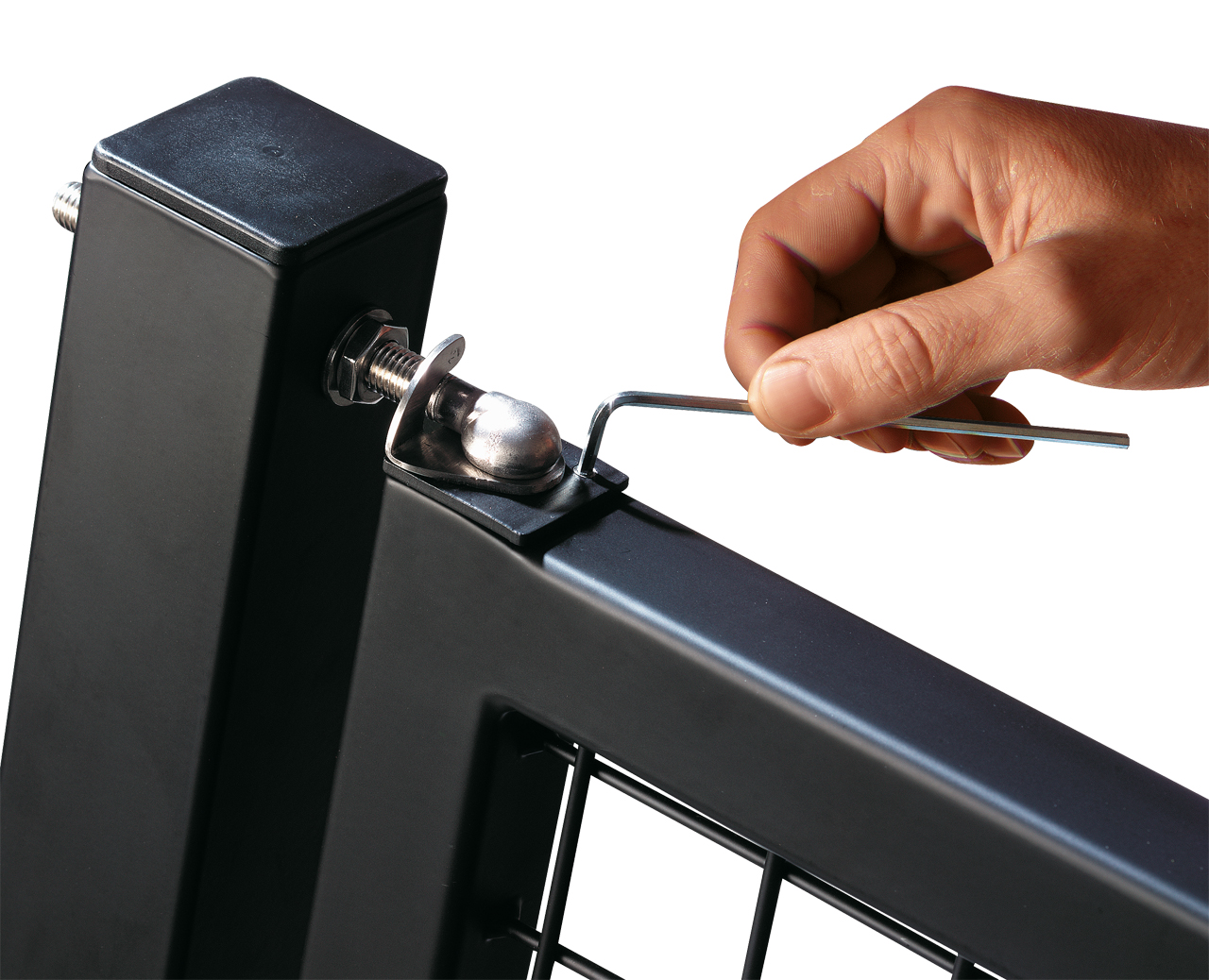

Force adjustment

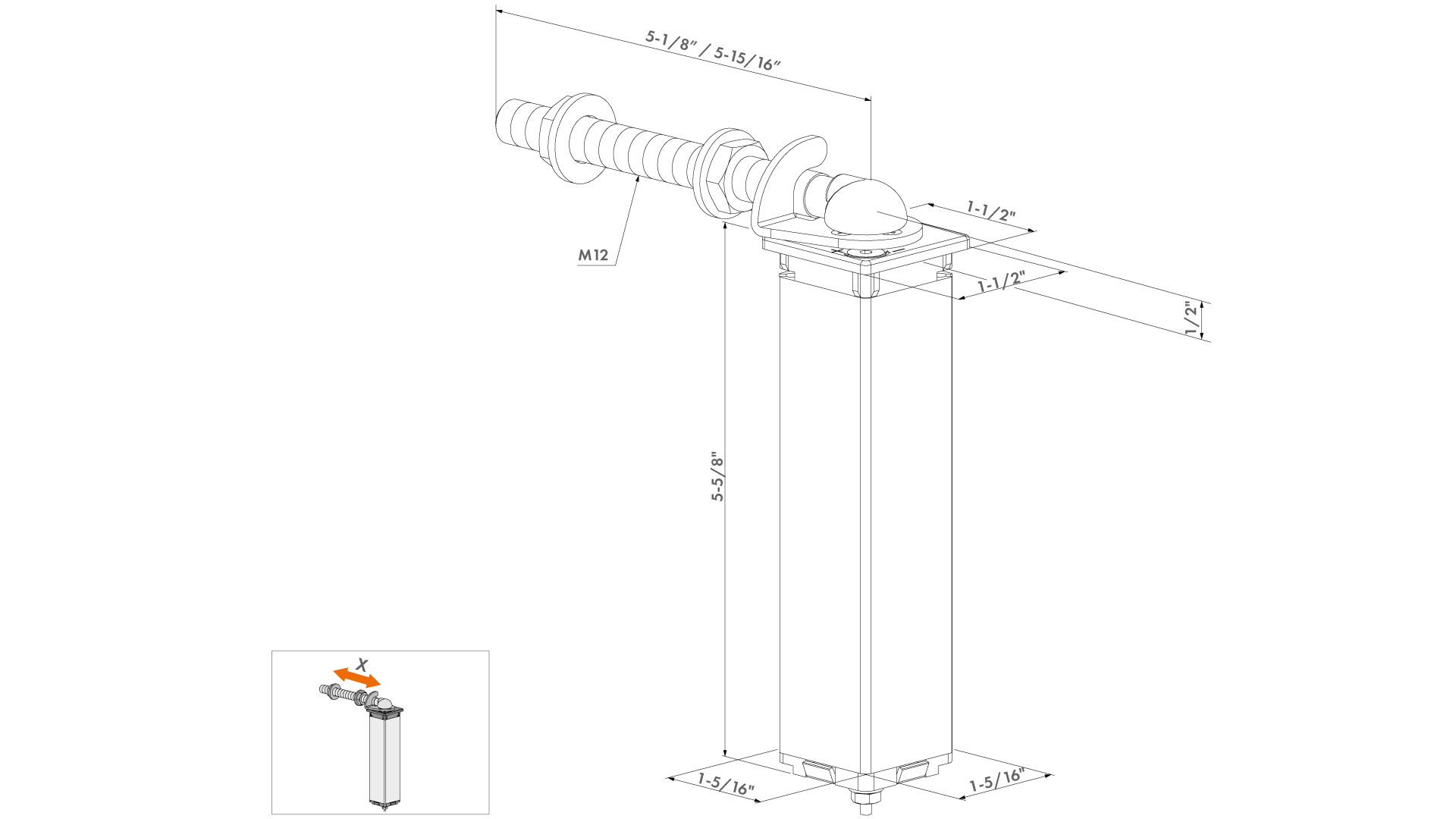

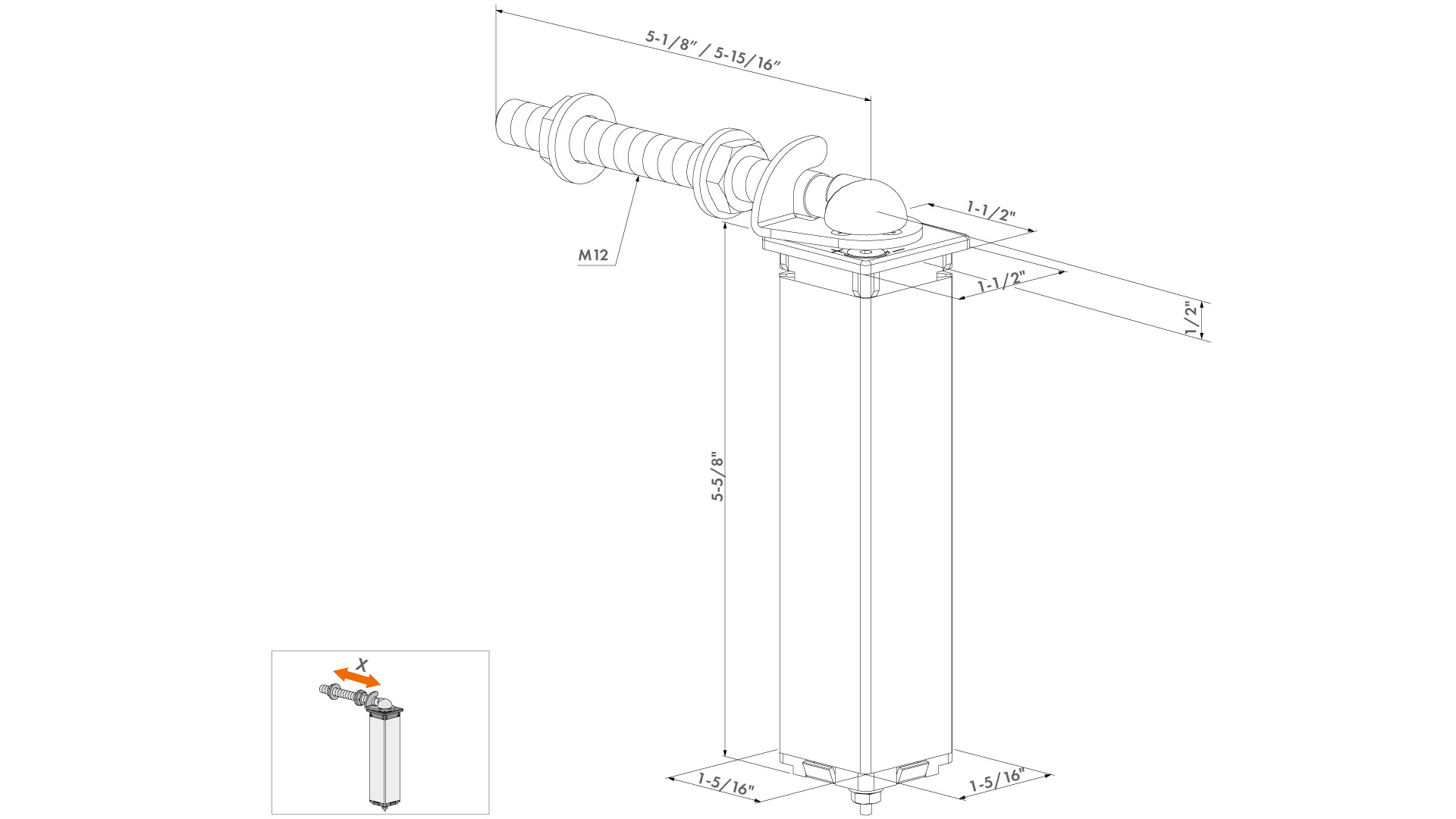

2D/3D drawings

Mounting on profile

Installation instructions

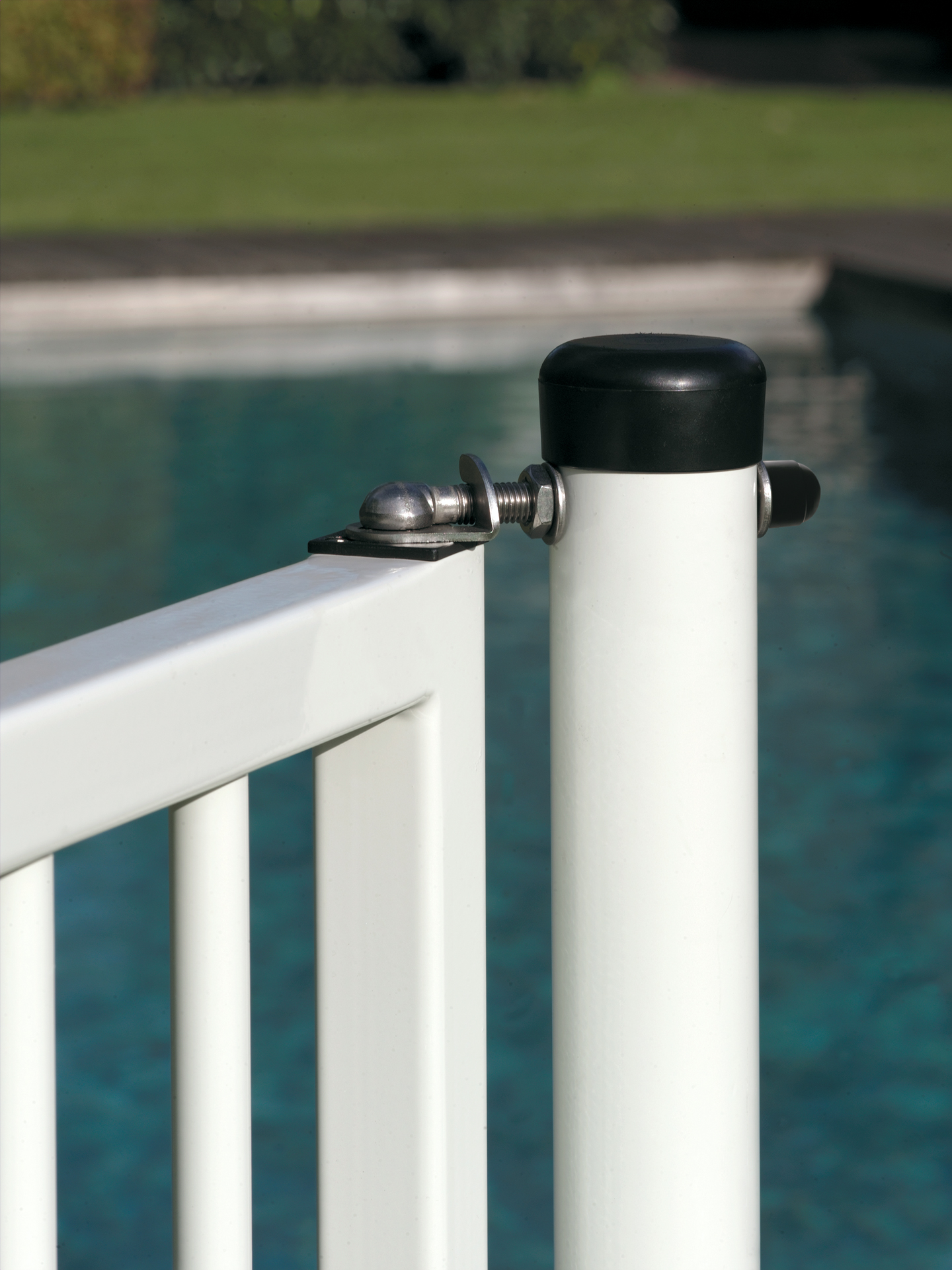

Closeup by swimming pool

Child with red ball at white swimming pool fence

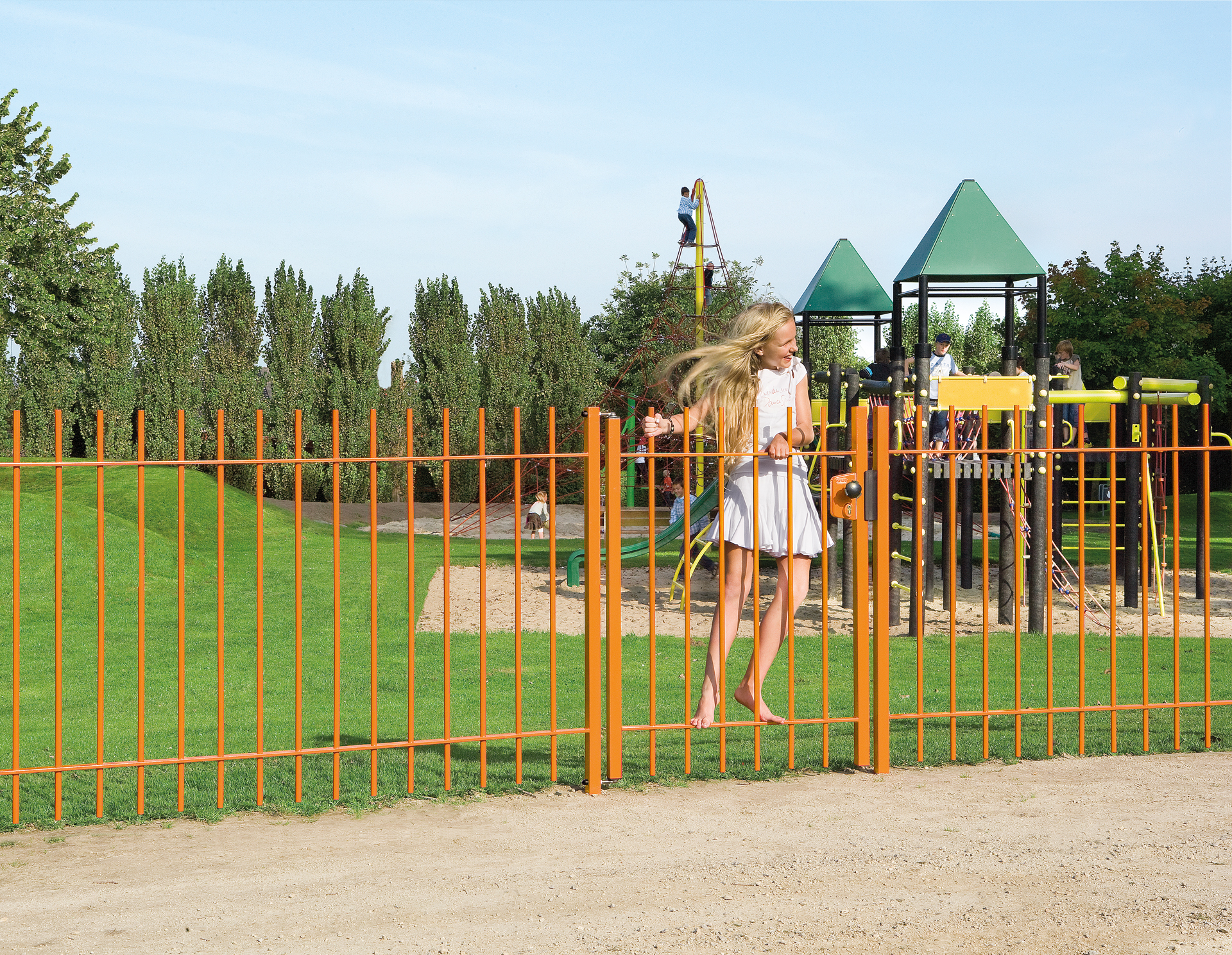

Girl on orange fence by playground

Hinges specifications
