Spring hinge for garden gates
Spring hinge for garden gates

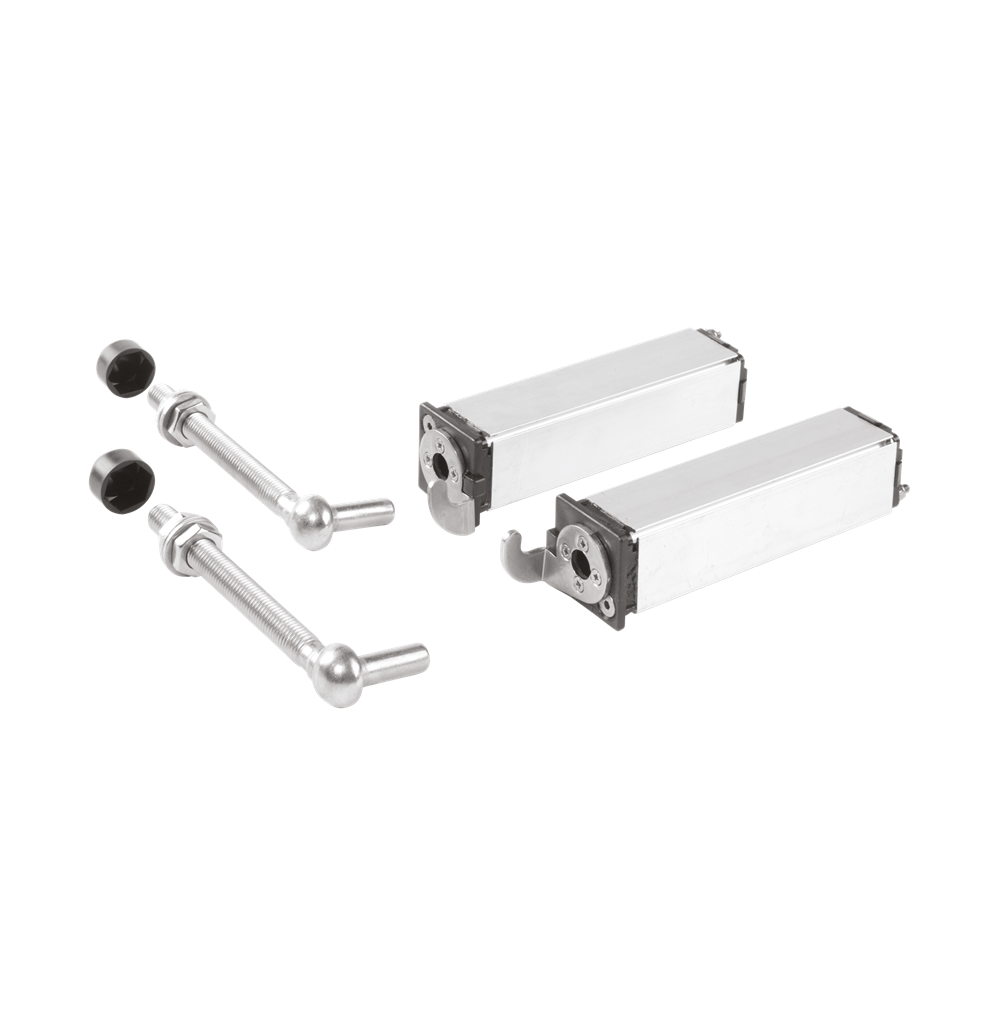

Spring hinge for garden gates - SWING40-150

Item No. P00009389 - SWING40-150
Product specs
This product cannot be ordered at the moment.
Specifications
Perfion__Bullets
  • One for the top, one for the bottom
  • Installation: slides into top and bottom of gate frame
  • Only for gate frames 1-1/2" sq, 16 & 14 gauge
  • Reversible: left or right hand
  • Adjustable spring tension using 1/8" allen wrench
  • Maximum gate width: 51"
  • Maximum weight: 165 lbs
  • Force can be adjusted from 1,25Nm to maximum 4Nm per hinge
  • Maximum profile thickness: 5/64"
Specifications
  • One for the top, one for the bottom
  • Installation: slides into top and bottom of gate frame
  • Only for gate frames 1-1/2" sq, 16 & 14 gauge
  • Reversible: left or right hand
  • Adjustable spring tension using 1/8" allen wrench
  • Maximum gate width: 51"
  • Maximum weight: 165 lbs
  • Force can be adjusted from 1,25Nm to maximum 4Nm per hinge
  • Maximum profile thickness: 5/64"
