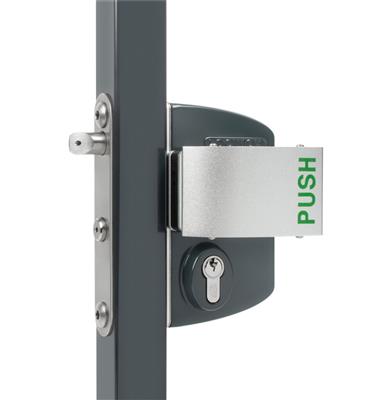

Surface mounted anti-panic gate lock - LPKQ40U2LGSXPU

Item No. P00015057 - LPKQ40U2LGSXPU

Surface mounted anti-panic gate lock for Square 1-1/2" to 2-1/2" profiles with Push-set in aluminum & Cylinder: GSX - Keyed alike type X - Various colors

Product specs

Specifications

Specifications	EN179 certified configuration available ISO 9227 KTL / E-coated lock box withstands 1000 hours of salt spray test Easy left or right changing of the self-latching daybolt Throw of the dead bolt, 7/8" in 1 turn of the key Key-operated self-latching bolt 4-hole mounting with two hex head socket screws Center distance bolts: 2-3/8" Continuous adjustment of the daybolt up to 3/4" without removing the lock box Stainless steel mechanism Tested up to 500 000 movements Panic function E / Switch function
Available in following RAL-colors
