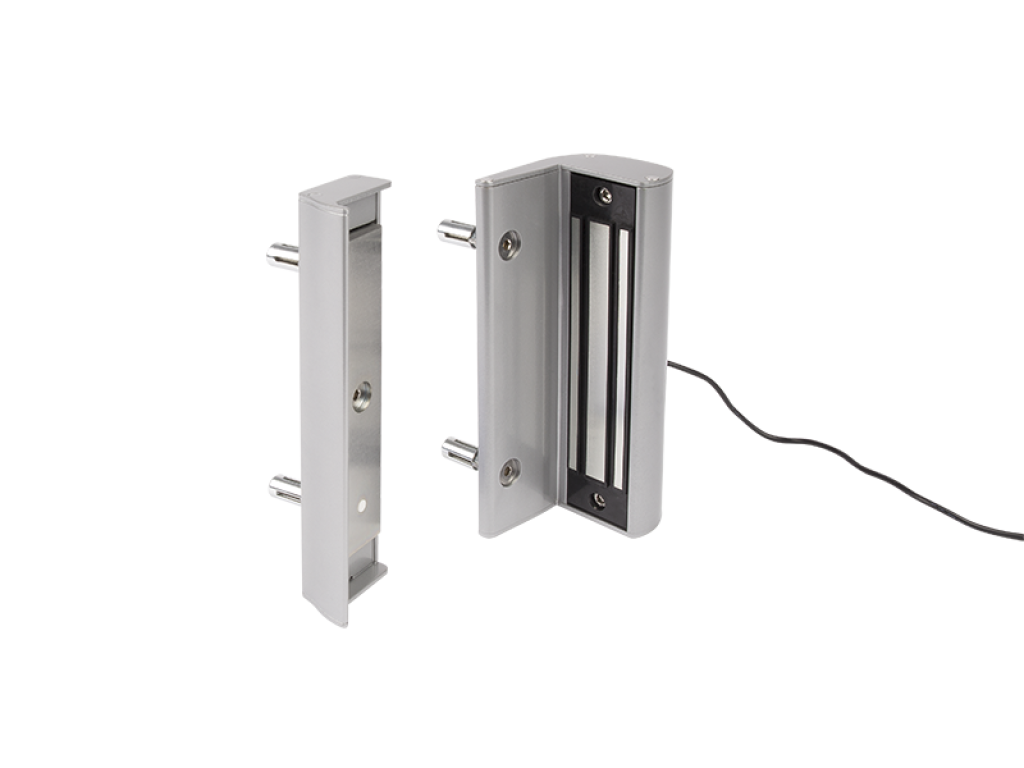

Surface mounted electromagnetic lock without integrated handles
Surface mounted electromagnetic lock without integrated handles

Surface mounted electromagnetic lock without integrated handles - MAGMAG3000

Item No. P00009790 - MAGMAG3000
Surface mounted electromagnetic lock without integrated handles - For square posts and gate profiles of 1-9/16" till 3-1/8", 660 lbs pulling force - Various colors
Product specs
9005SILV
P00009790-9005
Surface mounted electromagnetic lock without integrated handles For square posts and gate profiles of 1-9/16" till 3-1/8", 660 lbs pulling force in RAL 9005
P00009790-SILV
Surface mounted electromagnetic lock without integrated handles For square posts and gate profiles of 1-9/16" till 3-1/8", 660 lbs pulling force in Silver
Continue shopping
Specifications
Specifications
  • 500h salt spray resistant! SGS Certified (ISO 9227)
  • Special two-layer protective coating developed for outdoor use
  • SGS Certified
  • Weatherproof aluminum housing designed for exterior use
  • Anti-residual magnetism kick-off system
  • Raised edge on the magnet housing makes it impossible to put a crowbar between the magnet and the armature plate
  • Fail open
  • Fast and easy fixing by means of 5 holes with Quick-Fix
  • Current MAGMAG3000: 500 mA / 12 V or 250 mA / 24 V
  • Current MAGMAG6000: 460 mA / 12 V or 230 mA / 24 V
  • Voltage: 12V / 24V DC
  • MAG3000: Minimal pulling force: 3000N (660 lbs)
  • MAG6000: Minimal pulling force: 6000N (1300 lbs)
  • Guaranteed holding force tested on every magnetic lock
  • IP68 rated - Extremely resistant to water and dust
Available in following RAL-colors
