Surface mounted garden gate lock
Surface mounted garden gate lock

Surface mounted garden gate lock

Item No. D00000005 - LAKZP1
Economical garden walk gate lock with polyamide housing and non-adjustable stainless steel mechanism. This lock is recommended for all your small gates and for residential gates where price is a driving issue. A stainless steel throw of 7/8" guarantees secure locking. Ships standard with the black poly handle pair. The latch gap required is keep dependent, but the SMKL polyamide keep requires a 1-1/8" latch gap.
This product cannot be ordered at the moment.
Show all… Collapse
Show all… Collapse
Show all… Collapse
Show all… Collapse
Show all… Collapse
No products found.
Specifications
Specifications
  • Easy left or right changing of the self-latching daybolt
  • Throw of the dead bolt, 7/8" in 1 turn of the key
  • 4-hole mounting with two hex head socket screws
  • Polyamide lock box and handles
  • Center distance bolts: 2-3/8"
  • For 1-1/2" gate profiles only
  • Interchangeable with all Locinox surface mounted locks
  • No key operation of the latch bolt
Available in following RAL-colors
Features

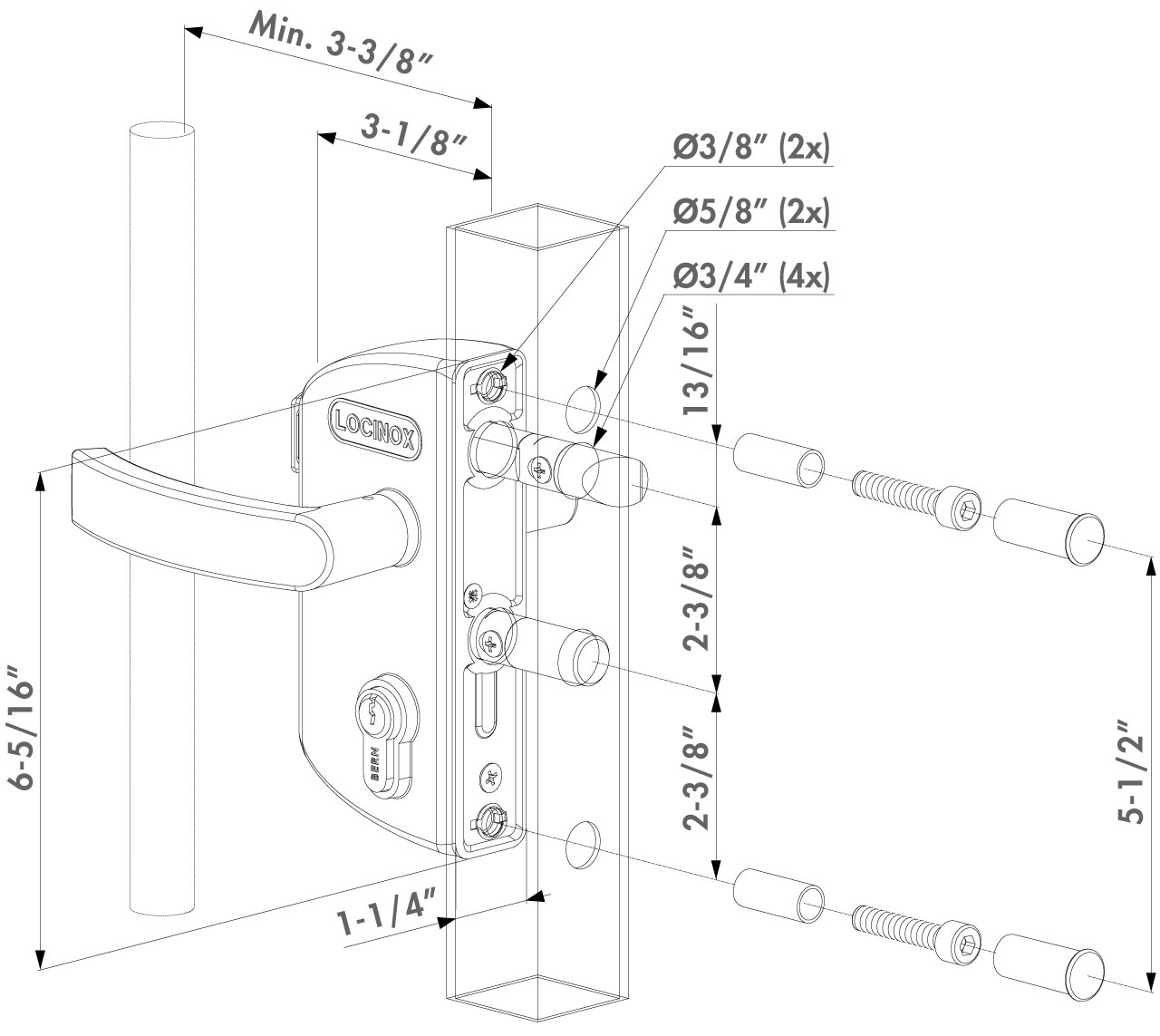

Drawings
