Surface mounted US Mortise cylinder gate lock (USA) - LUKY60J5LZCZB

Item No. P00015206 - LUKY60J5LZCZB

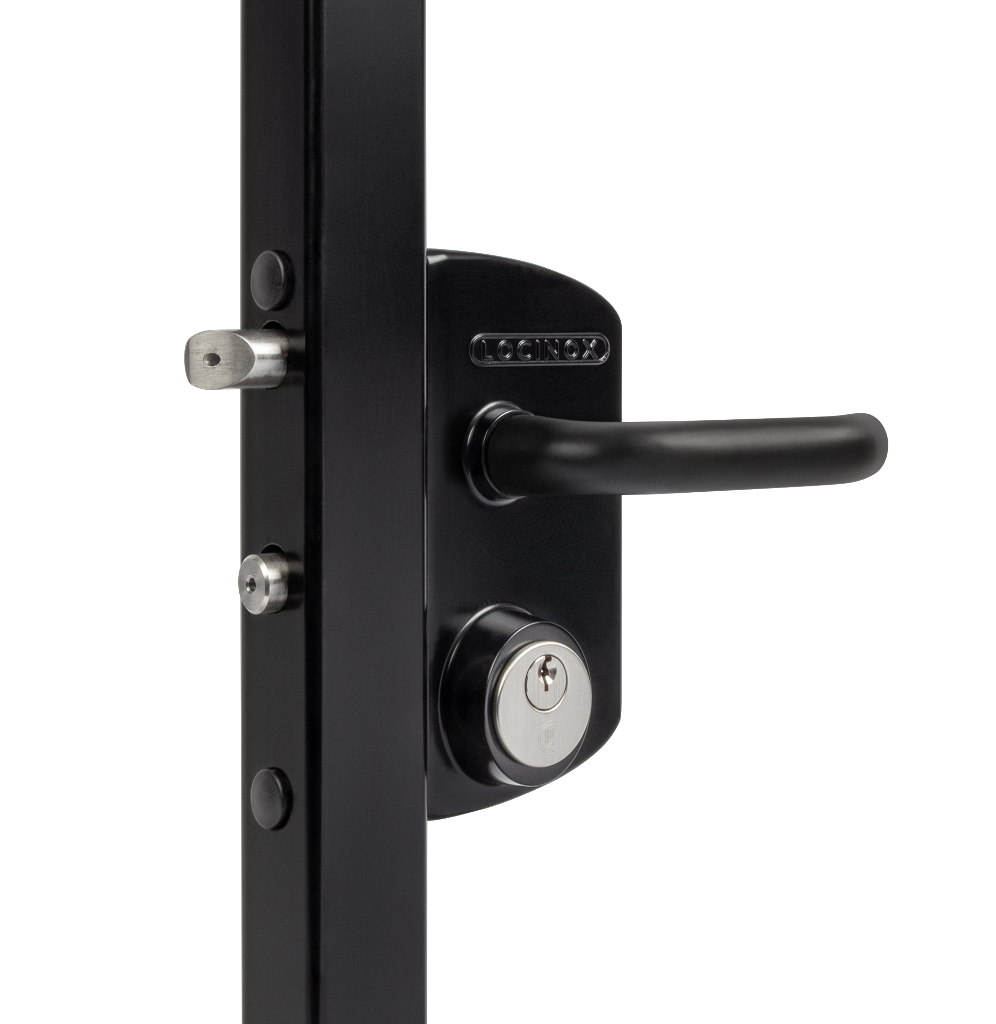

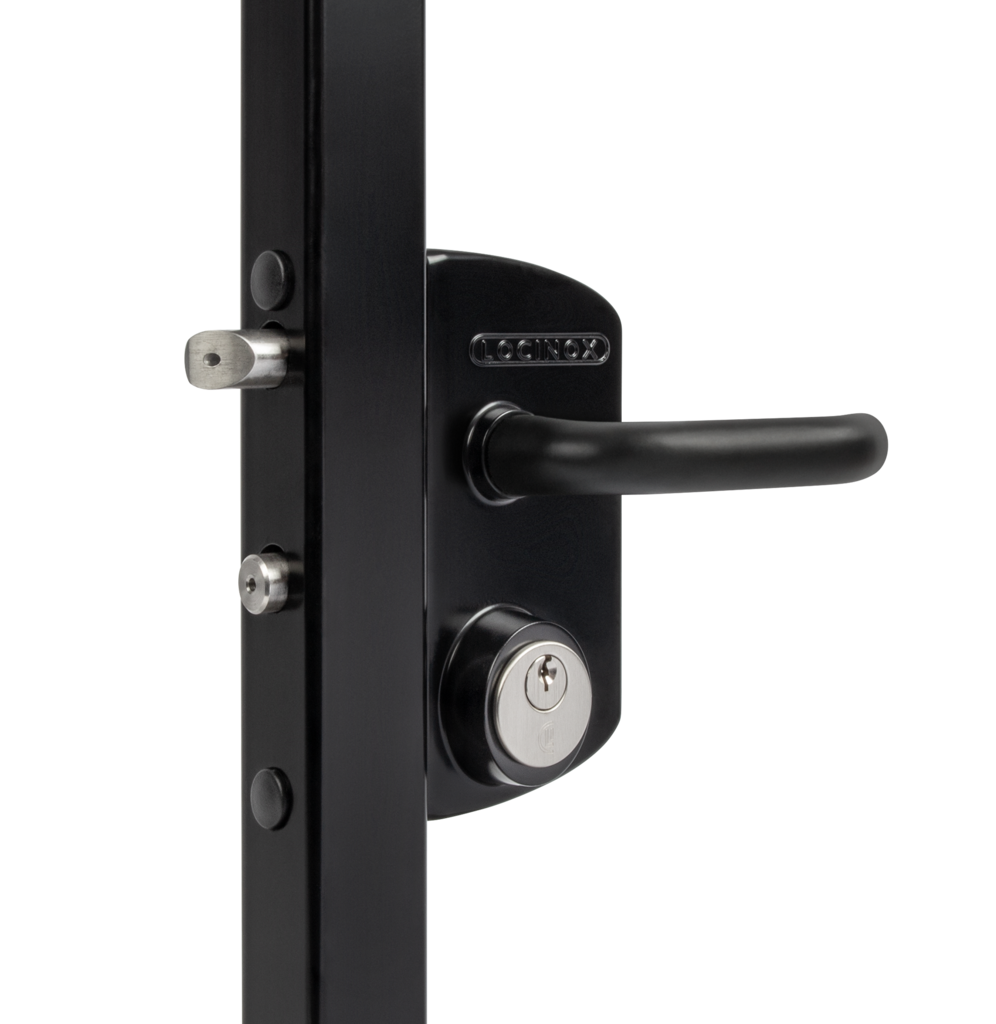

Surface mounted US Mortise cylinder gate lock (USA) for Square 2-1/2" to 2-3/4" profiles with 3006B - Black anodised aluminum & ZCZ - Various colors
Product specs
9005SILV
P00015206-9005
Surface mounted US Mortise cylinder gate lock (USA) for Square 2-1/2" to 2-3/4" profiles in 9005 with 3006B - Black anodised aluminum & ZCZ
Surface mounted US Mortise cylinder gate lock (USA) for Square 2-1/2" to 2-3/4" profiles in SILV with 3006B - Black anodised aluminum & ZCZ
Continue shopping
Specifications
Perfion__Bullets
  • Easy left or right changing of the self-latching daybolt
  • Throw of the dead bolt, 7/8" in 1 turn of the key
  • Key-operated self-latching bolt
  • 4-hole mounting with two hex head socket screws
  • Adjustment of the bolts up to 3/8" continuous without removing the lock
  • Interchangeable with all Locinox surface mounted locks
  • ISO 9227 KTL / E-coated lock box withstands 1000 hours of salt spray test
  • Gate Lock with double cylinder dead bolt. Designed for 1-1/8" Mortise profile cylinder
  • Fixing cylinder inch thread 1/4'
  • The lock box requires a 3-3/8" spacing to the first picket, fitting nicely into most gates
Specifications
  • Easy left or right changing of the self-latching daybolt
  • Throw of the dead bolt, 7/8" in 1 turn of the key
  • Key-operated self-latching bolt
  • 4-hole mounting with two hex head socket screws
  • Adjustment of the bolts up to 3/8" continuous without removing the lock
  • Interchangeable with all Locinox surface mounted locks
  • ISO 9227 KTL / E-coated lock box withstands 1000 hours of salt spray test
  • Gate Lock with double cylinder dead bolt. Designed for 1-1/8" Mortise profile cylinder
  • Fixing cylinder inch thread 1/4'
  • The lock box requires a 3-3/8" spacing to the first picket, fitting nicely into most gates
Available in following RAL-colors
