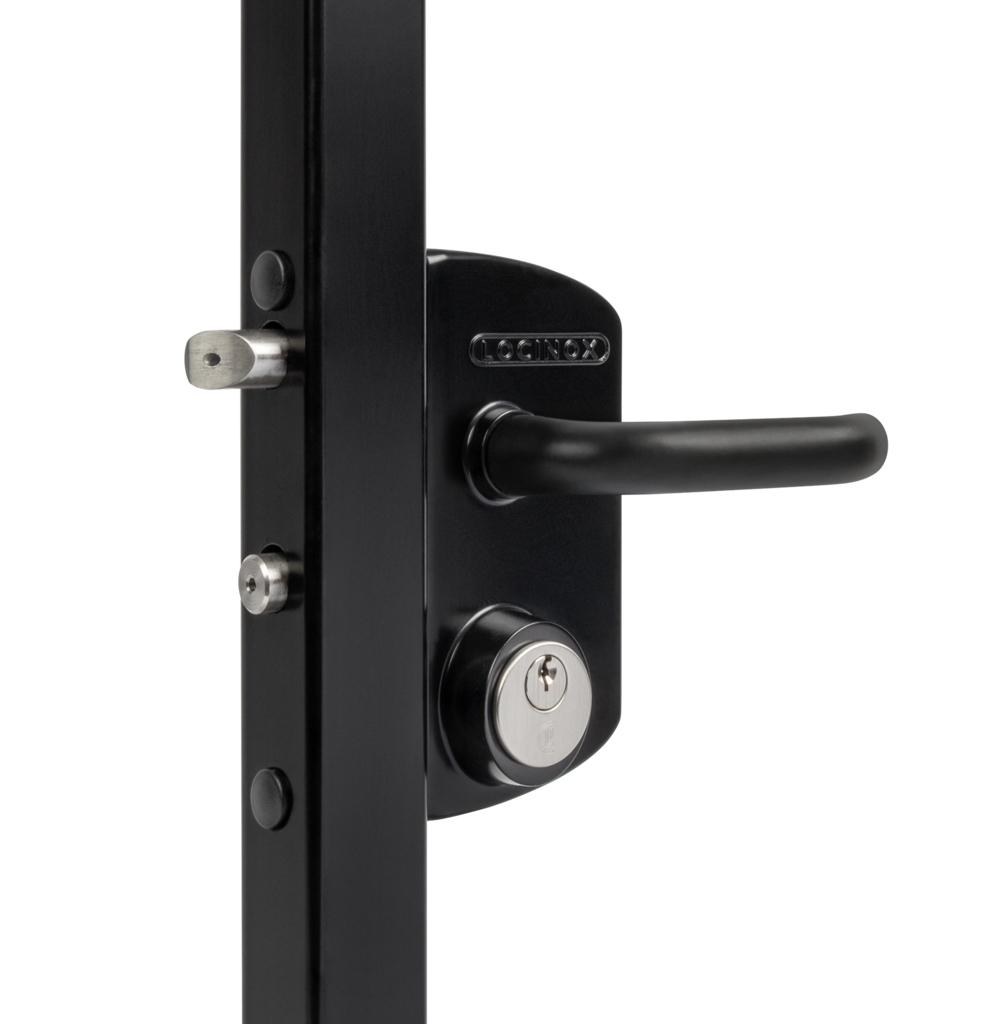

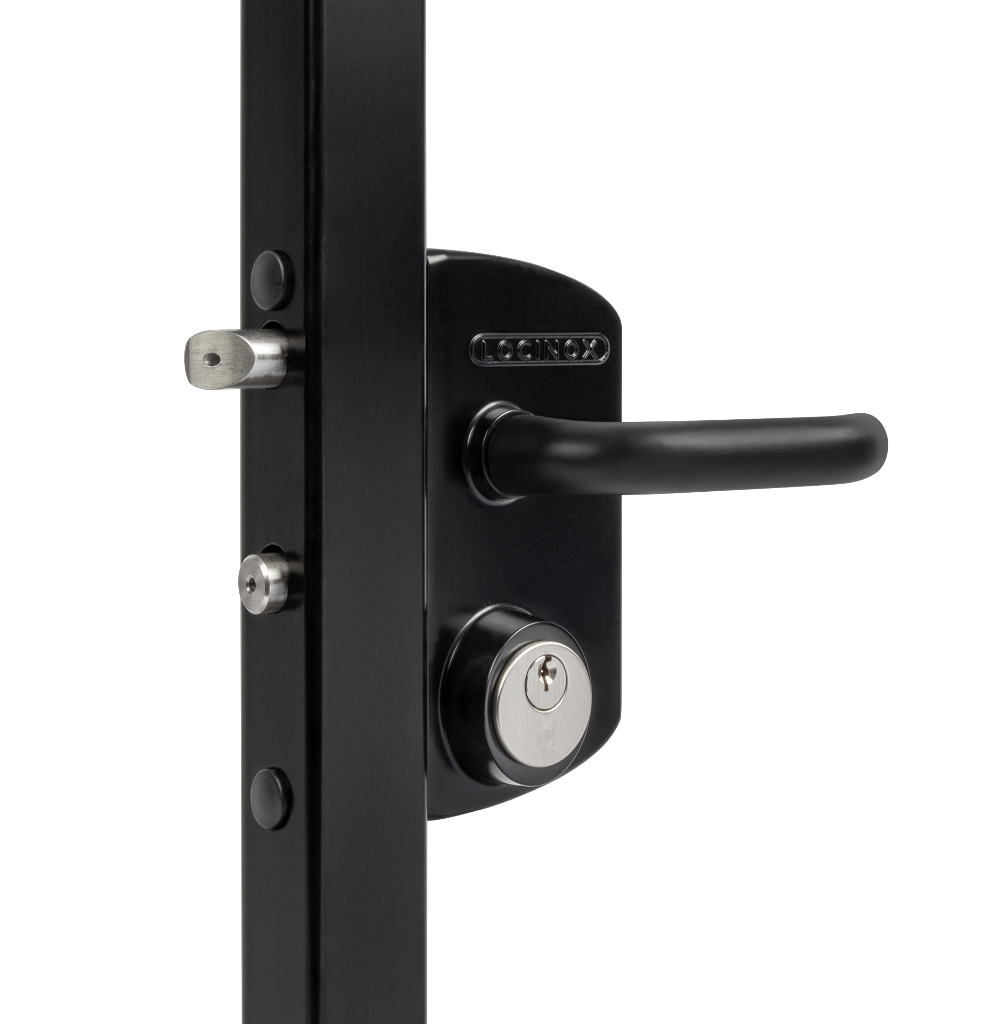

Surface mounted US Mortise cylinder gate lock (USA)
Surface mounted US Mortise cylinder gate lock (USA)
Surface mounted US Mortise cylinder gate lock (USA)
Surface mounted US Mortise cylinder gate lock (USA)
Surface mounted US Mortise cylinder gate lock (USA)
Surface mounted US Mortise cylinder gate lock (USA)
Surface mounted US Mortise cylinder gate lock (USA)
Surface mounted US Mortise cylinder gate lock (USA)
Surface mounted US Mortise cylinder gate lock (USA)
Surface mounted US Mortise cylinder gate lock (USA)
Surface mounted US Mortise cylinder gate lock (USA)
Surface mounted US Mortise cylinder gate lock (USA)

Surface mounted US Mortise cylinder gate lock (USA) - LUKY60J5LVMZB

Item No. P00015208 - LUKY60J5LVMZB
Surface mounted US Mortise cylinder gate lock (USA) for Square 2-1/2" to 2-3/4" profiles with 3006B - Black anodised aluminum & VMZ - Various colors
Product specs
9005
P00015208-9005
Surface mounted US Mortise cylinder gate lock (USA) for Square 2-1/2" to 2-3/4" profiles in 9005 with 3006B - Black anodised aluminum & VMZ
Continue shopping
Specifications
Perfion__Bullets
  • Easy left or right changing of the self-latching daybolt
  • Throw of the dead bolt, 7/8" in 1 turn of the key
  • Key-operated self-latching bolt
  • 4-hole mounting with two hex head socket screws
  • Adjustment of the bolts up to 3/8" continuous without removing the lock
  • Interchangeable with all Locinox surface mounted locks
  • ISO 9227 KTL / E-coated lock box withstands 1000 hours of salt spray test
  • Gate Lock with double cylinder dead bolt. Designed for 1-1/8" Mortise profile cylinder
  • Fixing cylinder inch thread 1/4'
  • The lock box requires a 3-3/8" spacing to the first picket, fitting nicely into most gates
Specifications
  • Easy left or right changing of the self-latching daybolt
  • Throw of the dead bolt, 7/8" in 1 turn of the key
  • Key-operated self-latching bolt
  • 4-hole mounting with two hex head socket screws
  • Adjustment of the bolts up to 3/8" continuous without removing the lock
  • Interchangeable with all Locinox surface mounted locks
  • ISO 9227 KTL / E-coated lock box withstands 1000 hours of salt spray test
  • Gate Lock with double cylinder dead bolt. Designed for 1-1/8" Mortise profile cylinder
  • Fixing cylinder inch thread 1/4'
  • The lock box requires a 3-3/8" spacing to the first picket, fitting nicely into most gates
Available in following RAL-colors
Features
Drawings
Installation movies
