Turnitec counter & passing light signals module
Turnitec counter & passing light signals module

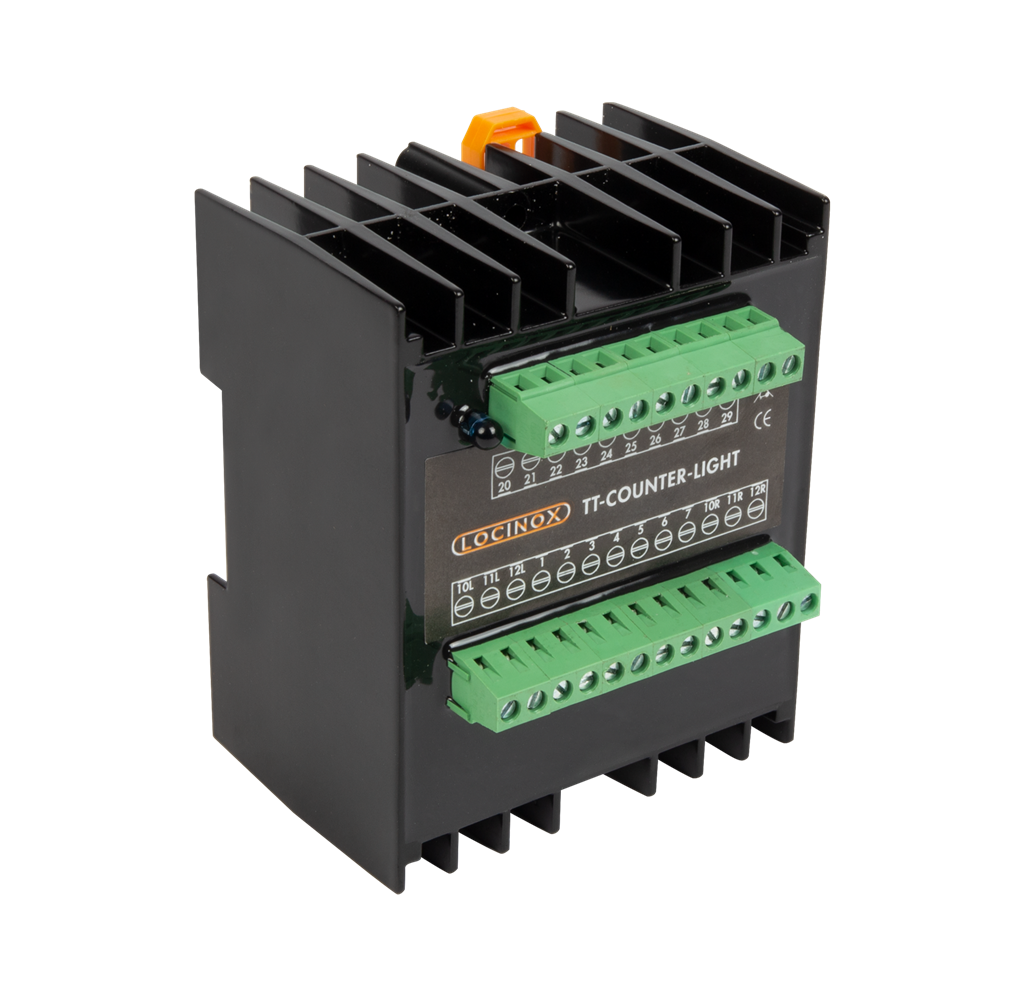

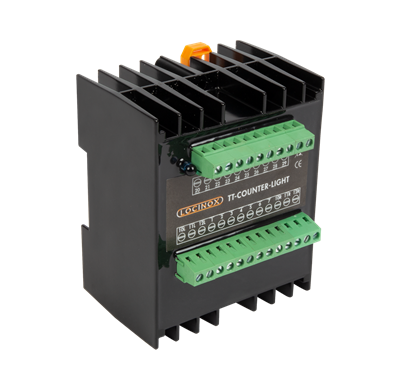

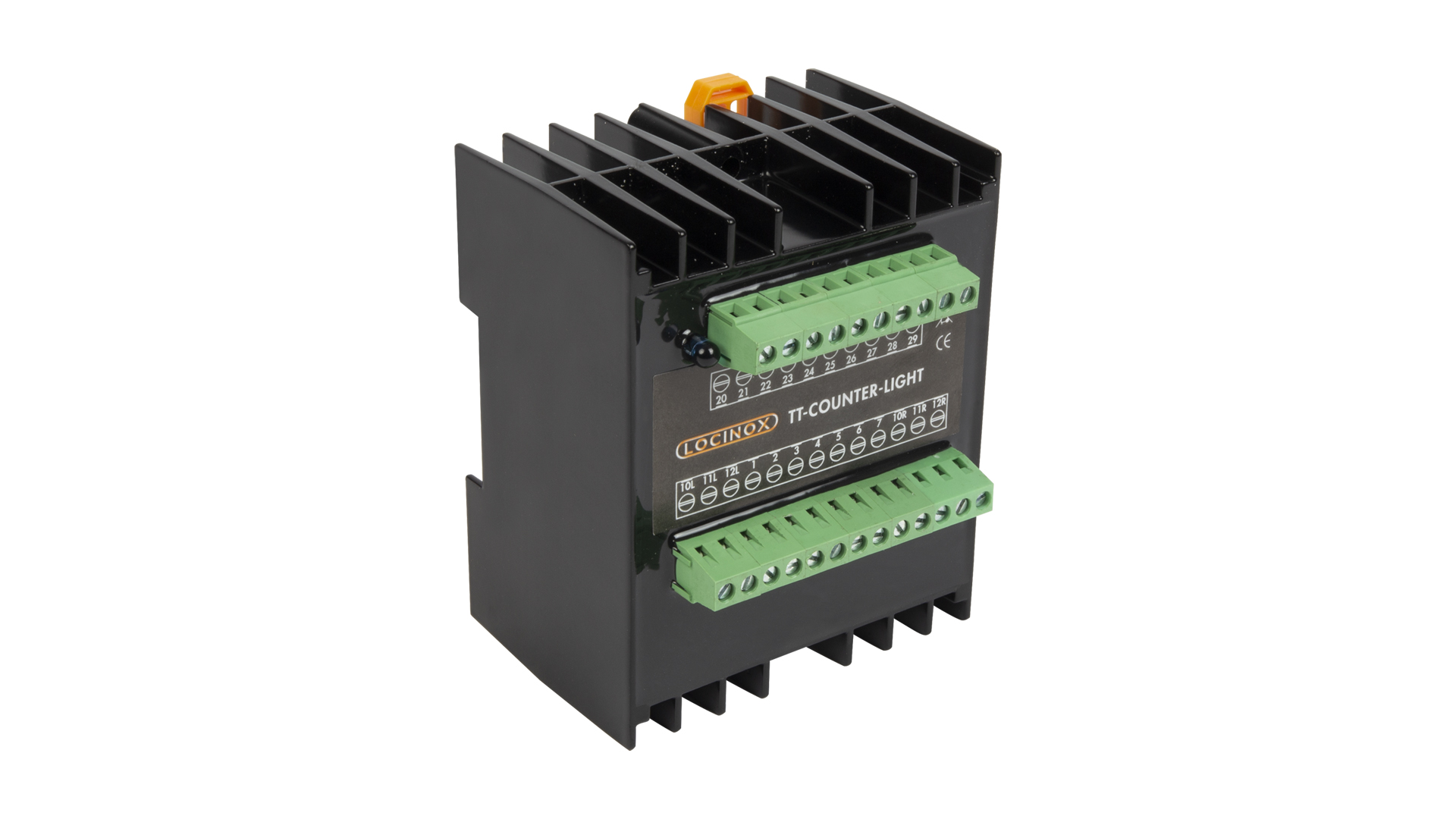

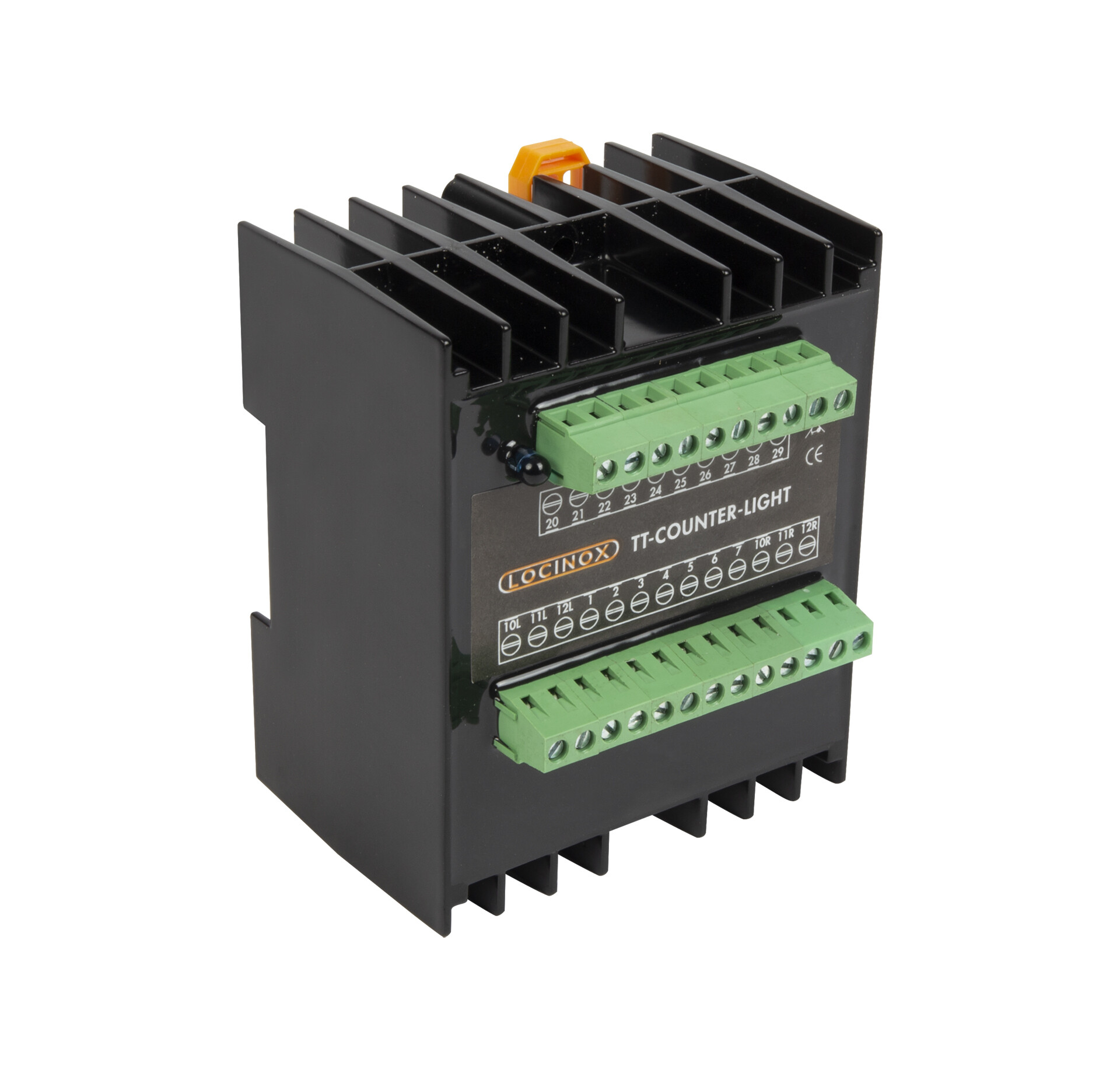

Turnitec counter & passing light signals module - TT-CL2

Item No. P00007502 - TT-CL2
Plug&Play module which enables connecting counters and passing light signals in both turning directions. A counter tells you how many people are on the terrain or how many rotations your turnstile made while passing light signals guarantee a swift, safe and correct use of the turnstile.
Product specs
This product cannot be ordered at the moment.
Specifications
Specifications
  • Easy to connect with the TT-FO31 and TT-FC31 module
  • Controlled by means of included reed contacts
  • For both clockwise (CW) and counterclockwise (CCW) direction a voltage free changeover contact (NO&NC) is provided for passing light signal control (max 250V AC (30V DC)/1A)
  • For both rotational directions a voltage free NO contact (0,5s closed at a correspondent move) is provided for connection of an external counter (max 250V AC (30V DC)/1A on the NO contact)
  • Aluminum powder coated housing with heat dissipation fins
