Item No. D00000172 - TTEC

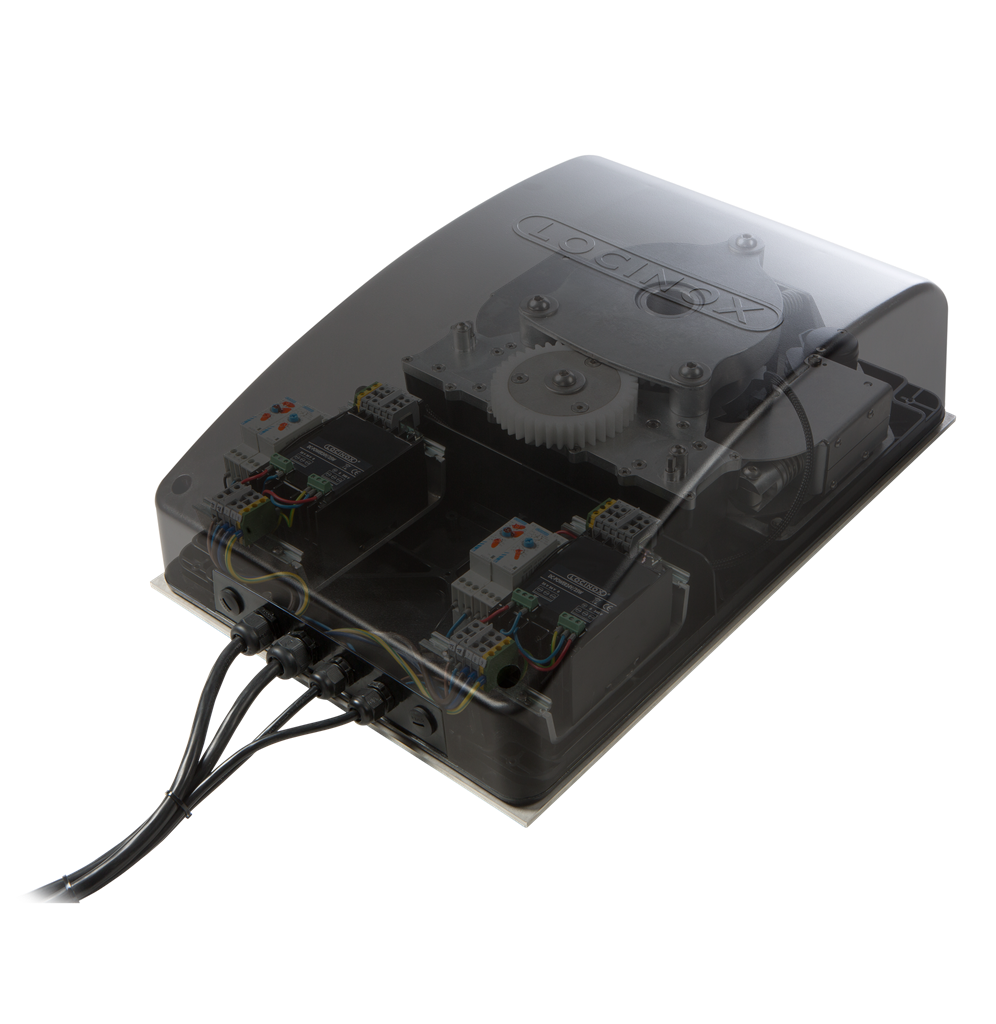

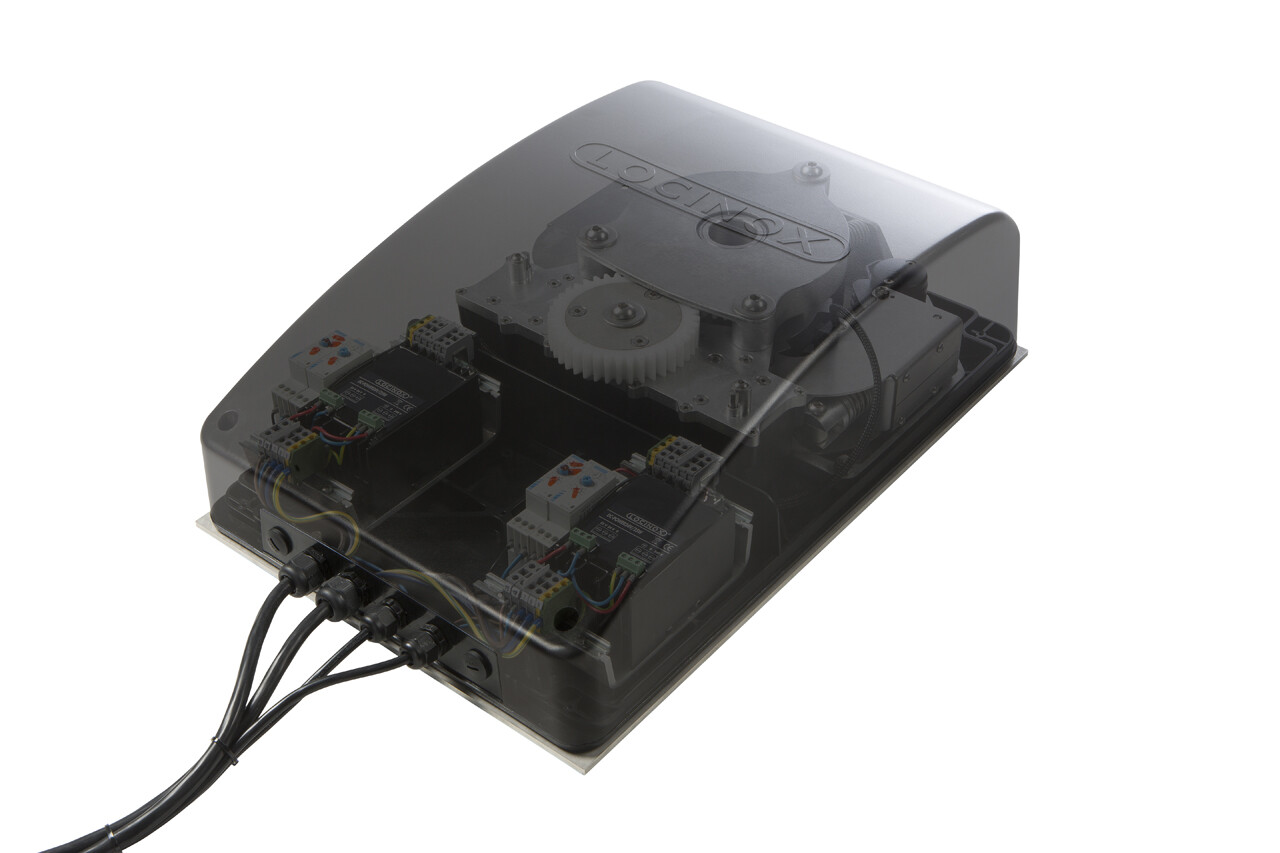

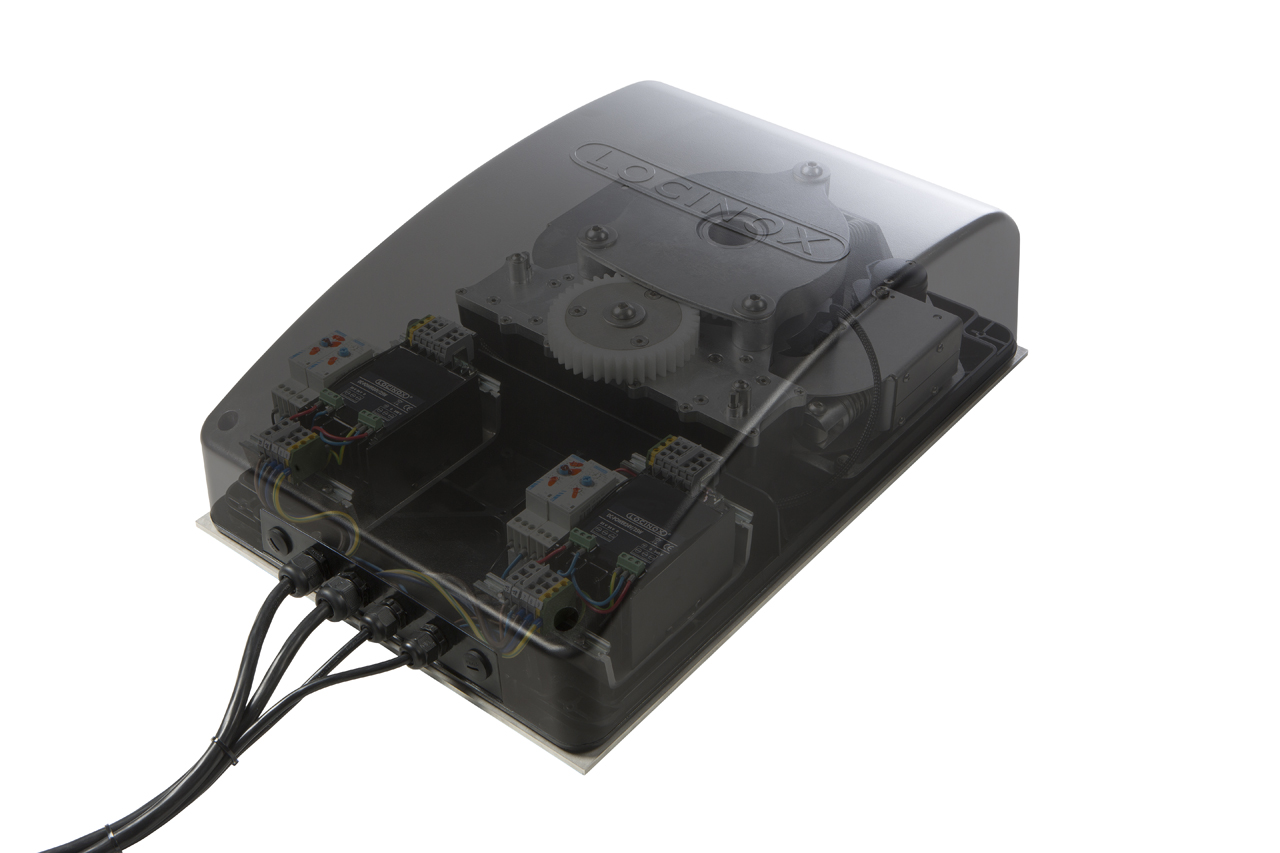

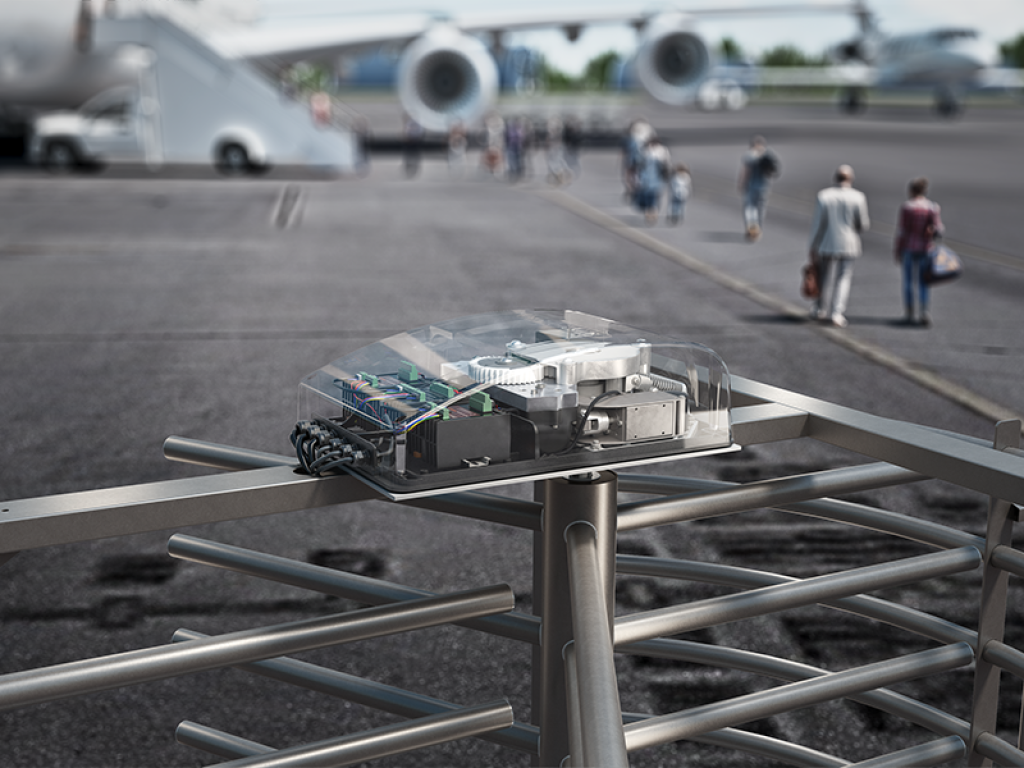

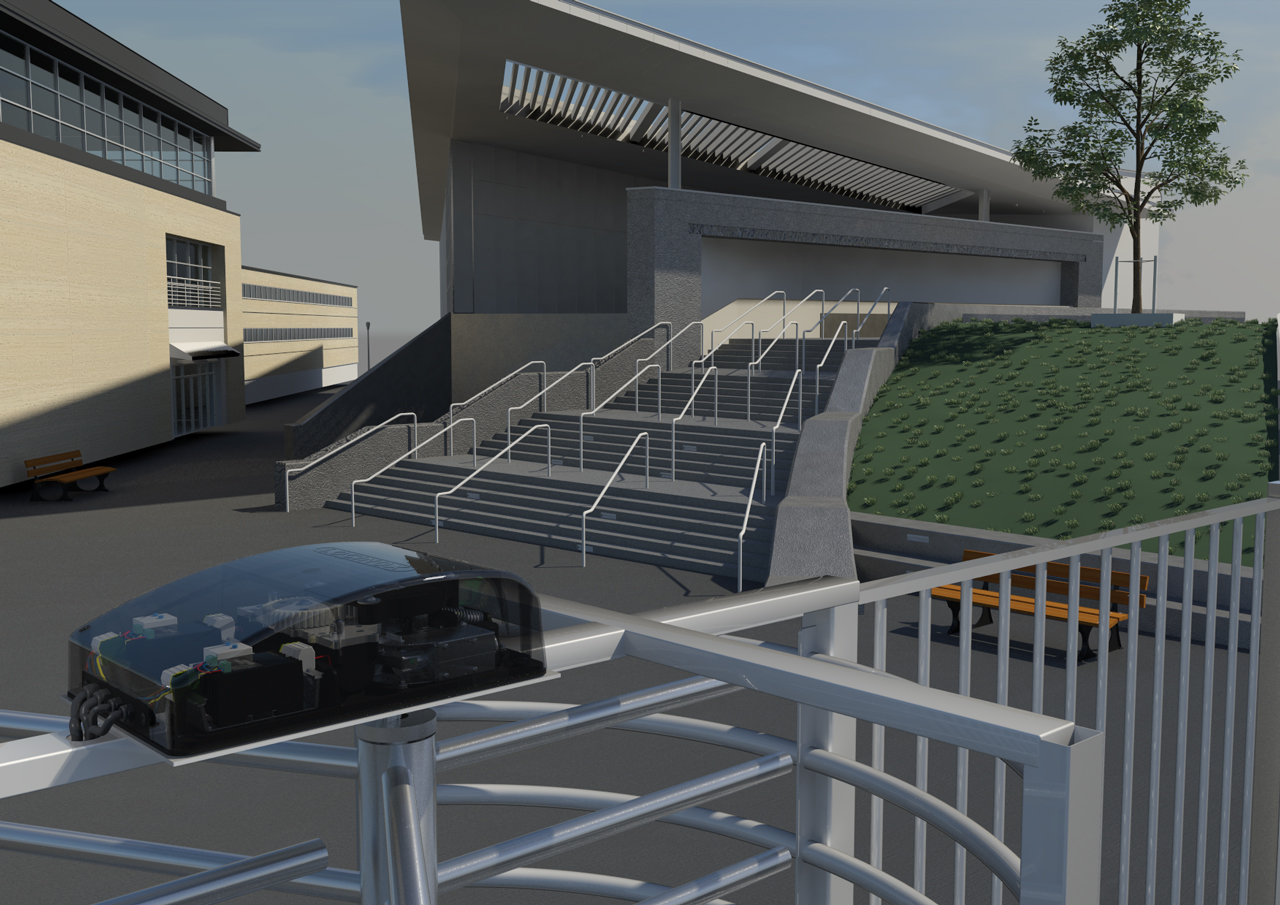

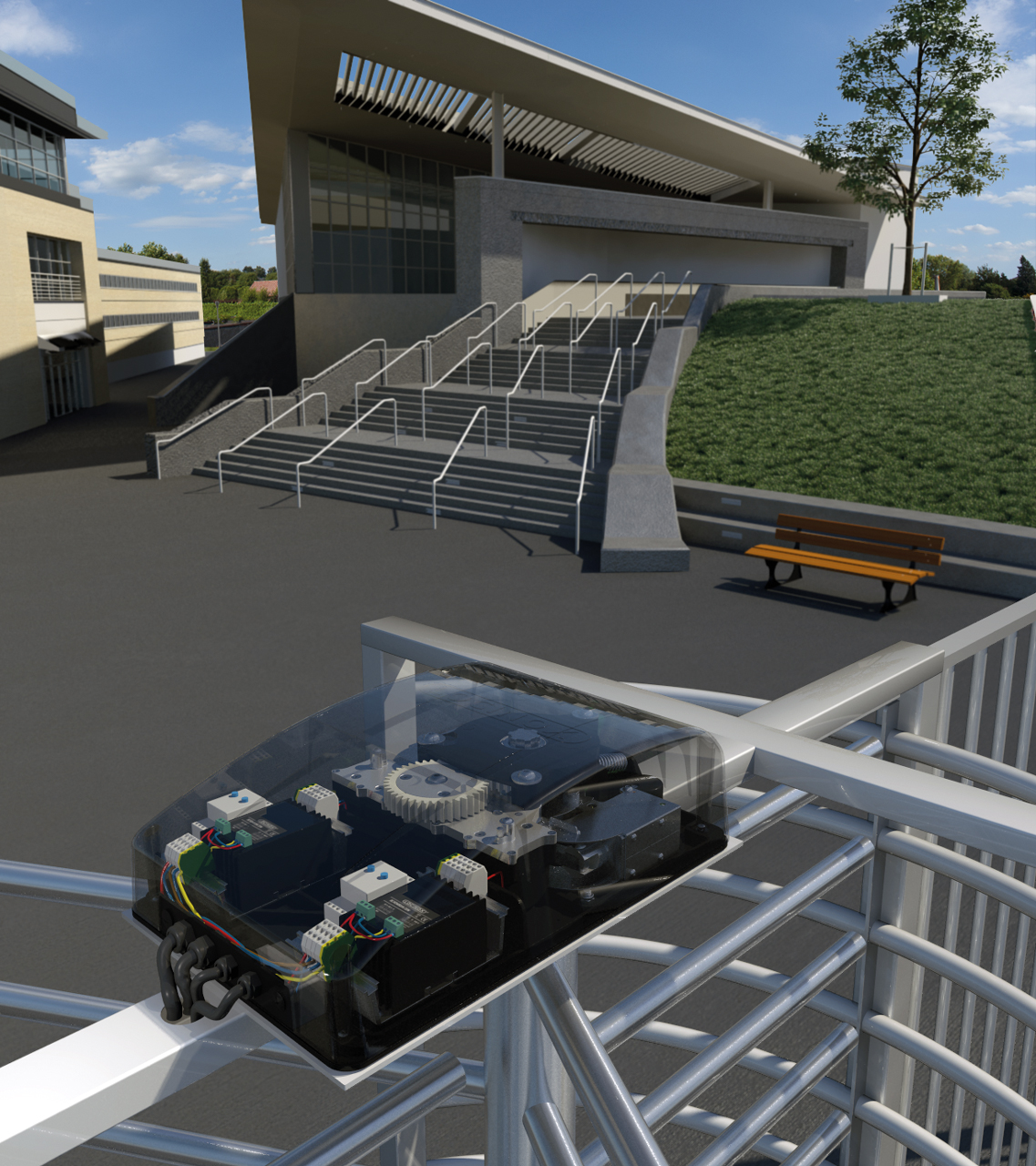

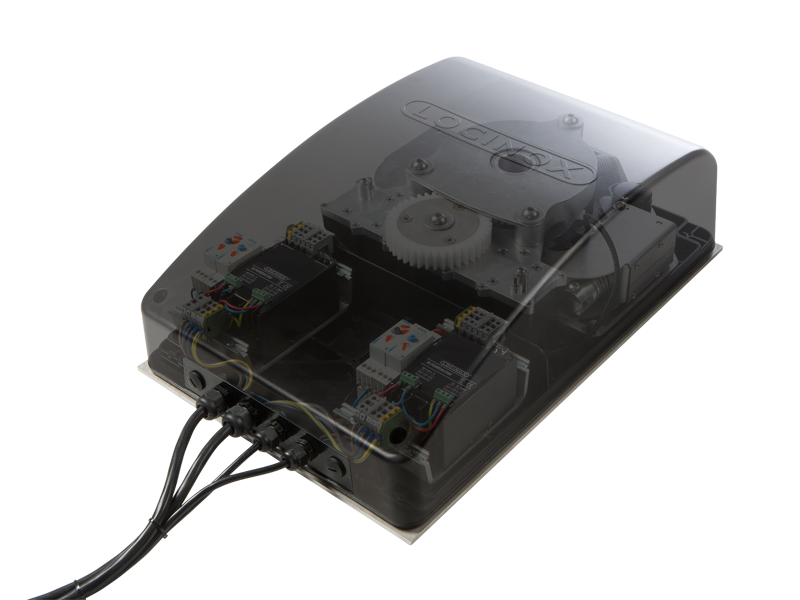

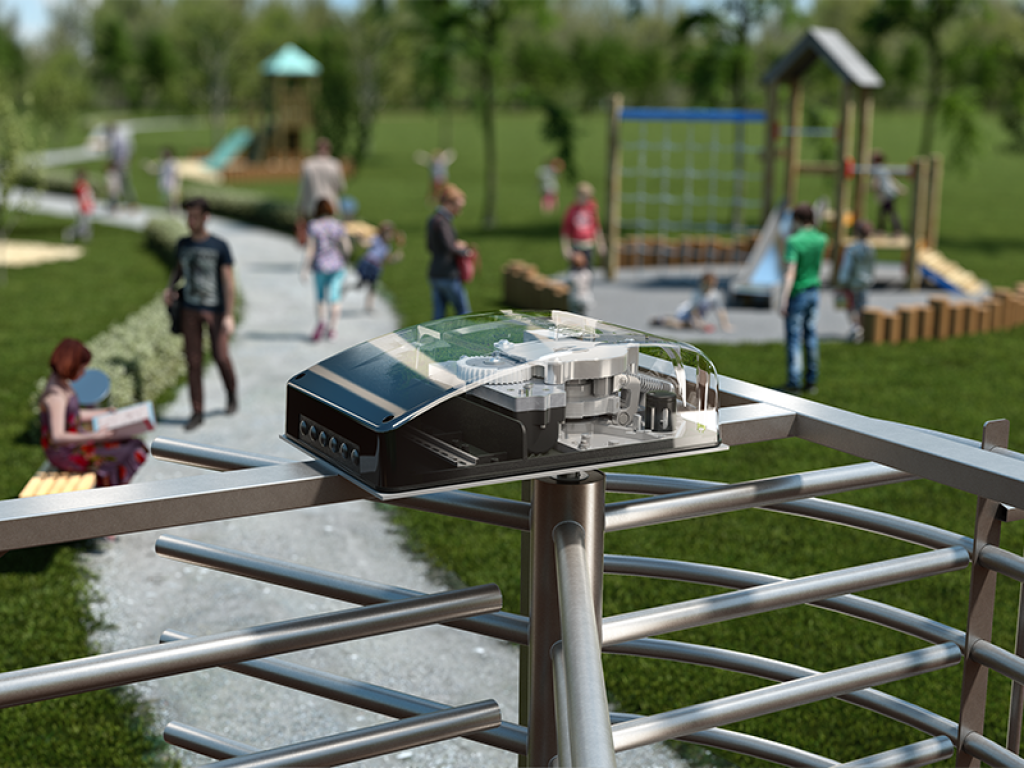

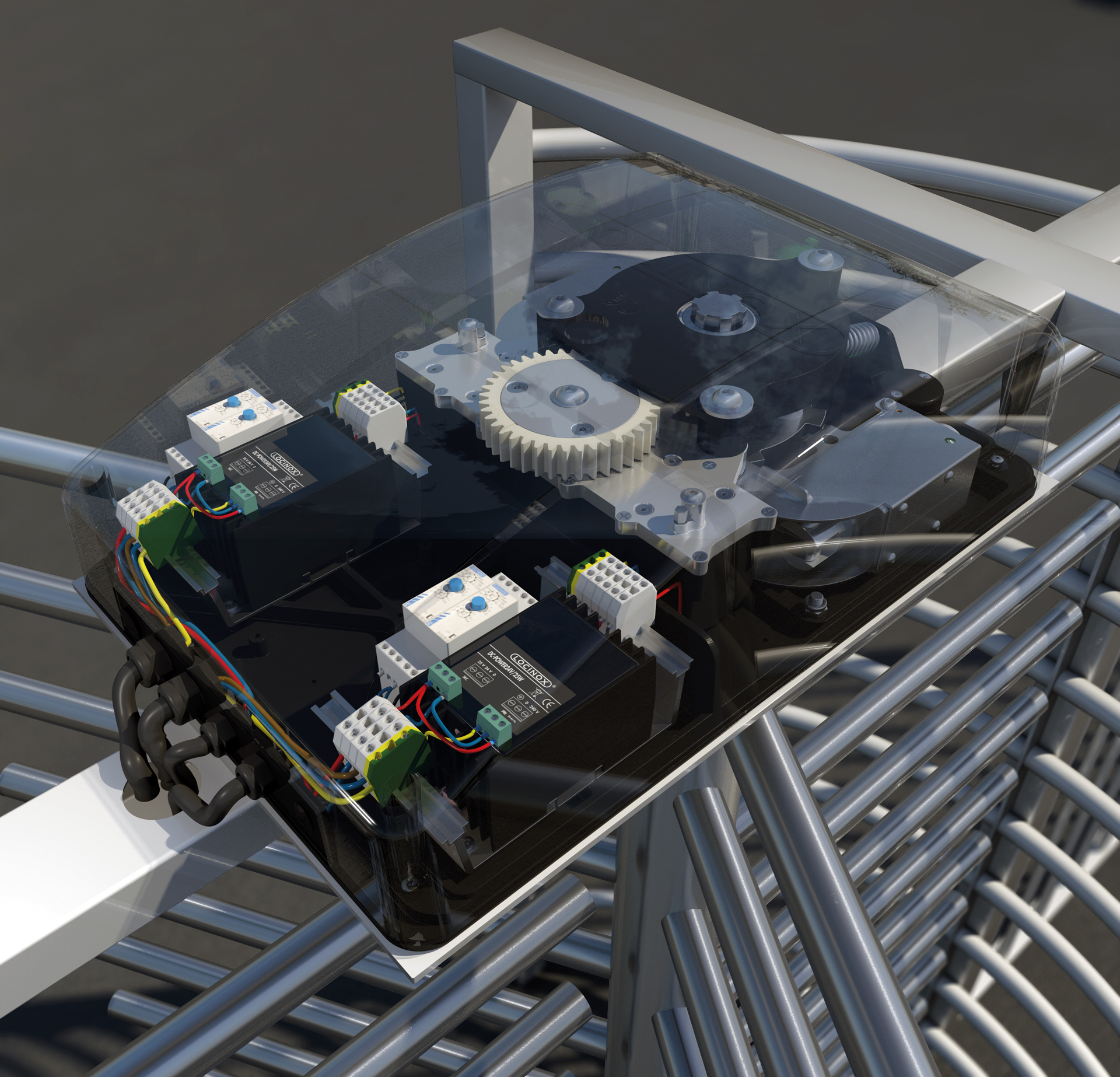

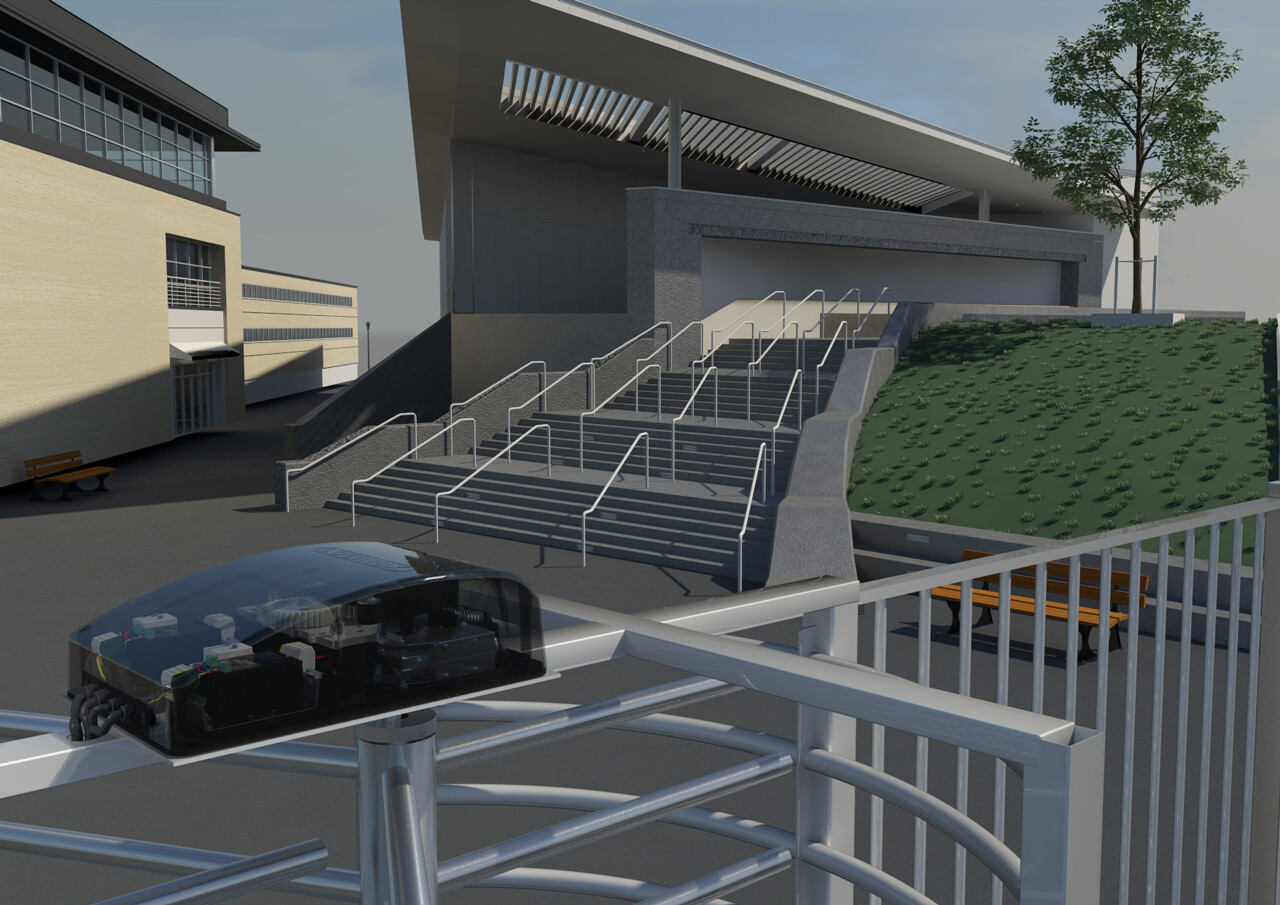

The Locinox (electro)mechanical control unit (3-arm 120° or 4-arm 90°) allows you to easily create a maintenance free and high quality turnstile. You can match the design of your turnstile to the design of your fencing! The Turnitec mechanism is applicable to any turnstile and a quick installation is guaranteed. Thanks to the 100% modular design you can adapt the mechanism to your customers' desires. A comfortable and safe operation is guaranteed by the optional damping system that is unaffected by temperature changes.
Product specs
This product cannot be ordered at the moment.
No products found.
Specifications
Specifications

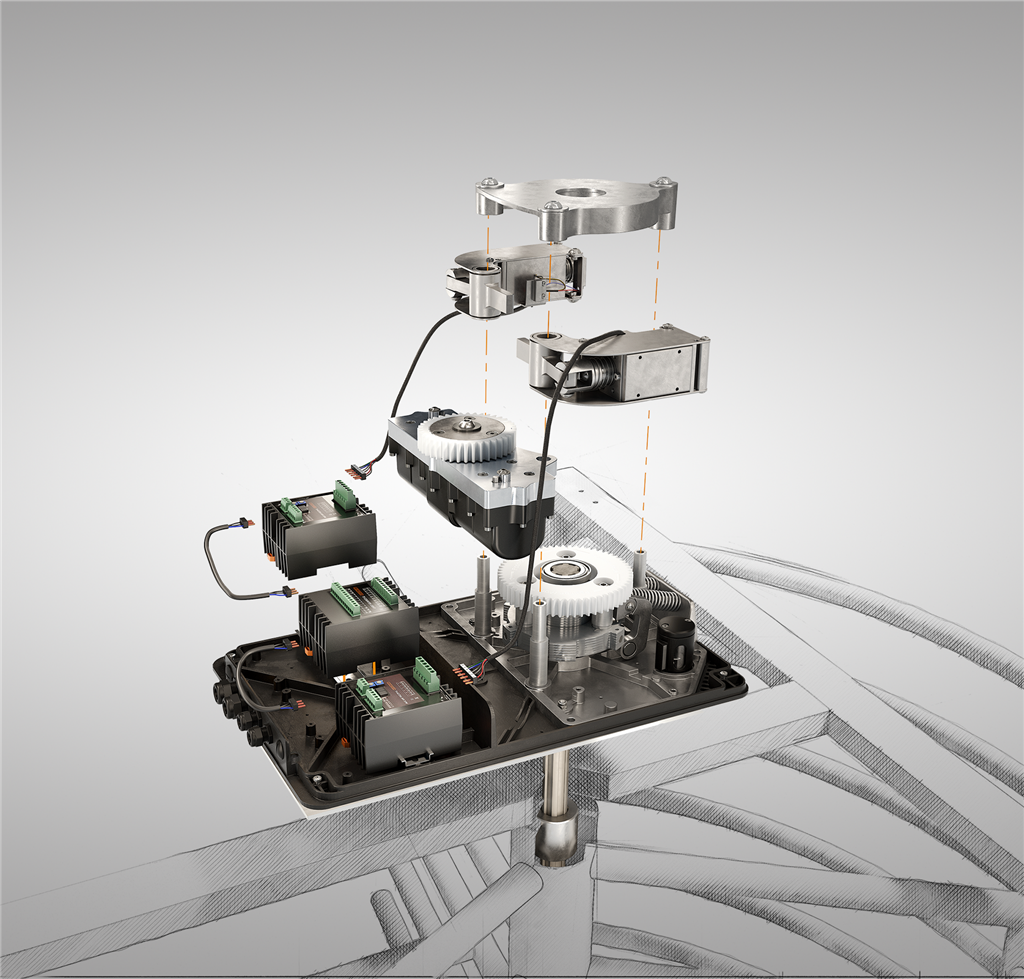

  • 100% modular system: composition according customers' desires and expandable at any moment
  • Available for 3-arm (120°) and 4-arm (90°) turnstile
  • Optional interchangeable left/right mechanical or electromechanical modules (Fail Open or Fail Close)
  • Automatic return to starting position (by means of industrial pressure springs) after every passage
  • Anti-passback security (locking after a 60° or 45° rotation): prevents the simultaneous passing of 2 persons
  • Very robust implementation and strong connection with the turnstile by a 1-3/8" diameter spline axle (length 12-3/4")
  • Manufactured completely in stainless parts (stainless steel and aluminum)
  • Optional welding plate in black or stainless steel enables an easy mounting on every turnstile
  • Optional damping system guarantees smooth and gradual movements. Damping is continuous and unaffected by temperature changes (patented system)
  • Possible to set signal duration
  • IP55 housing protects the mechanism against water, dirt, wind, dust and vermin
Features

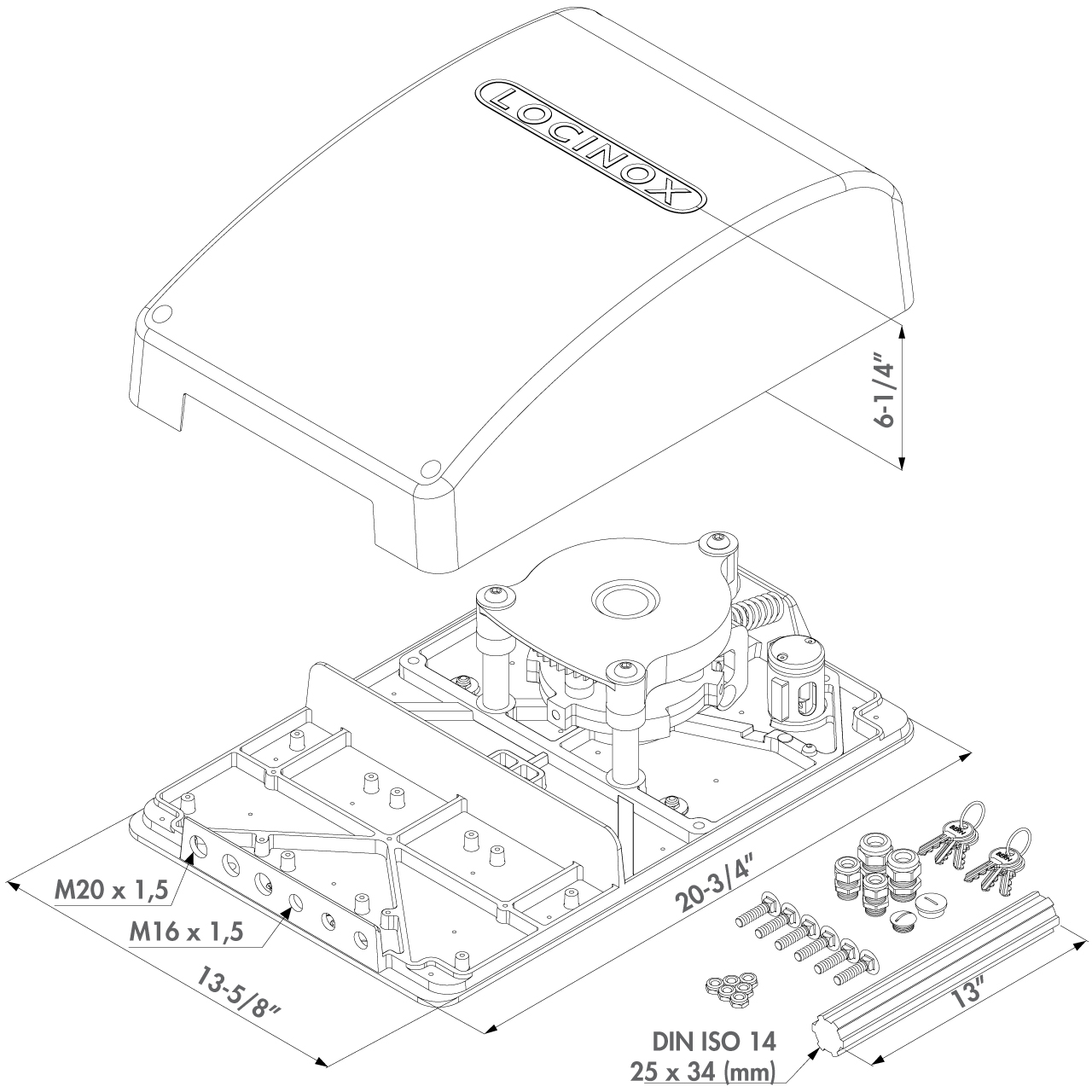

Drawings
