2-channel relay module
2-channel relay module

2-channel relay module - SWITCHSTONE-STD-X-230

Item No. P00009532 - SWITCHSTONE-STD-X-23
Product specs
This product cannot be ordered at the moment.
Specifications
Perfion__Bullets
  • Tested from -22°F to 185°F
  • Includes 2x 250V AC/26V DC relays, each with COM, Fail Open and Fail Close contact
  • Long range secure 2-wire communication with the SlimStone-X, up to 985' distance
  • Auto back up functionality
  • DIN-rail mountable
  • Relay switching duration adjustable between pulse and timer mode (500 ms - 99 s)
  • Current: maximum 0.07 A
  • Consumption: maximum 1.7 W
  • To be used exclusively with the Powerstone 60W power supply
Specifications
  • Tested from -22°F to 185°F
  • Includes 2x 250V AC/26V DC relays, each with COM, Fail Open and Fail Close contact
  • Long range secure 2-wire communication with the SlimStone-X, up to 985' distance
  • Auto back up functionality
  • DIN-rail mountable
  • Relay switching duration adjustable between pulse and timer mode (500 ms - 99 s)
  • Current: maximum 0.07 A
  • Consumption: maximum 1.7 W
  • To be used exclusively with the Powerstone 60W power supply

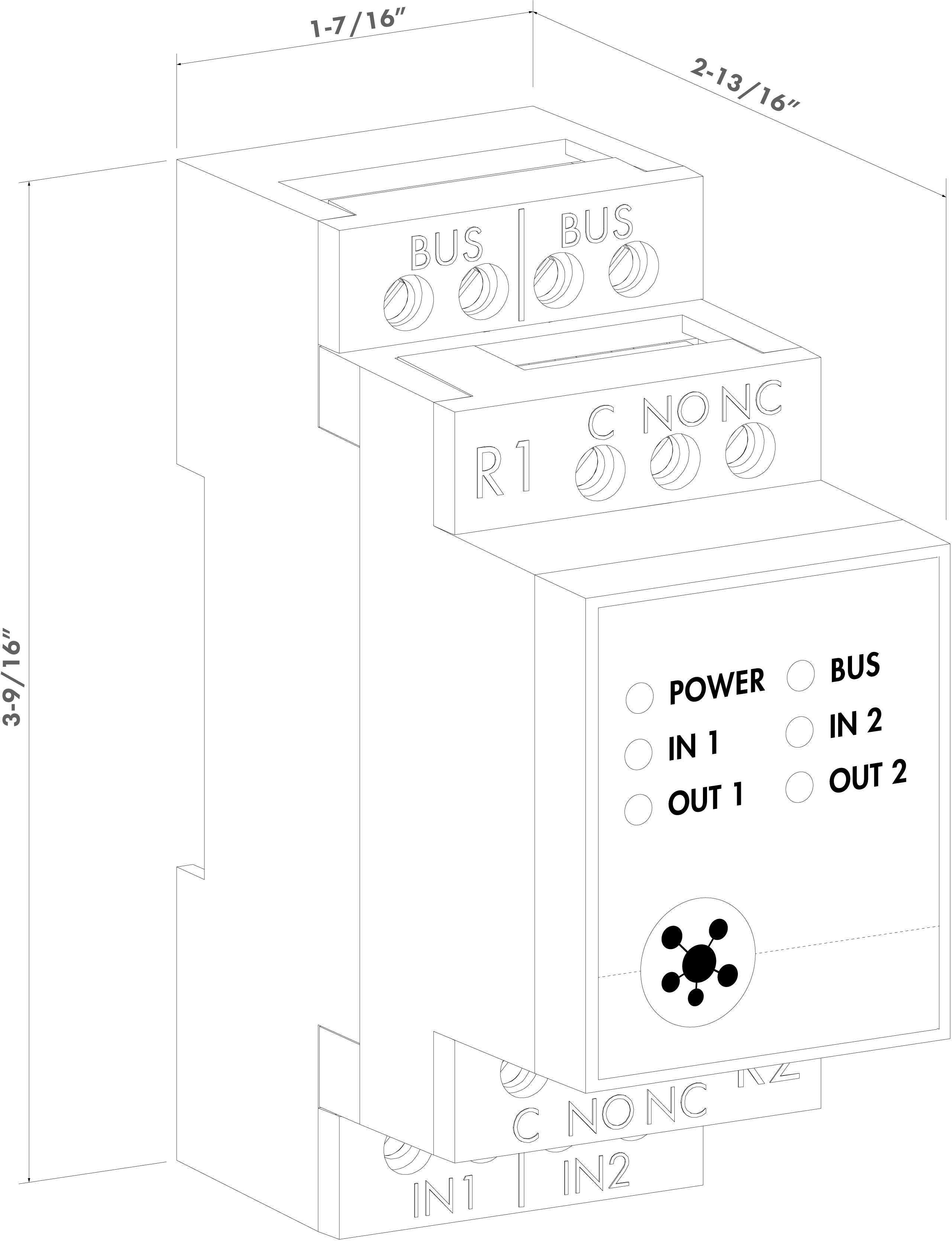

Drawings
