J-Bolt Stainless steel with polyamide plugs
J-Bolt Stainless steel with polyamide plugs

J-Bolt Stainless steel with polyamide plugs

Item No. D00000065 - GBM12

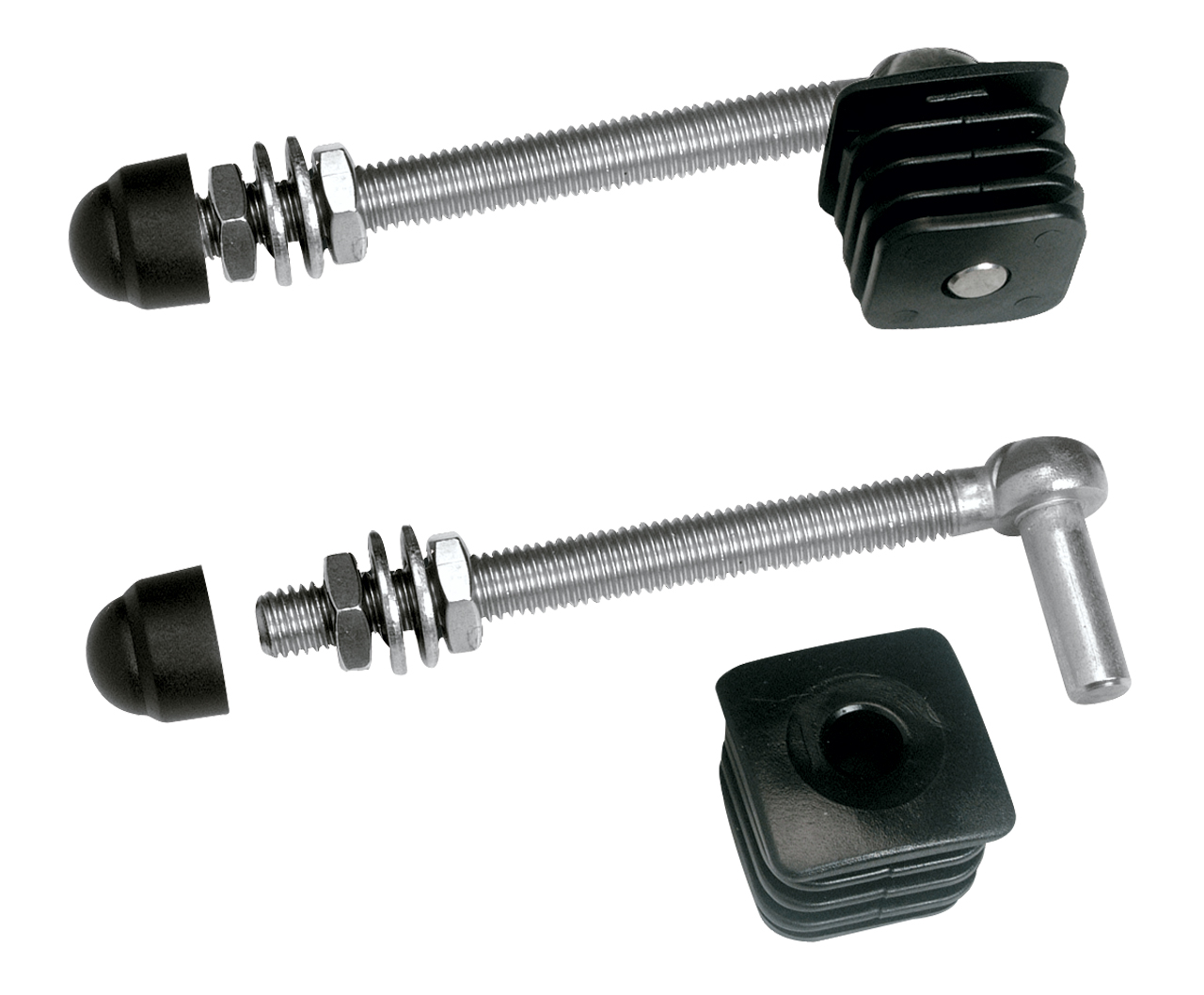

Stainless steel garden gate J-Bolt hinge set. The set consist of 2 threaded M12 stainless steel hinge bolts with polyamide hinge plugs. The poly plugs fit into the top and bottom of the gate upright for an economical quality solution for small garden and walk gate projects.
This product cannot be ordered at the moment.
No products found.
Specifications
Specifications
  • Hinge J-bolt M12 in stainless steel
  • Plug available for profile 1-3/16" square, 1-1/2" square or 2-3/8" x 1-1/2"
  • Length of the threaded J-bolt: 5-1/8" or 6" long
  • Installation: plug slides into gate upright top and bottom

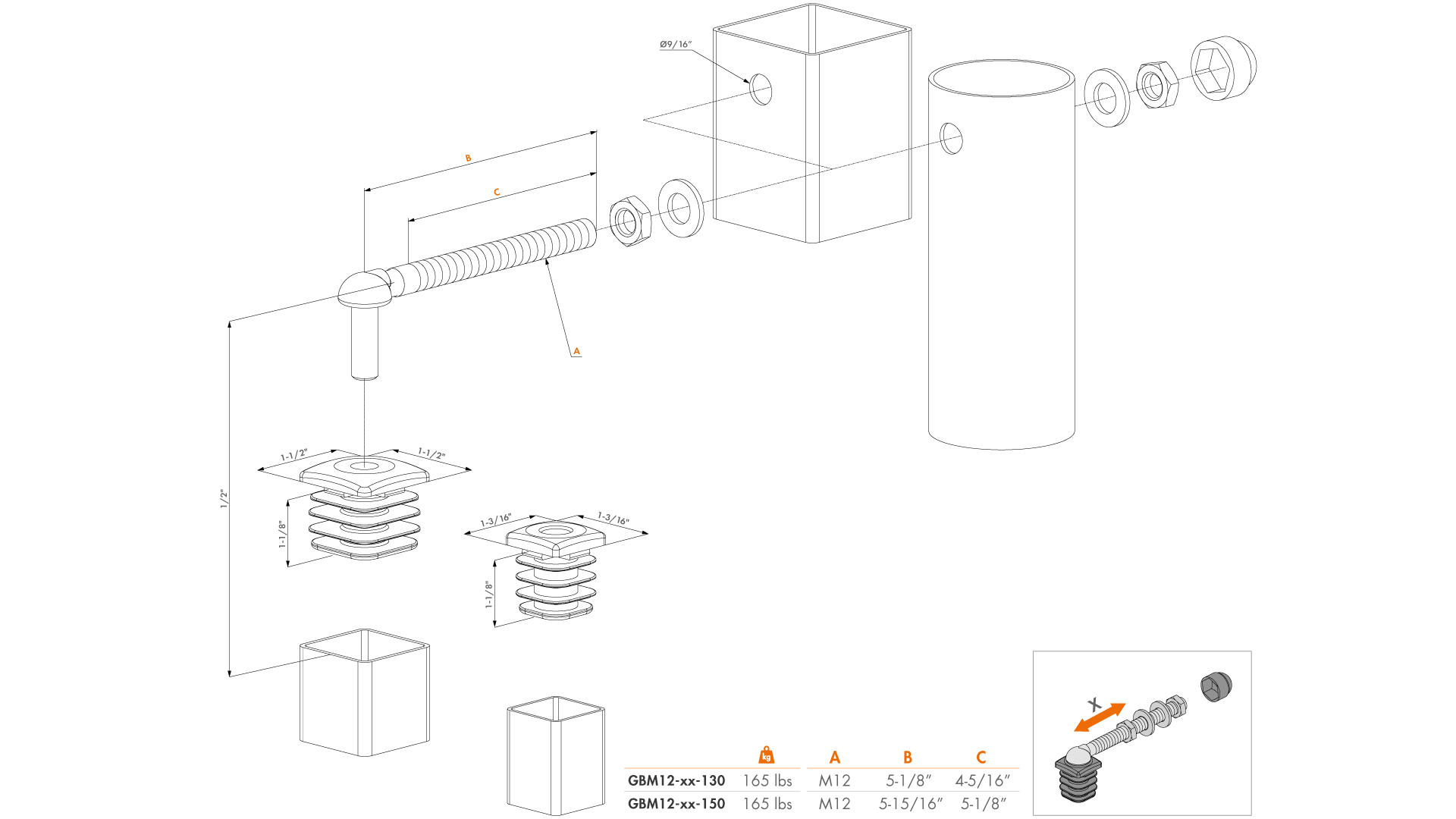

Drawings
