4-way adjustable vandal-proof 180° hinge
Item No.
D00000078 - GBMU4DSHIELD
Vandal-proof hot dip galvanized 180° hinge. This secured version of the GBMU4D16 hinge provides extra security since the eyebolt or cross bolt can not be tampered with. With the 4-way adjustability you no longer have to keep left or right turning gates in stock. Height, depth, left and right alignment and turning direction are individually adjustable.
Hinge type
No products found.
Specifications
| Specifications |
|
| Available in following RAL-colors |
|
Drawings
Downloads
Product B (Black steel)
Product Z (Zinc plated)

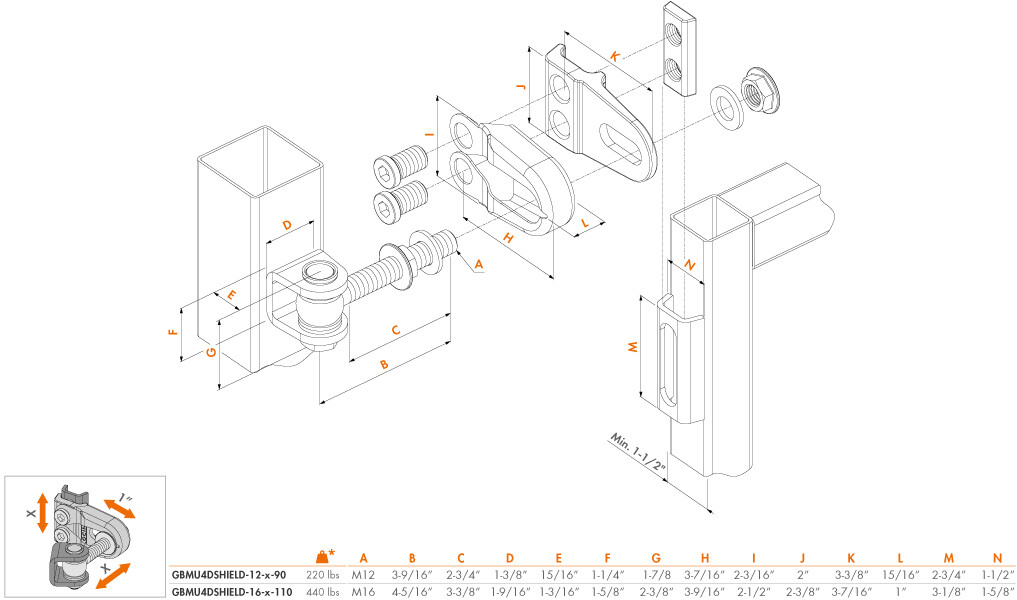

2D/3D drawings
Installation instructions

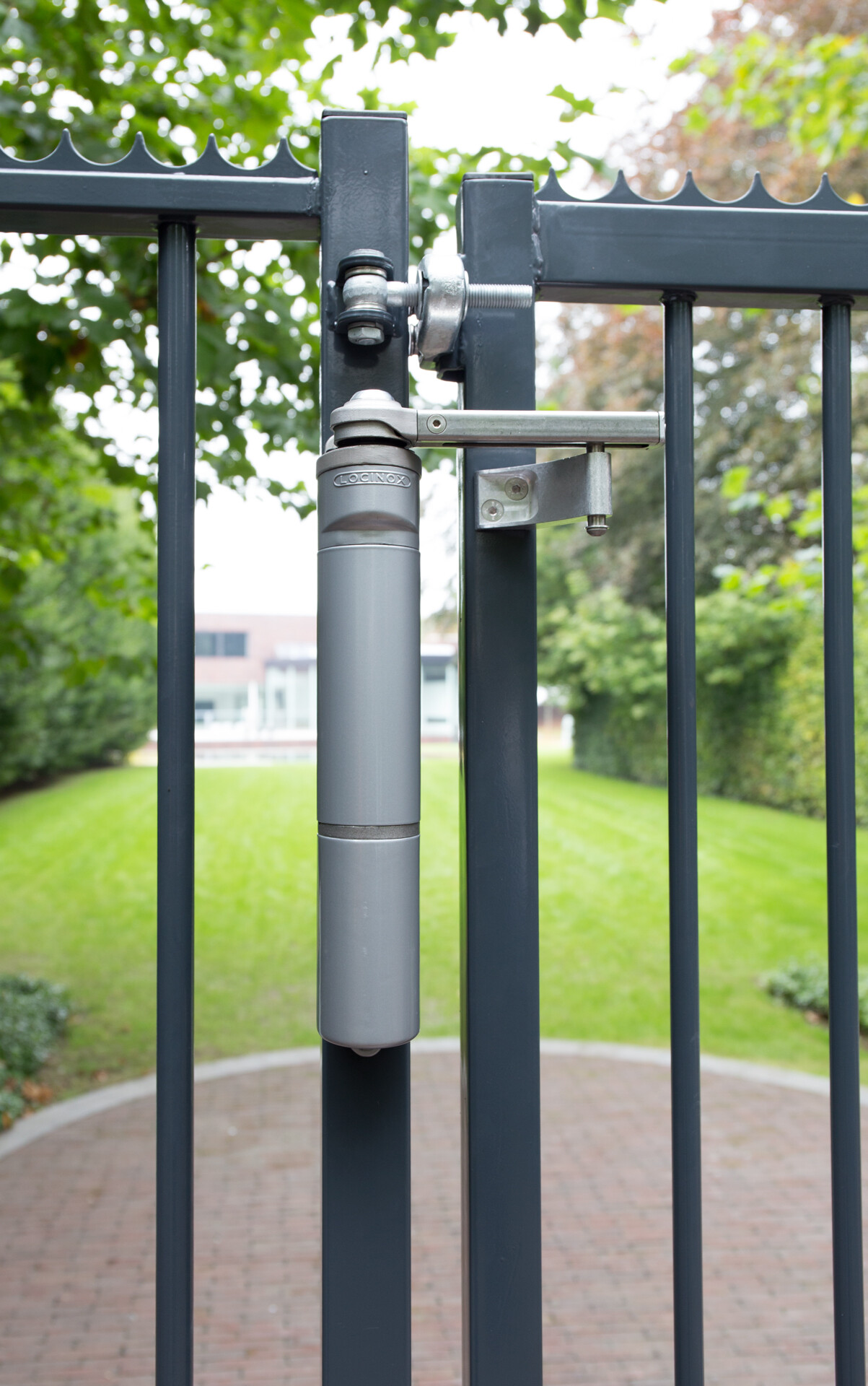

Detail anthracite gate top
Detail anthracite gate bottom
Closeup at house entrance
Anthracite gate at doctors practice detail

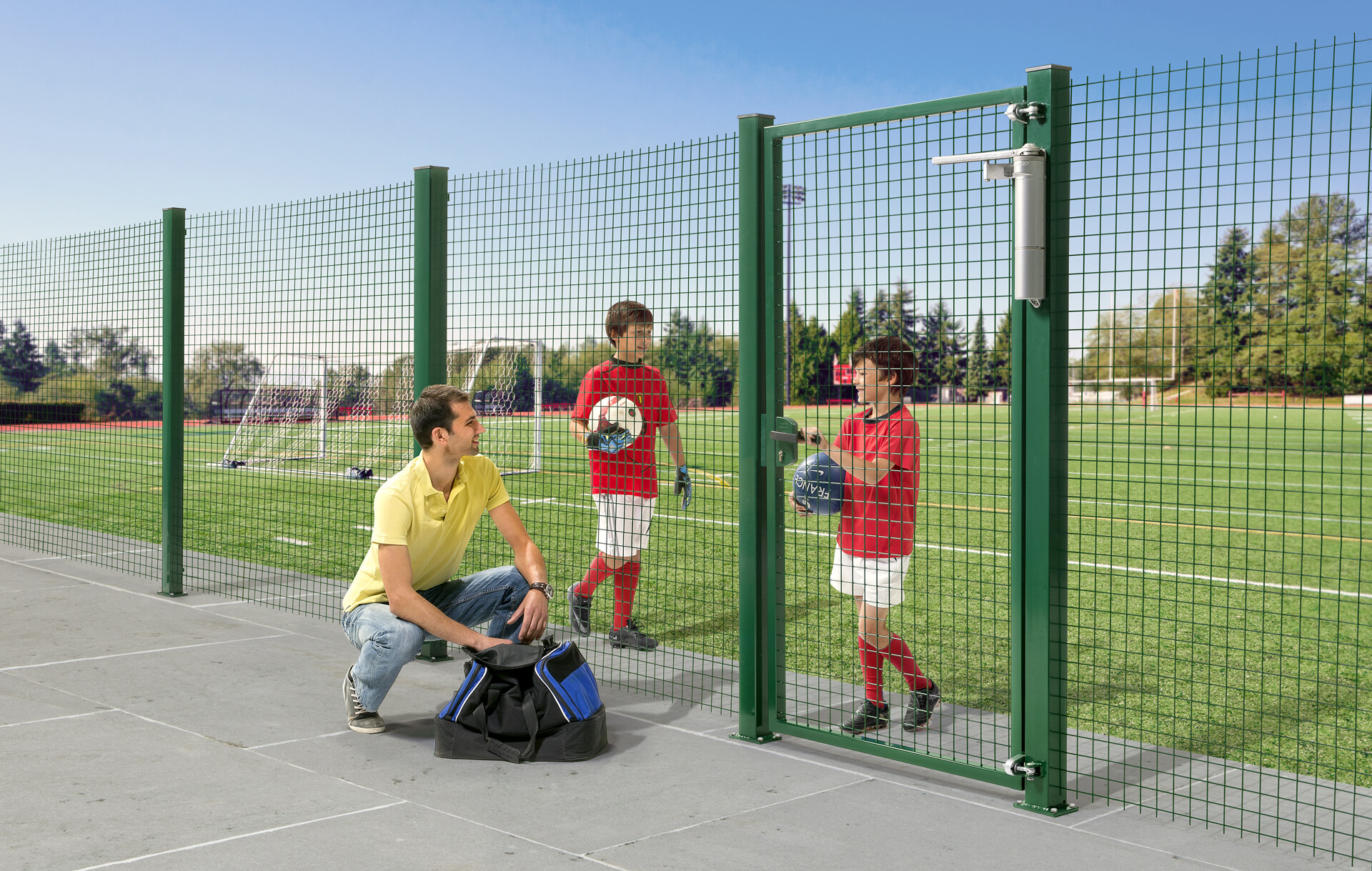

Kids on soccerfield with green fence
Product sheet
