Weather resistant keypad with 2 integrated relays

Weather resistant keypad with 2 integrated relays - SLIMSTONE-2

Item No. P00009877 - SLIMSTONE-2

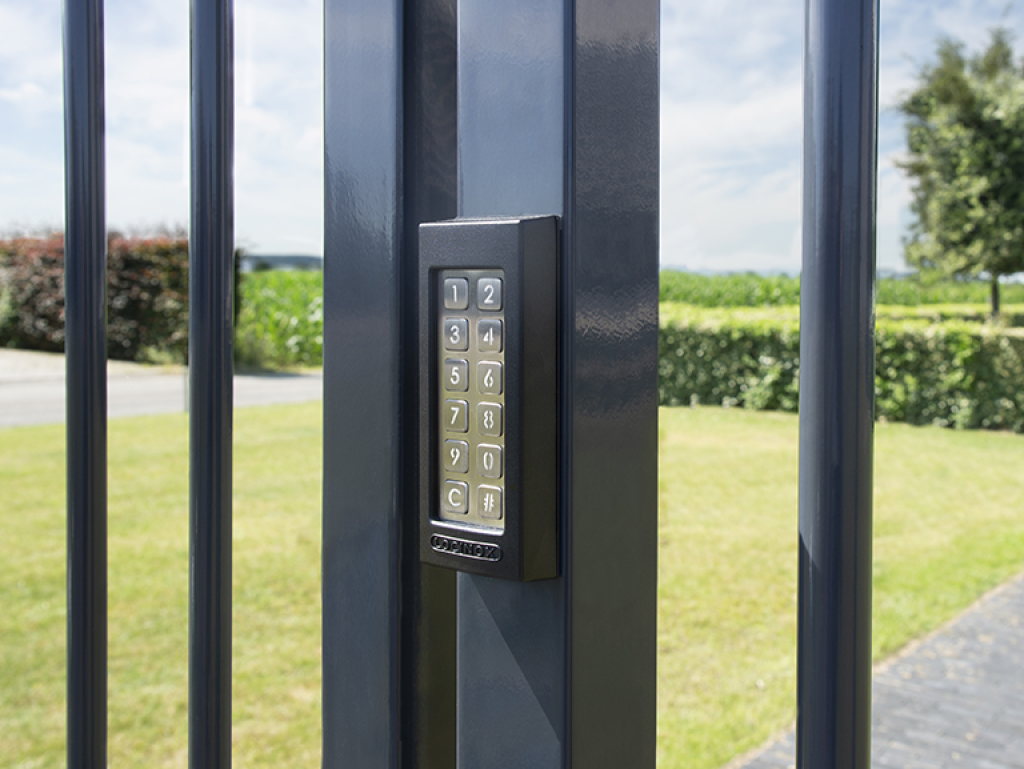

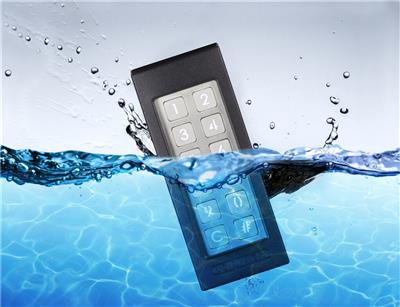

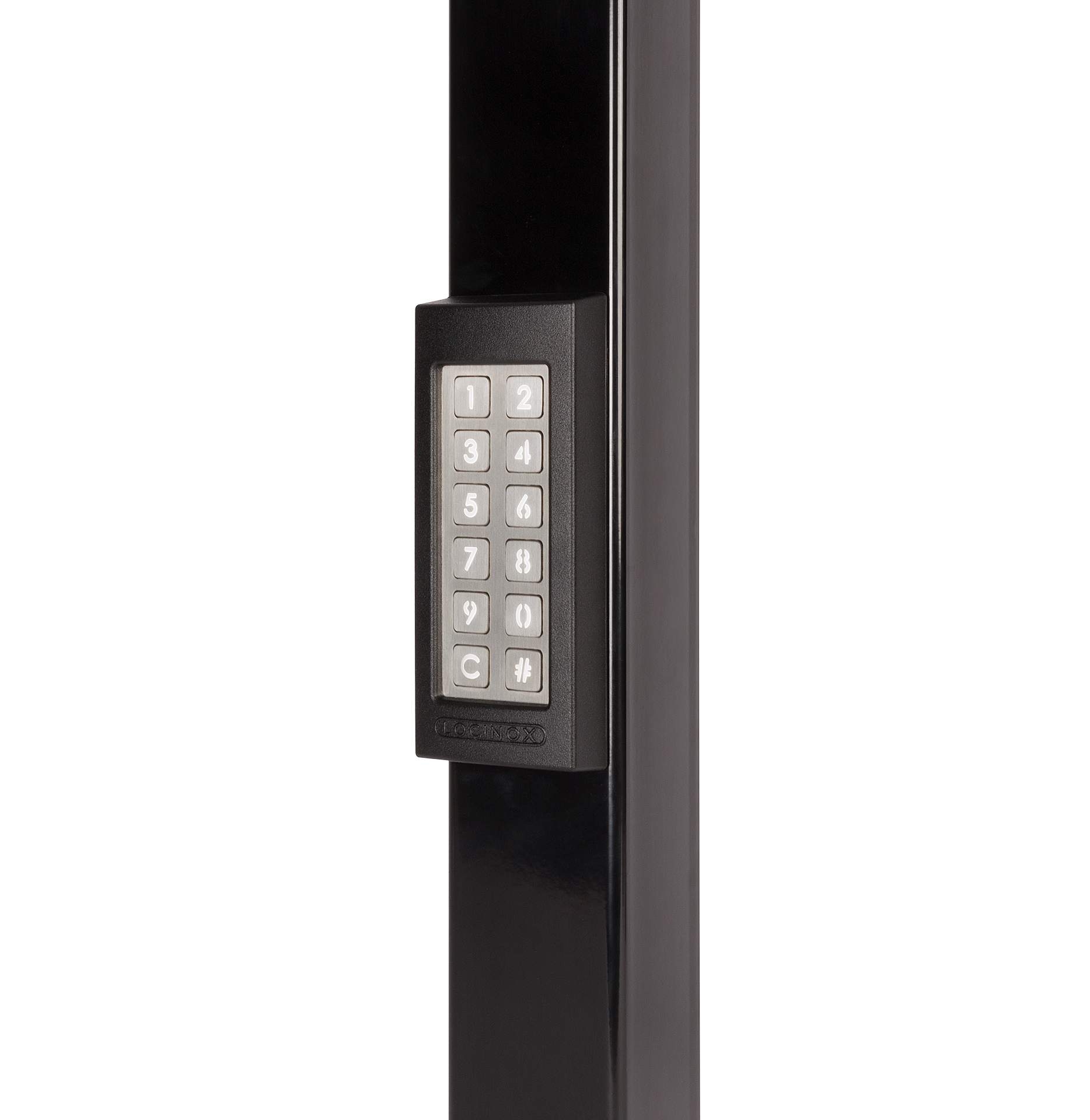

The SlimStone-2 keypad has 2 integrated relays, with a Fail Open and Fail Close contact. These make it easy to connect to Locinox and third-party automation products. This keypad with integrated LED lighting is strong and extremely weather resistant, thanks to integrated heating and IP68 waterproof rating.

Product specs

Variants

9005	SILV
Weather resistant keypad with 2 integrated relays in RAL 9005	Weather resistant keypad with 2 integrated relays in Silver

Continue shopping

Specifications
Drawings
Downloads

Specifications

Specifications	IP68 rated - Extremely resistant to water and dust Aluminum vandal-proof housing with scratch-resistant textured lacquer Energy efficient adjustable white led lights Highly resistant stainless steel push buttons tested for 1,000,000 pushes and more Easy installation and configuration Easy programming of up to 100 user codes Smart heating element guarantees frost-free use Tested from -22°F to 185°F Adjustable time range between pulse and timer mode (100ms - 99s) Voltage: 10 up to 26 V AC/DC Current: 1.0 A (with heating) 2 integrated switching relays: 2 x NO - 2 x NC - 2 x COM (Max. 2A, 60W, 26V AC/DC) 6-1/2ft connection cable included Consumption: 1,5 W (> 41°F) + 12 W at max heating (< -13°F)
Available in following RAL-colors
Features
