Compact, 2-way 90° hinge
Compact, 2-way 90° hinge

Compact, 2-way 90° hinge - NOSEHINGE-I-50

Item No. P00006966 - NOSEHINGE-I-50
Compact, 2-way 90° hinge
Product specs
This product cannot be ordered at the moment.
Specifications
Perfion__Bullets
  • For left and right handed gates
  • Made out of extruded aluminium parts with plastic covers
  • Easy to fix with Quick-Fix
  • 5/8" width adjustable and 1" depth adjustable
  • Includes two hinges, one for bottom and one for top
  • Includes DURA-5050 gate plug for 2" gate frames
  • Max width of the gate: 98-7/16"
  • Max weight of the gate: 265 lbs
Specifications
  • For left and right handed gates
  • Made out of extruded aluminium parts with plastic covers
  • Easy to fix with Quick-Fix
  • 5/8" width adjustable and 1" depth adjustable
  • Includes two hinges, one for bottom and one for top
  • Includes DURA-5050 gate plug for 2" gate frames
  • Max width of the gate: 98-7/16"
  • Max weight of the gate: 265 lbs

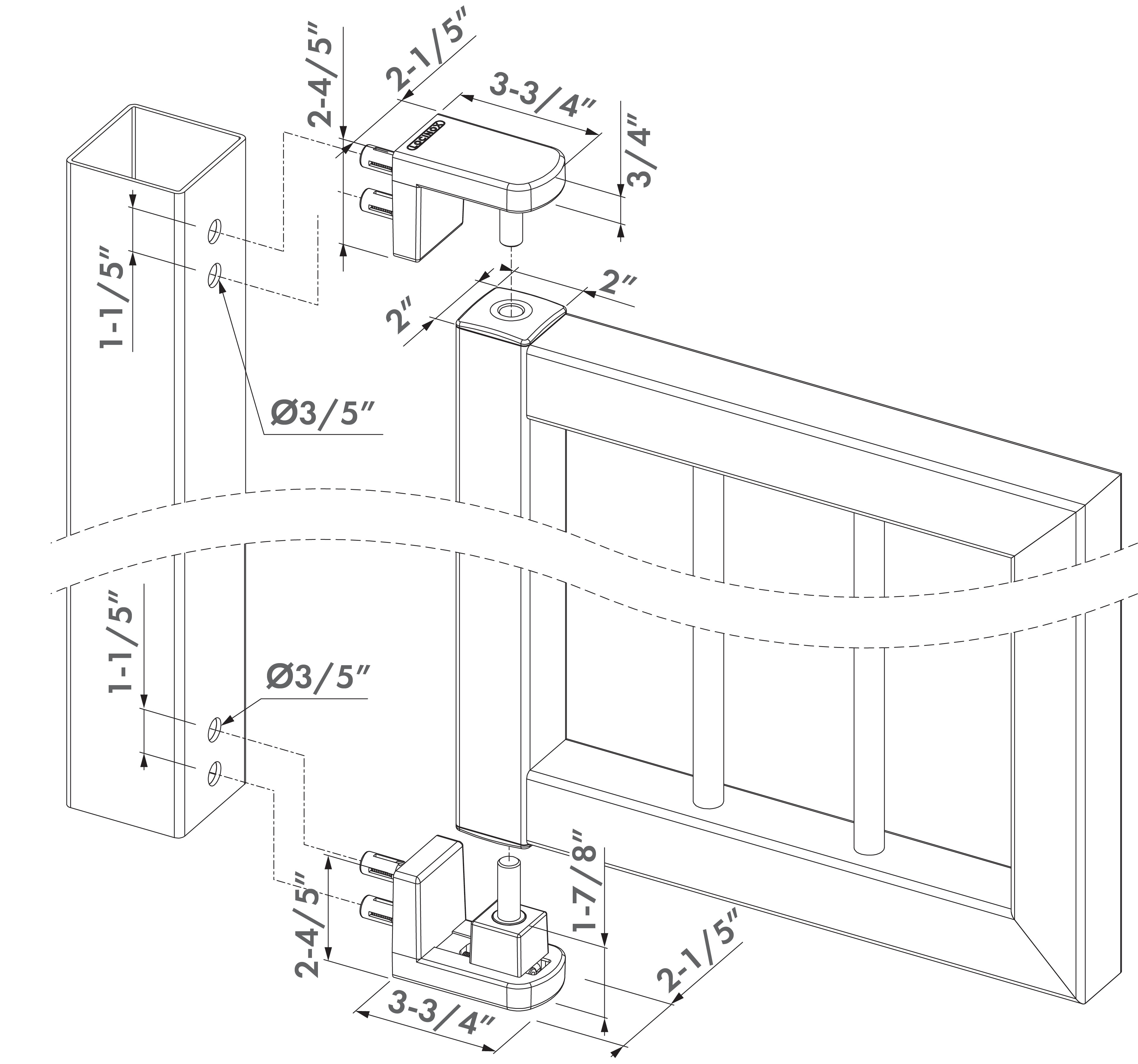

Drawings
