Item No. D00000086 - ELECTRADROP

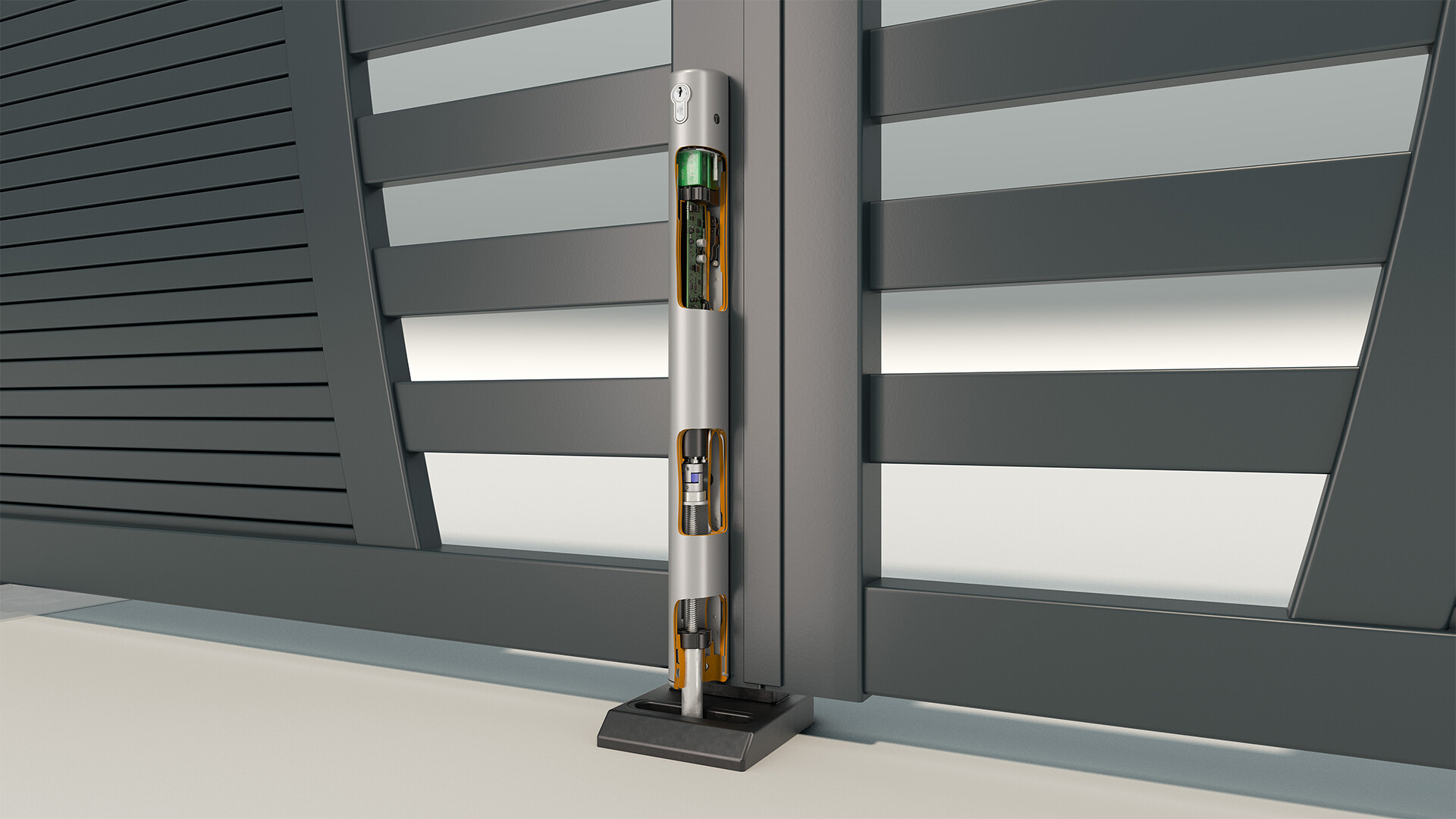

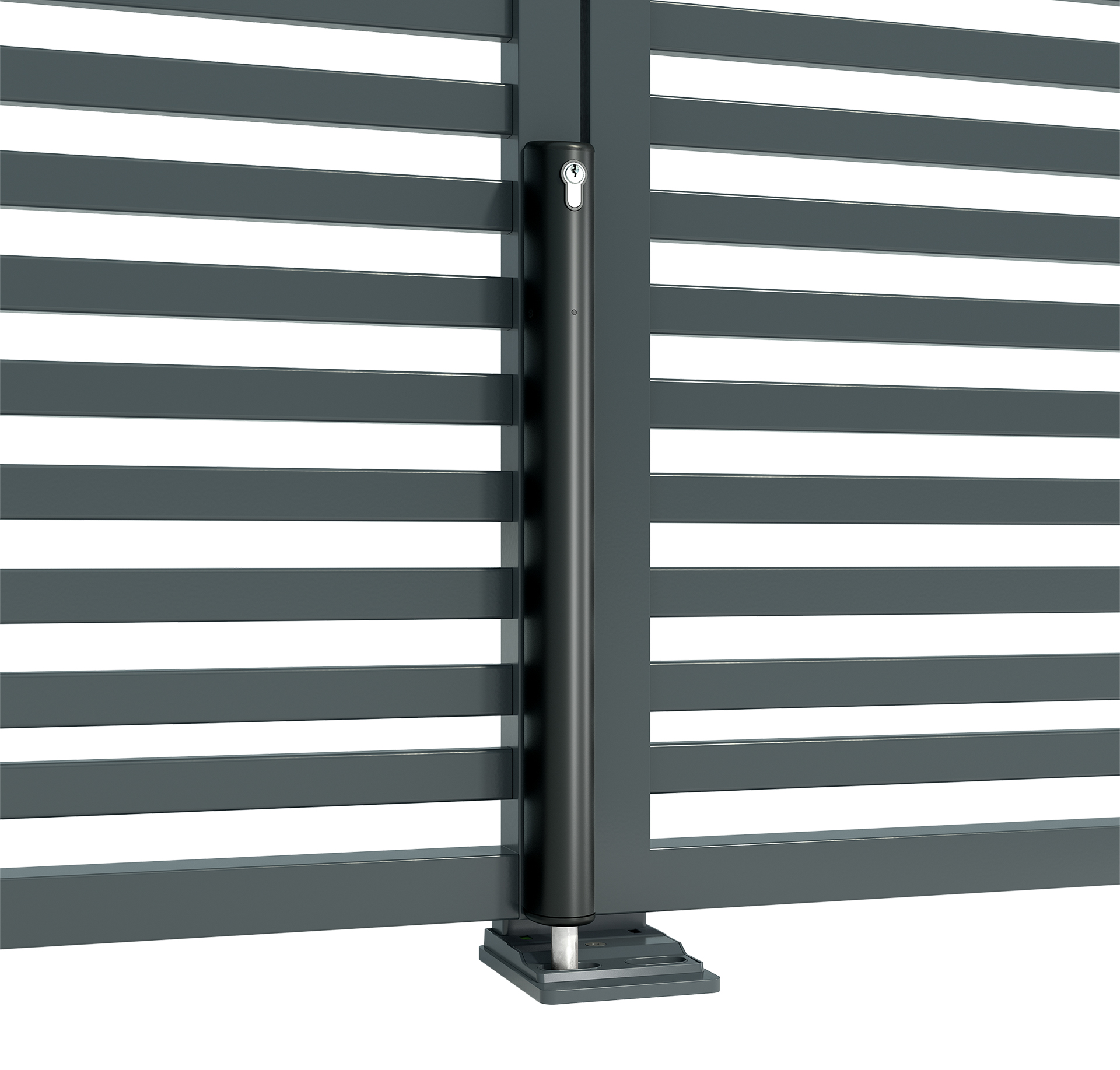

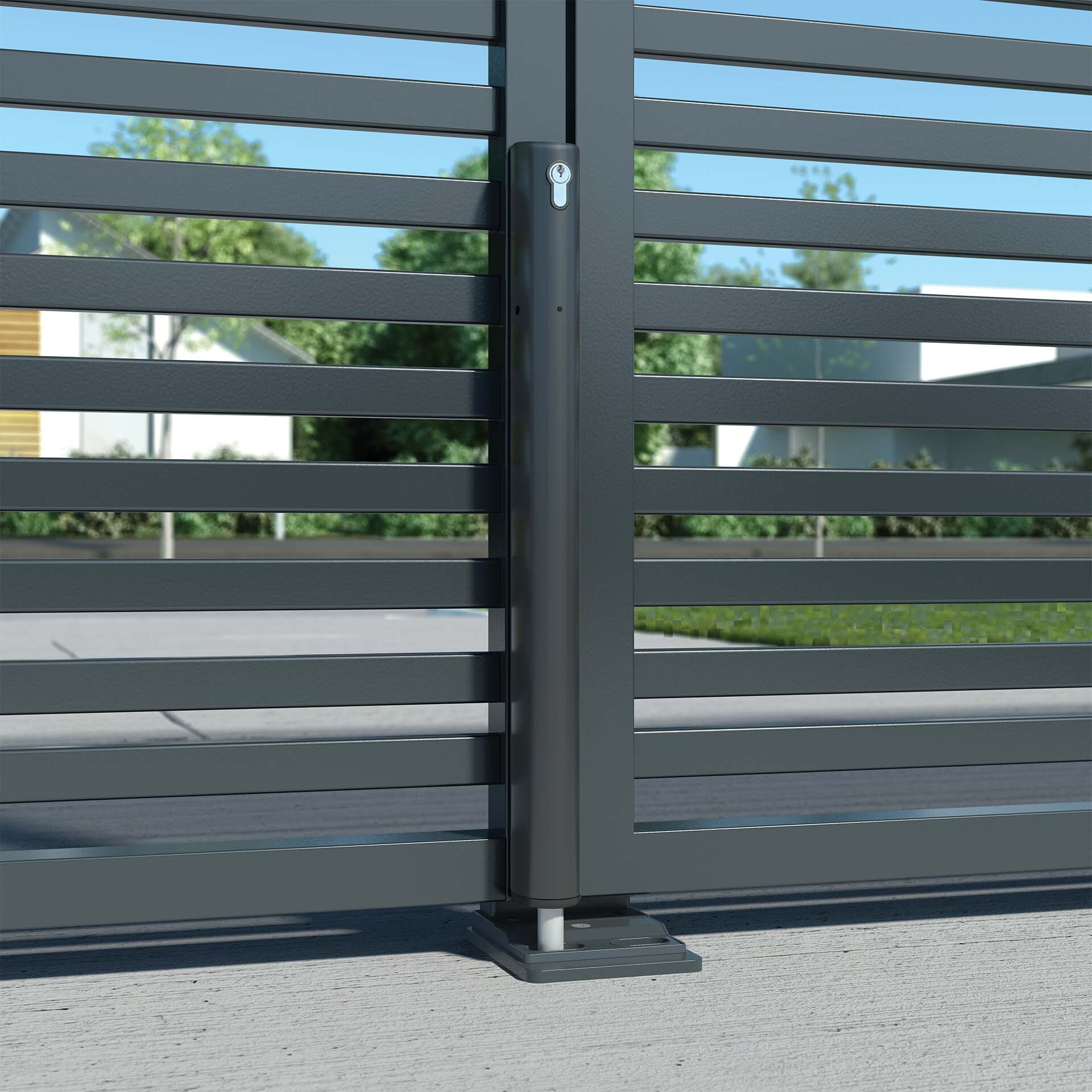

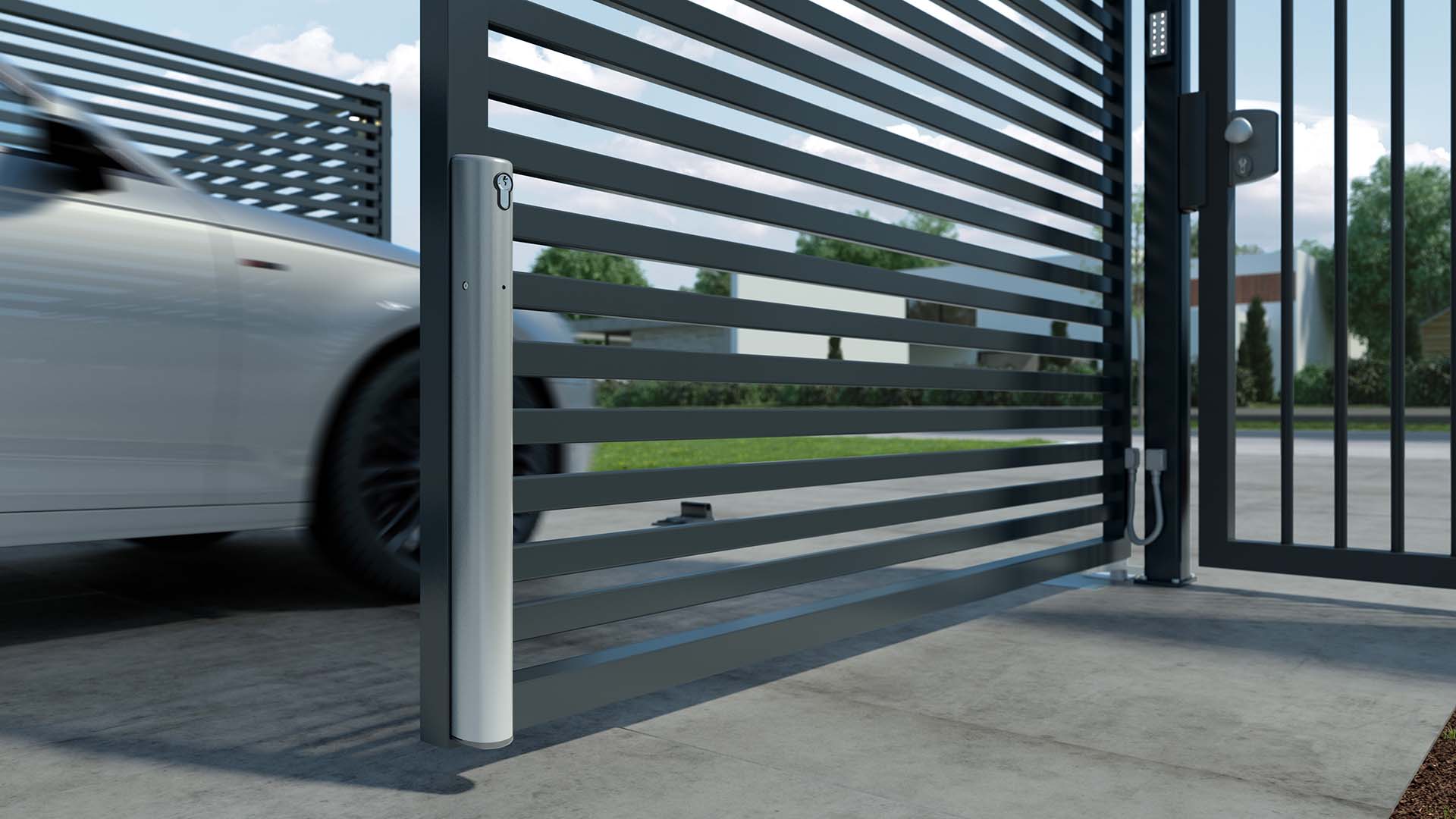

Electric 24V drop bolt with 4-1/2" throw for safe locking of automated swing gates. By securing your gate with an Electradrop you disburden the electric gate motors.
Product specs
This product cannot be ordered at the moment.
Show all… Collapse
Show all… Collapse
No products found.
Specifications
Specifications

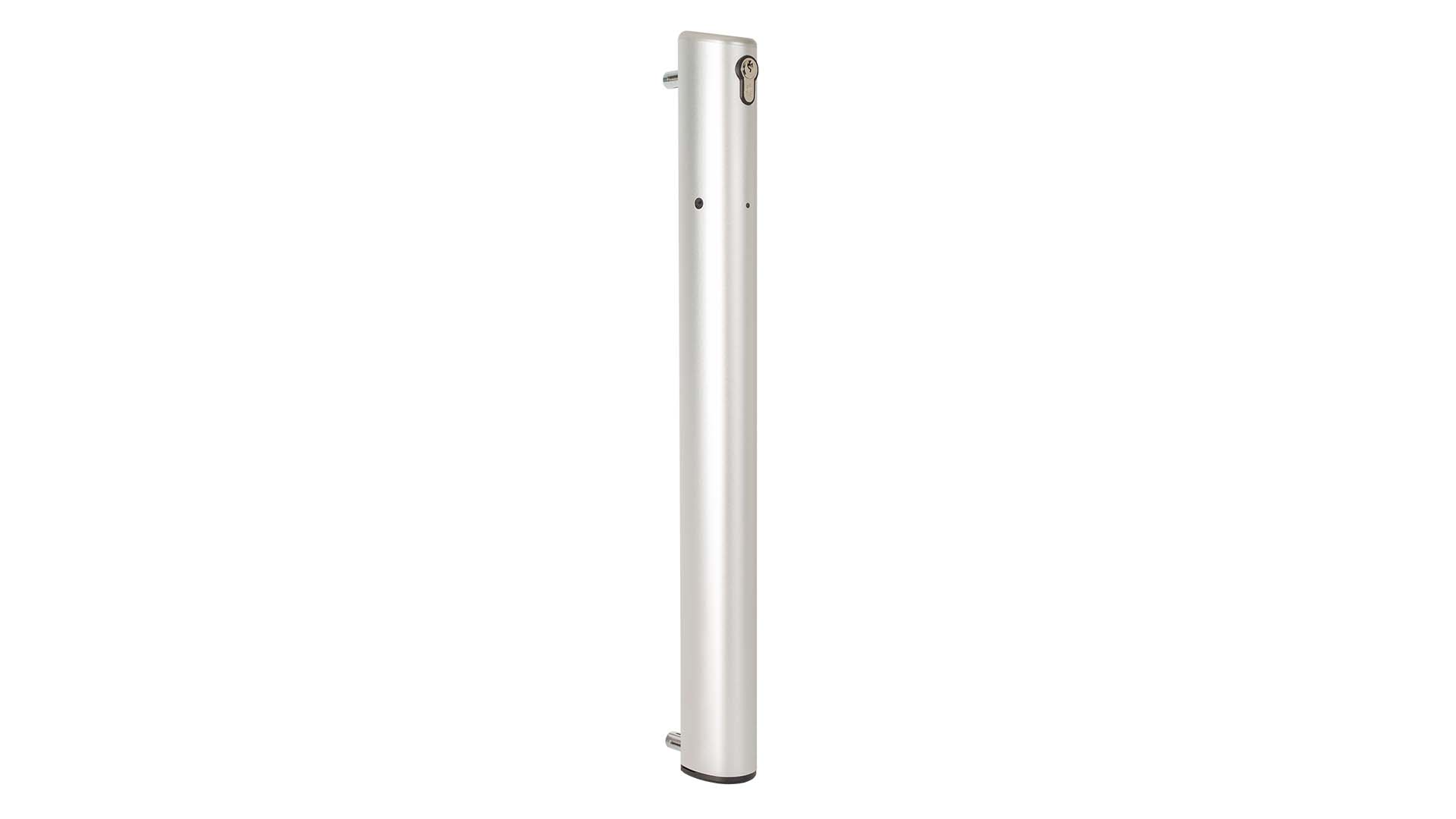

  • Vandal proof, powder coated aluminum housing
  • To be connected to the warning light on automated gates (min 3 sec prewarning signal) or directly on the gate automation
  • Automatic detection and memorisation of the continuous or pulse signal
  • Mechanical release possible (by key) in case of emergency
  • The integrated obstacle detection will automatically stop the drop bolt movement in case of overpressure to avoid injuries.
  • Throw: 4-1/2"
  • Drop bolt diameter: 25/32"
  • Holding force: >2200 lbs
  • For gate profiles: 1-1/2" or more
  • Power consumption: Normal: 25 W / Peak: 72W / Standby: 0,2 W
  • 16-1/2 ft cable included
  • Included: 3012-37-STD-VSZ cylinder
  • To connect to a Locinox PowerStone 60W
  • IP66
Available in following RAL-colors
Features

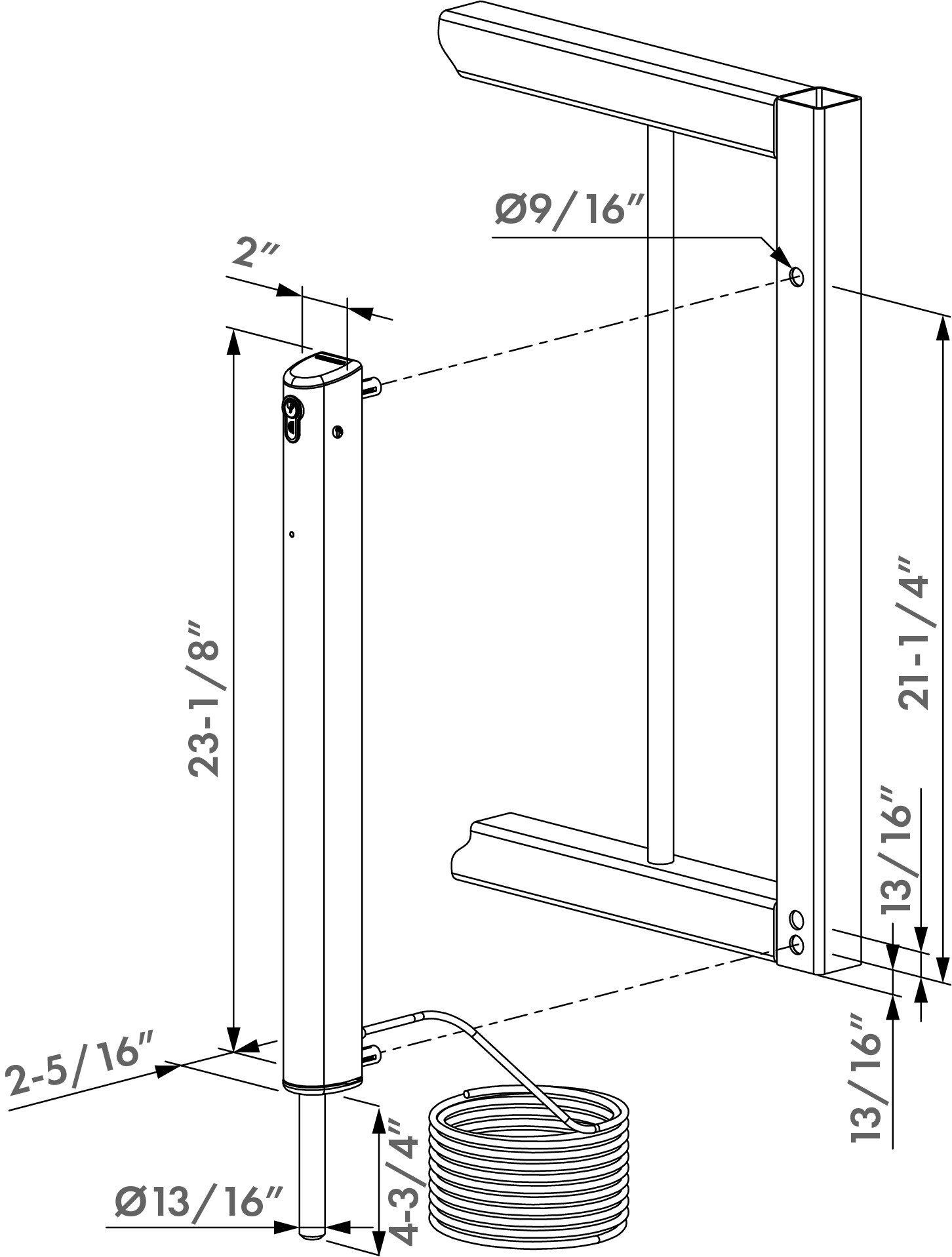

Drawings
