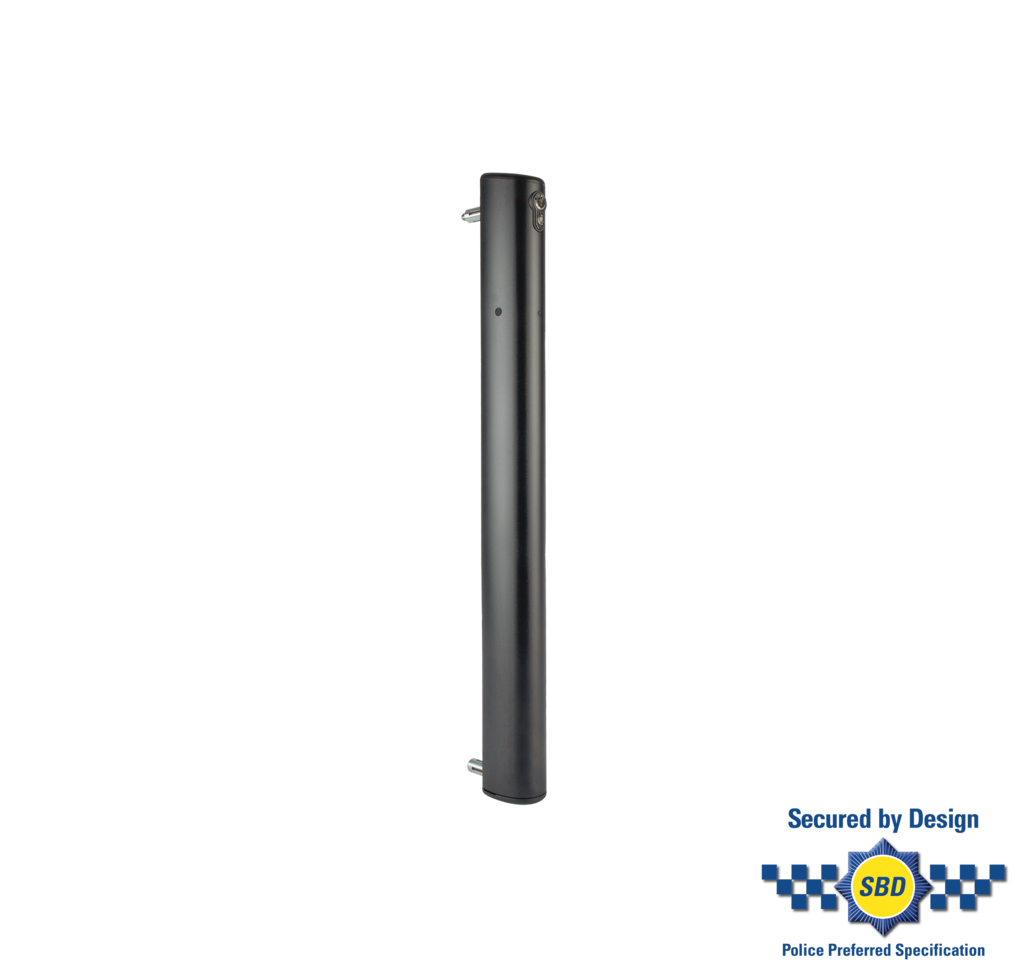

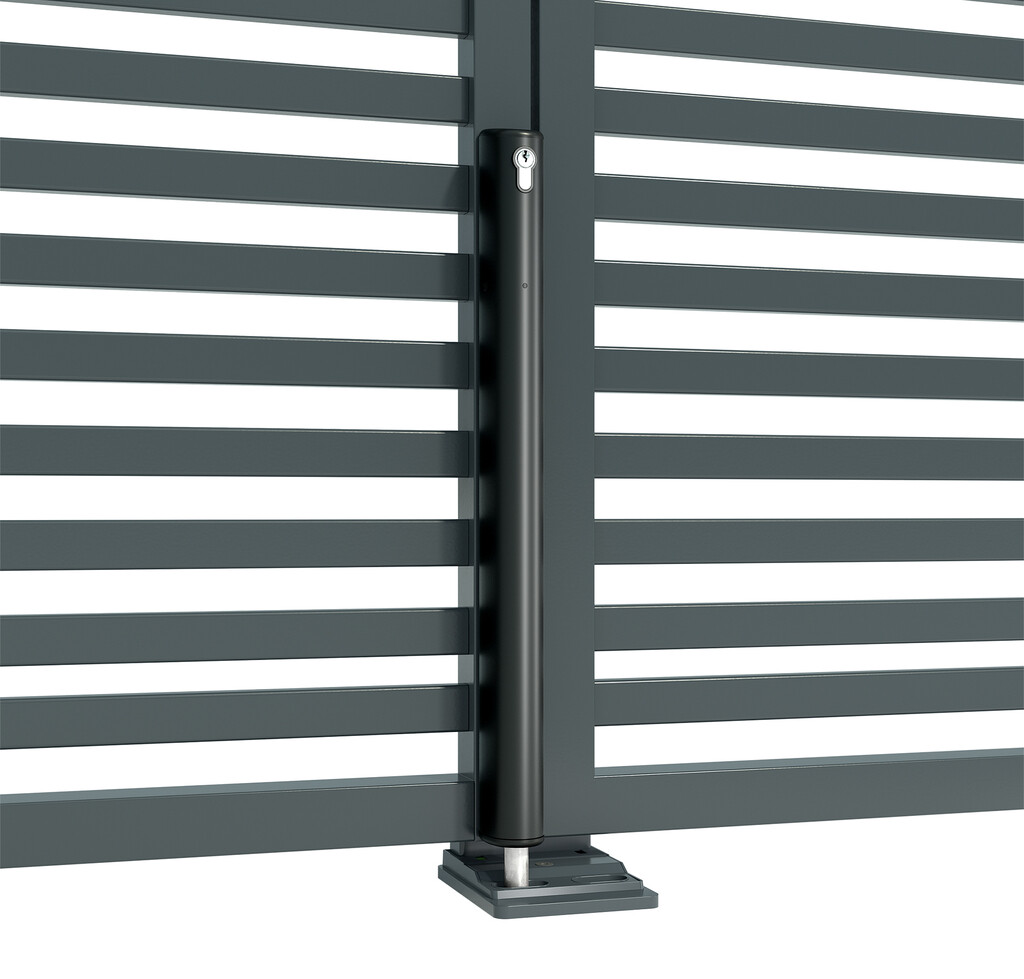

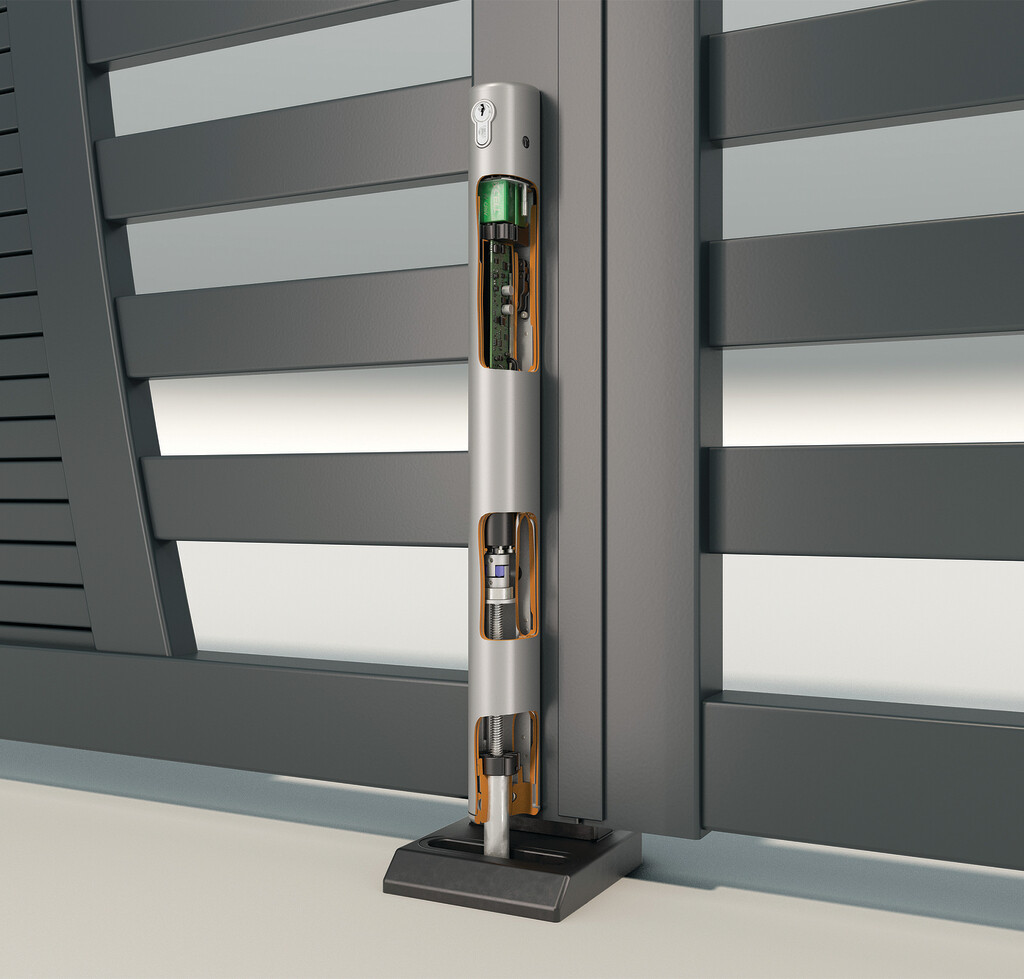

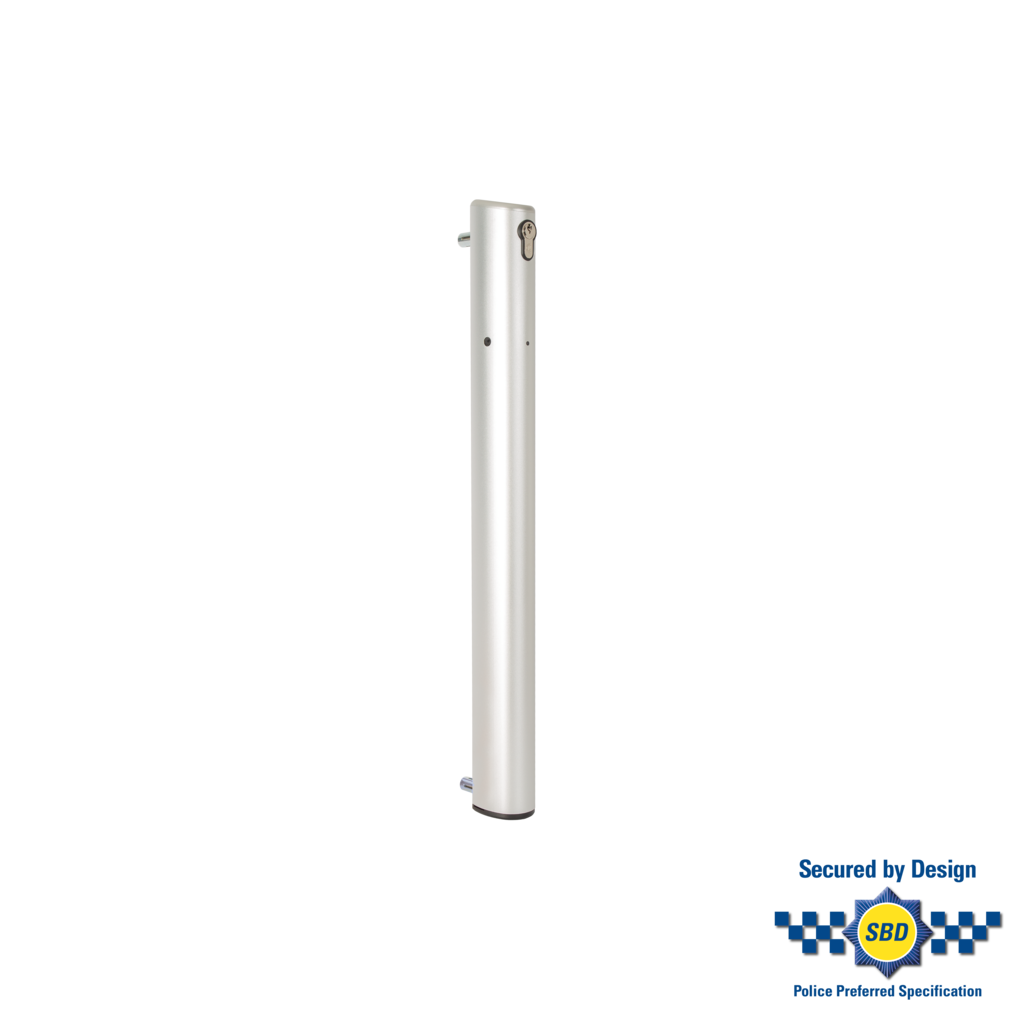

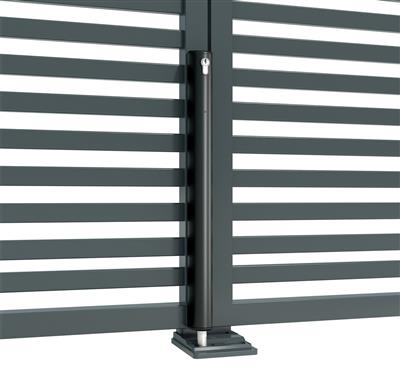

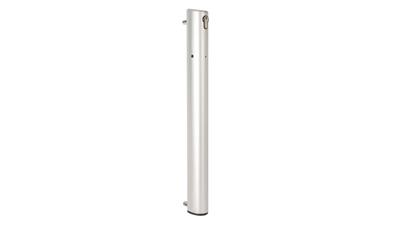

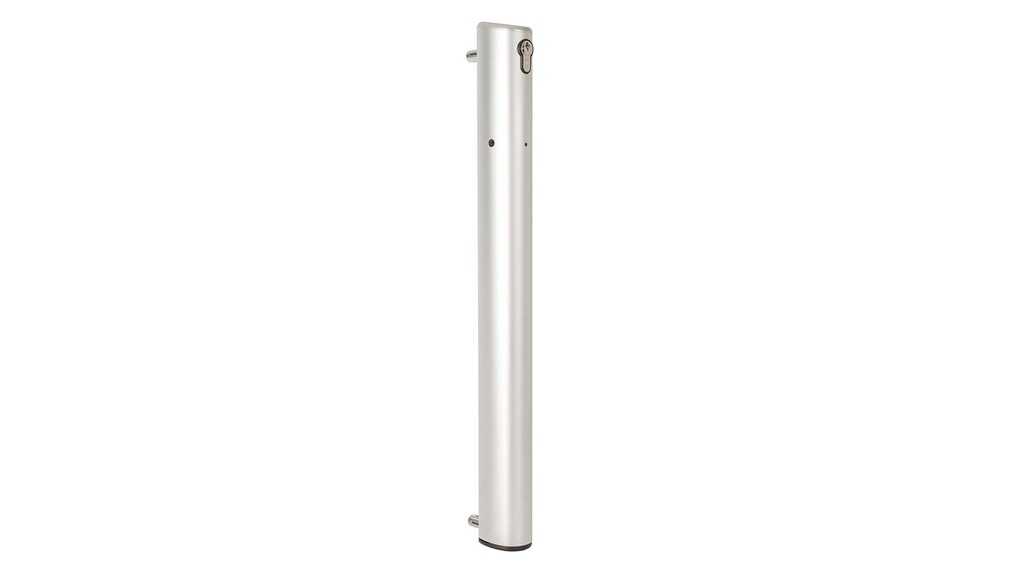

Electrical drop bolt - ELECTRADROP-R

Item No. P00011036 - ELECTRADROP-R-SILV
Motorized electrical drop bolt with integrated emergency batteries - Silver
Product specs
SILV
P00011036-SILV
Motorized electrical drop bolt with integrated emergency batteries in Silver
Continue shopping
Specifications
Perfion__Bullets
  • Vandal proof, powder coated aluminum housing
  • To be connected to the warning light on automated gates (min 3 sec prewarning signal) or directly on the gate automation
  • Mechanical release possible (by key) in case of emergency
  • Throw: 4-1/2"
  • Drop bolt diameter: 25/32"
  • For gate profiles: 1-1/2" or more
  • 16-1/2 ft cable included
  • Included: 3012-37-STD-VSZ cylinder
  • Automatic detection and memorisation of the continuous or pulse signal
  • The integrated obstacle detection will automatically stop the drop bolt movement in case of overpressure to avoid injuries.
  • Holding force: >2200 lbs
  • Power consumption: Normal: 25 W / Peak: 72W / Standby: 0,2 W
  • To connect to a Locinox PowerStone 60W
  • IP66
Specifications
  • Vandal proof, powder coated aluminum housing
  • To be connected to the warning light on automated gates (min 3 sec prewarning signal) or directly on the gate automation
  • Mechanical release possible (by key) in case of emergency
  • Throw: 4-1/2"
  • Drop bolt diameter: 25/32"
  • For gate profiles: 1-1/2" or more
  • 16-1/2 ft cable included
  • Included: 3012-37-STD-VSZ cylinder
  • Automatic detection and memorisation of the continuous or pulse signal
  • The integrated obstacle detection will automatically stop the drop bolt movement in case of overpressure to avoid injuries.
  • Holding force: >2200 lbs
  • Power consumption: Normal: 25 W / Peak: 72W / Standby: 0,2 W
  • To connect to a Locinox PowerStone 60W
  • IP66
