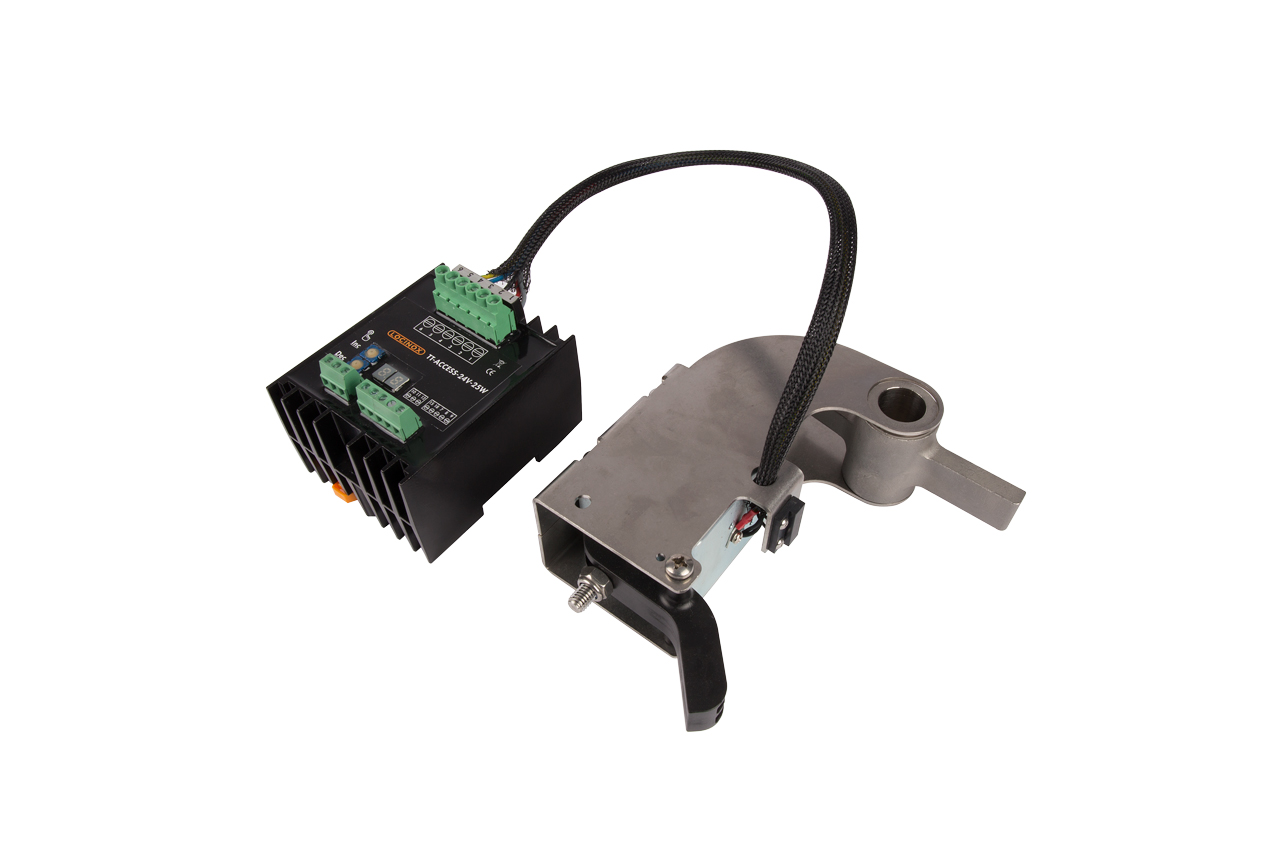

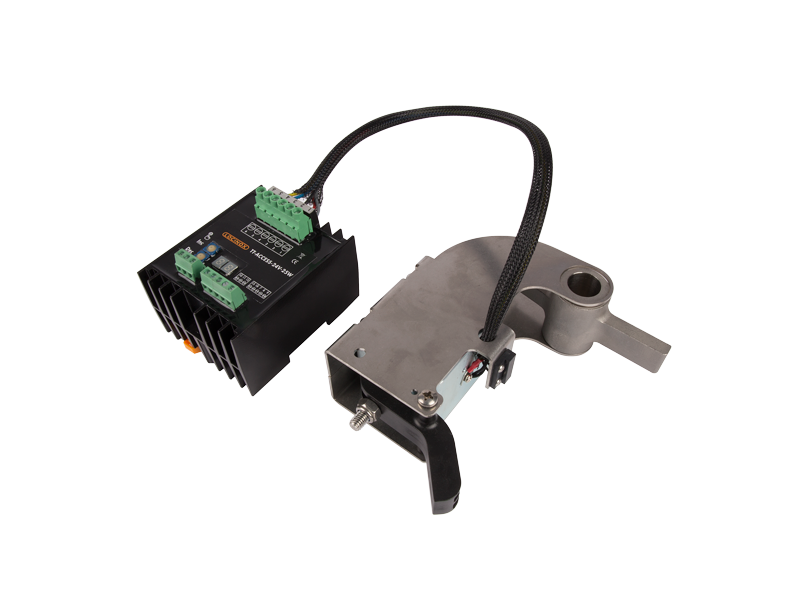

Fail Close electromodule for TURNITEC - TT-FC2

Item No. P00008194 - TT-FC2

With the electromechanical module an operator has the ability to control incoming and outgoing traffic. Granting access or closing the system, changing the rotational direction and executing access control, all can be managed easily with the TURNITEC module. After authorisation the turnstile is unlocked electronically and visitors have access to the terrain.

Product specs

Specifications
Downloads

Specifications

Fail Close electromodule (power loss = locked turnstile)

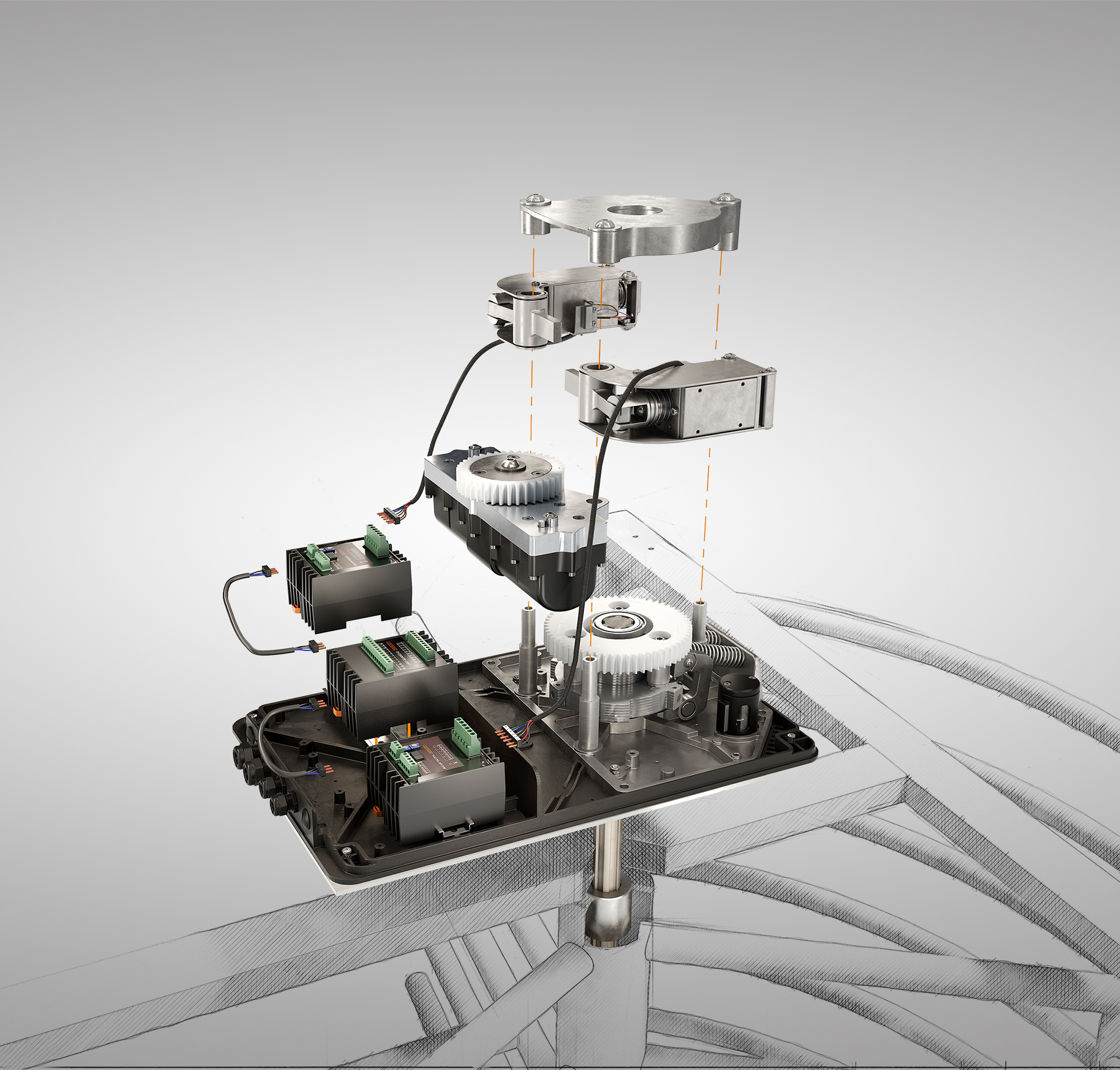

Easy to install in a TURNITEC base module or as an expansion on an existing system
Interchangeable with the mechanical module
Suitable for left or right turning turnstiles
Locking of the electromechnical module by powerful electromagnets
Time range (1 to 99s) of switched state controlled by push buttons
Set time clearly visible on display
100% secure: reset function to rest after 1 full rotation of the turnstile
Fitted with a 24V DC power supply made for exterior use and with integrated timer
Robust control module: encapsulated for superior humidity resistance
Input voltage: 220V AC
Maximum output power: 25W
Easy to expand with a TT-COUNTER-LIGHT module to control a counter and/or signalisation
Connection between module and power supply by means of Plug&Play connector
Control module in an aluminium powder coated housing with heat dissipation fins
Manual release by key always possible
Anti-passback security: protected against the simultaneous entrance of 2 persons thanks to the 60° locking mechanism
High quality and guaranteed performance (tested on 1 million movements)
