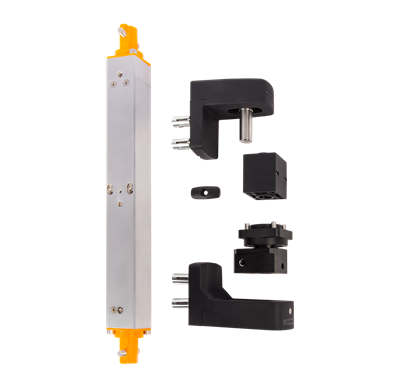

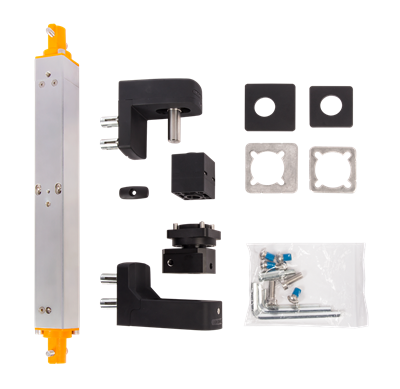

Invisible, built-in hydraulic gate closer

Invisible, built-in hydraulic gate closer - INTERIO

Item No. P00007631 - INTERIO

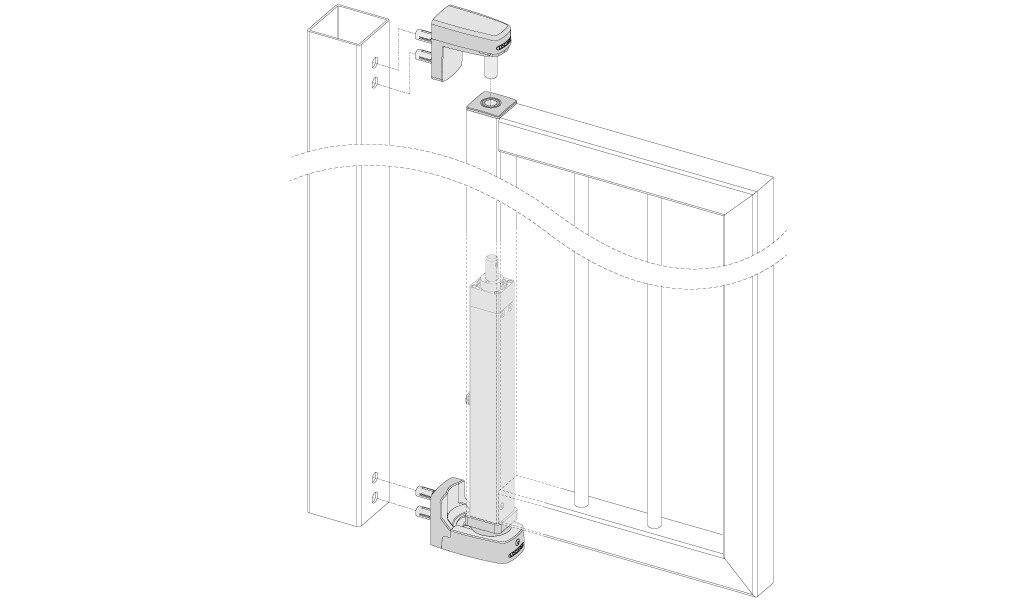

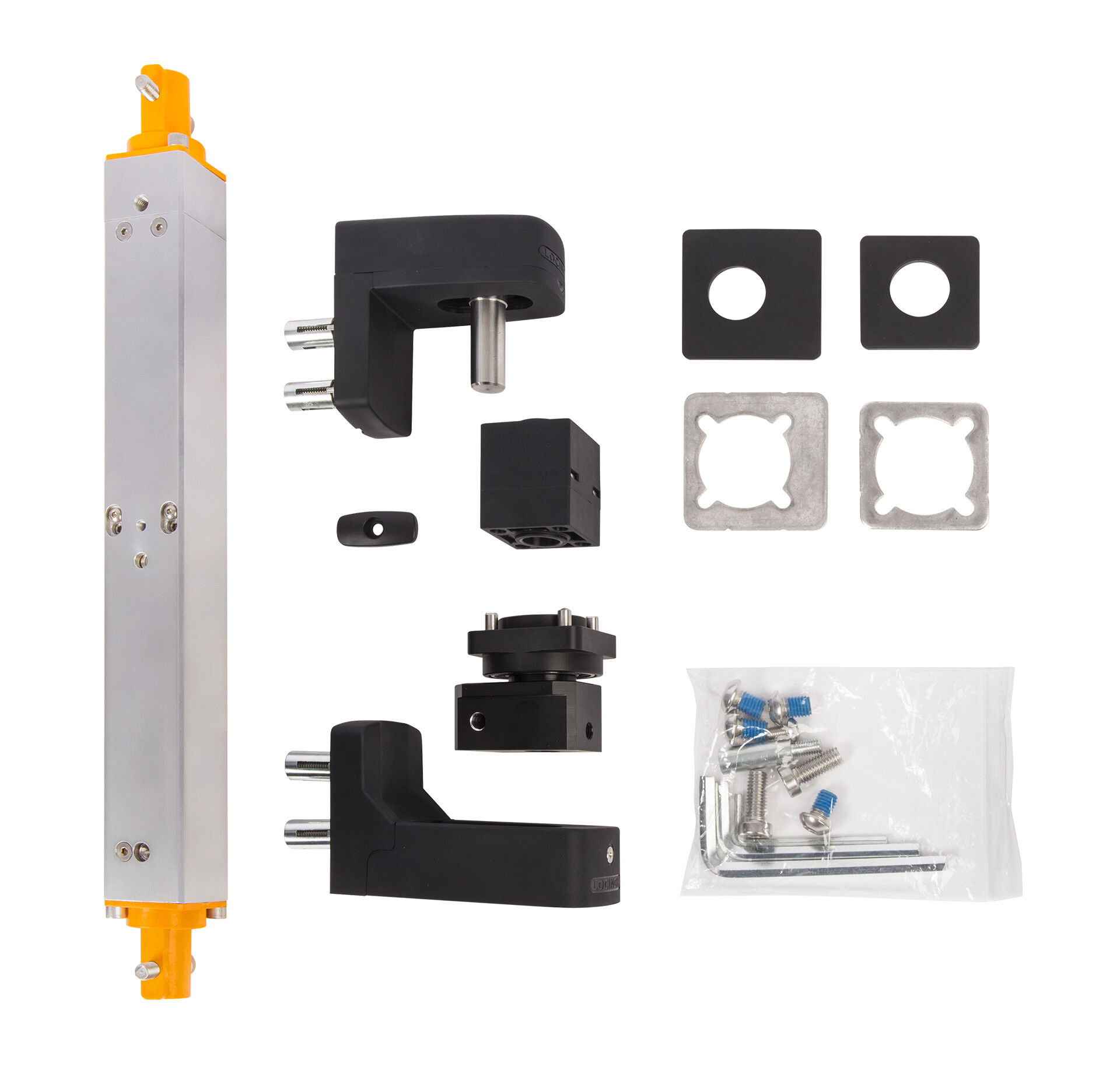

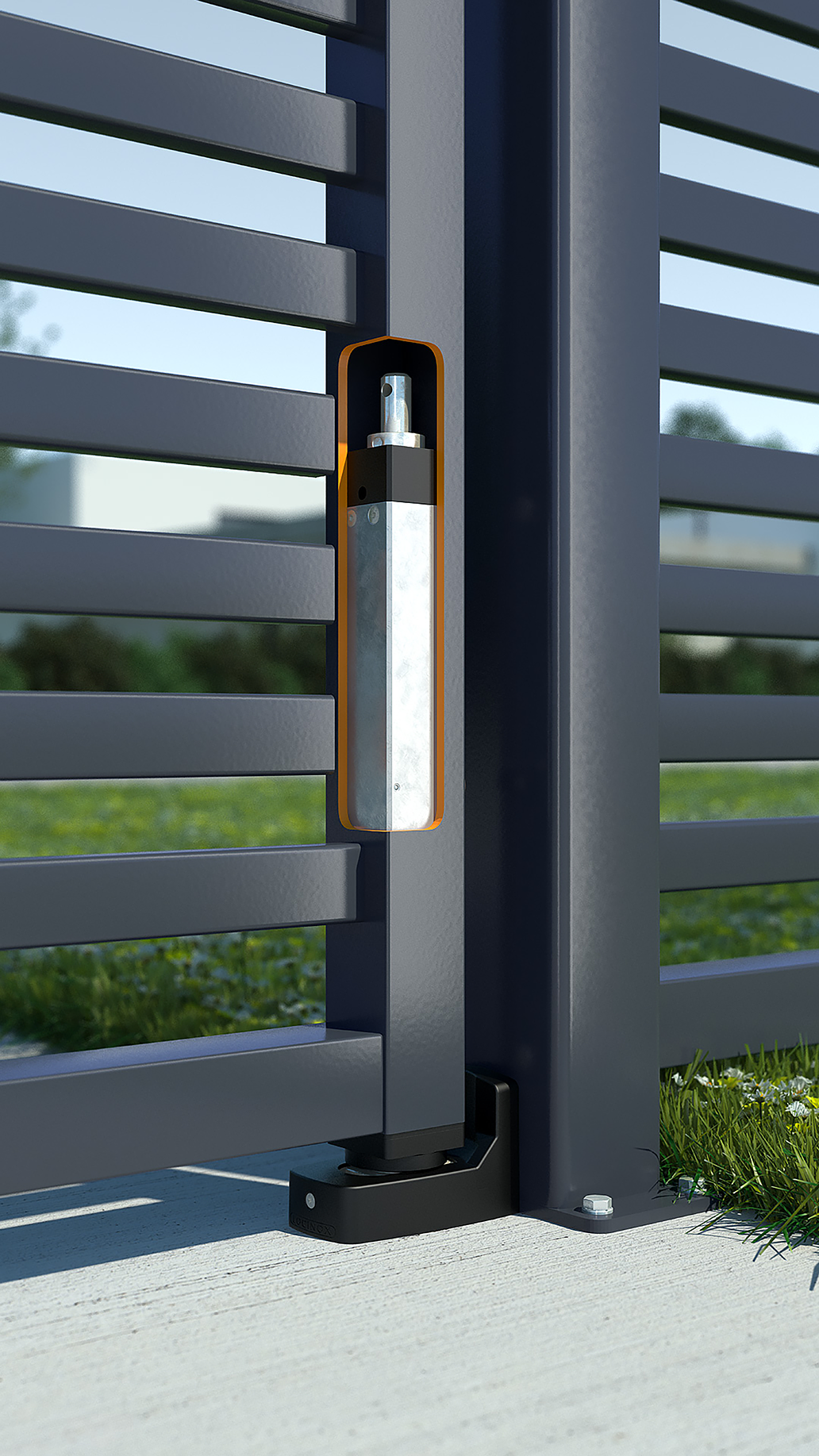

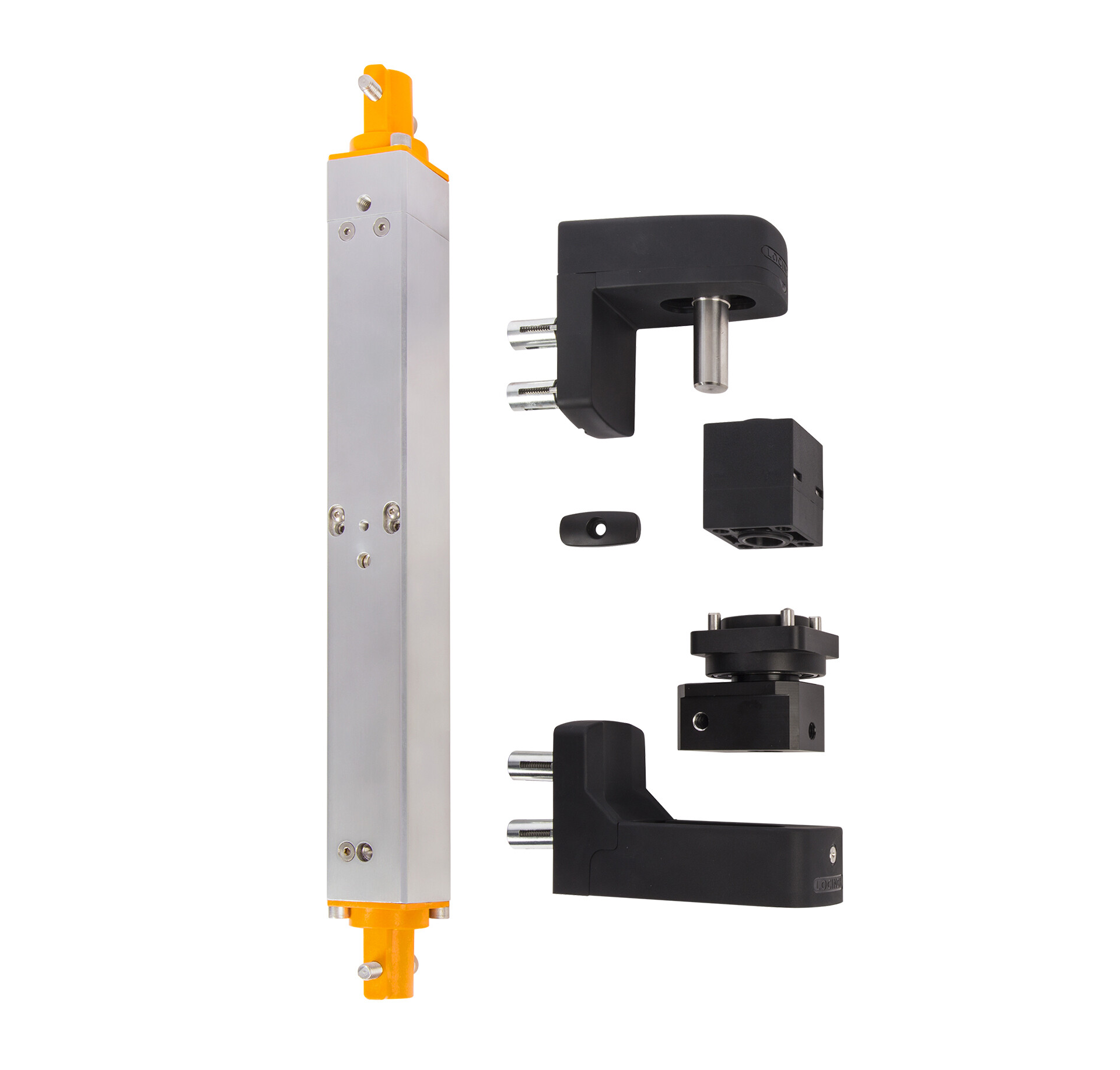

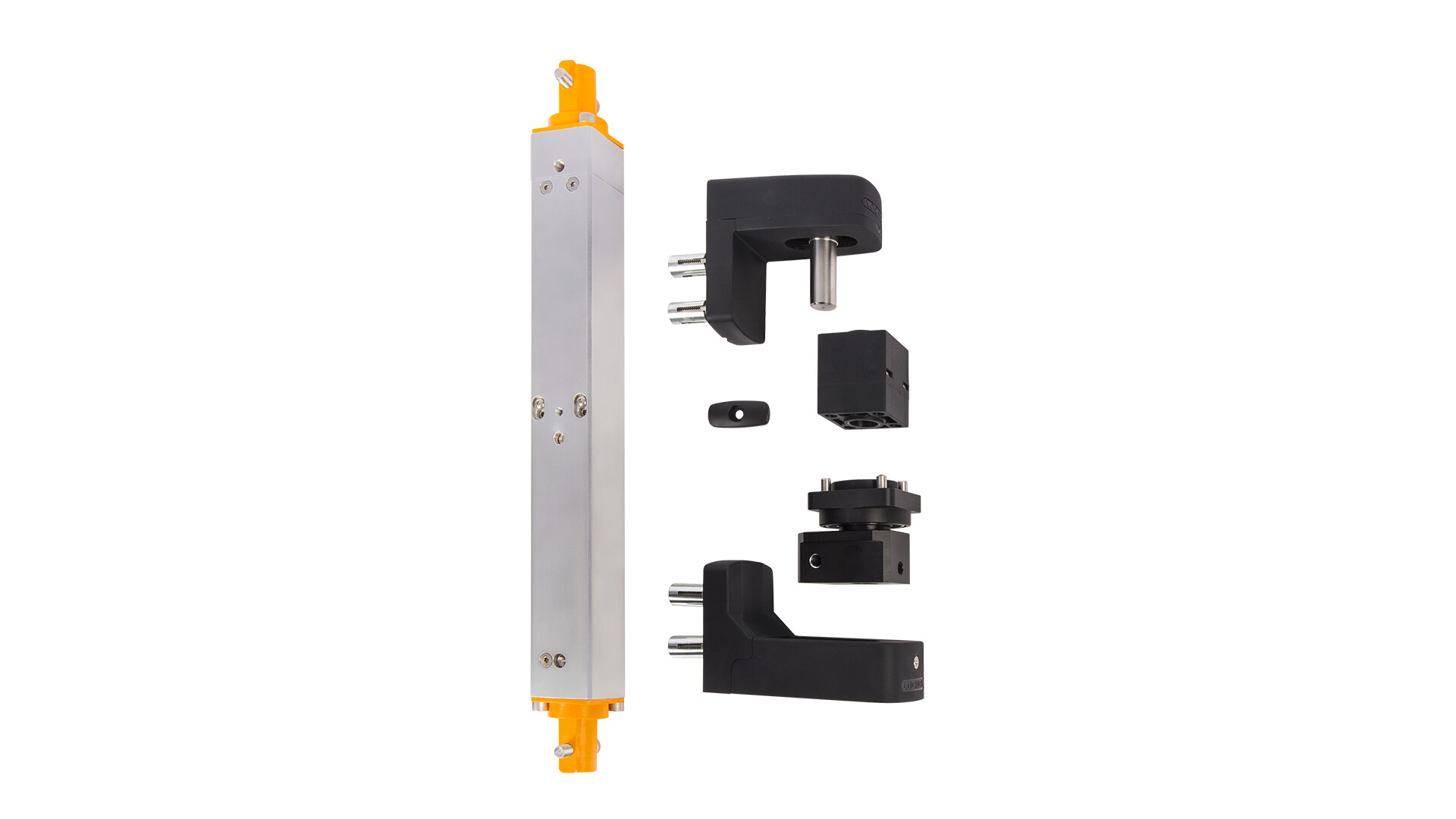

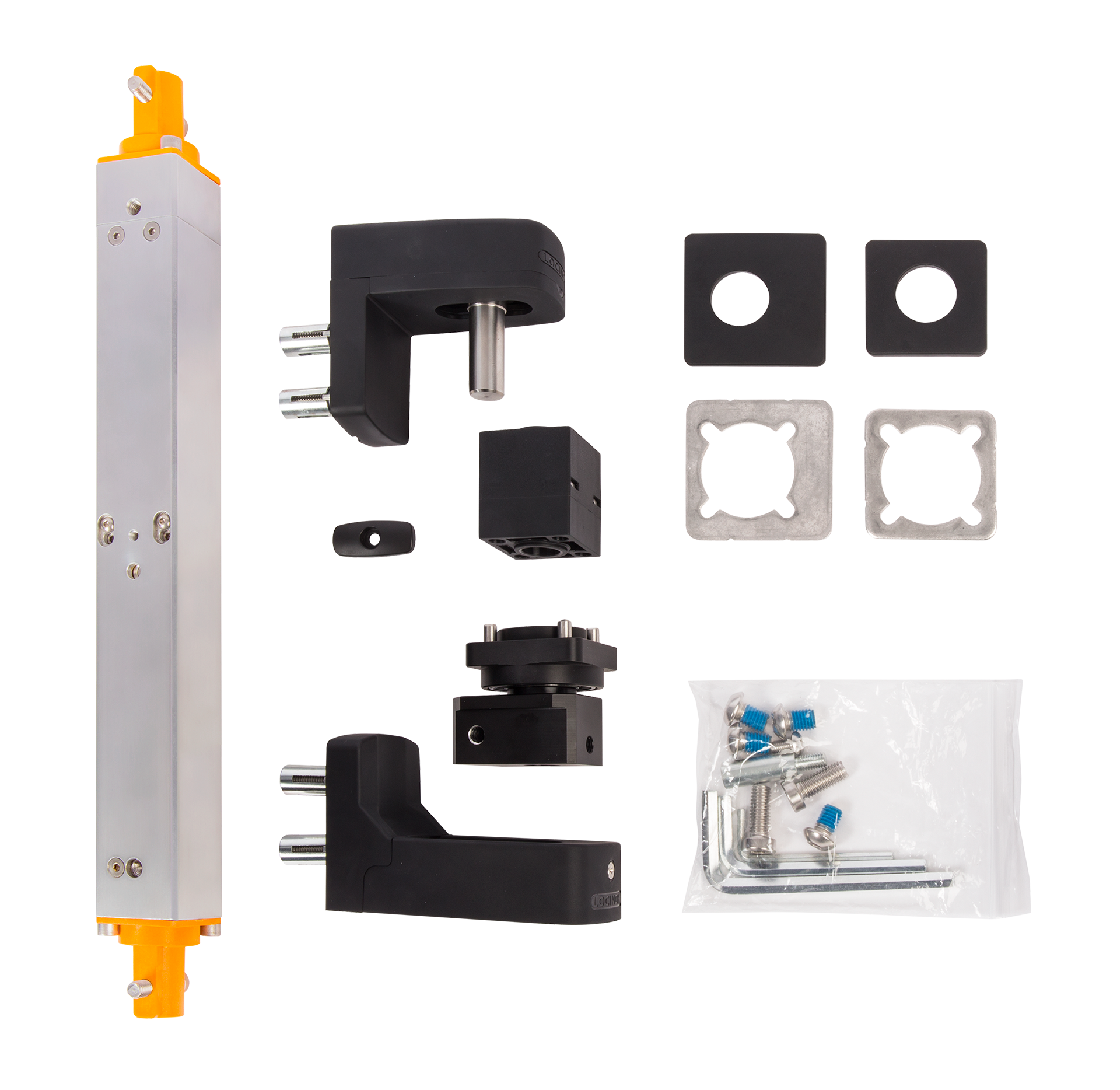

The invisible Interio gate closer, with matching hinge set, is completely built into the gate frame. This highly aesthetic solution opens and closes the gate comfortably. The integrated pretension ensures an efficient and flawless installation where speed and final snap can be adjusted accurately to fit any need.

Product specs

Specifications

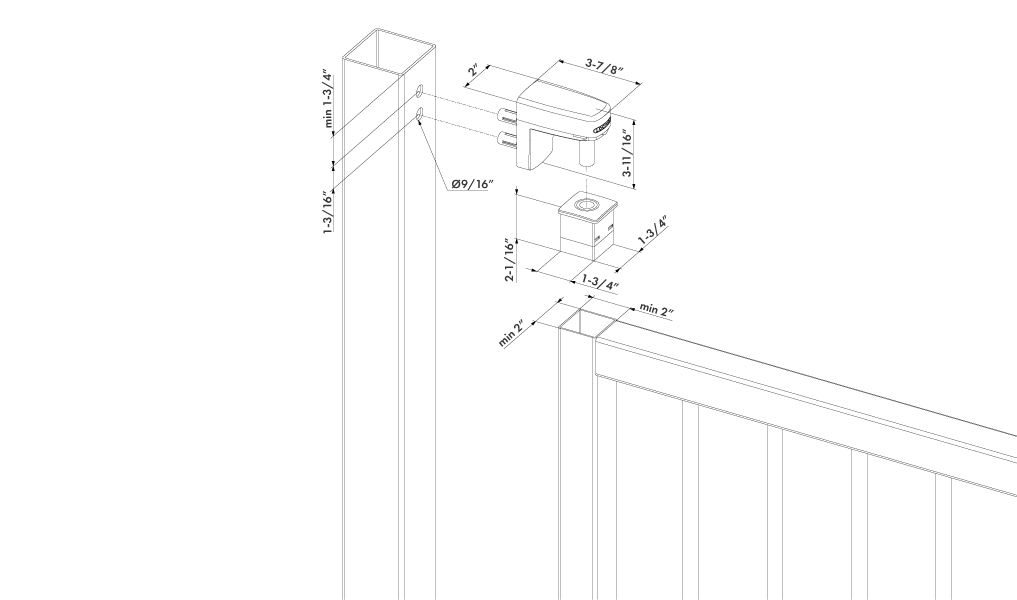

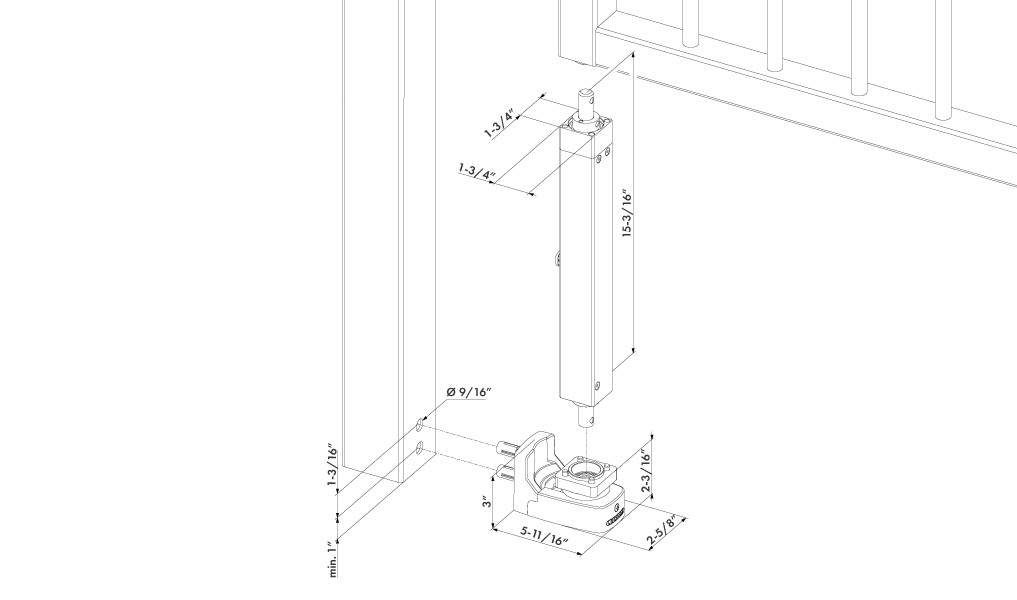

Drawings
Installation movies
Downloads

Specifications

Perfion__Bullets	ADA compliant (< 5 lbs; max 20 Nm) from gate widths of 3ft. or more ADA compliant (< 5 lbs; max 20 Nm) from gate widths of 3ft. or more Vandal and tamper proof For left and right handed gates For square gate frames frames of: 2” (for frame thickness of 0.125 inch or less), 2-1/4”, and 2-1/2” (for frame thickness of 0.125 inch or more) Fast and easy attachment with Quick-Fix bolts Optional sets available for ground and wall installation Recommended with Gatestop Built-in, self-closing hinge up to 125° with adjustable closing speed and final snap Powder coated aluminum housing Closing speed unaffected by humidity and temperature changes
Specifications	ADA compliant (< 5 lbs; max 20 Nm) from gate widths of 3ft. or more ADA compliant (< 5 lbs; max 20 Nm) from gate widths of 3ft. or more Vandal and tamper proof For left and right handed gates For square gate frames frames of: 2” (for frame thickness of 0.125 inch or less), 2-1/4”, and 2-1/2” (for frame thickness of 0.125 inch or more) Fast and easy attachment with Quick-Fix bolts Optional sets available for ground and wall installation Recommended with Gatestop Built-in, self-closing hinge up to 125° with adjustable closing speed and final snap Powder coated aluminum housing Closing speed unaffected by humidity and temperature changes
Available in following RAL-colors
Features
