Motorized gate closer for pedestrian swing gates - VENUS-G

Item No. P00035921 - VENUS-G
Motorized gate closer with compact arm for pedestrian swing gates with 180° hinges - Various colors
Product specs
9005SILV
Motorized gate closer for pedestrian swing gates
Motorized gate closer for pedestrian swing gates
Continue shopping
Specifications
Perfion__Bullets
  • Fast and easy installation with Quick-Fix
  • Motorized gate closer with integrated electronics
  • 150 Nm torque
  • Fits on 3 2/16" profiles
  • Steel gear box
  • Anodized aluminium cover
  • 3 different arm options for installation
  • Compact and vandal-proof design
  • Integrated warning light
  • Automated obstacle detection with reverse function
  • Brushless motor: long lifespan and intensive usage
  • Reversible motor with backdrivability for easy manual use - to be combined with a lock
  • Conforms to UL/cUL 325 standard for automatic operators, tested by ETL
  • Input main power supply: 110V AC to 240V AC
  • Configuration via app
  • Tested up to 500 000 cycles
  • EN 16005 Compliant
  • 3 inputs and 3 outputs (Max. 48W, 24V DC)
  • For pedestrian gates up to 5 ft wide and 440 lbs
Specifications
  • Fast and easy installation with Quick-Fix
  • Motorized gate closer with integrated electronics
  • 150 Nm torque
  • Fits on 3 2/16" profiles
  • Steel gear box
  • Anodized aluminium cover
  • 3 different arm options for installation
  • Compact and vandal-proof design
  • Integrated warning light
  • Automated obstacle detection with reverse function
  • Brushless motor: long lifespan and intensive usage
  • Reversible motor with backdrivability for easy manual use - to be combined with a lock
  • Conforms to UL/cUL 325 standard for automatic operators, tested by ETL
  • Input main power supply: 110V AC to 240V AC
  • Configuration via app
  • Tested up to 500 000 cycles
  • EN 16005 Compliant
  • 3 inputs and 3 outputs (Max. 48W, 24V DC)
  • For pedestrian gates up to 5 ft wide and 440 lbs
Available in following RAL-colors
Features

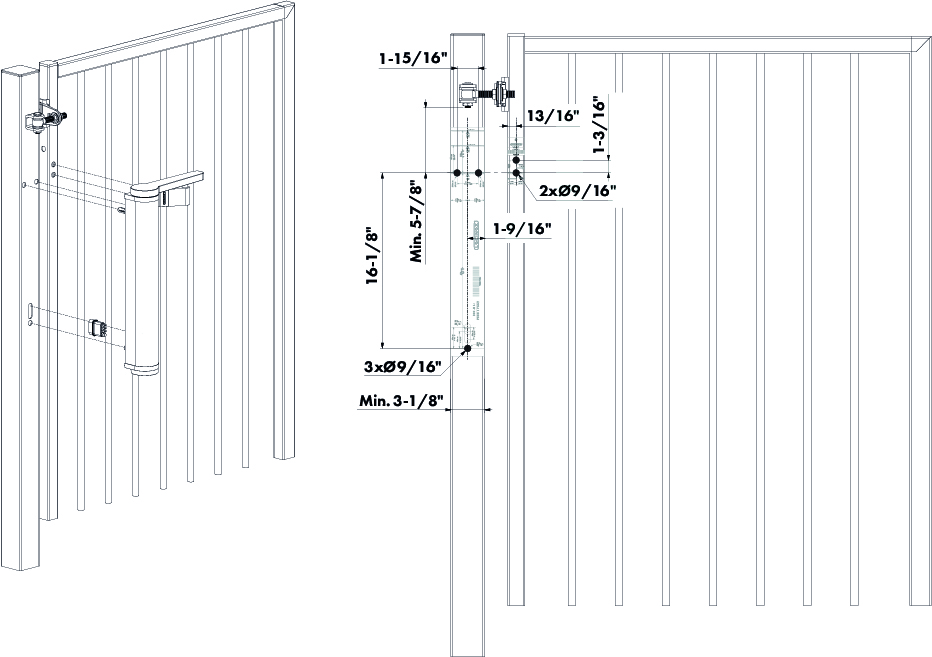

Drawings
