Weather resistant keypad with external relays
Weather resistant keypad with external relays

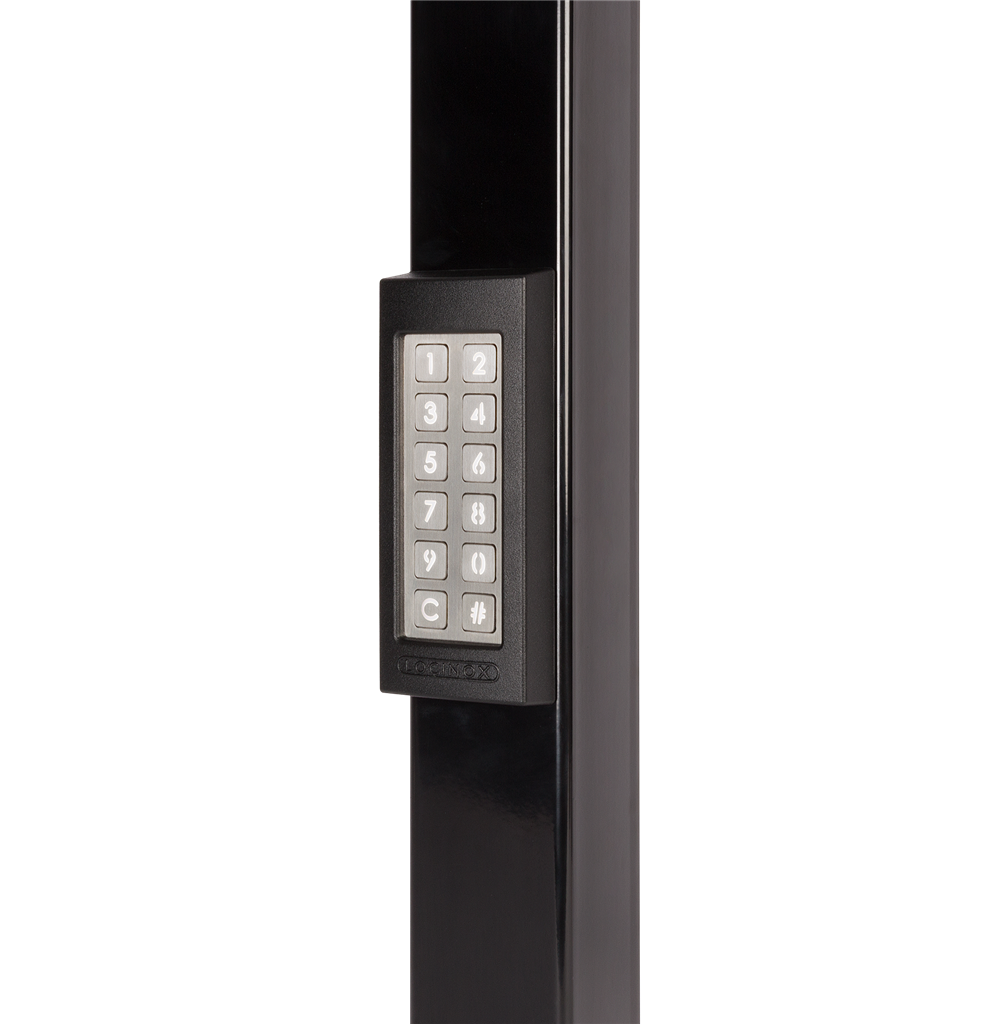

Weather resistant keypad with external relays - SLIMSTONE-X

Item No. P00009886 - SLIMSTONE-X
The durable and robust SlimStone-X keypad has been developed to work with the SwitchStone-STD. When both combined, the SlimStone-X ensures maximum security against burglary thanks to 2 external relays, both with a common, Fail Open and Fail Close contact. The keypad is easy in installation and configuration, and is developed and tested for use in the most extreme weather conditions (IP68).
Product specs
This product cannot be ordered at the moment.
Specifications
Perfion__Bullets
  • 6-1/2ft connection cable included
  • Smart heating element guarantees frost-free use
  • Tested from -22°F to 185°F
  • IP68 rated - Extremely resistant to water and dust
  • Aluminum vandal-proof housing with scratch-resistant textured lacquer
  • Energy efficient adjustable white led lights
  • Highly resistant stainless steel push buttons tested for 1,000,000 pushes and more
  • Long range secure 2-wire communication with SwitchStone-STD, distance up to 330 yards
  • External relay offers additional protection
  • Easy programming of up to 400 user codes
  • Current: 520 mA (with heating)
  • Consumption: 1,5 W (> 5°C) + 12 W at max heating (< -25°C)
  • Auto back up functionality
  • To be used exclusively with the Powerstone 60W power supply
Specifications
  • 6-1/2ft connection cable included
  • Smart heating element guarantees frost-free use
  • Tested from -22°F to 185°F
  • IP68 rated - Extremely resistant to water and dust
  • Aluminum vandal-proof housing with scratch-resistant textured lacquer
  • Energy efficient adjustable white led lights
  • Highly resistant stainless steel push buttons tested for 1,000,000 pushes and more
  • Long range secure 2-wire communication with SwitchStone-STD, distance up to 330 yards
  • External relay offers additional protection
  • Easy programming of up to 400 user codes
  • Current: 520 mA (with heating)
  • Consumption: 1,5 W (> 5°C) + 12 W at max heating (< -25°C)
  • Auto back up functionality
  • To be used exclusively with the Powerstone 60W power supply
Available in following RAL-colors

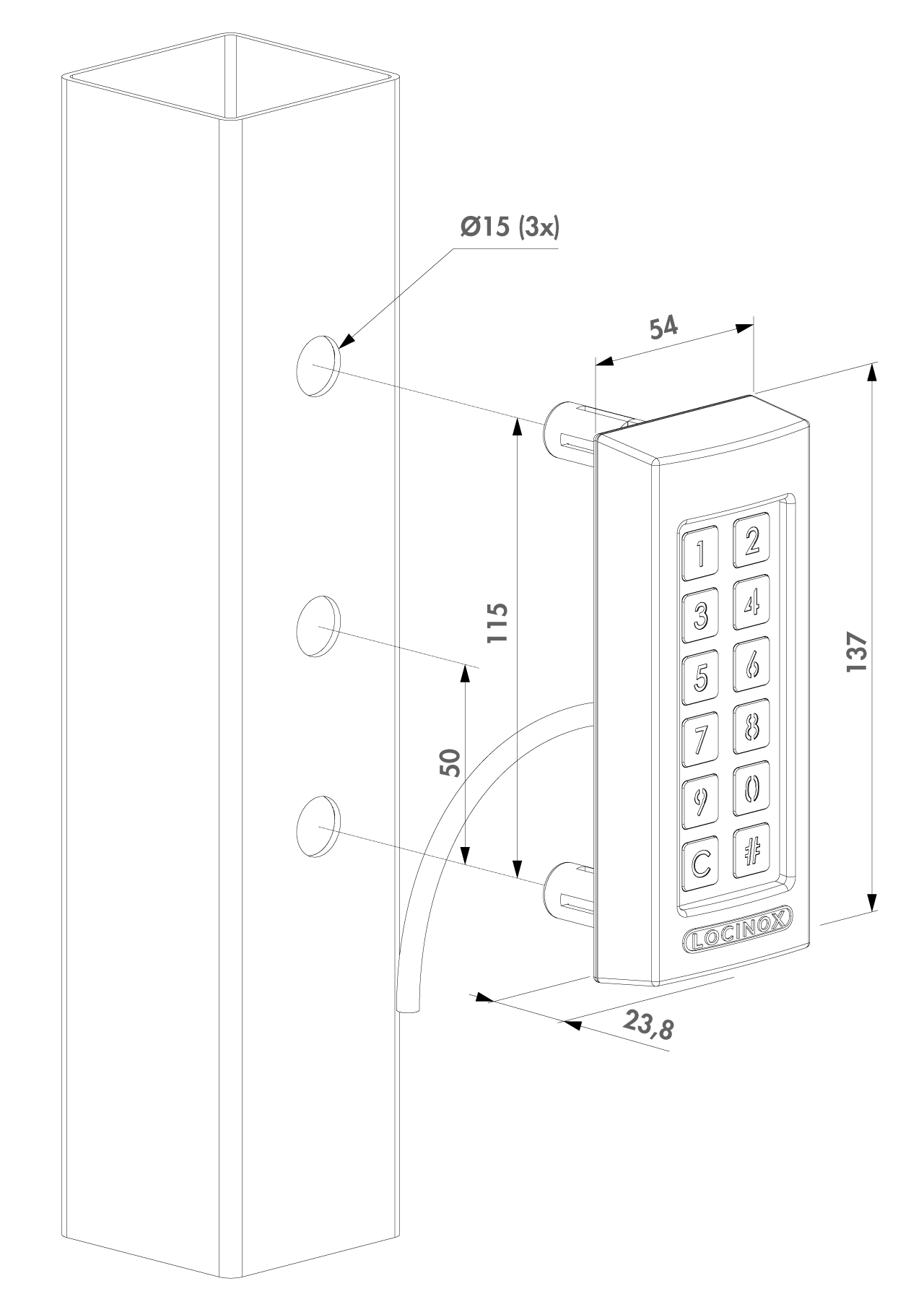

Drawings
