Heavy duty 180° hydraulic gate closer and hinge for gates up to 330 lbs

Heavy duty 180° hydraulic gate closer and hinge for gates up to 330 lbs - MAMMOTH180

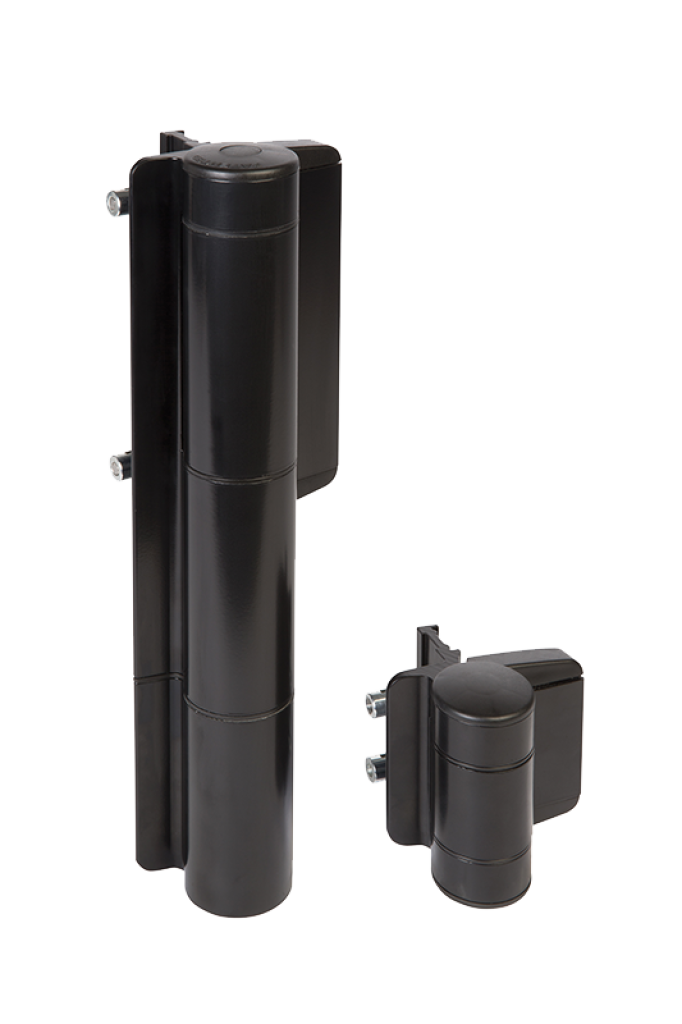

Item No. P00009620 - MAMMOTH180

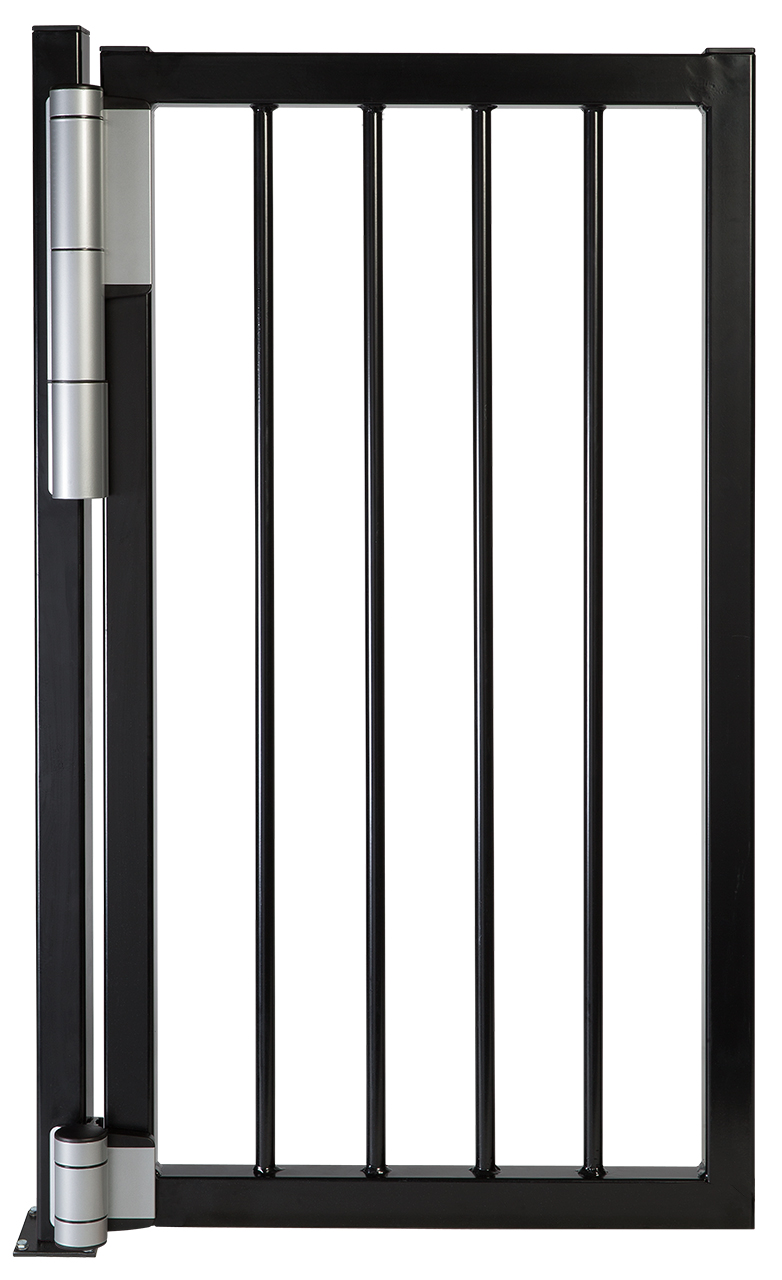

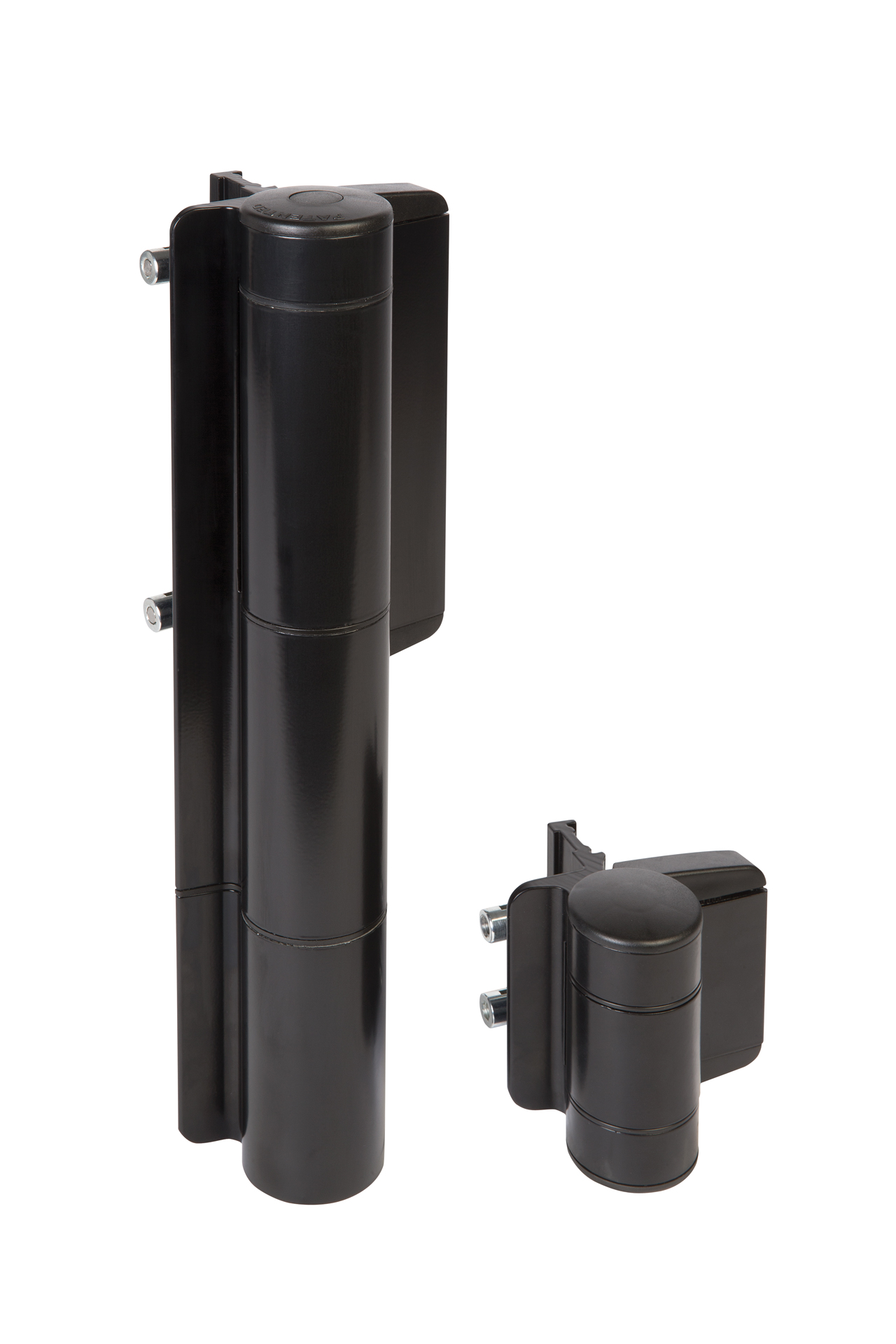

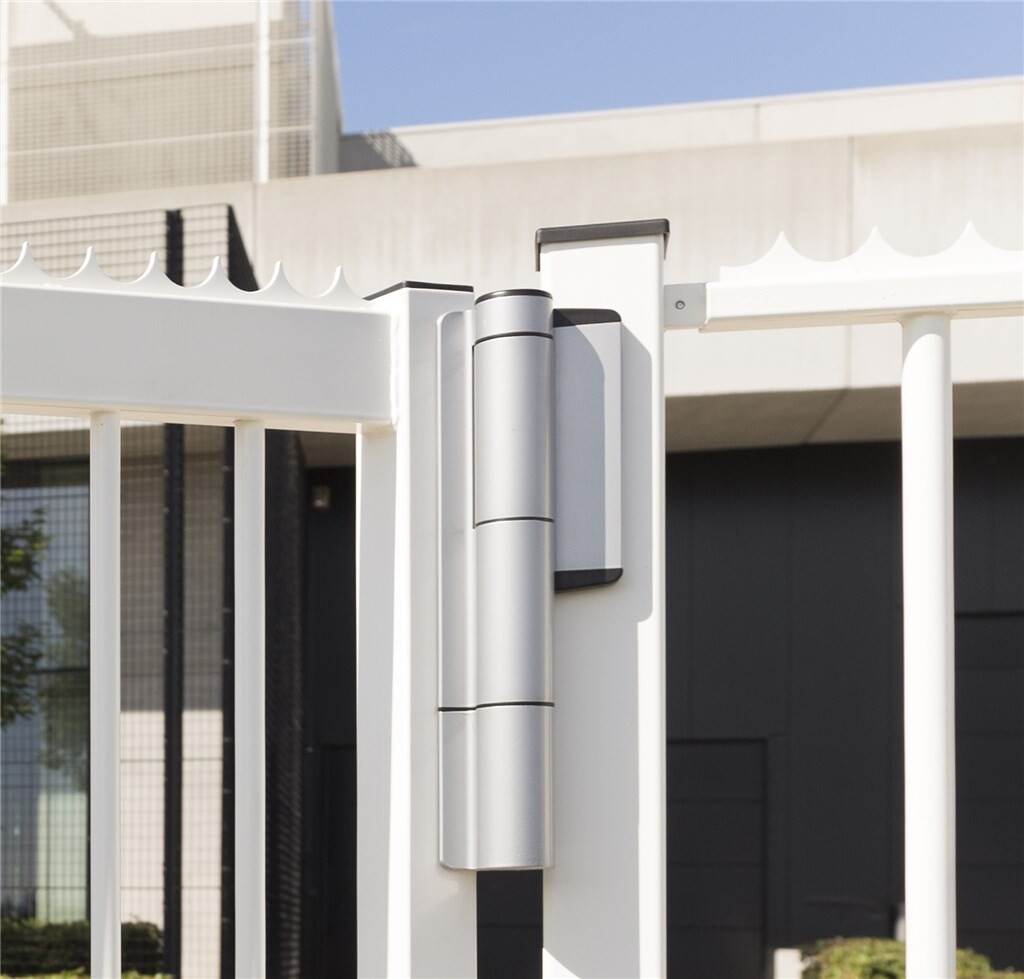

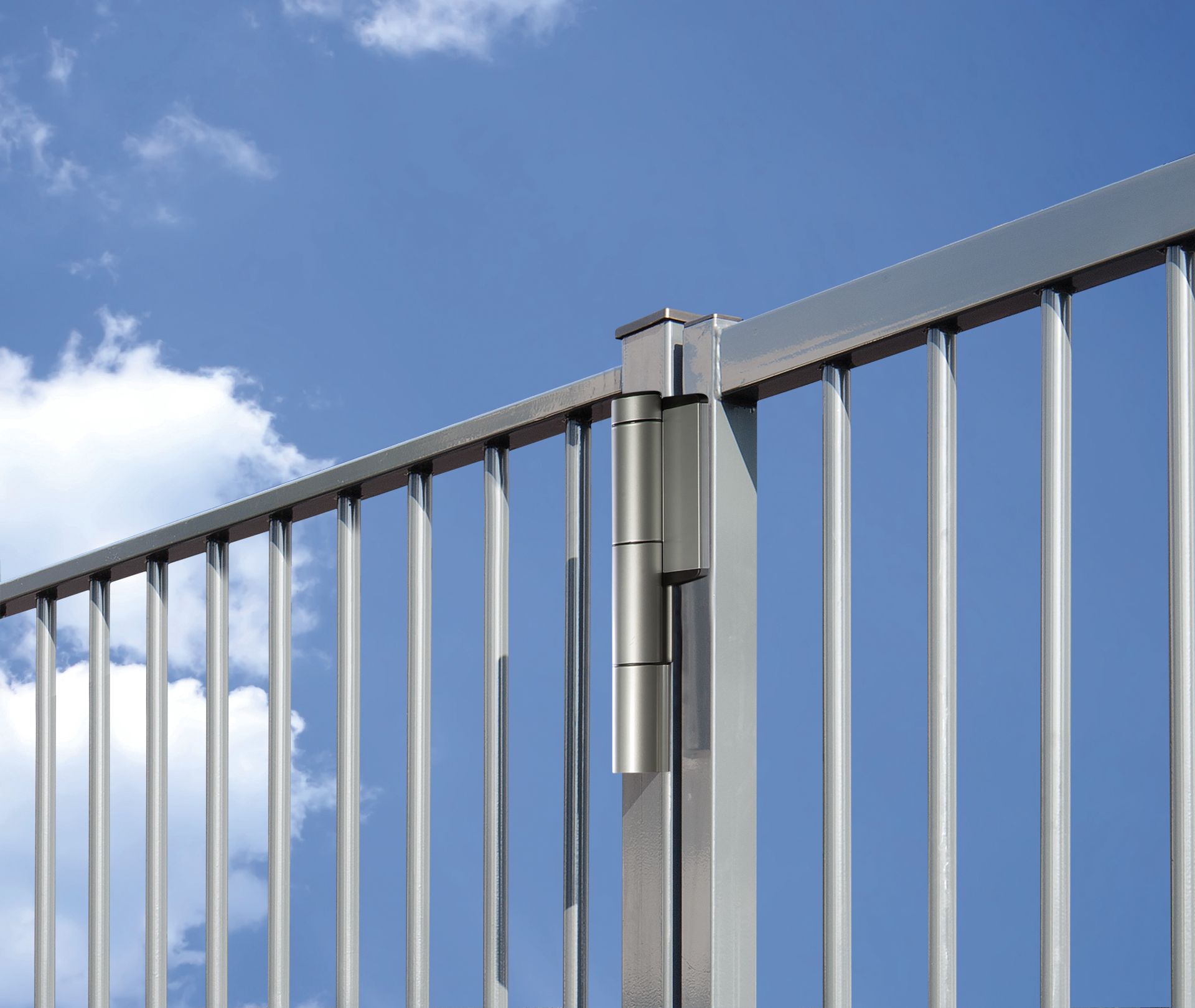

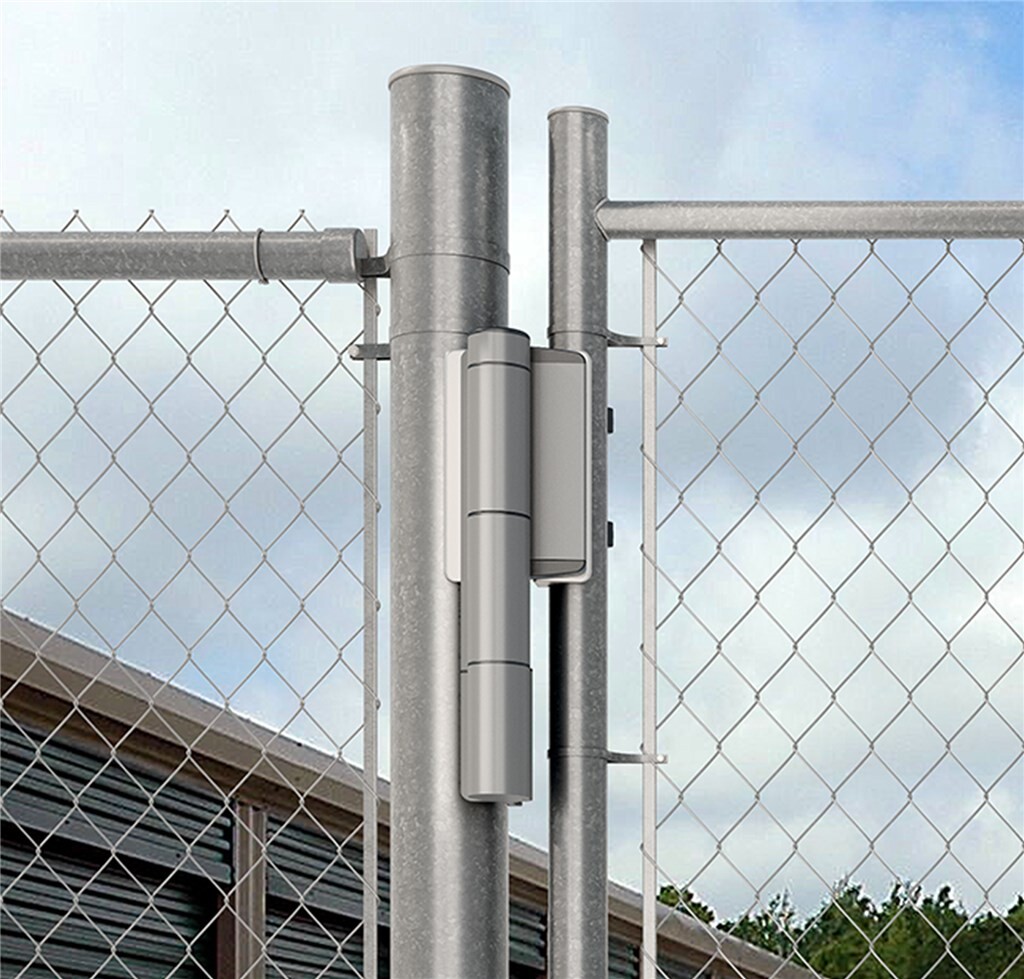

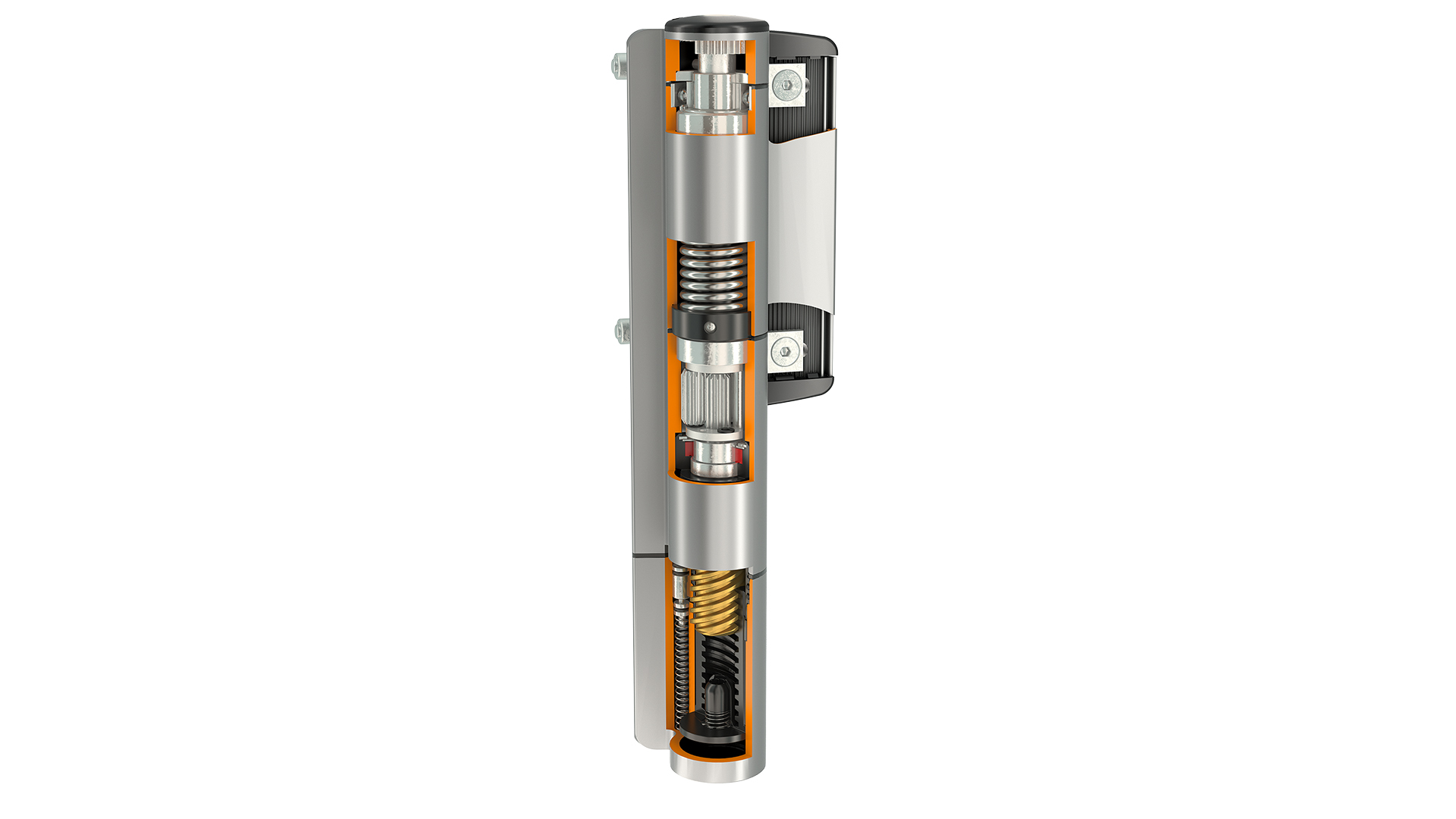

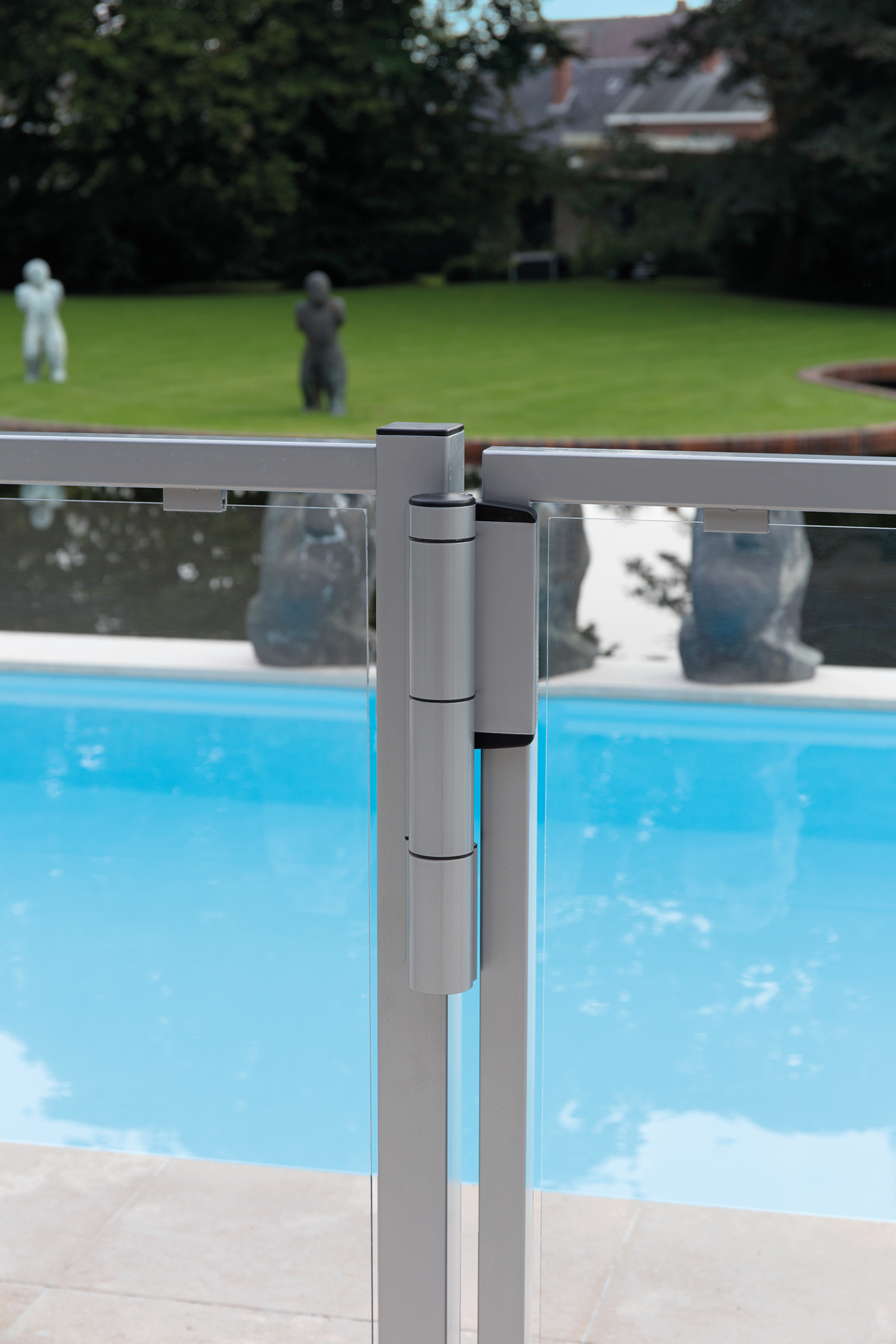

Sleek and powerful self-closing hinge for 180° gate situations. The Mammoth is perfectly fit for gates up to 330 lbs. It is equipped with a double bearing for exceptional functionality. An Active Thermal System guarantees a constant closing speed, unaffected by weather conditions. The Dino hinge is included.

Product specs

Variants

9005	SILV

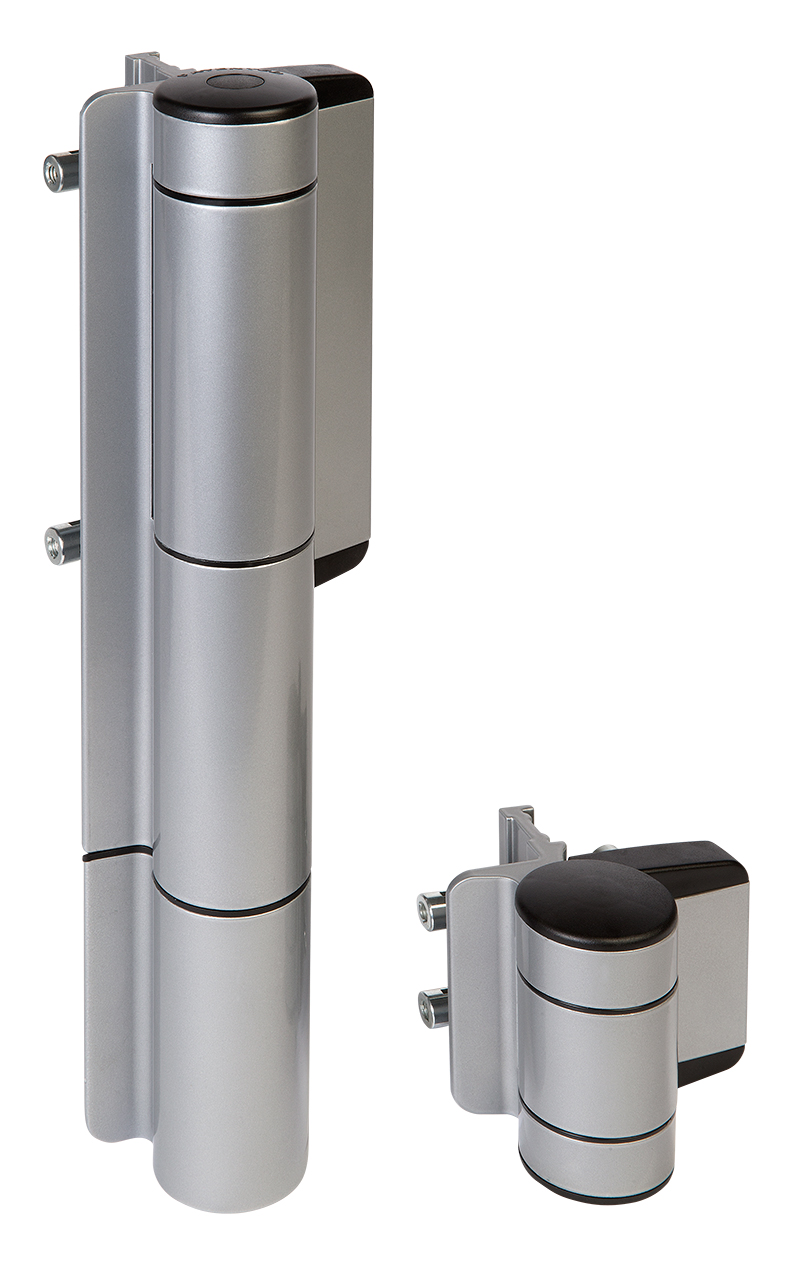

Heavy duty 180° hydraulic gate closer and hinge for gates up to 330 lbs - RAL 9005	Heavy duty 180° hydraulic gate closer and hinge for gates up to 330 lbs - Silver

Continue shopping

Specifications

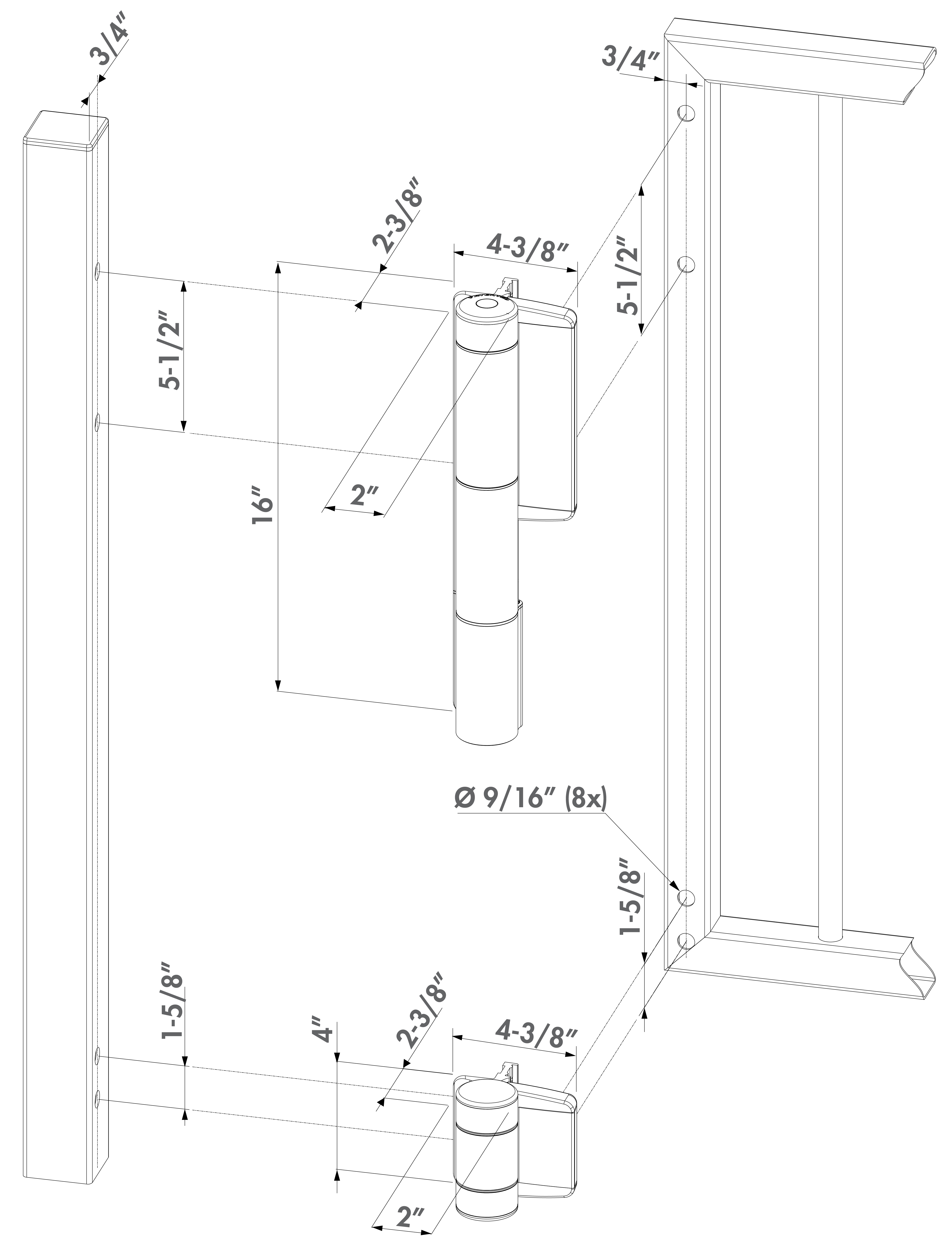

Drawings
Installation movies
Downloads

Specifications

Perfion__Bullets	Vandal and tamper proof Fast and easy installation with Quick-Fix Weatherproof aluminum housing designed for exterior use Installation gap 9/16 min up to 1-3/8" max (ornamental); 9/16" adjustability in height Consistent closing speed thanks to patented hydraulic damping Robust yet stylish design with high quality components For left and right handed gates ADA compliant (< 5 lbs; max 16 Nm) from gate widths of 3ft. or more 180° self-closing double bearing hinge with adjustable closing speed and final snap
Specifications	Vandal and tamper proof Fast and easy installation with Quick-Fix Weatherproof aluminum housing designed for exterior use Installation gap 9/16 min up to 1-3/8" max (ornamental); 9/16" adjustability in height Consistent closing speed thanks to patented hydraulic damping Robust yet stylish design with high quality components For left and right handed gates ADA compliant (< 5 lbs; max 16 Nm) from gate widths of 3ft. or more 180° self-closing double bearing hinge with adjustable closing speed and final snap
Available in following RAL-colors
Features
