Item No. D00000082 - 4DW

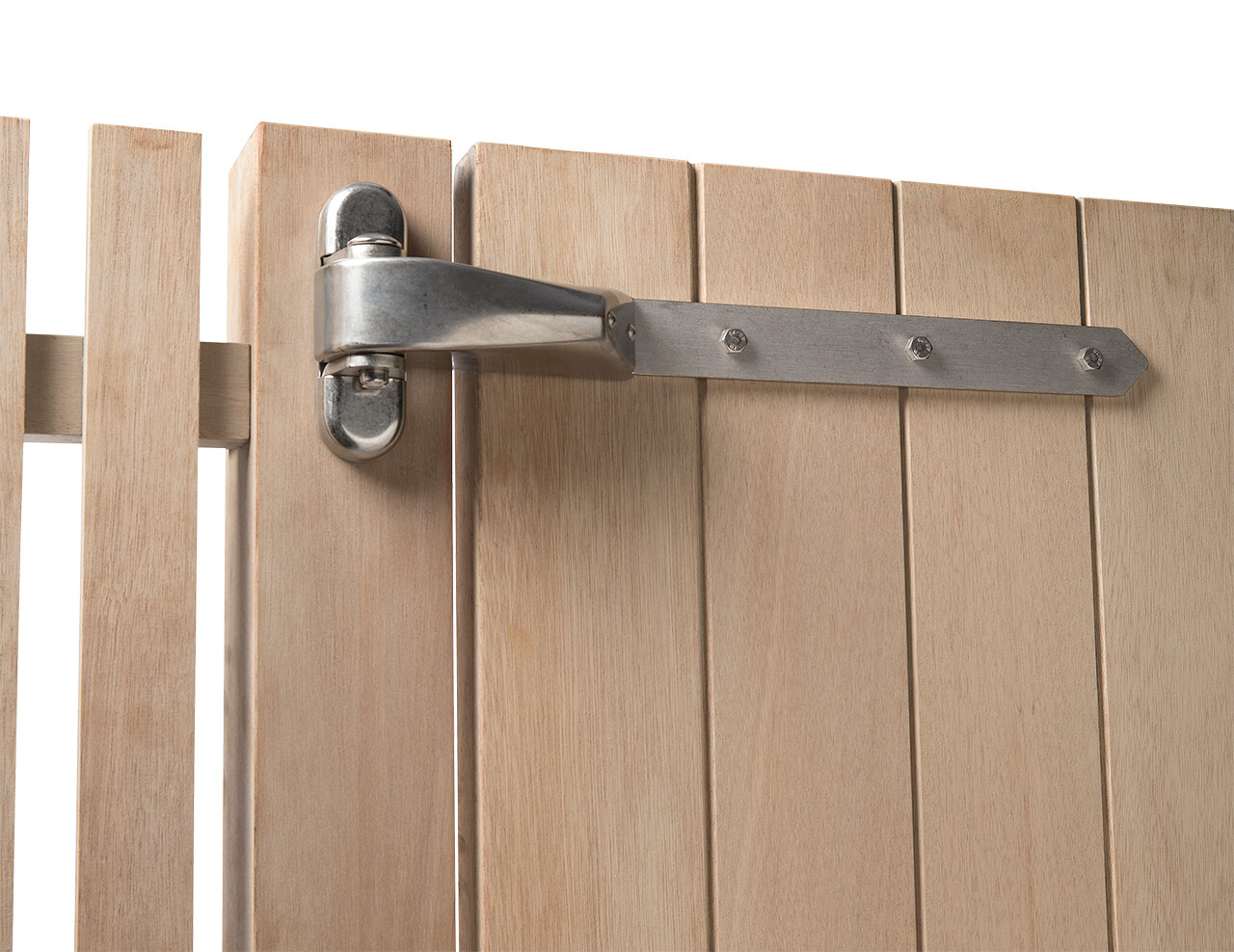

Aesthetic, vandal proof hinge for wooden gates. The stainless steel hinge can be adjusted in 4 dimensions. Height, depth, left / right alignment and rotational direction can be adjusted. Adjustments can be made after installing the hinges. This way your gate is always perfectly aligned.
Product specs
This product cannot be ordered at the moment.
3 product(s) found
Sort by:
Specifications
Perfion__Bullets
  • 180° hinge for wooden gates
  • Vandal and tamper proof

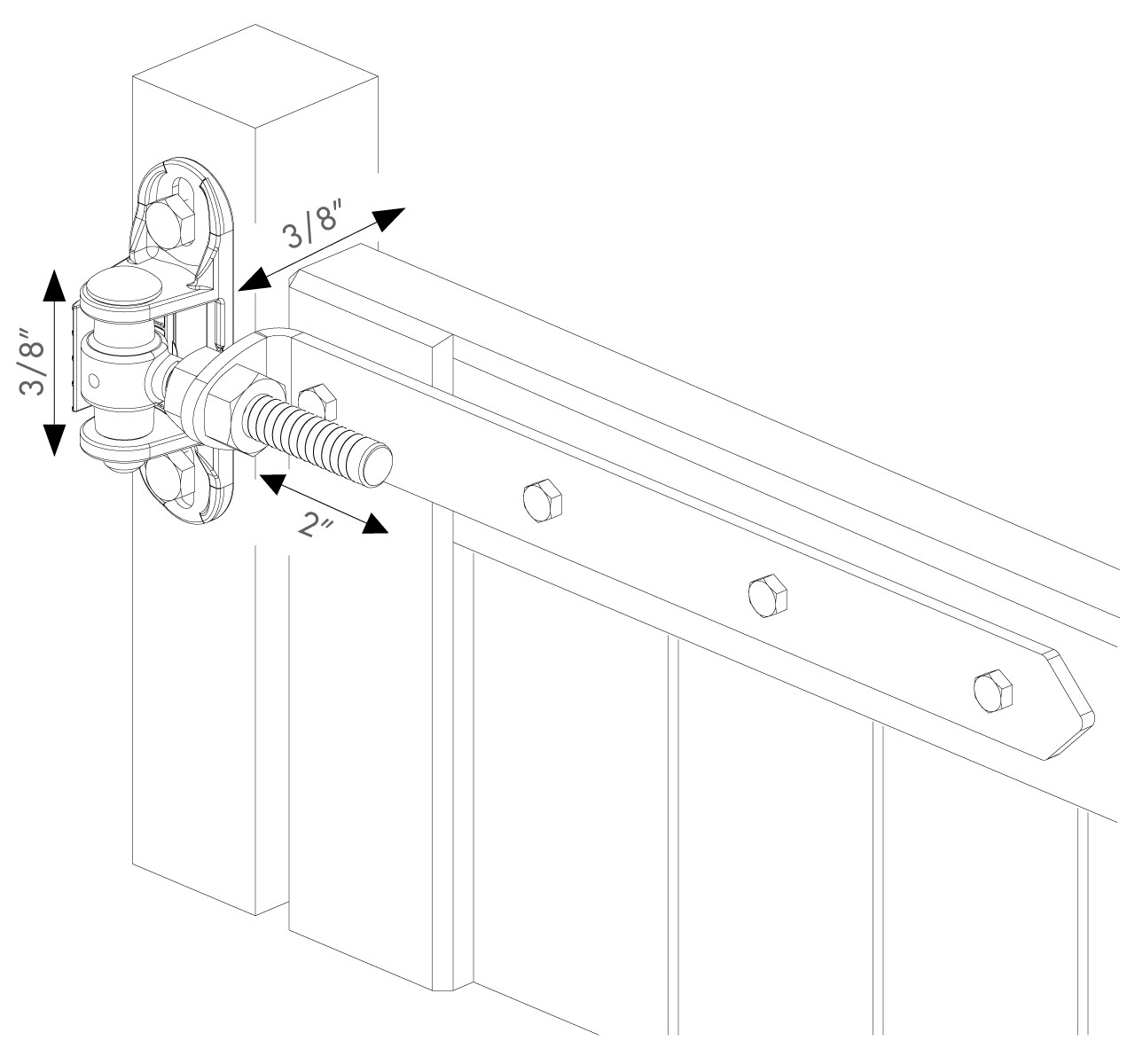

  • Adjustable in 4 dimensions: height, depth, left / right alignment and rotational direction
  • ± 2" longitudinal adjustability
  • 3/4" depth adjustability (9/16" outside and 15/64" inside of fixed pole)
  • Perfect in combination with the H-Wood lock and SHKW keep
  • Available with 1 ft 3-3/4 inch or 1 ft 7-11/16 inch hinge arm
Specifications
  • 180° hinge for wooden gates
  • Vandal and tamper proof
  • Adjustable in 4 dimensions: height, depth, left / right alignment and rotational direction
  • ± 2" longitudinal adjustability
  • 3/4" depth adjustability (9/16" outside and 15/64" inside of fixed pole)
  • Perfect in combination with the H-Wood lock and SHKW keep
  • Available with 1 ft 3-3/4 inch or 1 ft 7-11/16 inch hinge arm

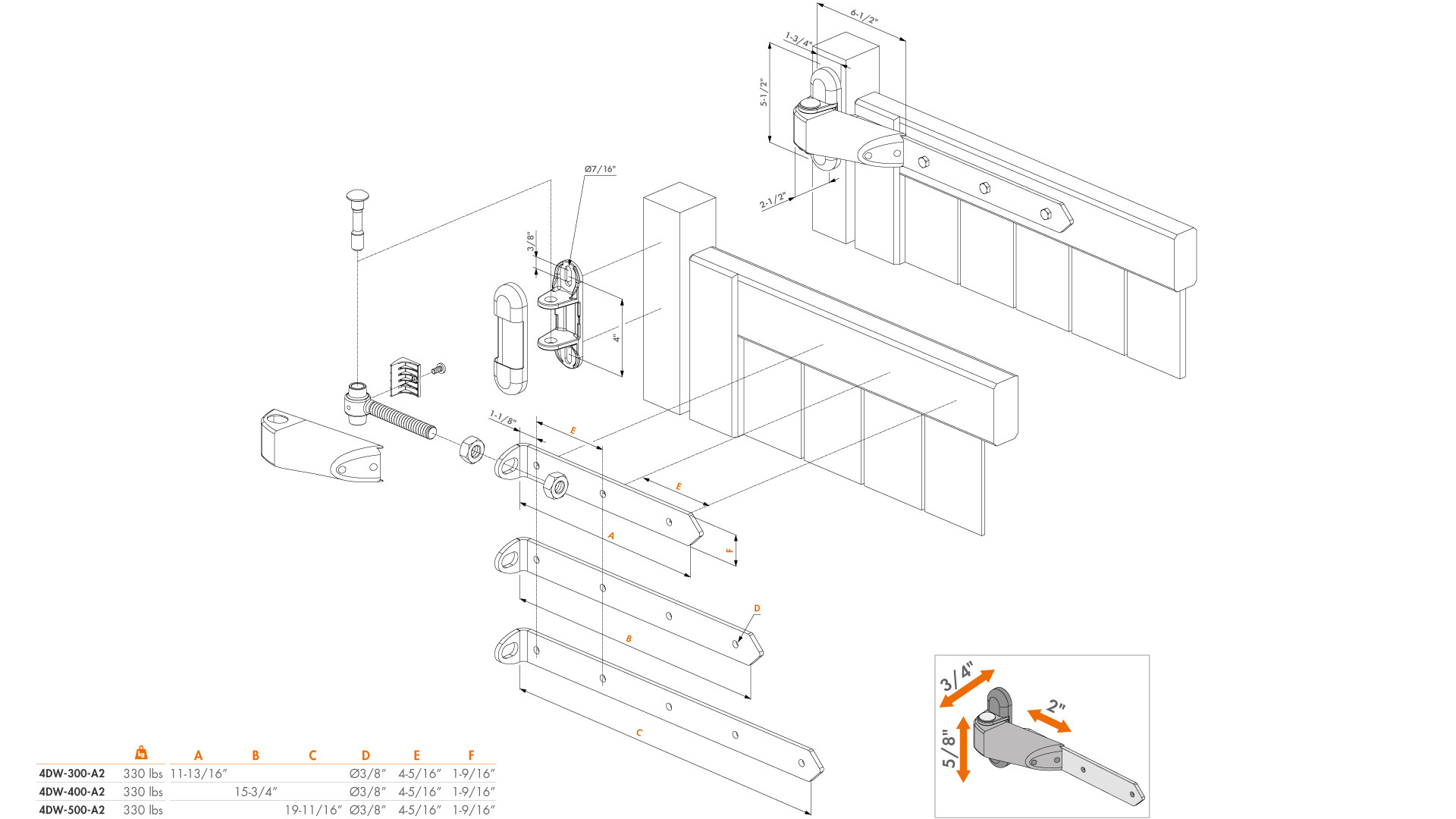

Drawings
