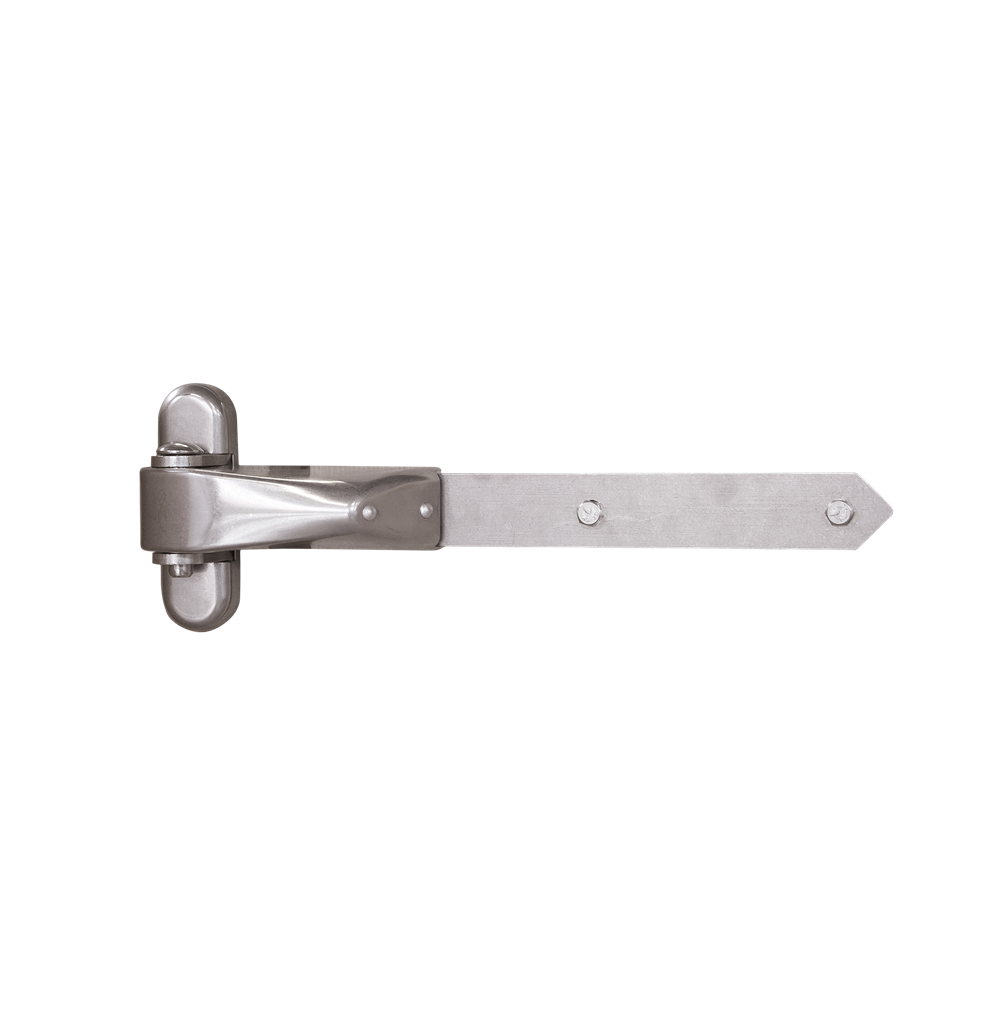

Vandal-proof 4D-hinge for wooden gates

Item No. D00000082 - 4DW

Aesthetic, vandal proof hinge for wooden gates. The stainless steel hinge can be adjusted in 4 dimensions. Height, depth, left / right alignment and rotational direction can be adjusted. Adjustments can be made after installing the hinges. This way your gate is always perfectly aligned.

Product specs

3 product(s) found

Vandal-proof 4D-hinge for wooden gates - 4DW-300-A2

Item No. P00006983

Vandal-proof 4D-hinge for wooden gates - 4DW-400-A2

Item No. P00006984

Vandal-proof 4D-hinge for wooden gates - 4DW-500-A2

Item No. P00006985

Specifications
Drawings
Downloads

Specifications

Perfion__Bullets	180° hinge for wooden gates Vandal and tamper proof Adjustable in 4 dimensions: height, depth, left / right alignment and rotational direction ± 2" longitudinal adjustability 3/4" depth adjustability (9/16" outside and 15/64" inside of fixed pole) Perfect in combination with the H-Wood lock and SHKW keep Available with 1 ft 3-3/4 inch or 1 ft 7-11/16 inch hinge arm
Specifications	180° hinge for wooden gates Vandal and tamper proof Adjustable in 4 dimensions: height, depth, left / right alignment and rotational direction ± 2" longitudinal adjustability 3/4" depth adjustability (9/16" outside and 15/64" inside of fixed pole) Perfect in combination with the H-Wood lock and SHKW keep Available with 1 ft 3-3/4 inch or 1 ft 7-11/16 inch hinge arm

Drawings

Downloads

Item No. D00000013

Electrogalvanized security strips to weld on

Item No. P00007982

Vandal-proof 4D-hinge for wooden gates

Do you want to add the selected products to the shopping cart?

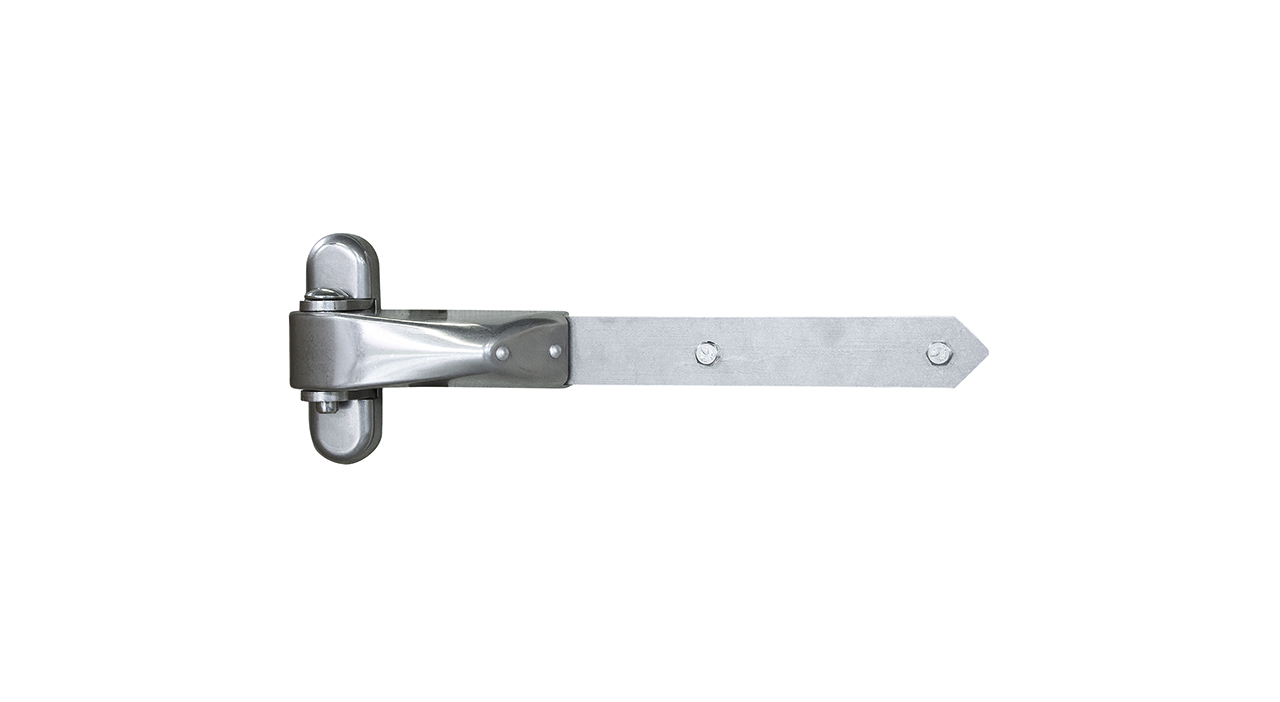

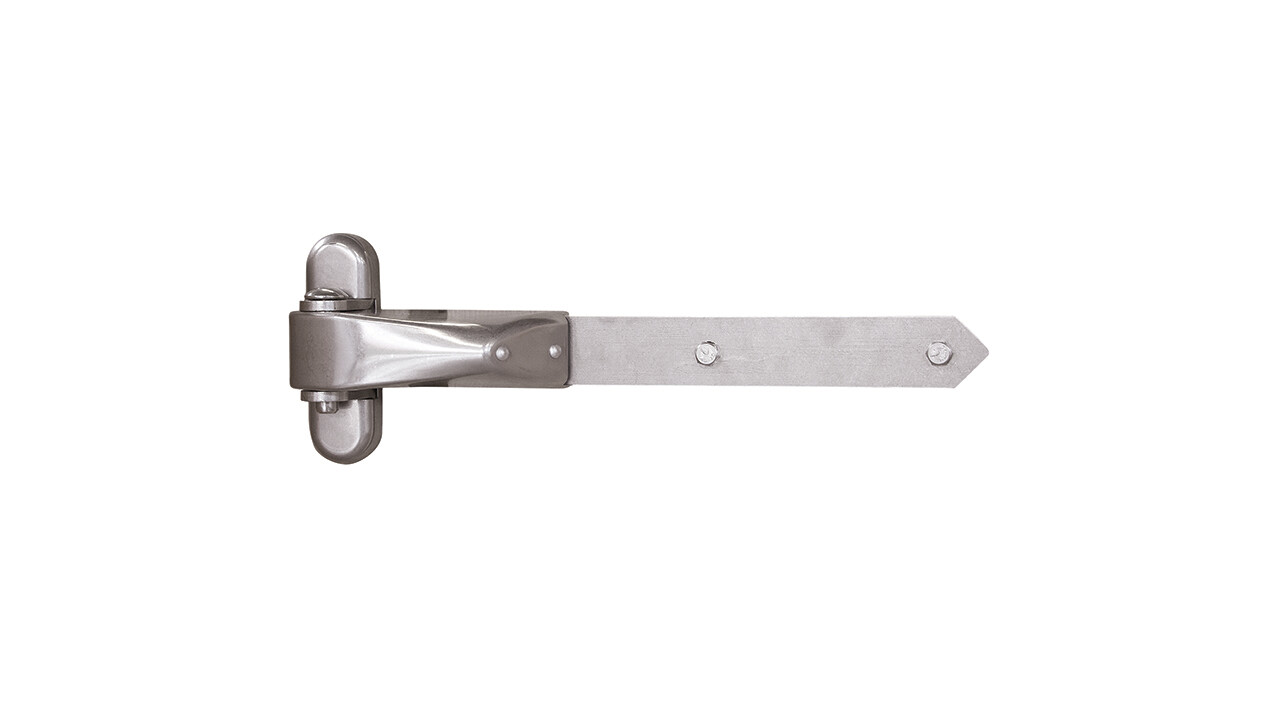

Product

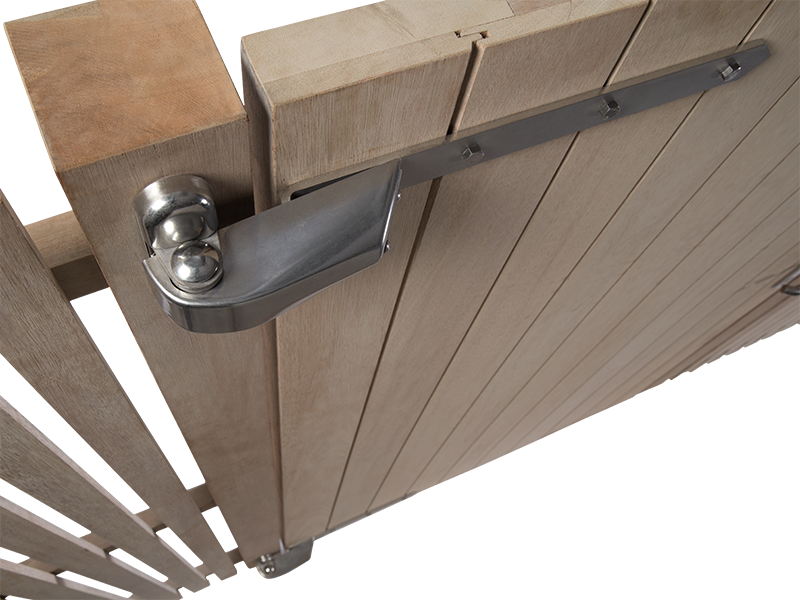

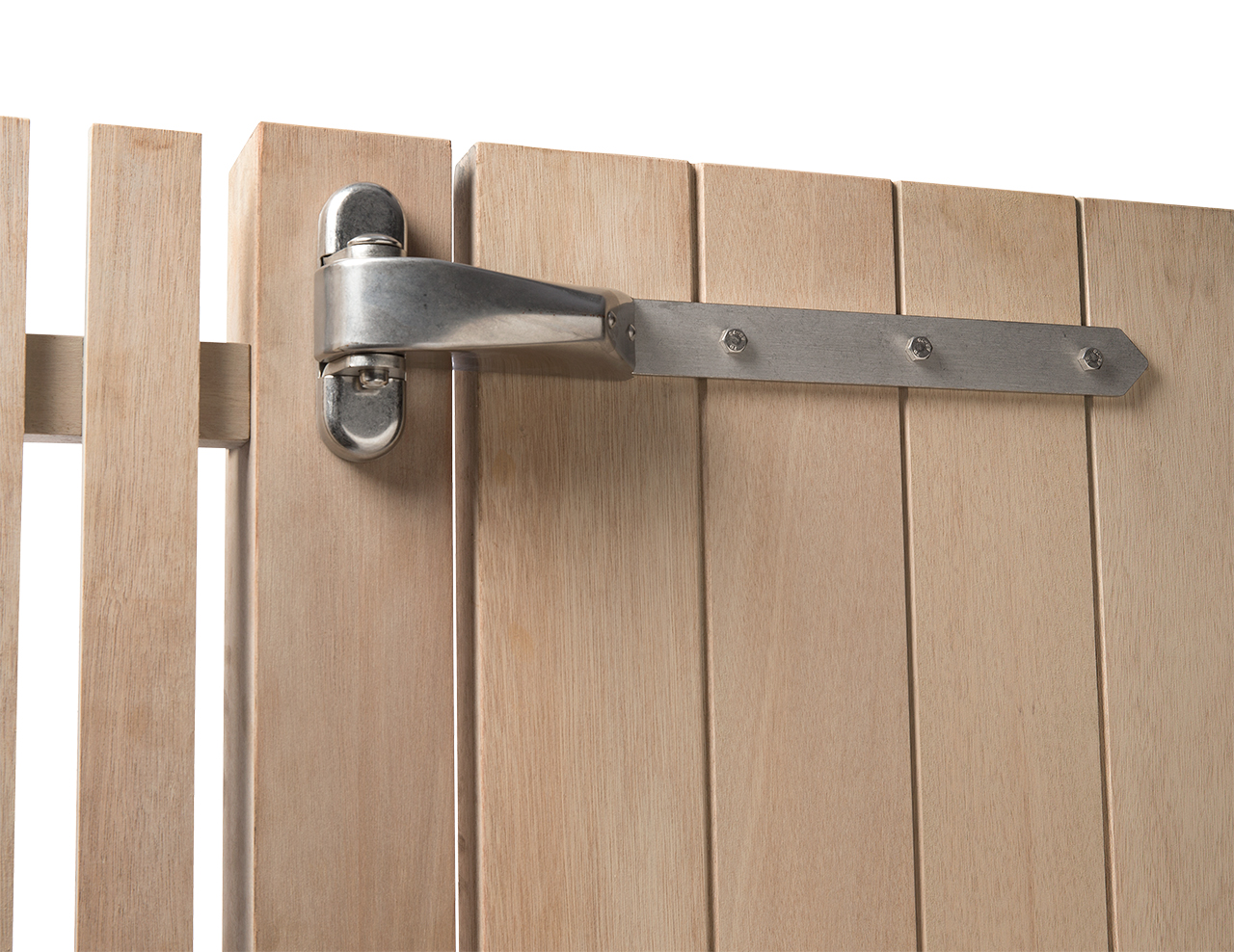

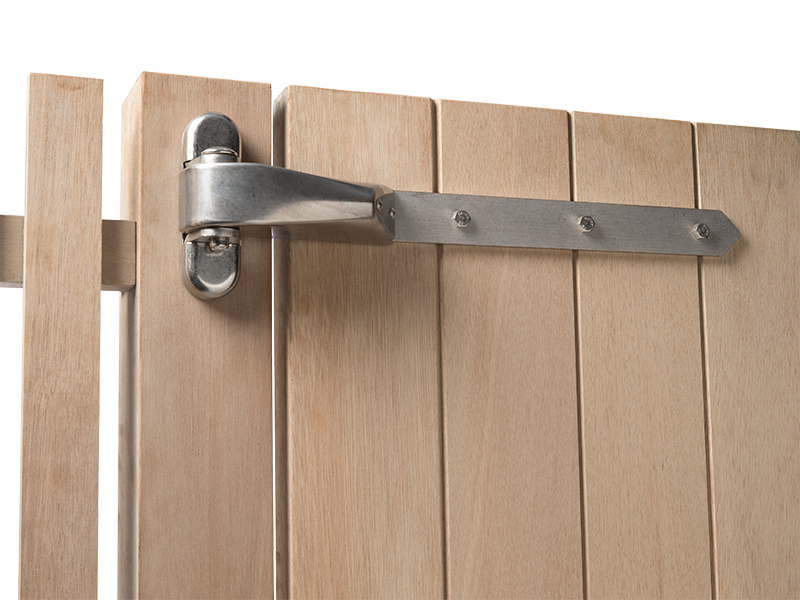

On a wooden gate

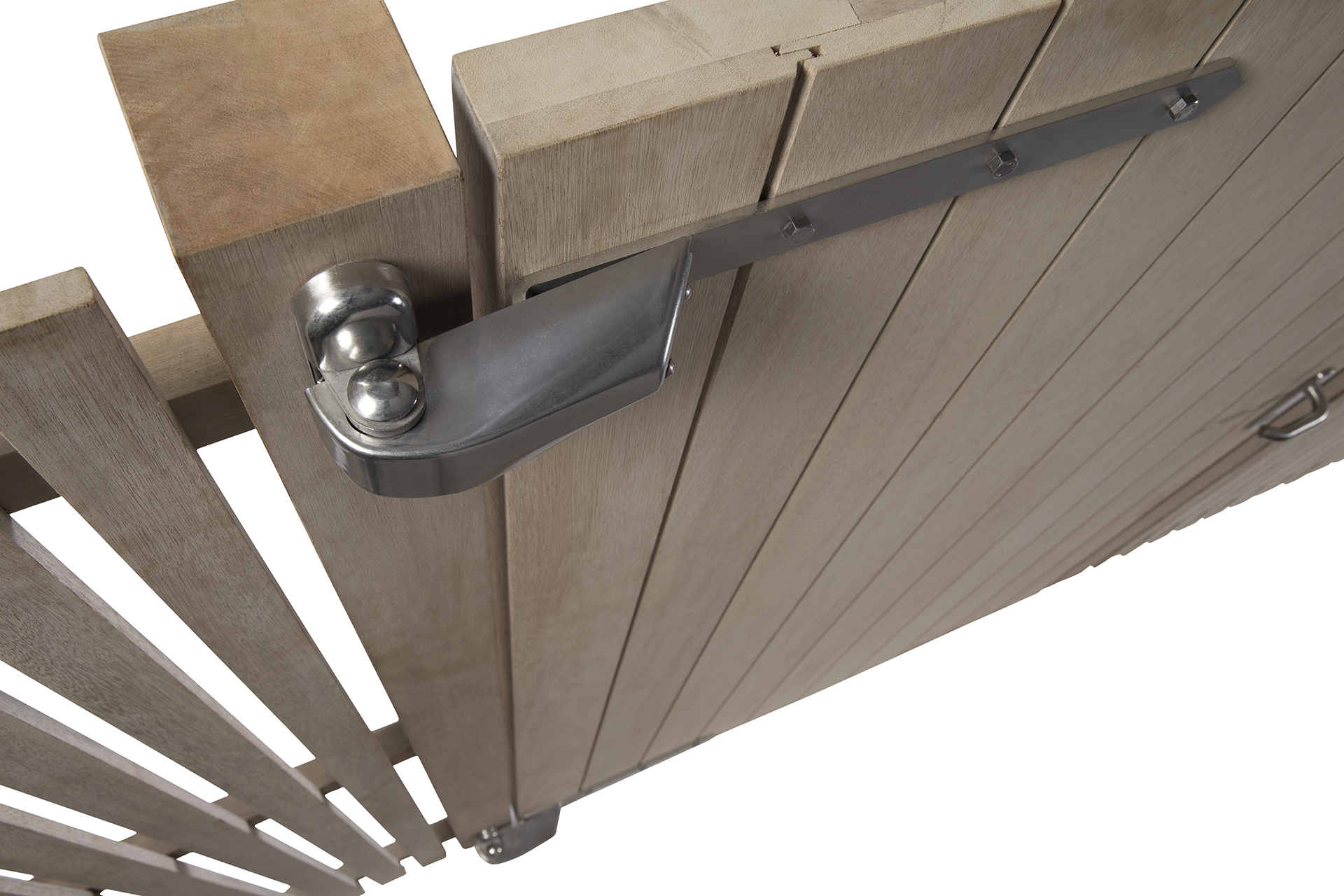

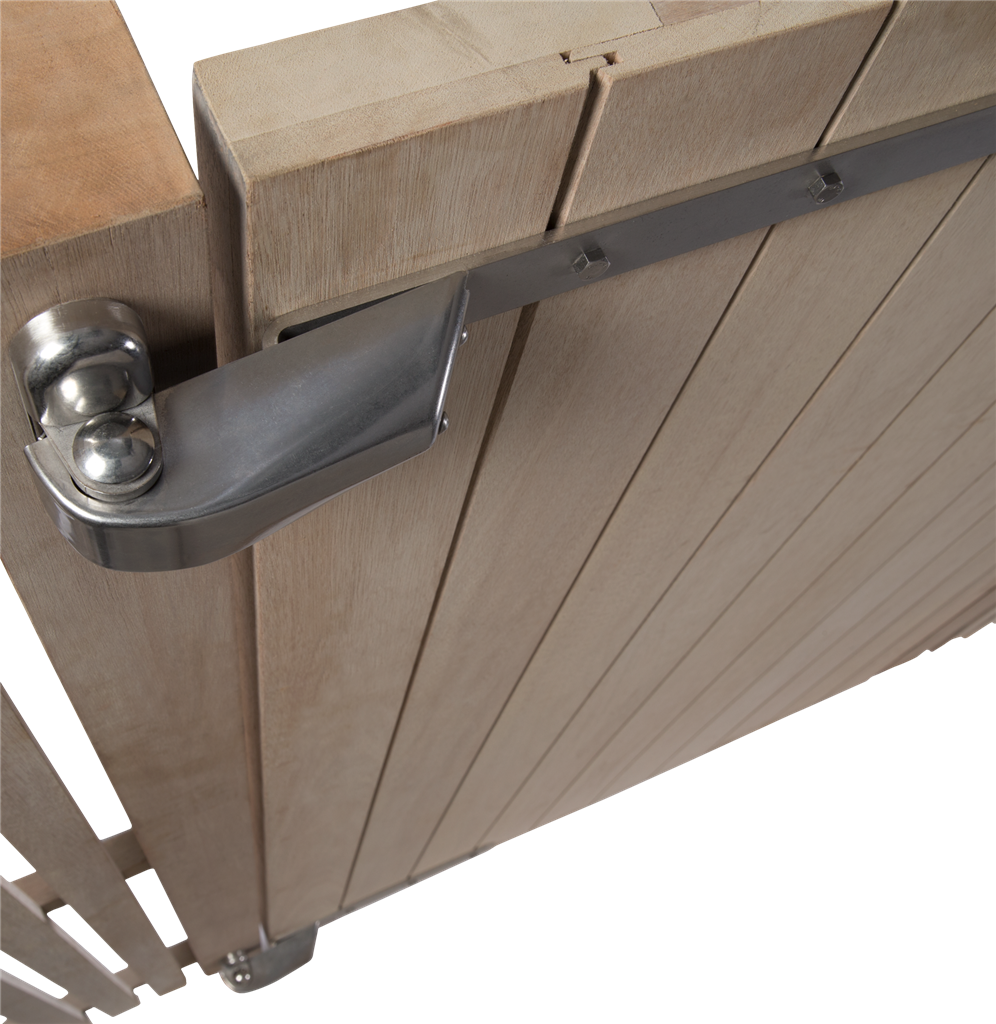

On a wooden gate

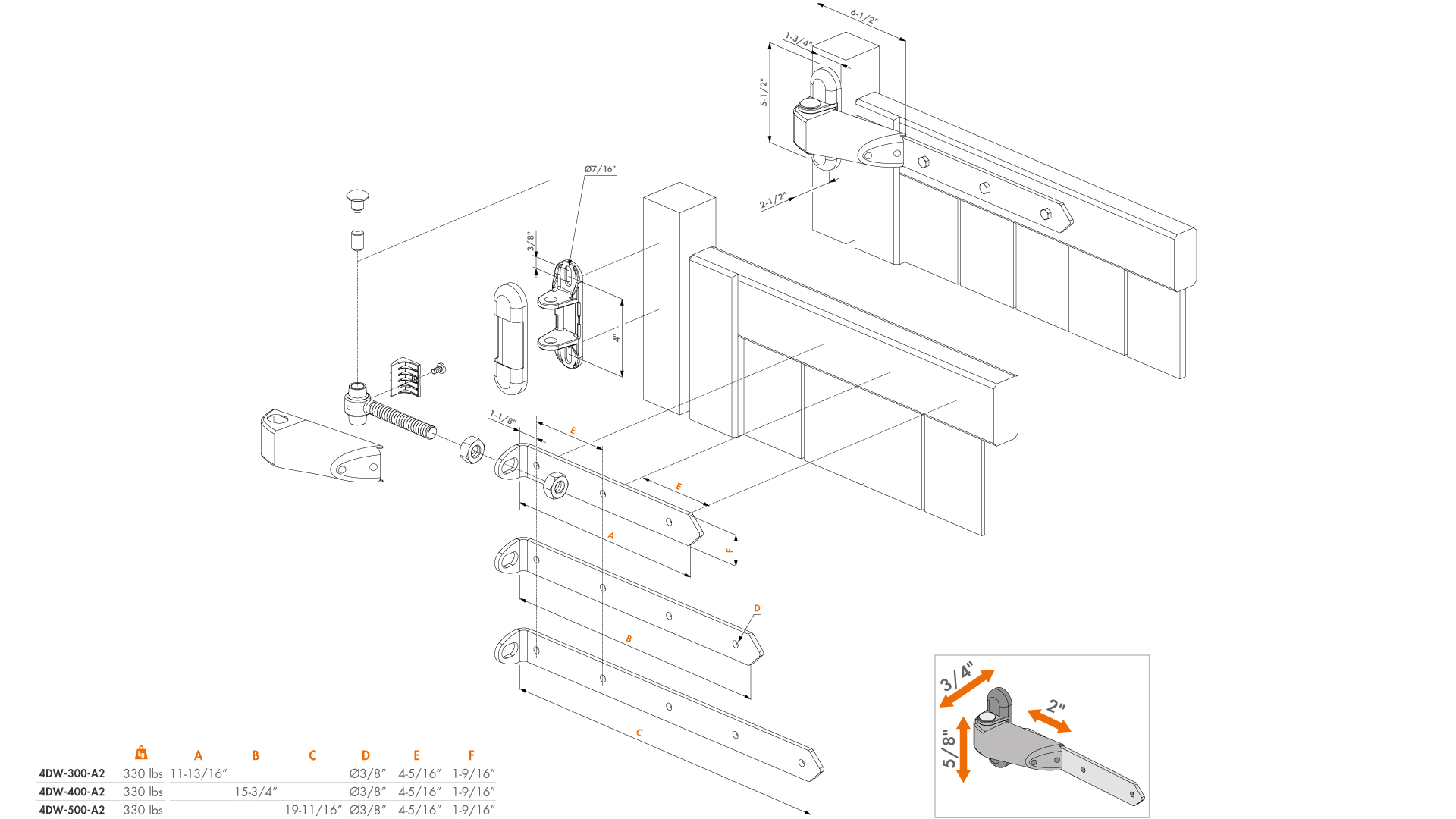

2D/3D drawings

Adjustability

Installation instructions

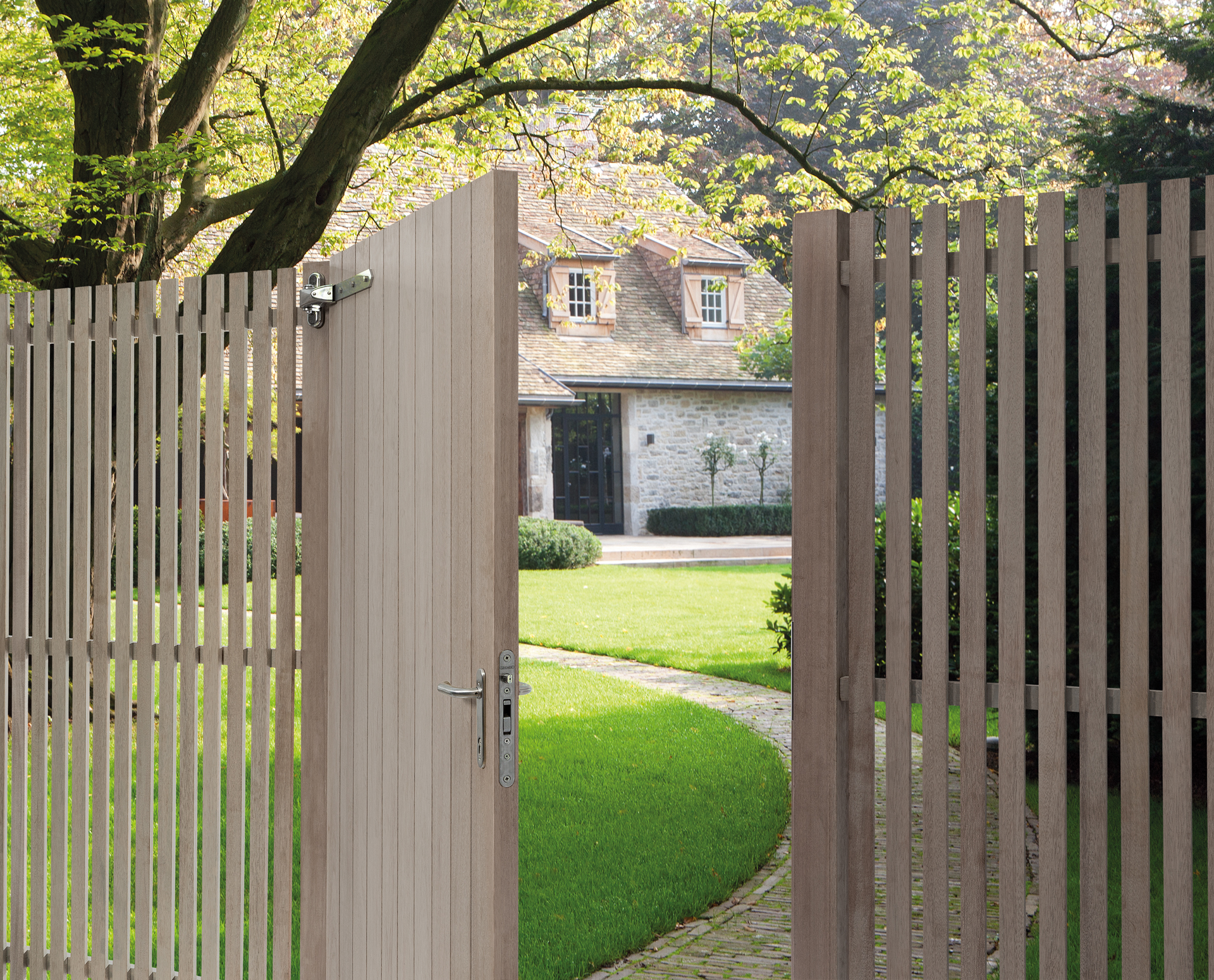

Wooden swing gate at landhouse

Product sheet
