Ground fixation set for Interio gate closer - INTERIO-GROUND

Item No. P00004754 - INTERIO-GROUND

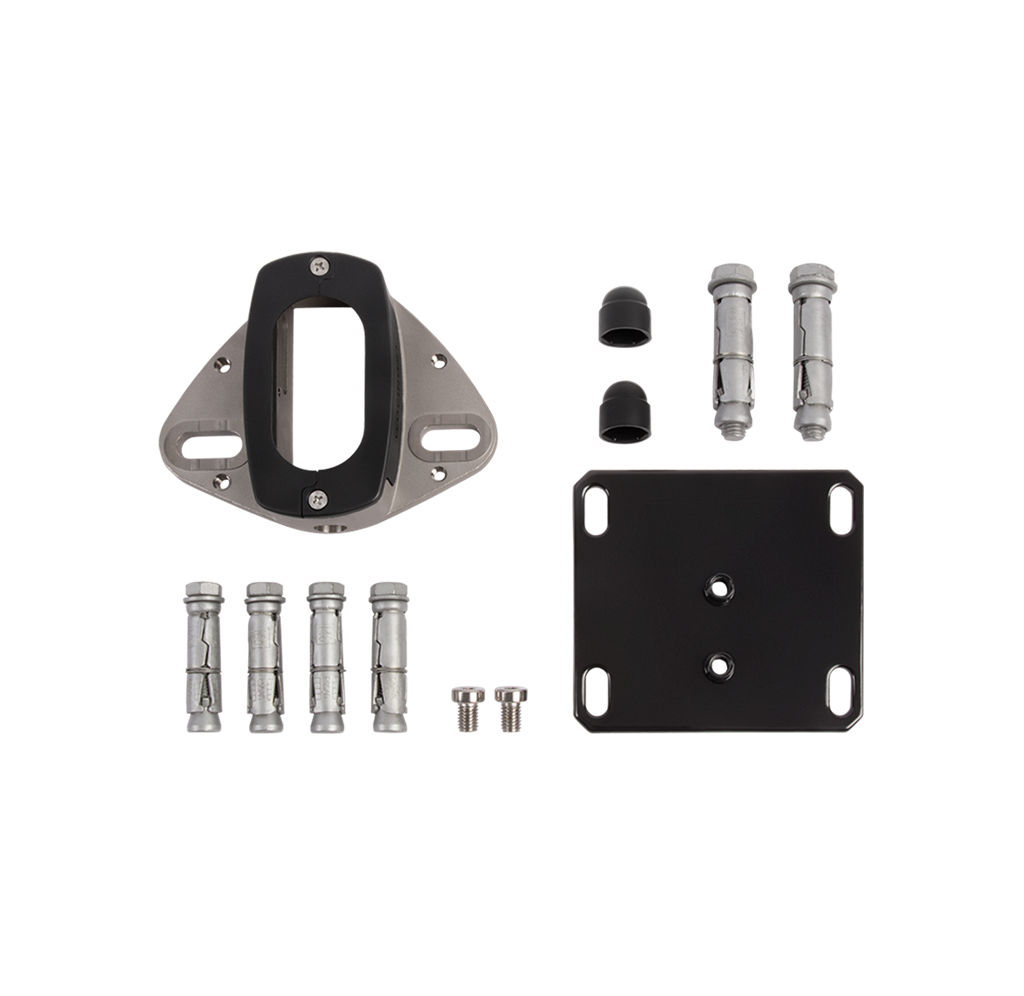

Optional set to fix the Interio gate closer directly on the ground. This set consists of a ground hinge and a wall panel. Including all fixations.

9005
Ground fixation set for Interio gate closer

Specifications

Perfion__Bullets	Wall plate made of hot-dip galvanized metal with RAL9005 powder coating Bottom hinge fixation block made of aluminum Anchor bolts included Distance between gate and wall: min. 1-1/8" - max. 2-1/8" Depth adjustment: 9/16" Height adjustment: 3/8" Only compatible with Interio gate closer Minimal opening under the gate: 7/8"
Specifications	Wall plate made of hot-dip galvanized metal with RAL9005 powder coating Bottom hinge fixation block made of aluminum Anchor bolts included Distance between gate and wall: min. 1-1/8" - max. 2-1/8" Depth adjustment: 9/16" Height adjustment: 3/8" Only compatible with Interio gate closer Minimal opening under the gate: 7/8"

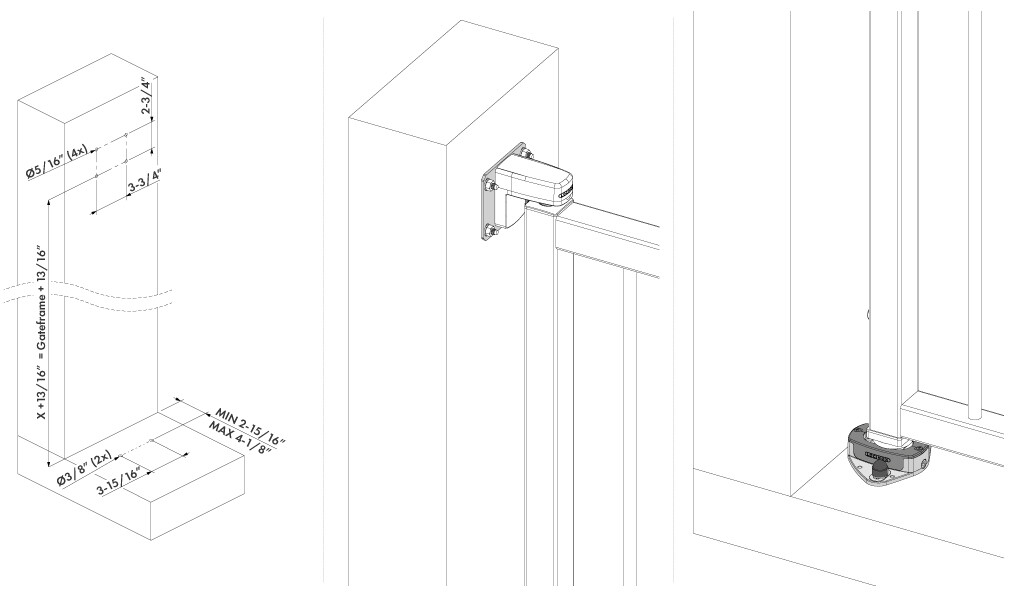

Drawings

Downloads

Item No. P00009941

Item No. D00000173
